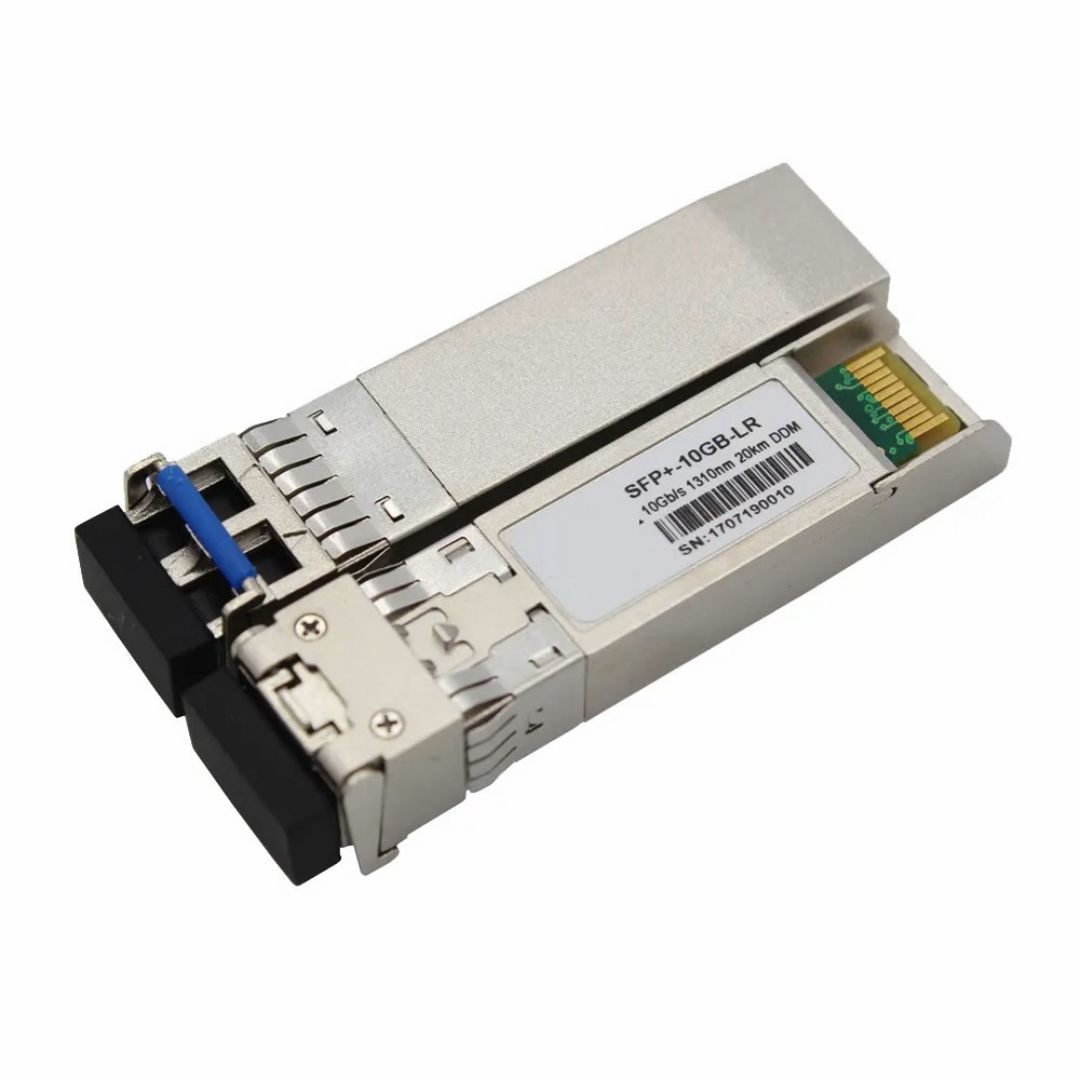

SFP+ -10G-LR is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s, inter-converting the 10Gb/s serial electrical data stream with the 10Gb/s optical signal. It complies with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. It provides Digital diagnostics functions via a 2-wire serial interface as specified in SFF-8472. It features hot plug, easy upgrading and low EMI emission. The high-performance 1310nm DFB transmitter and high-sensitivity PIN receiver provide superior performance for Ethernet applications up to link length of 10km on single mode fiber.
Frequently Asked Questions
Q1: What is the maximum transmission distance for the SFP+ -10G-LR?
A: This module supports a link length of up to 10km when used with single mode fiber (SMF).
Q2: Does this transceiver support Digital Diagnostic Monitoring (DDM)?
A: Yes, it provides digital diagnostics functions via a 2-wire serial interface, fully compliant with the SFF-8472 specification.
Q3: What type of connector does the SFP+ -10G-LR use?
A: The module is equipped with a standard Duplex LC connector.
Q4: Can this module be used in harsh industrial environments?
A: Yes, there is an industrial temperature version (SFP+ -10G-LR-I) that operates in a range from -40°C to +85°C.
Q5: Is this SFP+ module hot-pluggable?
A: Yes, it features a hot-plug capability which allows for easy upgrading and maintenance without powering down the host system.
Q6: What communication standards does this module comply with?
A: It complies with SFF-8431, SFF-8432, and IEEE 802.3ae 10GBASE-LR standards.
