- Programmable system with memory for procedures.
- Dual MT UPC & Angled PC connector polishing;
- High volume polishing, more than 24 ferrules per cycle.
- Accommodates FC/UPC, SC/UPC, ST/UPC, LC/UPC, MU/UPC, FC/APC, MTRJ, E2000connectors.
- Excellent end-face quality.

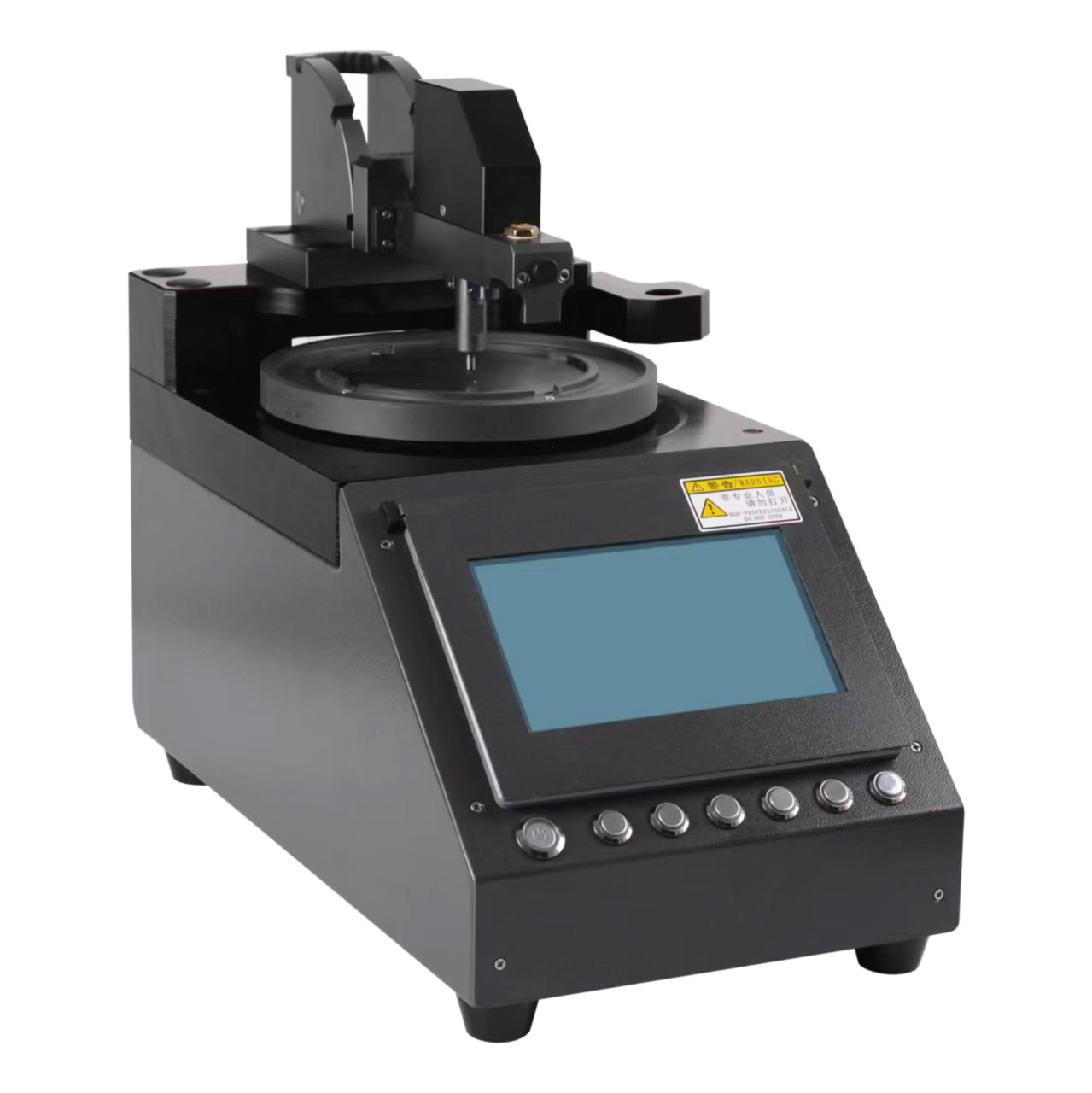

High Efficiency: KCO-PM-MPO-06 MTP MPO fiber optic connector polishing machine can simultaneously process 24 heads, making it very suitable for batch production.

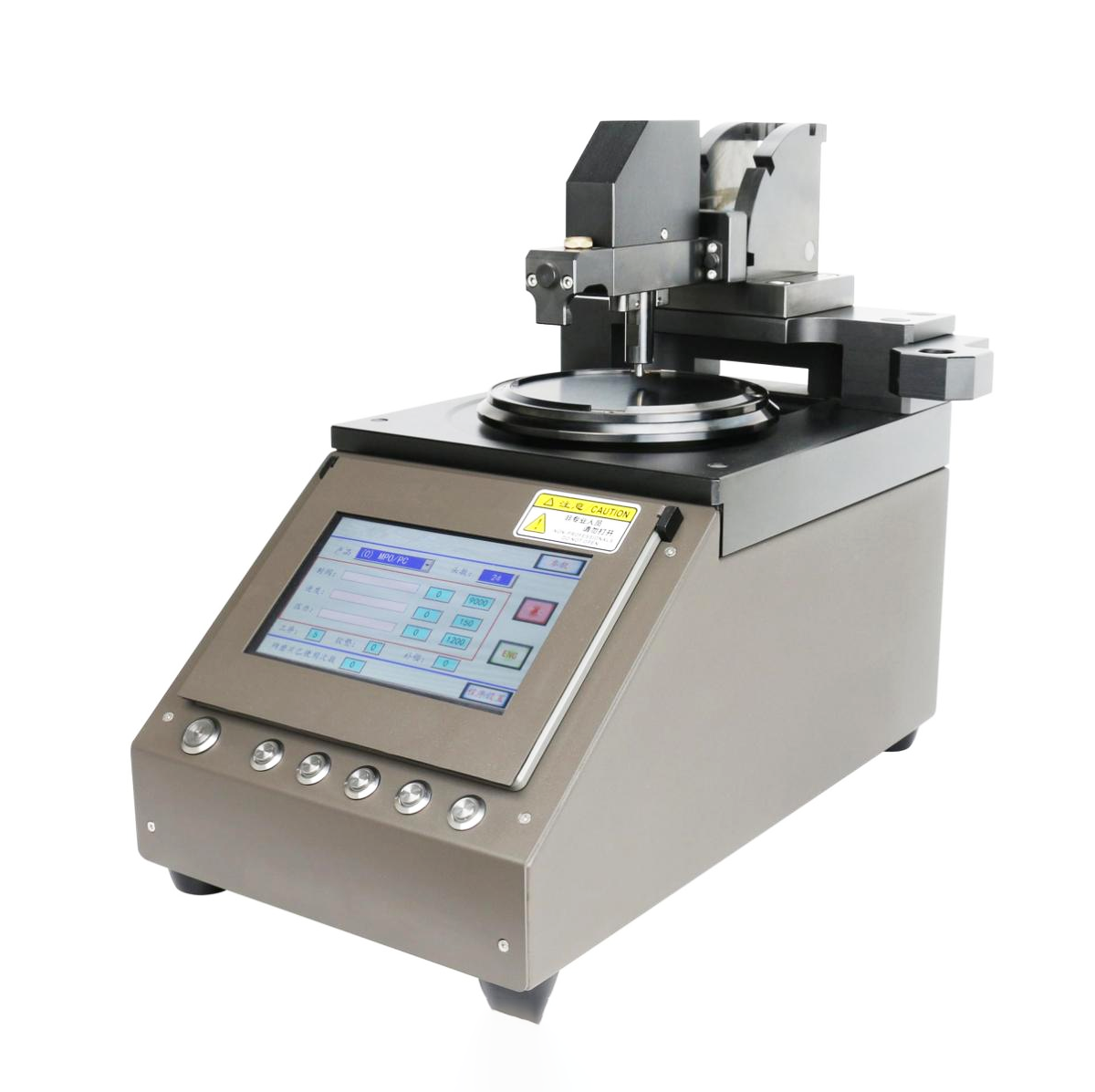

Smart Control: The polishing program uses a PC-based 7-inch touchscreen display, showing real-time time, speed, number of grinds, and consumables.
Precision Engineering: Calibration of pneumatic pressure control via sensor feedback. Uses center pressure and programmable slow start for high consistency.
• It can produce geometric end faces that comply with IEC standards.
• It adopts a planetary trajectory grinding method.
• High-quality heat-treated stainless-steel parts ensure precision and durability.
• Machine working voltage AC220V (converted to 24V); for 110V, please use a transformer.
• Store up to 20 polishing processes, each supporting 8 steps.
• Programmable polishing film counting and machine maintenance unit.

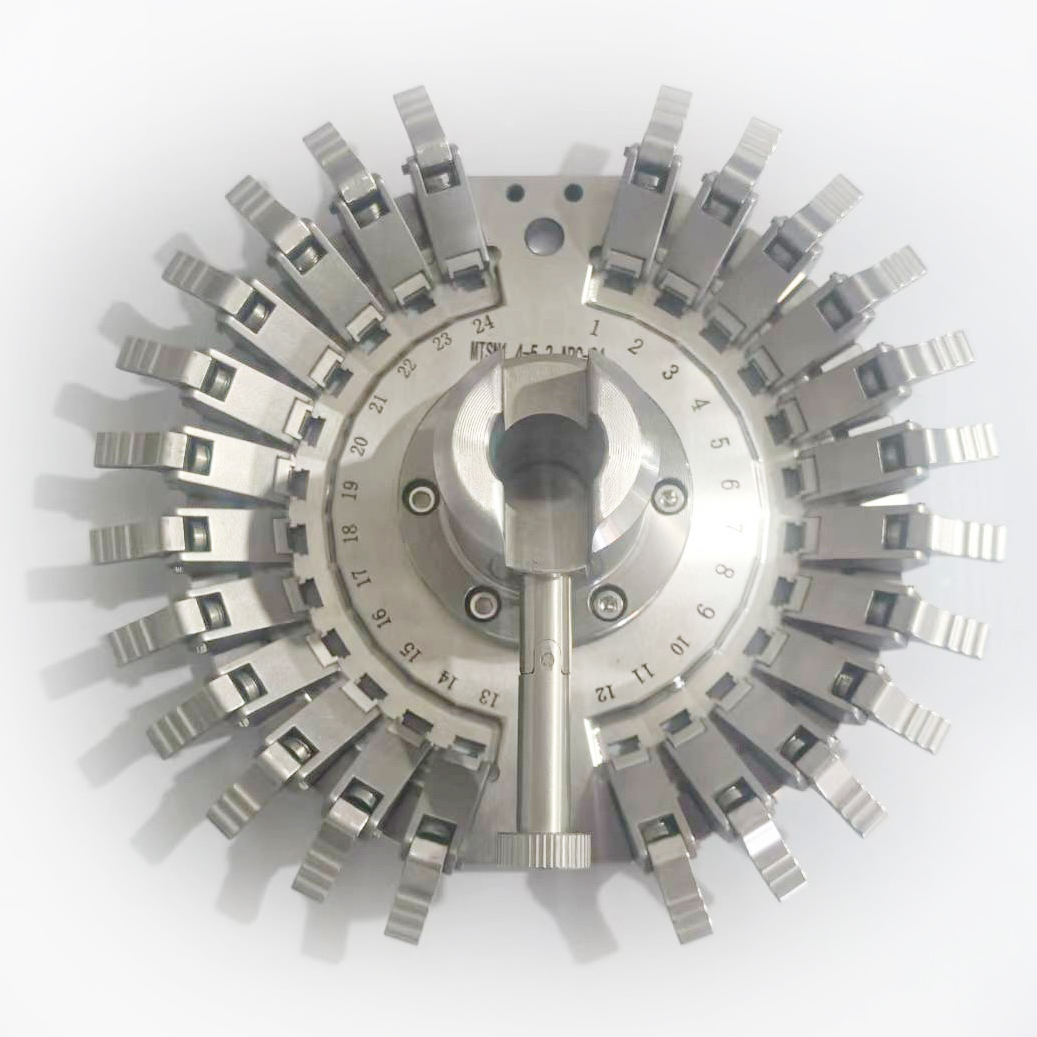

• Automatic pressure compensation according to the jumper number on the fixture.
• Speed Adjustable range: 10-200 RPM.
• Data portability via USB and automatic alarm for low air pressure.
• 3D interference pass rate is over 98% for 24 MTP/MPO connectors.
P/N
KCO-PM-MPO-06
Machine Size
570*270*440mm
O.D. of Rotation Plate
127 mm (5 inch)
Time Settings
99 min 99 sec (Max)
Speed for Rotation Plate
110 rpm
Height of Plate Jumpiness
<10 um
Pressure Configuration
21 ~ 36 N/cm2
Work Temperature
10℃~40℃
Relative Humidity
15%~85%
Noise
Unloading less than 50 dB
Libration (Working Status)
0.25g 5~100Hz 10min
Stopping Status
0.50g 5~100Hz 10min
Power Input
220~230 VAC 50Hz/60Hz
Electric Power
40W
Net Weight
22kg
Frequently Asked Questions
Q1: How many connectors can the KCO-PM-MPO-06 process at once?A1: This machine is designed for high-capacity batch production and can simultaneously process up to 24 MTP/MPO fiber optic connectors.
Q2: What is the success rate for 3D interference tests?A2: With its high-precision planetary trajectory grinding method, the machine achieves a 3D interference pass rate of over 98%.
Q3: Can I save different polishing recipes on the machine?A3: Yes, the system can store up to 20 different polishing processes, and each process can include up to 8 individual steps.
Q4: How does the machine handle pressure control?A4: It utilizes pneumatic pressure control with real-time feedback from pressure sensors. It also features automatic compensation based on the number of jumpers on the fixture.
Q5: Is the interface user-friendly for operators?A5: Yes, it features an intuitive 7-inch touchscreen that displays real-time data including speed, pressure, time, and consumables for easy quality control.
Q6: What are the electrical requirements for installation?A6: The machine requires a power input of 220-230 VAC (50Hz/60Hz). If your facility uses 110V, a transformer must be used to convert the voltage.
