+ Use for outdoor aerial.  + Central Loose Tube Outdoor Fiber Optic Cable, + Fiber count: 2 fibers, 4 fibers, 6 fibers, 8 fibers, 12 fibers,  24 fibers. + Fiber type: SM G652D, SM G657A1, SM G657A2, MM OM1, MM OM2, MM OM3, MM OM4, MM OM5 + Cable out-sheath: PE, black + Cable diameter: 6.5mm, 7.0mm, 7.0mm + Cable printing and labelling: accept.
Send Inquiry

Product Description

⚙️ Steel-wire parallel member, filler protect tube fiber steel tape armored.
🛡️ Excellent mechanical and environmental performance.
📦 Compact structure, light weight can be installed conveniently and operated simply.
🧬 Other fiber are available option: Single mode (G652D, G657A, G657B) and Multimode (OM1, Om2, Om3, OM4, OM5).
🔢 Fiber count: 2fo ~ 12fo (Up to 24 fibers available).
📏 Diameter option: 6.0mm, 7.0mm (ex-work), 8.0mm.
GYXTW Cable Specification Cable Diameter Weight
Fiber count: 2 fibers to 24 fibers 8.0mm ± 0.5mm 70kg/km
7.0mm ± 0.3mm 50kg/km
Temperature Range -40°C to +70°C
Min Bending Radius (Long term) 10D -
Min Bending Radius (Short term) 20D -
Min allowable Tensile Strength (Long term) 1200 N -
Min allowable Tensile Strength (Short term) 1500 N -
Operation / Storage Temperature -40°C to +70°C
Installation Temperature -20°C to +60°C
Fiber Optic Structure Cable Cross Section
Fiber Style Unit SM G652D SM G657A MM 50/125 MM 62.5/125 MM OM3-300 MM OM4-550
Condition (nm) nm 1310/1550 1310/1625 850/1300 850/1300 850/1300 850/1300
Attenuation dB/km ≤0.34/0.22 ≤0.35/0.21 ≤3.0/1.0 ≤3.0/1.0 ≤3.0/1.0 ≤3.5/2.2
Core Diameter um 9 9 50±1.0 62.5±2.5 50±1.0 50±1.0
Cladding Diameter um 125.0±0.1 125.0±0.1 125.0±0.1 125.0±0.1 125.0±0.1 125.0±0.1
Numerical Aperture - ---- ---- 0.200±0.015 0.275±0.015 0.200±0.015 0.200±0.015
🌳 Adopted to Outdoor distribution.
🚠 Suitable for aerial, pipeline laying method.
🌐 Long distance and local area network communication.
Cable Installation Cable Sheath
Fiber Color Identification
123456
BlueOrangeGreenBrownGreyWhite
789101112
RedBlackYellowVioletPinkAqua

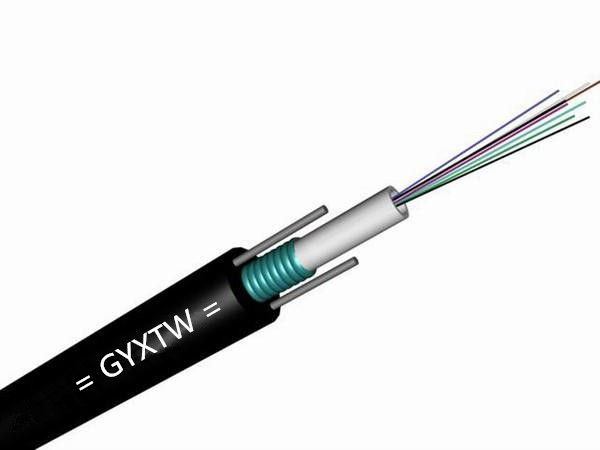

●   GYXTW fiber optic cable, the fibers 250μm, are positioned in a loose tube made of a high modulus plastic.
●   The tubes are filled with a water-resistant filling compound.
●   The tube is wrapped with a layer of PSP longitudinally.
●   Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.
●   Two parallel steel wires are placed at the two sides of the steel tape.
●   The cable is completed with a polyethylene (PE) sheath, black color, to protect the fiber from UV.
Frequently Asked Questions
What are the primary installation methods for GYXTW cable?
The GYXTW fiber optic cable is designed for outdoor distribution and is suitable for both aerial and pipeline laying methods.
Which fiber types can be used in this cable?
Options include Single mode fibers (G652D, G657A, G657B) and Multimode fibers (OM1, OM2, OM3, OM4, OM5).
How does the cable resist water and moisture?
The cable uses a water-resistant filling compound inside the loose tube and additional water-blocking material between the PSP tape and the tube to ensure watertight performance.
What is the operating temperature range for GYXTW?
The cable is rated for a wide operation and storage temperature range from -40°C to +70°C.
What provides the mechanical strength and UV protection?
Two parallel steel wires and a steel tape (PSP) provide mechanical strength and crush resistance, while a black polyethylene (PE) sheath protects the fibers from UV radiation.
What is the standard fiber count for this cable?
The fiber count typically ranges from 2 fibers to 12 fibers, with options available up to 24 fibers.
