■ Optical Characteristics
| Data Rate |
DR |
Gbps |
9.953 |
10.3125 |
11.3 |
|
| Center Wavelength Range |
λc |
nm |
820 |
850 |
880 |
|
| Laser Off Power |
Poff |
dBm |
- |
- |
-45 |
|
| Launch Optical Power |
P0 |
dBm |
-6.0 |
|
|
1 |
| Extinction Ratio |
ER |
dB |
3 |
- |
- |
|
| Spectral Width (RMS) |
RMS |
nm |
- |
|
0.45 |
|
| Data Rate |
DR |
Gbps |
9.953 |
10.3125 |
11.3 |
|
| Bit Error Rate |
BER |
dBm |
- |
- |
E-12 |
2 |
| Overload Input Optical Power |
PIN |
dBm |
2.4 |
- |
- |
2 |
| Center Wavelength Range |
λc |
nm |
820 |
- |
880 |
|
| Receiver Sensitivity in Average Power |
Sen |
dBm |
- |
- |
-9.9 |
3 |
| Los Assert |
LosA |
dBm |
-26 |
- |
- |
|
| Los De-Assert |
LosD |
dBm |
- |
- |
-12 |
|
| Los Hysteresis |
LosH |
dB |
0.5 |
- |
- |
|
Notes:
1. Coupled into 50/125 MMF.
2. Measured with PRBS 231-1 test pattern @10.3125Gbps. BER=10E-12
■ Key Features & Applications
✓ Support 10GBASE-SR/10G Fiber Channel
✓ Compliant to SFP+ Electrical MSA SFF-8431
✓ Compliant to SFP+ Mechanical MSA SFF-8432
✓ Multi rate of up to 11.3Gbps
✓ Transmission distance up to 150m (OM3)
✓ +3.3V single power supply
✓ Low power consumption
✓ Operating temp: 0°C to +70°C
✓ RoHS compliant
✓ Password protection for A0h and A2h
✓ InfiniBand QDR, SDR, DDR
✓ Other optical links
■ Electrical Characteristics
| Differential Data Input Swing |
Vin,P-P |
200 |
- |
1600 |
mVPP |
|
| Input Differential Impedance |
ZIN |
90 |
100 |
110 |
Ω |
|
| Tx_Fault |
Normal Operation |
VOL |
0 |
- |
0.8 |
V |
|
| Transmitter Fault |
VOH |
2.0 |
- |
VCC |
V |
|
| Tx_Disable |
Normal Operation |
VIL |
0 |
- |
0.8 |
V |
|
| Laser Disable |
VIH |
2.0 |
- |
VCC+0.3 |
V |
|
| Differential Date Output |
Vout |
370 |
- |
1600 |
mV |
|
| Output Differential Impedance |
ZD |
90 |
100 |
110 |
Ω |
|
| Rx_LOS |
Normal Operation |
VOL |
0 |
- |
0.8 |
V |
|
| Lose Signal |
VoH |
2.0 |
- |
VCC |
V |
|

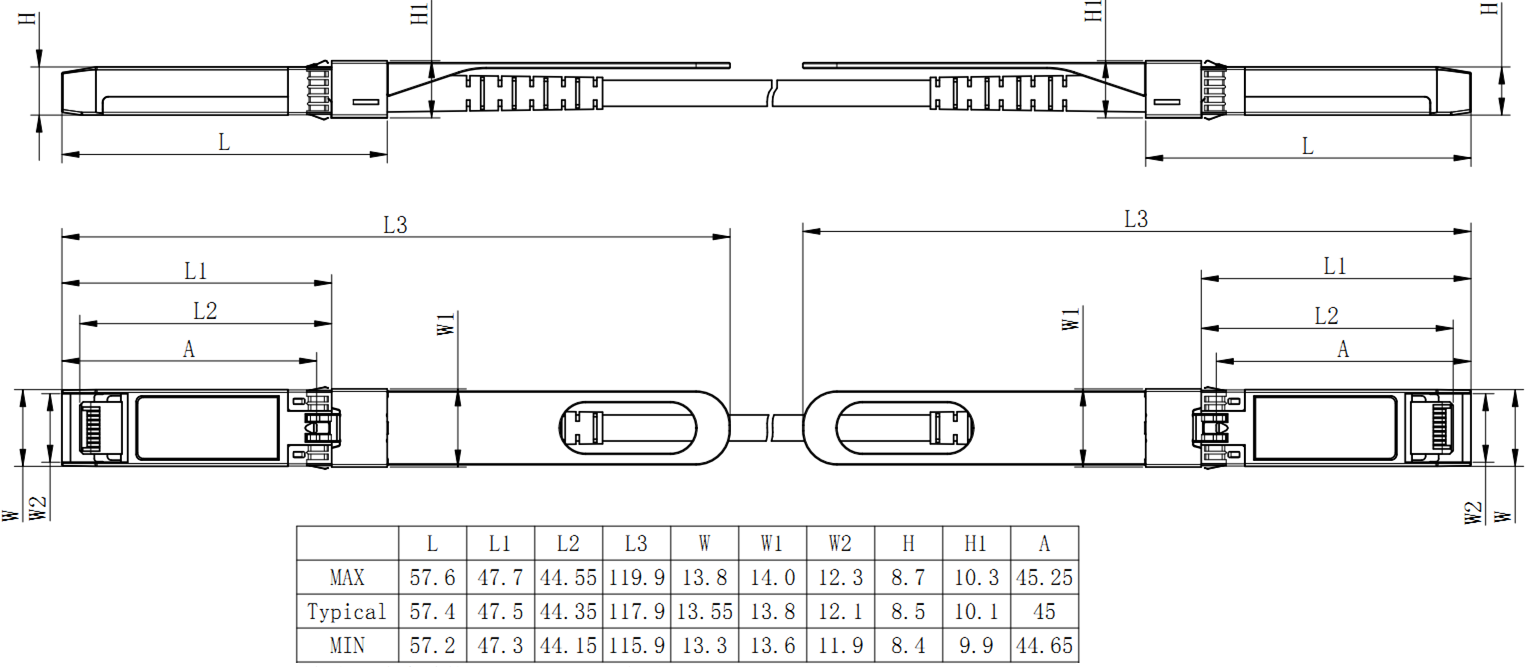

■ Physical Specifications
| Diameter |
3 |
mm |
| Minimum bend radius |
30 |
mm |
| Length tolerance |
Length < 1 m: +5 /-0 |
cm |
| 1 m ≤ length ≤ 4.5 m: +15 / -0 |
cm |
| 5 m ≤ length ≤ 14.5 m: +30 / -0 |
cm |
| Length ≥ 15.0 m: +2% / -0 |
m |
| Cable color |
Aqua (OM3); Orange (OM2) |
? Frequently Asked Questions
1. What is the maximum transmission distance for this 10GBASE-SR module?
The module supports a transmission distance of up to 150 meters when used with OM3 Multimode Fiber (MMF).
2. Which MSA standards is this product compliant with?
It is fully compliant with the SFP+ Electrical MSA (SFF-8431) and the SFP+ Mechanical MSA (SFF-8432) standards.
3. What fiber type is required for operation?
It is designed for use with 50/125µm Multimode Fiber (MMF), specifically optimized for OM3 (Aqua) or OM2 (Orange) cables.
4. Does this module support different data rates?
Yes, it supports multi-rate capabilities with a maximum throughput of up to 11.3Gbps, making it suitable for 10G Ethernet and Fiber Channel applications.
5. What is the operating temperature range?
The module operates within a commercial temperature range of 0°C to +70°C.
6. Is the module environmentally friendly?
Yes, the product is fully RoHS compliant, ensuring it meets strict environmental safety standards for hazardous substances.
