The fiber-optic patch cord is a fiber-optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box.
✓
The FTTH drop cable patch cord is the fiber optic patch cord with two termination connector (normally is SC/UPC or SC/APC simplex connector). Its cable use fiber optic FTTH drop cable.
✓

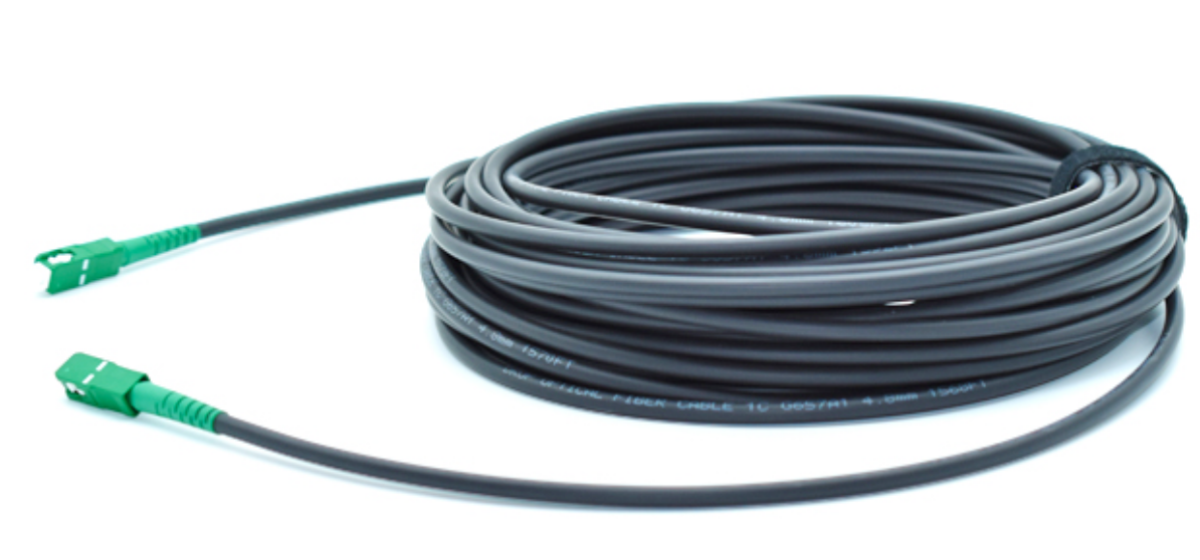

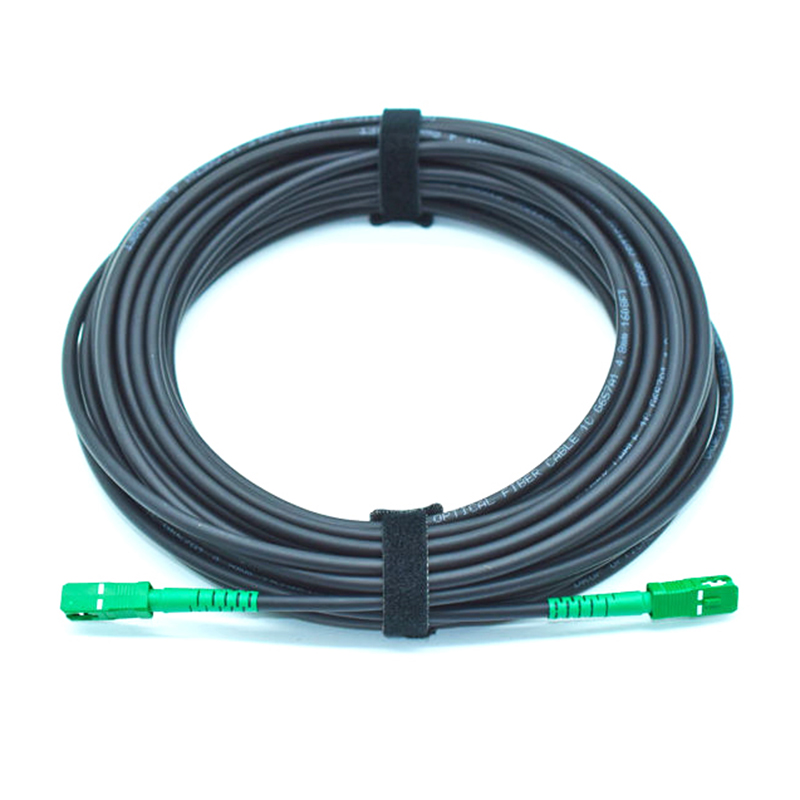

The SCAPC round FTTH drop cable patch cord come with SC/APC termination connector and round type FTTH drop cable. The cable diameter can be 3.5mm, 4.8mm, 5.0mm or can do as customer's request. Cable outer sheath can be PVC, LSZH or TPU, and normally do in black or grey color.
✓
The round FTTH drop cable patch cords are used in outdoor or indoor for connection to CATV, FTTH, FTTA, Fiber optic telecommunication networks, PON & GPON networks and fiber optic testing.

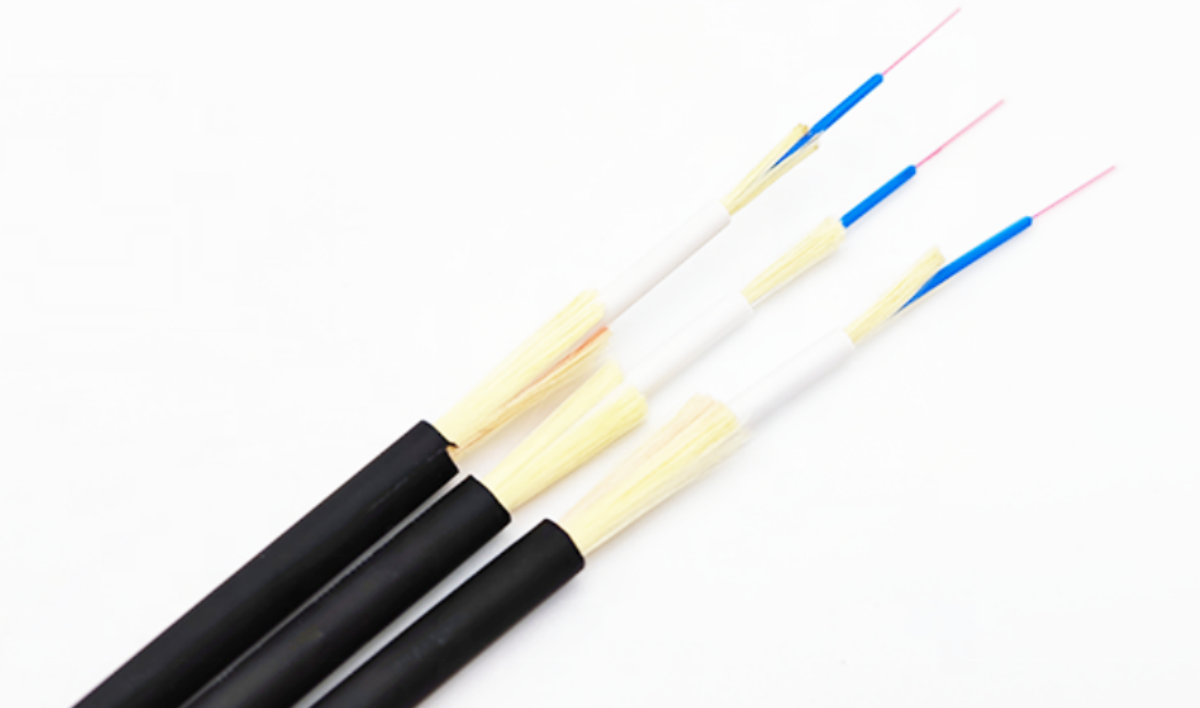

| Fiber |
Fiber type |
G657A2 |
| Fiber count |
1 |
| Color |
Natural |
| Tight Buffer |
Material |
LSZH |
| Diameter (mm) |
0.85±0.05 |
| Color |
White/red/blue/ ... |
| Strength member |
Material |
Aramid yarn + Water blocking glass yarn |
| Loose tube |
Material |
PBT |
| Thickness |
0.35±0.1 |
| Color |
Natural |
| Diameter |
2.0±0.1 |
| Strength member |
Material |
Water blocking yarn |
| Outer jacket |
Material |
LSZH |
| Color |
Black/white/grey or customized |
| Thickness (mm) |
0.9±0.1 |
| Diameter (mm) |
4.8±0.2 |
| Tripping way |
Ripcord |
1 |
| Tension Strength (N) |
Long term |
1200 |
| Short term |
600 |
| Temperature (℃) |
Storage |
-20~+60 |
| Operating |
-20~+60 |
| Min Bending Radius(mm) |
Long term |
10D |
| Short term |
20D |
| Min allowable Tensile Strength(N) |
Long term |
200 |
| Short term |
600 |
| Crush Load (N/100mm) |
Long term |
500 |
| Short term |
1000 |
★Provides superior weather resistance for FTTA and other outdoor applications.
★Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.
★Suitable for FTTA and outdoor temperature extremes; ensures functionality in harsh weather environments.
★Can be installed without special tooling.
★Threaded style coupling.
★Provides bend protection for installation and long term use.
★Faster network roll out and customer installations.
★100% tested assemblies built in a controlled environment.
★Lower cost deployment by utilizing plug and play solutions.
★Custom built solutions with quick turnaround times.

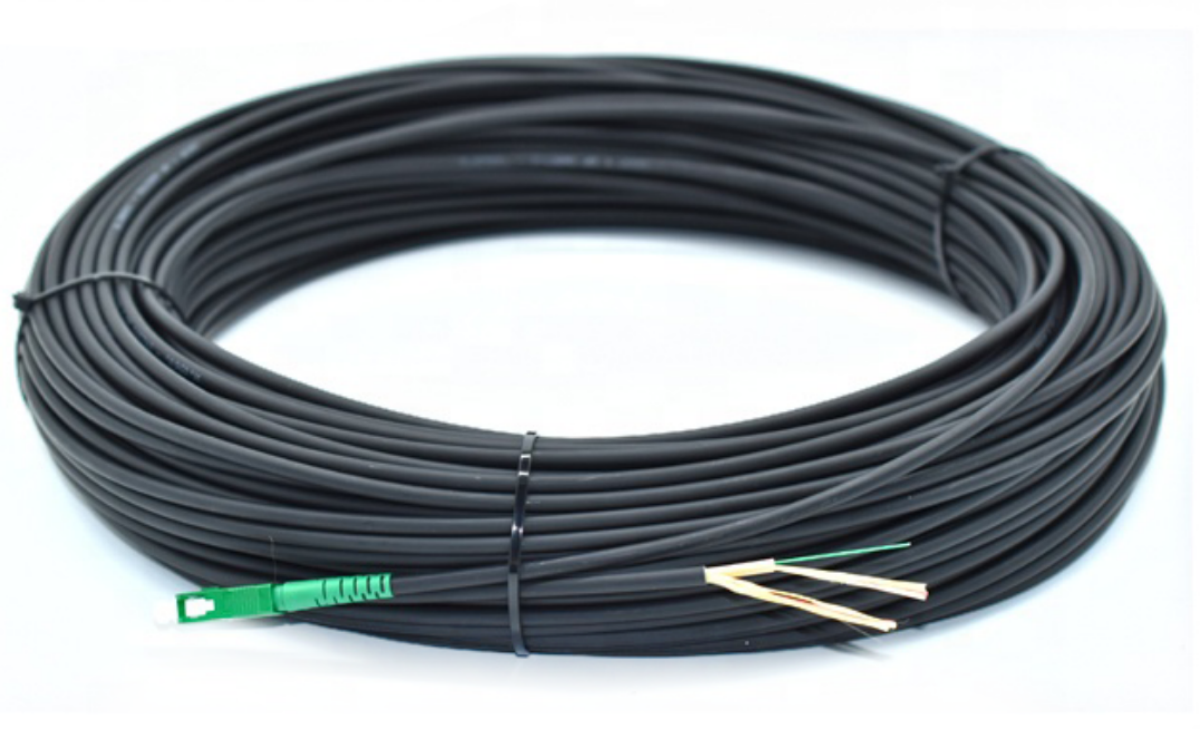

1/ Round FTTH Pigtail with SC/APC connector termination.

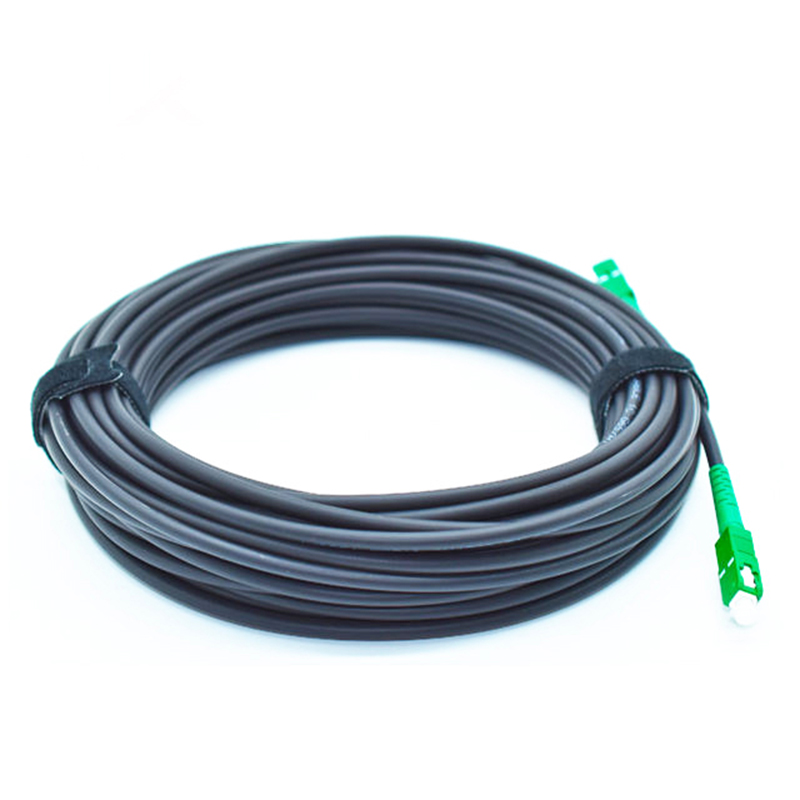

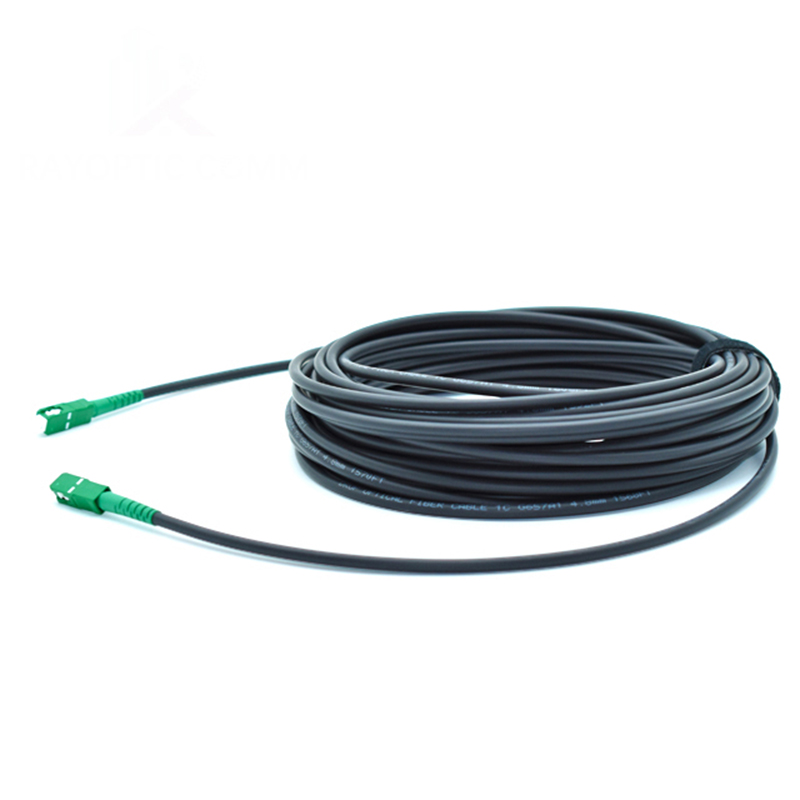

2/ Round FTTH Patch Cable with SC/APC connector termination.

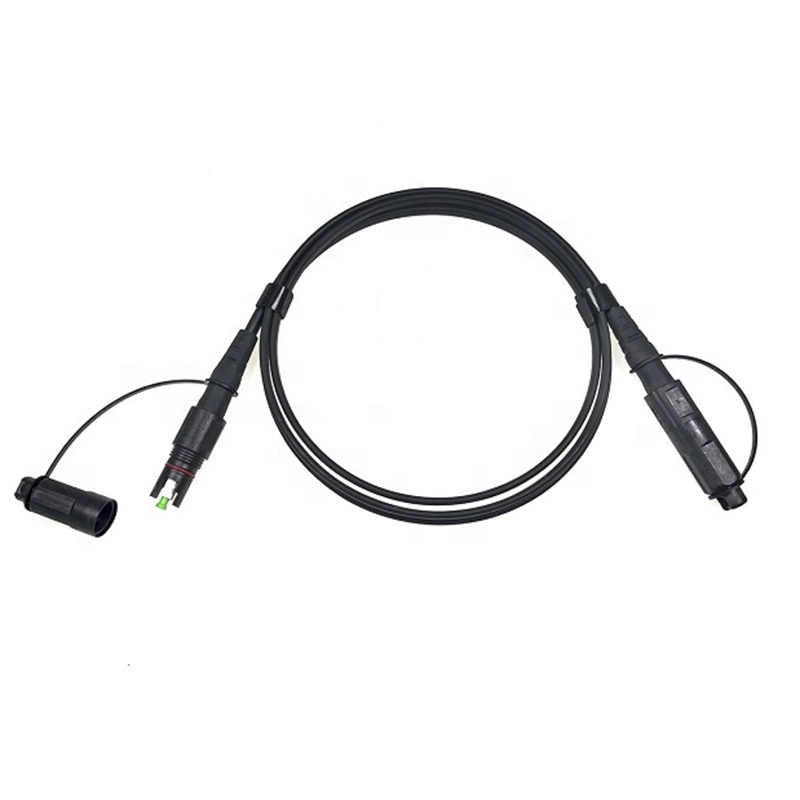

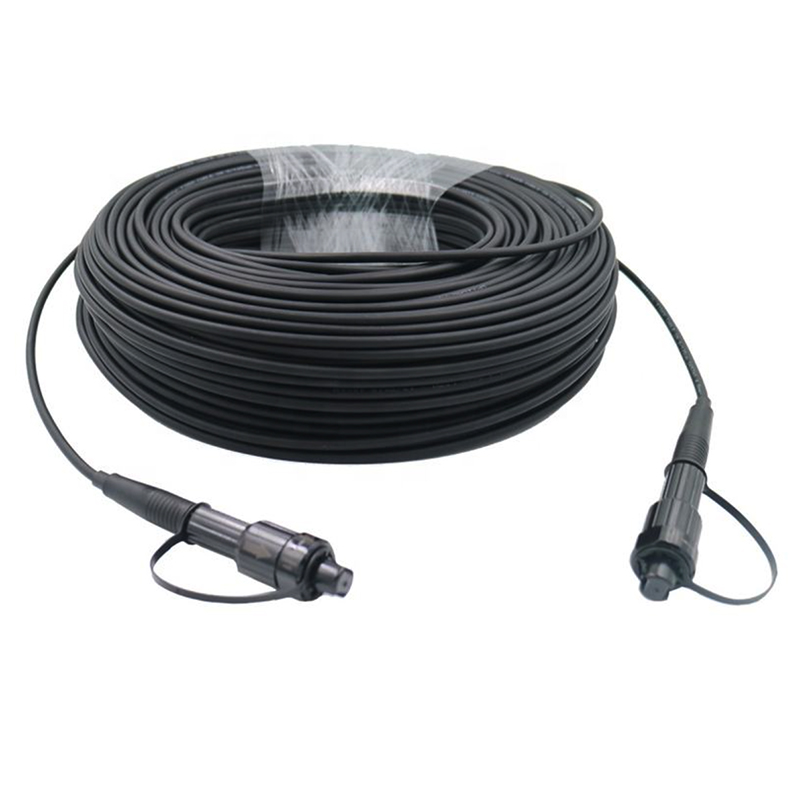

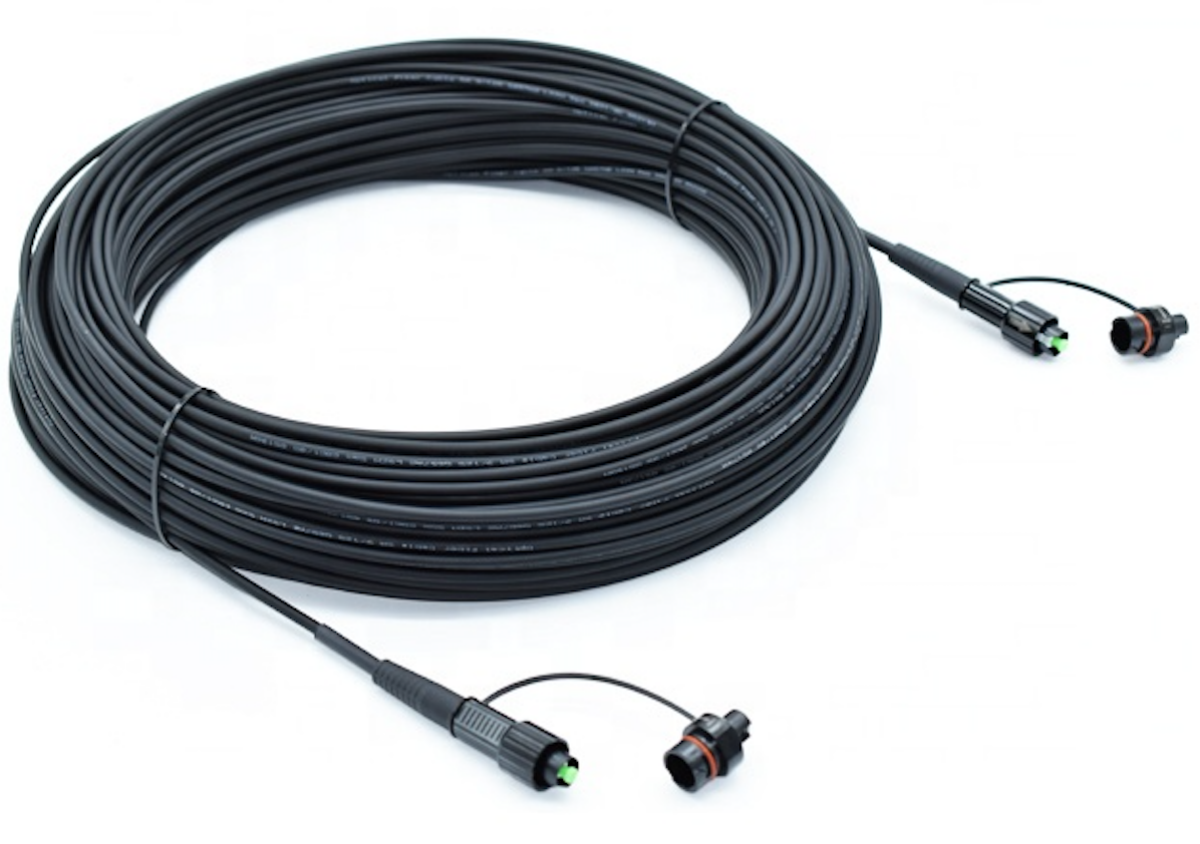

3/ Round FTTH Patch Cable with Water-proof connector termination (Mini SC/APC).

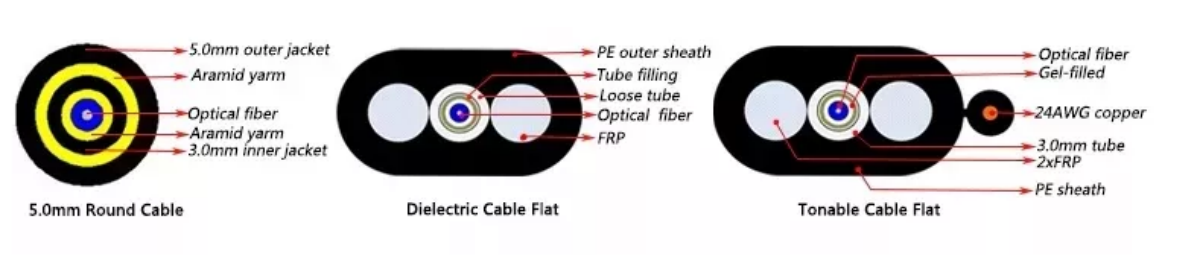

Cable Features:
- • Tight buffer fiber easy strip.
- • With loose tube: protect the fiber more safely.
- • Aramid yarn for excellent tensile strength.
- • Water blocking glass yarn with good water absorption capacity.
- • LSZH outer sheath black color with good UV-anti function.
Cable Application:
- • FTTx (FTTA, FTTB, FTTO, FTTH, …)
- • Telecommunication tower.
- • Use for outdoor and making optical fiber jumper or pigtail.
- • Indoor riser level and plenum level cable distribution.
- • Interconnect between instruments and communication equipment.
| Fiber style |
Unit |
SM G652 |
SM G652D |
SM G657A |
MM 50/125 |
MM 62.5/125 |
MM OM3-300 |
| Condition |
nm |
1310/1550 |
1310/1550 |
1310/625 |
850/1300 |
850/1300 |
850/1300 |
| Attenuation |
dB/km |
≤0.36/0.23 |
≤0.34/0.22 |
≤0.35/0.21 |
≤3.0/1.0 |
≤3.0/1.0 |
≤3.0/1.0 |
| Dispersion |
1550nm |
Ps/(nm*km) |
---- |
≤18 |
≤18 |
---- |
---- |
---- |
| Zero dispersion wavelength |
nm |
1302-1322 |
1302-1322 |
1302-1322 |
---- |
---- |
1295-1320 |
| MFD (1310nm) |
um |
9.2±0.4 |
9.2±0.4 |
9.0±0.4 |
---- |
---- |
---- |
| Core diameter |
um |
9 |
9 |
9 |
50±1.0 |
62.5±2.5 |
50±1.0 |
| Cladding diameter |
um |
125.0±0.1 |
125.0±0.1 |
125.0±0.1 |
125.0±0.1 |
125.0±0.1 |
125.0±0.1 |
Frequently Asked Questions (FAQ)
Q1: What are the main applications for Round FTTH Drop Cable Patch Cords?
A: These patch cords are primarily used in FTTA (Fiber to the Antenna), FTTH (Fiber to the Home), CATV networks, telecommunication towers, and for outdoor fiber optic connections due to their superior weather resistance.
Q2: What cable diameters are available for these FTTH patch cords?
A: Standard diameters include 3.5mm, 4.8mm, and 5.0mm. Custom diameters can also be manufactured according to specific project requirements.
Q3: What makes the jacket material suitable for harsh environments?
A: The outer sheath is typically made of LSZH (Low Smoke Zero Halogen), PVC, or TPU. The LSZH version in black is specifically designed with UV-anti functions for durable outdoor performance.
Q4: Are these patch cords easy to install in the field?
A: Yes, they are designed for flexibility and can be installed without special tooling. They feature a threaded style coupling and are available as plug-and-play solutions to reduce deployment costs.
Q5: What type of fiber is used in these FTTH assemblies?
A: Most commonly, they use G657A2 fiber, which provides excellent bend resistance, making it ideal for the tight corners often found in FTTH and indoor installations.
Q6: What is the operating temperature range for these cables?
A: The cables are rated for both storage and operation within a temperature range of -20℃ to +60℃, ensuring reliable performance in various climates.
