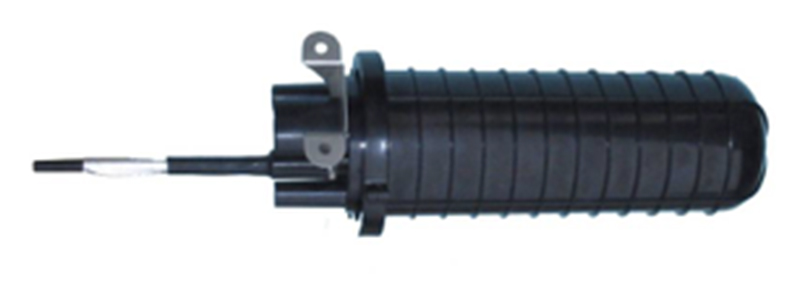

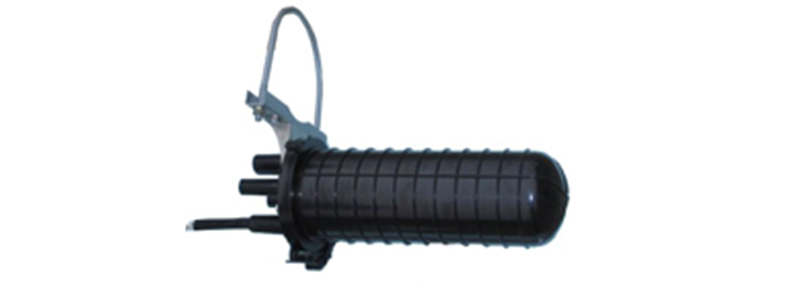

The Outdoor Vertical Type Fiber Optic Splice Closure is designed for aerial and wall-mounting applications, supporting both straight-through and branching fiber cable splices. Constructed from high-quality ABS material, it provides a robust housing for fiber optic cable splicing and joint protection.

• Saw the entry ports as needed and strip the cable according to installation requirements.
• Place the heat-shrinkable tube on the cable and penetrate it through the entry ports.
• Fix the cable strengthen wire on the bracket using a screwdriver.
• Secure the fibers on the entry part of the splice tray using nylon ties.
• Perform splicing, place the optic fiber on the tray, and make necessary notes.
• Install the dust cap on the splice tray.
• Clean the entry ports and cable (approx. 10cm) using a scrubber.
• Sand the contact areas with abrasive paper and wipe away dust.
• Apply aluminum paper to the heat-shrink part to prevent high-temperature damage.
• Position the heat-shrinkable tube and heat with a blast burner until tightened; allow to cool naturally.
• For oval ports, use a branch folk to separate cables during the heating process.
• Clean the base and silicone rubber ring, then install the ring for sealing.

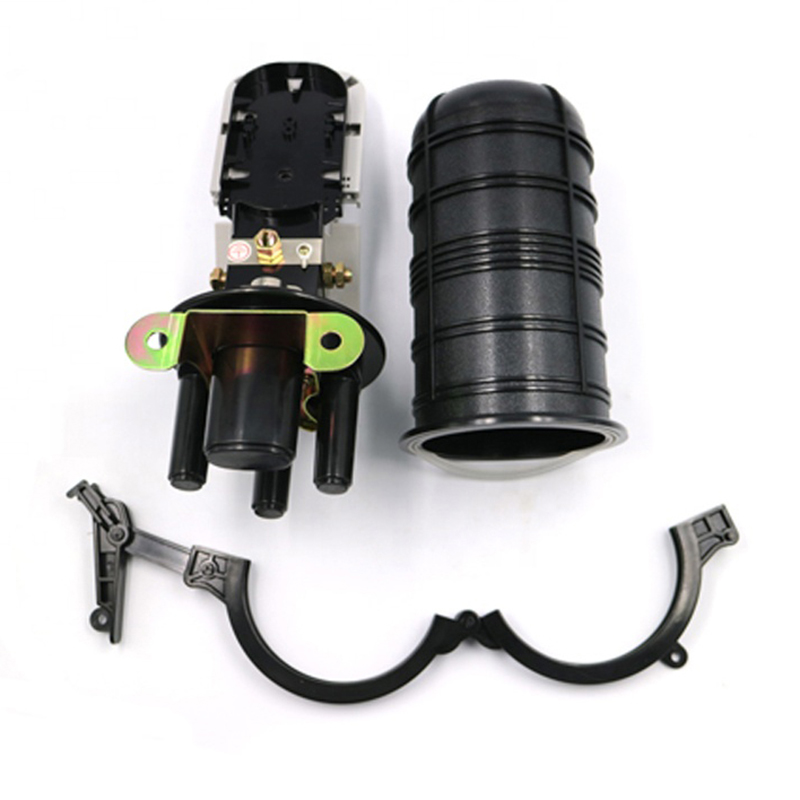

• Assemble the barrel onto the base and secure with the clamp and ferris wheel.
