High Performance
QSFP-H40G-AOC-xM 40G QSFP+ active optic cables offer high performance and low power consumption.
⚙️
Broad Compatibility
Supports InfiniBand QDR/DDR/SDR, 12.5G/10G/8G/4G/2G fiber channel, PCIe, and SAS.
📋
Standard Compliant
Compliant with QSFP MSA and IEEE P802.3ba standards.

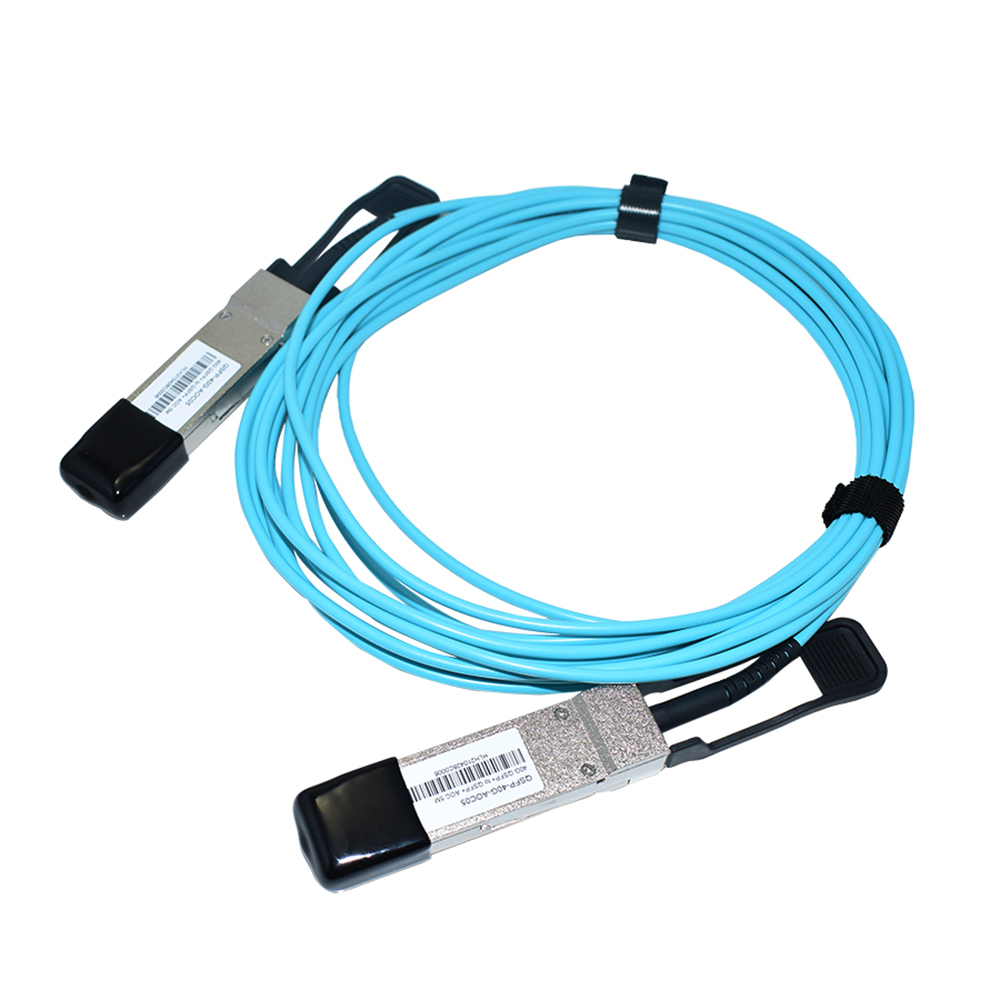

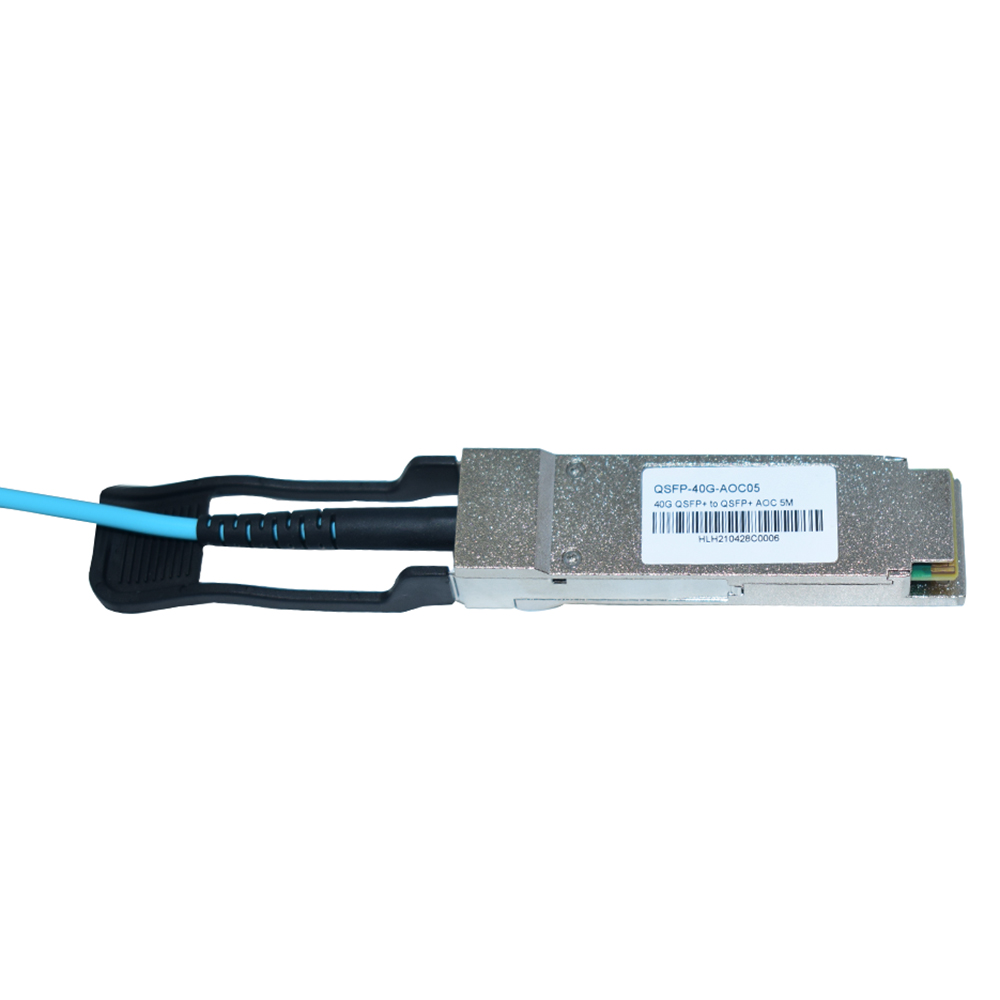

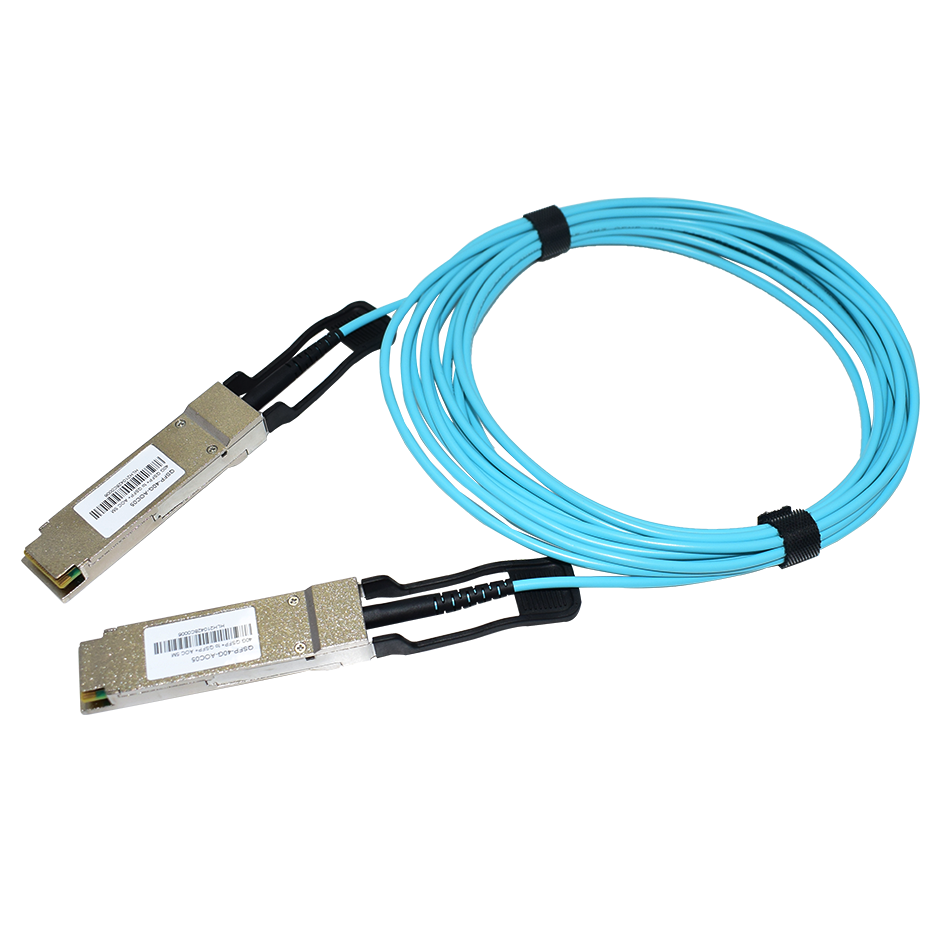

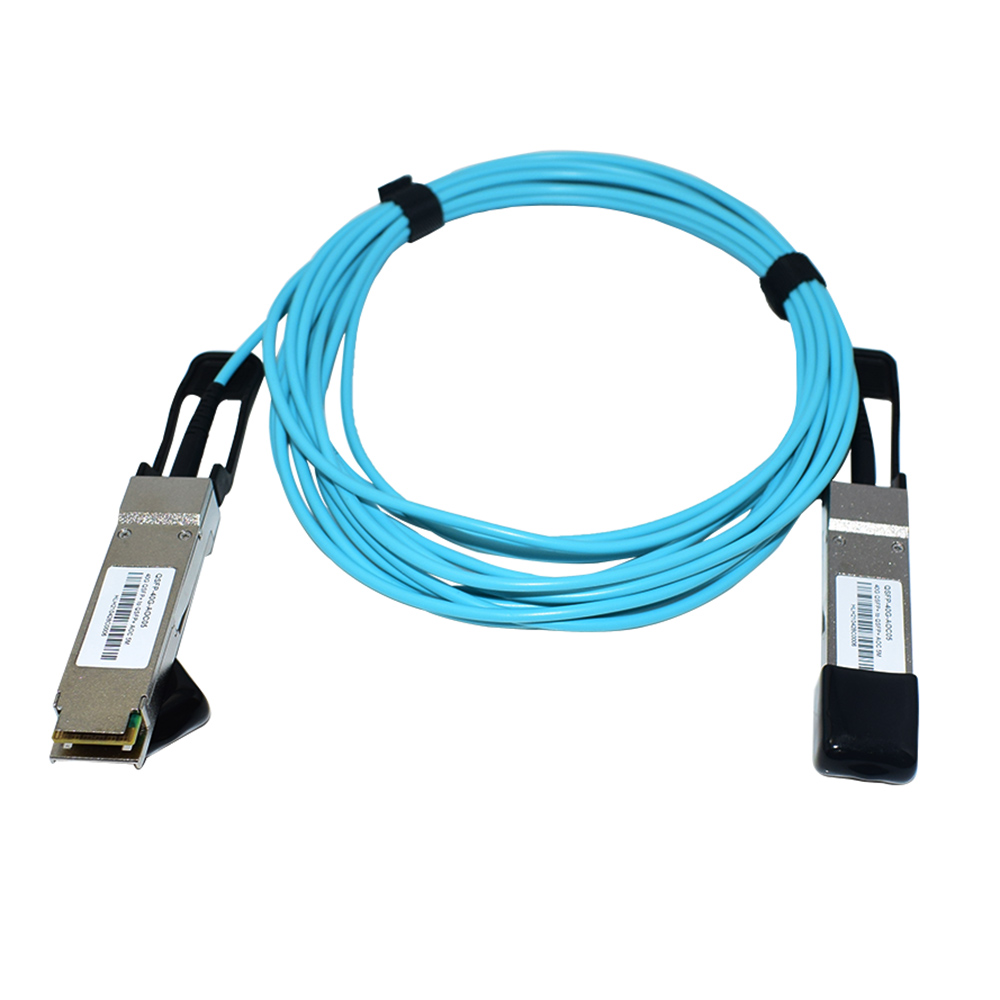

The QSFP-H40G-AOC-xM is a parallel transceiver assembly of 4 full-duplex lanes. Each lane can transmit data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. This interconnect solution provides increased port density and total system cost savings.
Applications: 40GBASE-SR4 at 10.3125Gbps per lane, InfiniBand QDR, and other optical links.
Frequently Asked Questions
What is the maximum aggregated data rate for this 40G QSFP+ AOC?
The cable consists of 4 full-duplex lanes, each capable of transmitting up to 11.3Gb/s, resulting in a total aggregated data rate of 45.2Gb/s.
Which industry standards are these active optical cables compliant with?
These cables are fully compliant with the QSFP Multi-Source Agreement (MSA) and the IEEE P802.3ba standard for 40GBASE-SR4.
What types of protocols does the QSFP+ AOC support?
It supports a wide range of protocols including InfiniBand QDR/DDR/SDR, multi-rate Fiber Channel (up to 12.5G), PCIe, and SAS.
What is the allowed humidity range for operation?
The operating humidity range for this cable is from +5% to +85% RH.
How much tolerance should be expected for a 5-meter cable?
For cable lengths between 5.0 and 14.5 meters, the manufacturing tolerance is +30/-0 cm.
Are these cables suitable for high-density port applications?
Yes, the QSFP+ AOC design is optimized to provide increased port density and significant total system cost savings for interconnect solutions.
