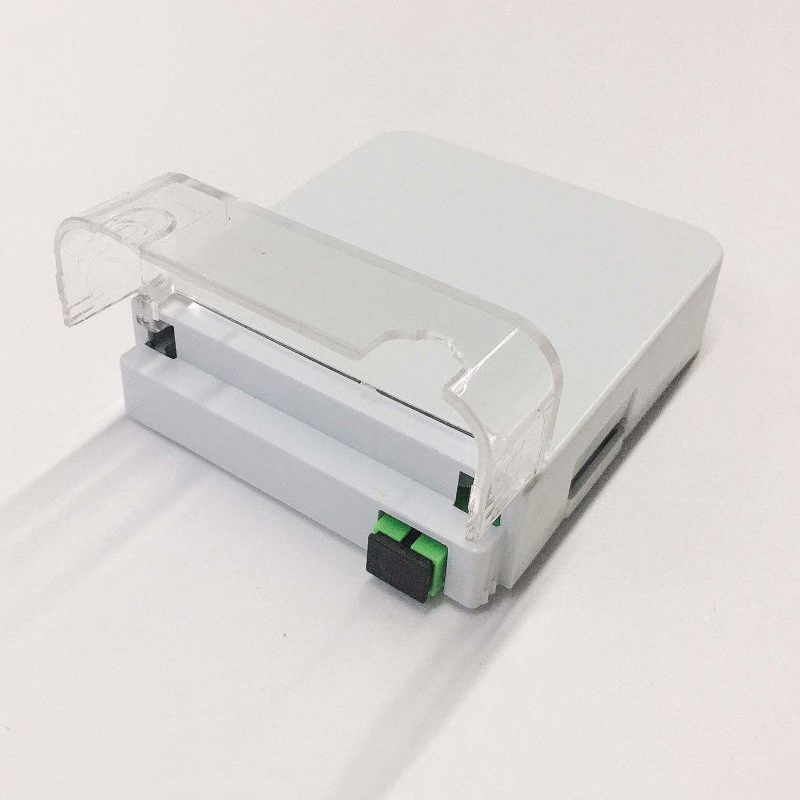

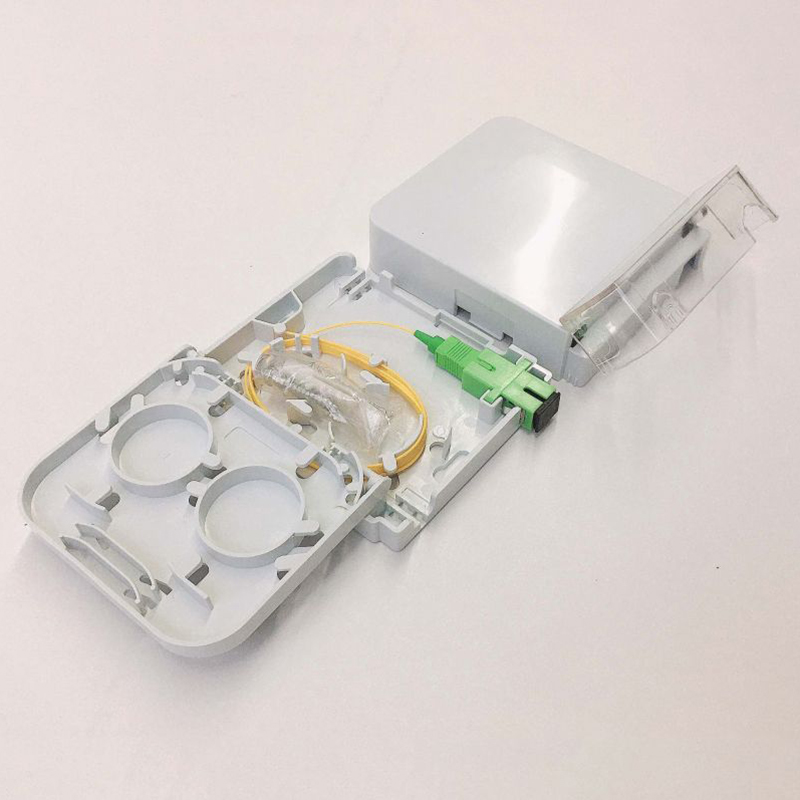

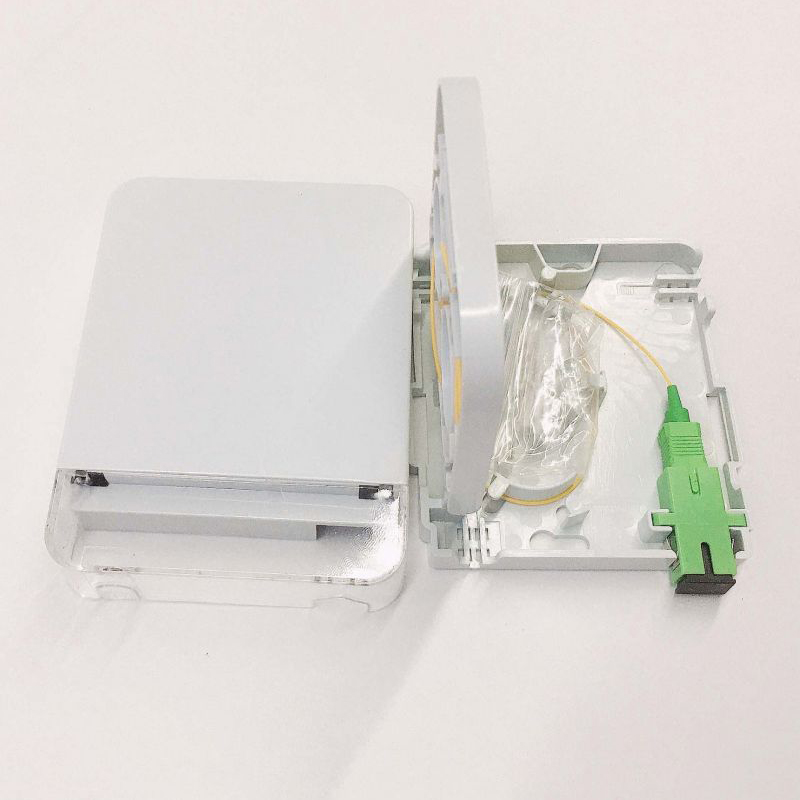

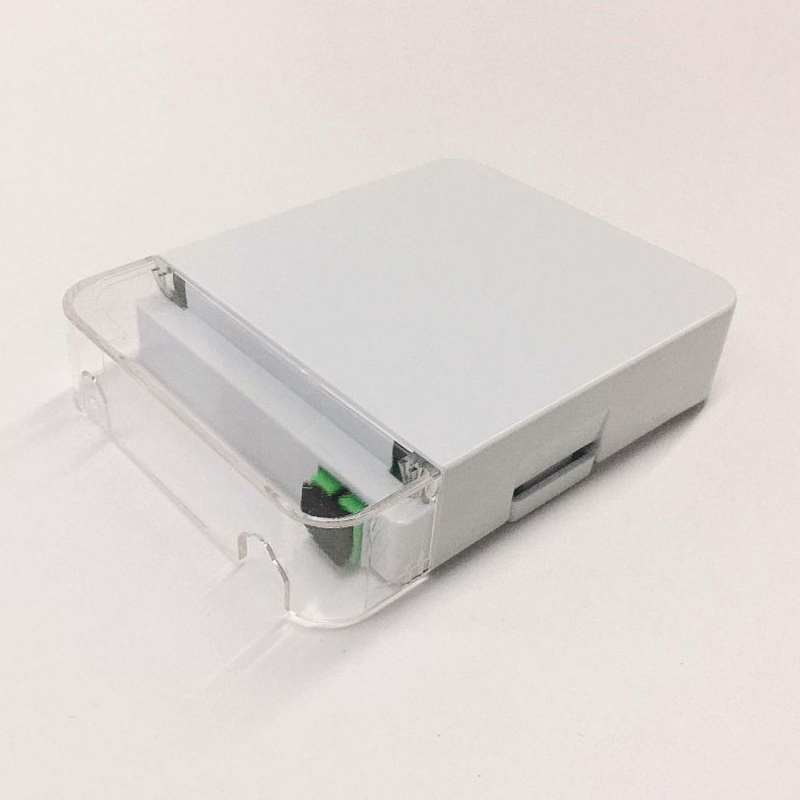

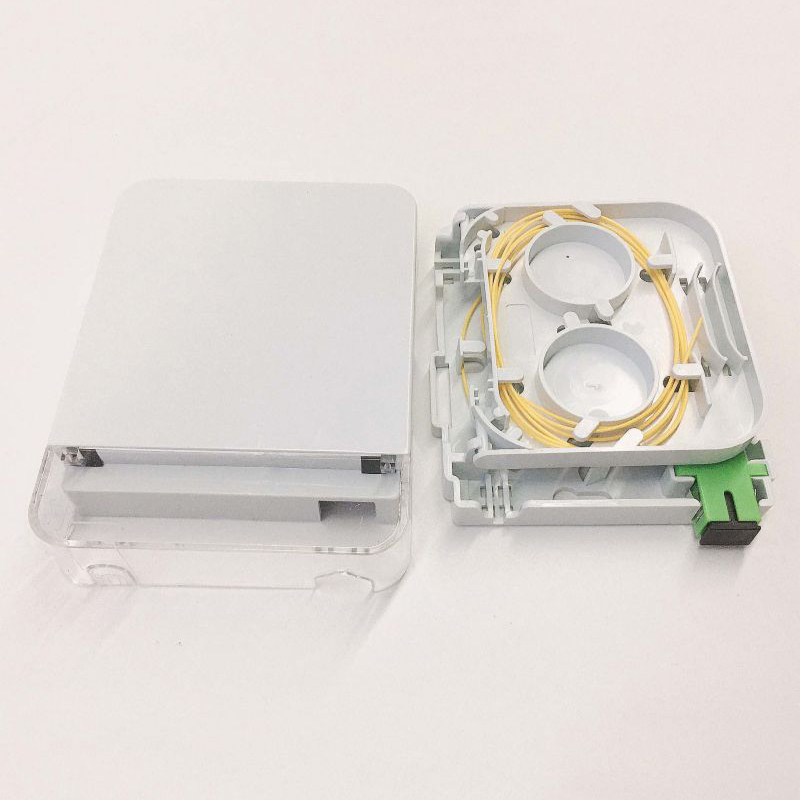

Wholesale 1 port SC simplex adapter fiber optic terminal box face plate socket Supplier, Factories
Wholesale 1 port SC simplex adapter fiber optic terminal box face plate socket Supplier, Factories
Wholesale 1 port SC simplex adapter fiber optic terminal box face plate socket Supplier, Factories
Wholesale 1 port SC simplex adapter fiber optic terminal box face plate socket Supplier, Factories
Wholesale 1 port SC simplex adapter fiber optic terminal box face plate socket Supplier, Factories
1 / 5
Wholesale 1 port SC simplex adapter fiber optic terminal box face plate socket Supplier, Factories
Wholesale 1 port SC simplex adapter fiber optic terminal box face plate socket Supplier, Factories
Wholesale 1 port SC simplex adapter fiber optic terminal box face plate socket Supplier, Factories
Wholesale 1 port SC simplex adapter fiber optic terminal box face plate socket Supplier, Factories
Wholesale 1 port SC simplex adapter fiber optic terminal box face plate socket Supplier, Factories

Wholesale 1 port SC simplex adapter fiber optic terminal box face plate socket Supplier, Factories

• It is applicable for FTTH, FTTO and FTTD, etc. • The clasp design of the cover has greatly reduced the installation strength. • It is very thin and matches with other A86 panels in homes, and also meet the open or concealed cabling for optical cables. • Coordinating with FC strip-type optical adapter, • It generates more options in term of fiber interfaces for users, SC, FC is available. • The big-diametered wrapping post in the box protects radically in an omnibearing way. • Suitable for SC simplex adapters, FC long type adapter or LC duplex adapter installation. • Used in the working area routing sub-systems. • Embedded face box, convenient installation. • With dust-free device, prevent the dust into.
Send Inquiry

Product Description

Fiber Optic Adapters & Couplers Overview
⚙️
Fiber optic adapters (couplers) are designed to connect two fiber optic cables together, available in simplex, duplex, or quad versions.
🔍
Designed for both multimode and singlemode cables. Singlemode adapters provide more precise alignment of ferrules.
⚠️
Important: Use singlemode adapters for multimode cables if needed, but never use multimode adapters for singlemode cables to avoid signal loss.
📏
Always match core diameters (50/125 or 62.5/125) when connecting multimode fibers to prevent attenuation.
Technical Features & Design

Fiber optic adapters typically connect similar connectors (SC to SC, LC to LC). Hybrid adapters are available for differing types (ST to SC, LC to SC). Adapters with differing ferrule sizes (1.25mm to 2.5mm) involve more complex manufacturing processes.

While most adapters are female-to-female, some male-female versions exist for equipment ports. However, female-to-female connections are preferred to maintain signal integrity and prevent physical damage from cable weight or accidental bumps.

🛡️
SC Auto Shutter: Integrated dust shutter keeps interiors clean and protects eyes from laser exposure.
✨
Quality Build: Features high-quality zirconia and phosphorous bronze sleeves for durability.
Product Specifications: FTB-01-SCS
Model FTB-01-SCS
Dimension (H*W*D) 115*86*23mm
Max. Capacity 1/ 2/4 cores
Max. Adapter 1 pcs SC simplex, or LC duplex
PLC Splitter Non
Material ABS
Weight 80gr
Color White
Labeling Service Available for bulk orders (over 5000pcs)
Wide Range of Applications
CATV
Metro Networks
Telecommunication Networks
Local Area Networks (LANs)
Test Equipment
Data Processing
FTTx Solutions
Passive Optical Systems
Product Visuals

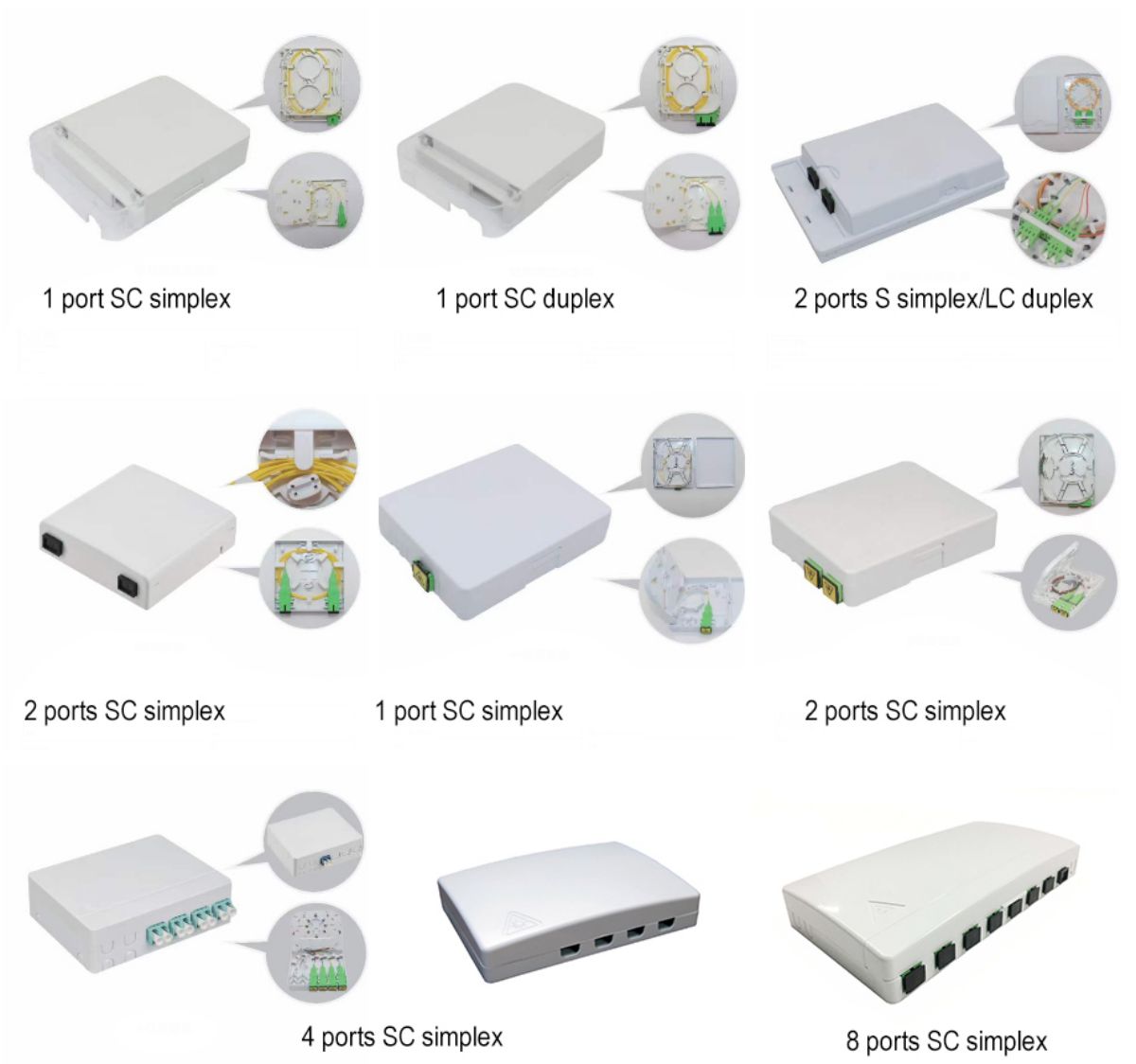

Fiber Optic Terminal Box
Fiber Optic Terminal Box Features
💧
IP55 rated dust-proof protection with protective doors.
🛠️
Embedded surface design for easy installation and removal.
🏠
Ideal for FTTD (Fiber to the Desktop) and home/work area cabling.
🔄
Optimized curvature radius to protect fiber core and manage redundant fiber.
Frequently Asked Questions
What is the primary use of a fiber optic adapter?
Fiber optic adapters, also known as couplers, are primarily used to connect two fiber optic cables together, ensuring precise alignment between the fiber cores.
Can I use a singlemode adapter for multimode fiber?
Yes, it is acceptable to use singlemode adapters for multimode cables because singlemode adapters have more precise alignment. However, you should never use multimode adapters for singlemode cables.
What are the benefits of the SC auto shutter?
The integrated external shutter protects the interior from dust and debris when not in use and provides safety by shielding the user's eyes from laser exposure.
What materials are used in these adapters?
High-quality adapters utilize zirconia alignment sleeves and phosphorous bronze sleeves to ensure durability and tight fitting.
Is the FTB-01-SCS suitable for outdoor use?
The FTB-01-SCS features an IP55 dust-proof rating and protective doors, making it suitable for various cabling work environments, though it is primarily designed for family or indoor work areas.
What is a "hybrid" adapter?
A hybrid adapter is designed to connect different types of connectors together, such as LC to SC or ST to SC, allowing for flexibility in network configurations.
