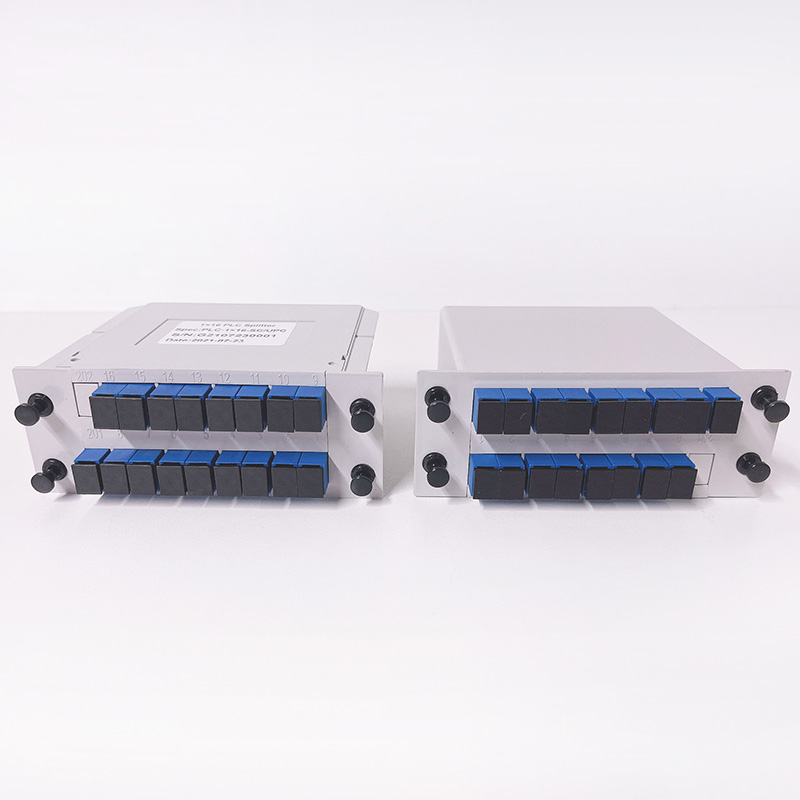

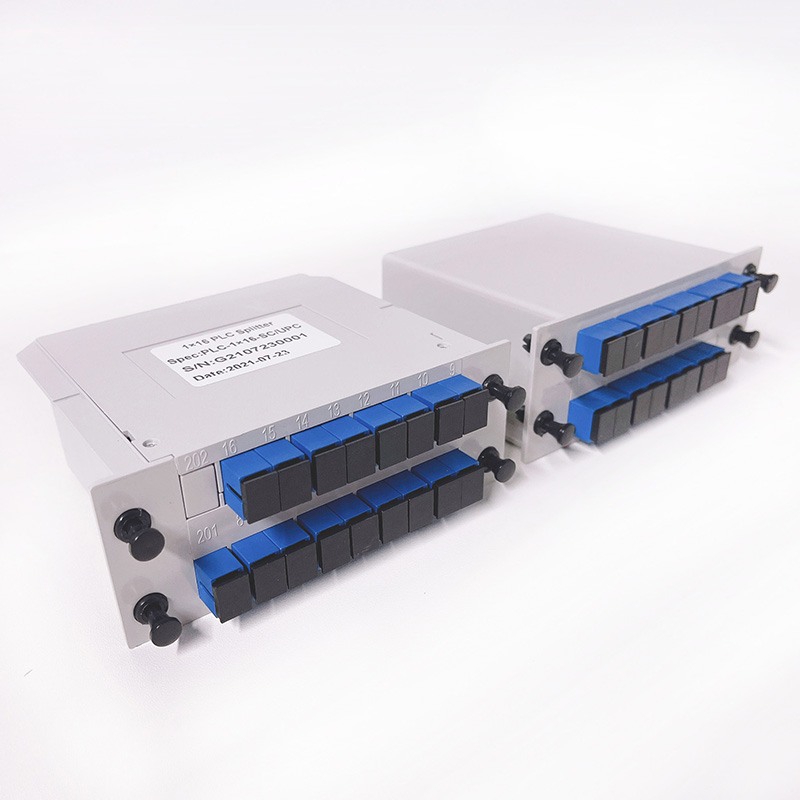

Product Description

◈

The PLC splitter are based on Planar Waveguide Technology. They provide a cost effective and space saving networking solution. They are key components in FTTx networks and are responsible to distribute the signal from central office to numbers of promises. They have very wide range of operating wavelength from 1260nm to 1620nm.

◈

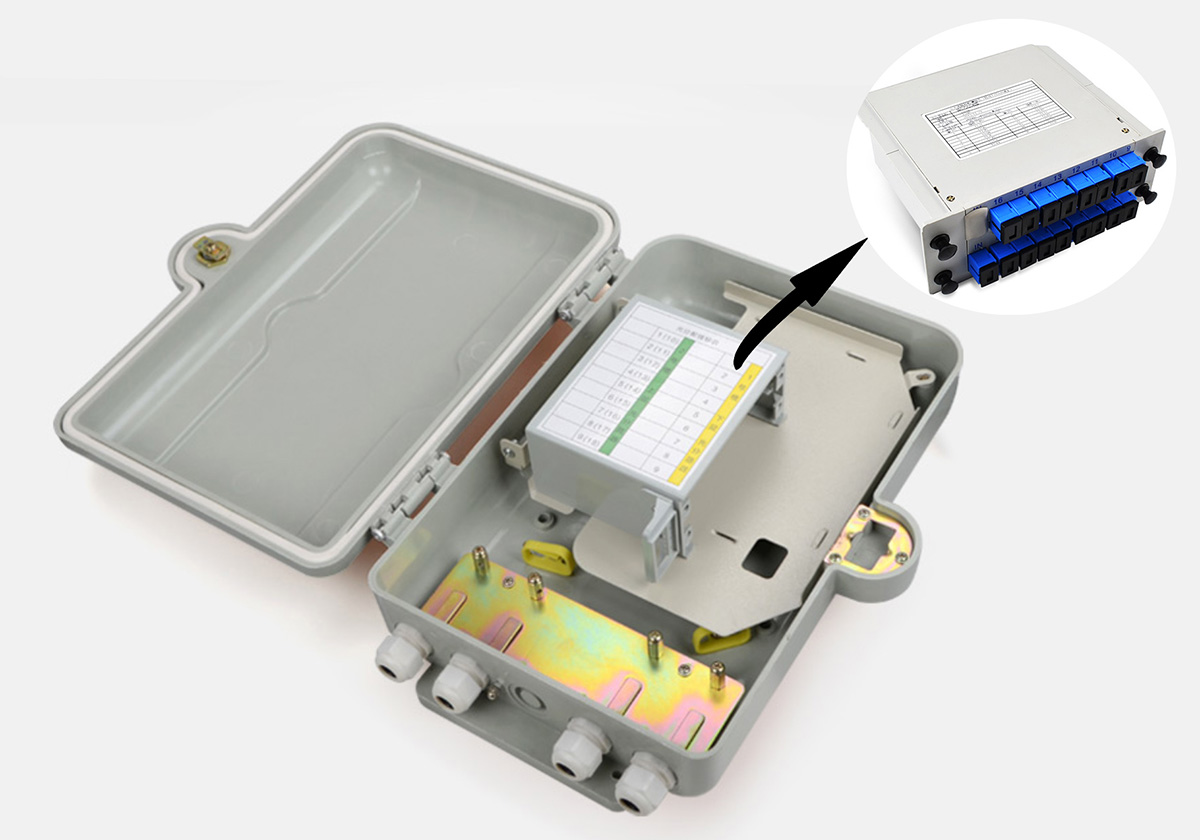

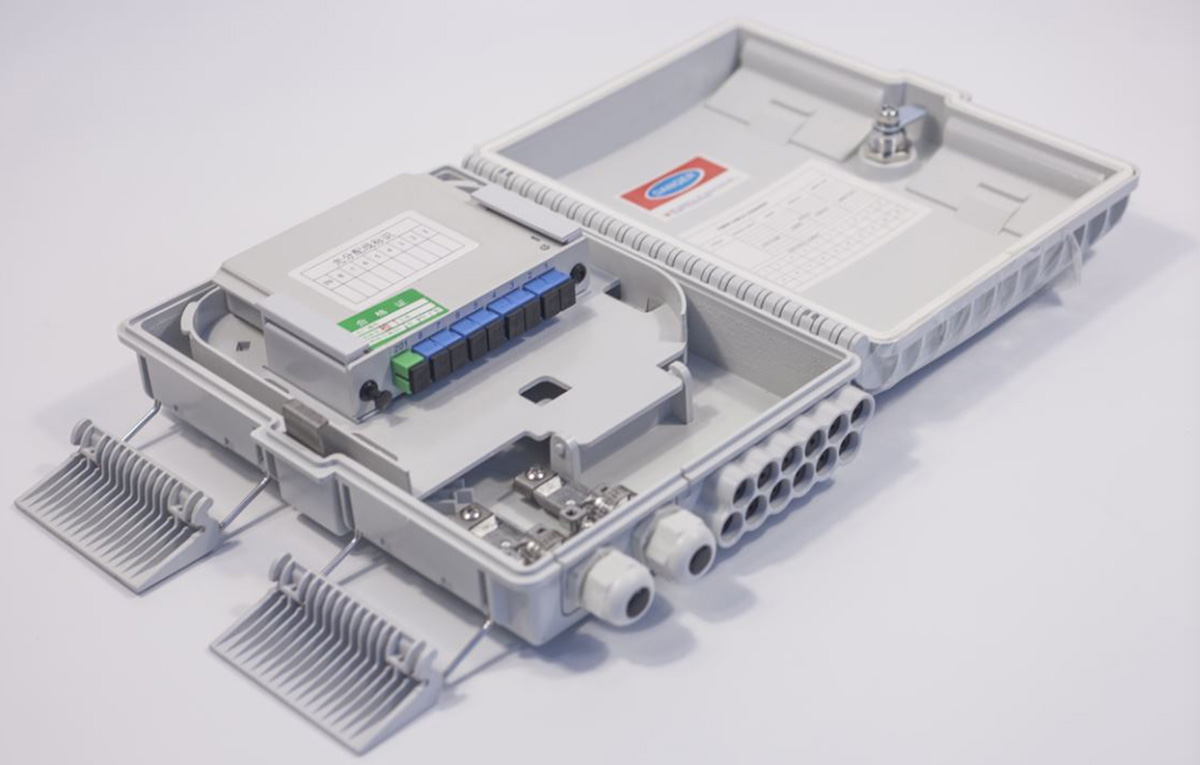

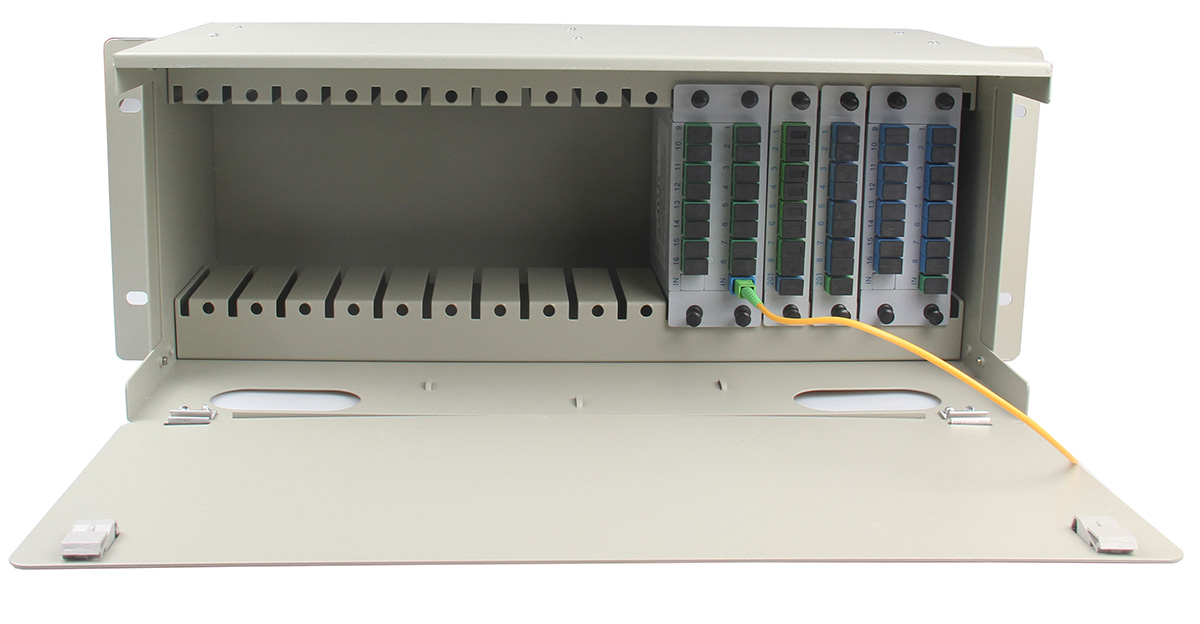

With its compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount system. It is used for small spaces can be easily placed in a formal joint boxes and splice closure, in order to facilitate welding, does not need specially designed for space reserved. Our PLC splitter family features either ribbon or individual fiber output.

◈

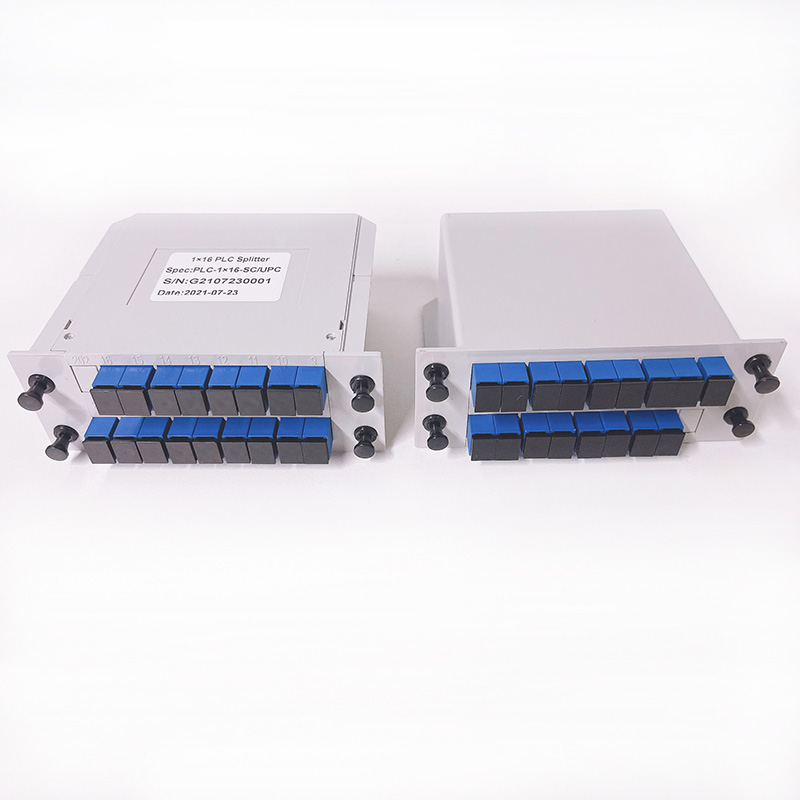

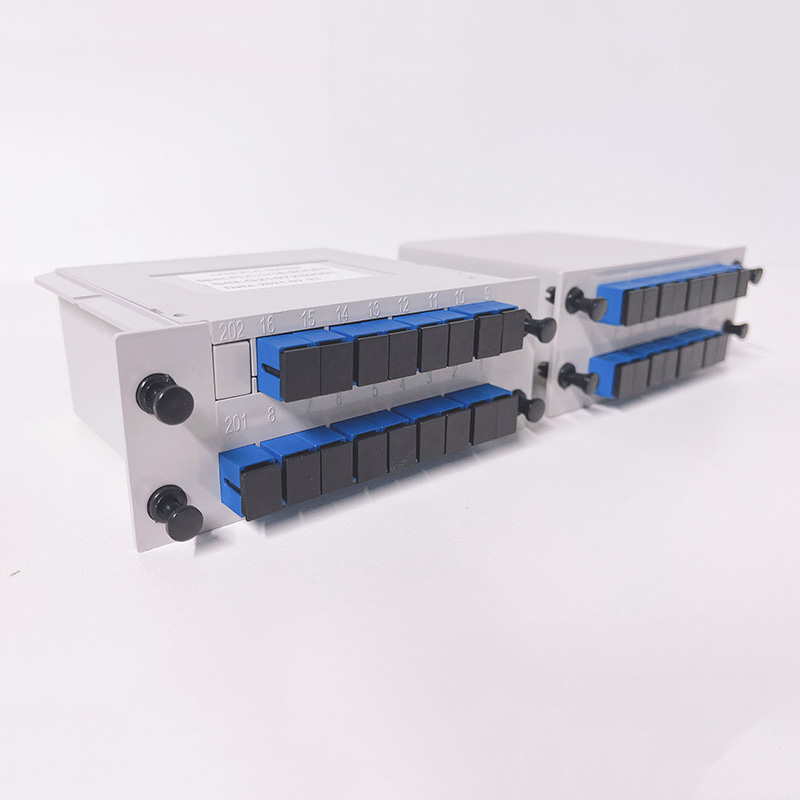

LGX Box type PLC fiber optical Splitter provide a cost effective and space saving product suitable to the ever changing networking requirements. Installation is simple using a variety of connector types or fusion splicing. All splitters provide guaranteed optical performance and high reliability that meet GR-1209-CORE and GR-1221-CORE requirement.

Key Applications

Local Area Networks (LAN)

Cable Television (CATV)

Test Equipment

Fiber to The Point (FTTX)

Fiber to The Home (FTTH)

Passive Optical Networks (PON)

Gigabit Passive Optical Networks (GPON)

Performance Features

⭐ Low insertion loss

⭐ Low Polarization Dependent Loss

⭐ Excellent Environmental Stability

⭐ Excellent Mechanical Stability

⭐ Telcordia GR-1221 and GR-1209 Compliance

Fiber length	1m or Customized
Connector Type	SC, LC, FC or Customized
Optical Fiber Type	G657A, G652D or Customized
Directivity (dB) Min *	55
Return Loss (dB) Min *	55 (50)
Power Handling (mW)	300
Operating Wavelength (nm)	1260 ~ 1650
Operating Temperature(°C)	-40 ~ +85
Storage Temperature(°C)	-40 ~ +85
Port Configuration	1x2	1x4	1x8	1x16	1x32	1x64
Insertion Loss(dB) Typical	3.6	7.1	10.2	13.5	16.5	20.5
Insertion Loss (dB) Max	4.0	7.3	10.5	13.7	16.9	21.0
Loss Uniformity (dB)	0.6	0.6	0.8	1.2	1.5	2.0
PDL(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Port Configuration	2X2	2X4	2X8	2X16	2X32	2X64
Insertion Loss(dB) Typical	3.8	7.4	10.8	14.2	17.0	21.0
Insertion Loss (dB) Max	4.2	7.8	11.2	14.6	17.5	21.5
Loss Uniformity (dB)	1.0	1.4	1.5	2.0	2.5	2.5
PDL (dB)	0.2	0.2	0.4	0.4	0.4	0.5

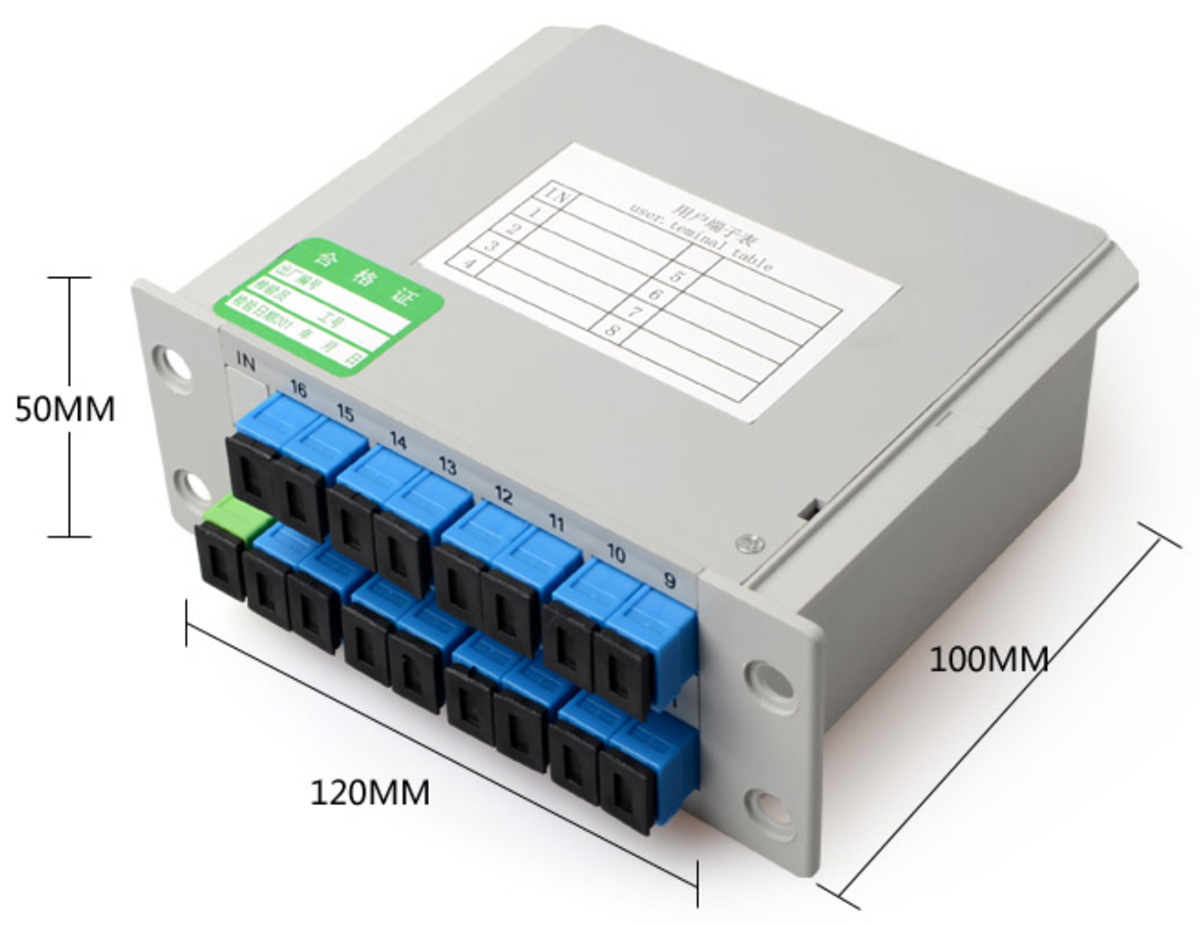

Dimensions

1x2: 120x100x25mm

1x4: 120x100x25mm

1x8: 120x100x25mm

1x16: 120x100x50mm

1x32: 120x100x100mm

1x64: 120x100x205mm

Frequently Asked Questions

What technology is used in these splitters?

The PLC (Planar Lightwave Circuit) splitters are based on Planar Waveguide Technology, offering cost-effective and space-saving solutions for FTTx networks.

What is the operating wavelength range?

These splitters support a very wide range of operating wavelengths, typically from 1260nm to 1650nm.

Can these splitters be used in compact spaces?

Yes, their compact size allows them to be used in in-ground and aerial pedestals, rack mount systems, joint boxes, and splice closures without requiring specially designed reserved space.

Which reliability standards do these splitters meet?

All splitters meet the strict requirements of Telcordia GR-1209-CORE and GR-1221-CORE for high reliability and optical performance.

What are the common applications for LGX Box type PLC splitters?

They are commonly used in LAN, CATV, FTTX, FTTH, PON, and GPON networks, as well as in various testing equipment environments.

What fiber and connector types are available?

They support G657A and G652D fiber types with SC, LC, FC, or customized connectors to meet specific networking needs.
