The PLC fiber optic splitter is based on planar Lightwave circuit technology and precision aligning process, dividing optical inputs into multiple outputs uniformly (1*N or 2*N).
Fabricated using silica optical waveguide technology for efficient optical power management.
Features small size, high reliability, wide operating wavelength range, and excellent channel-to-channel uniformity.
Widely used in PON networks to realize optical signal power splitting with high stability.

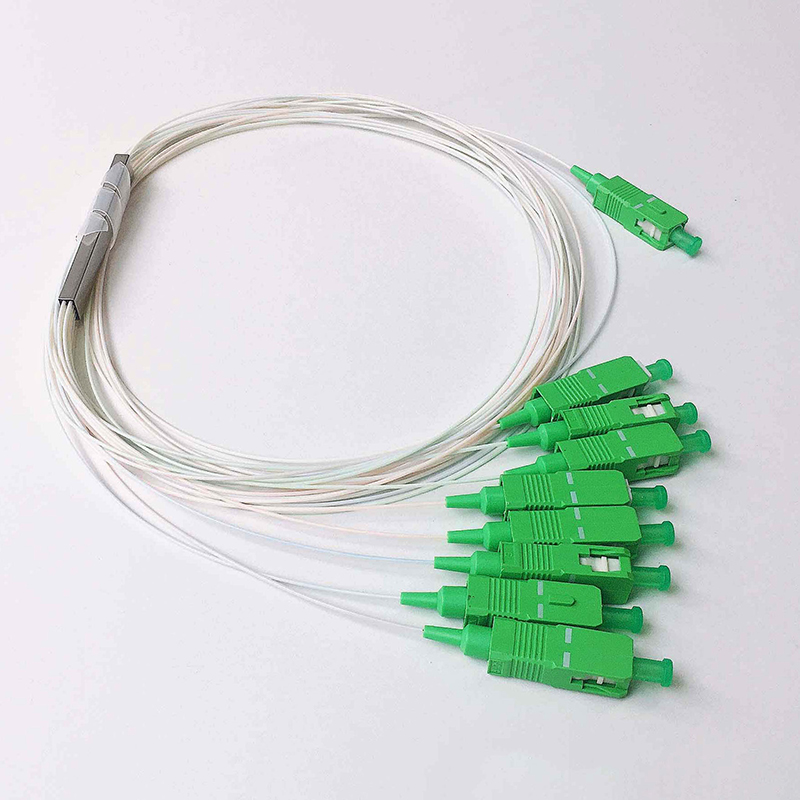

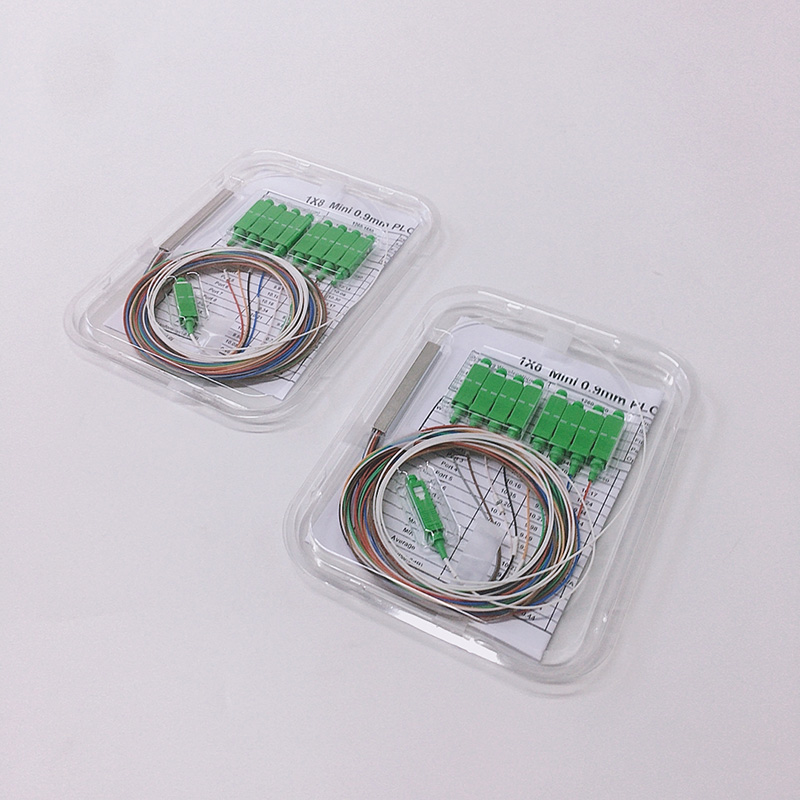

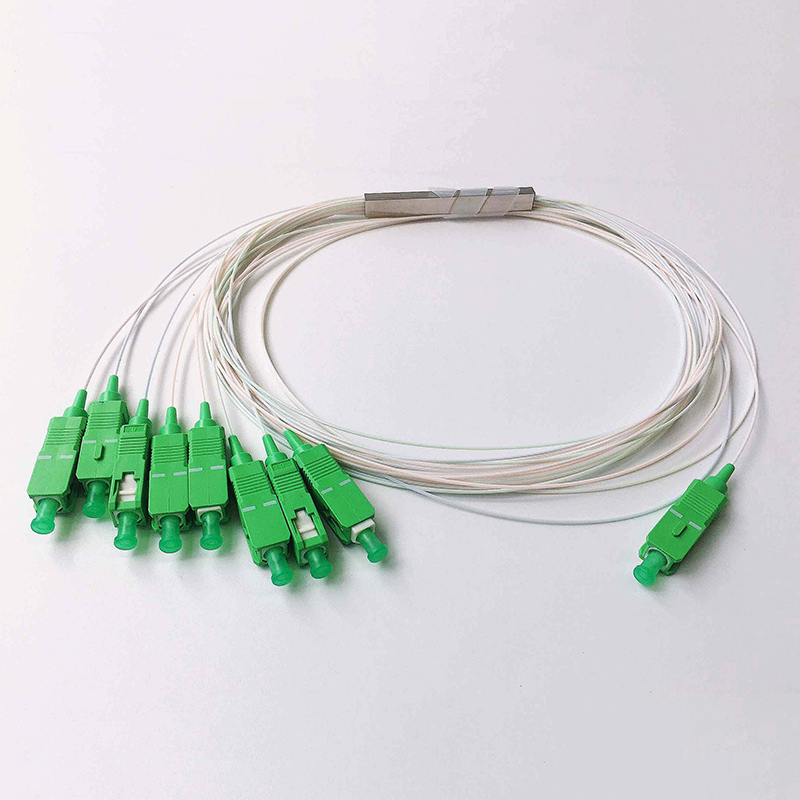

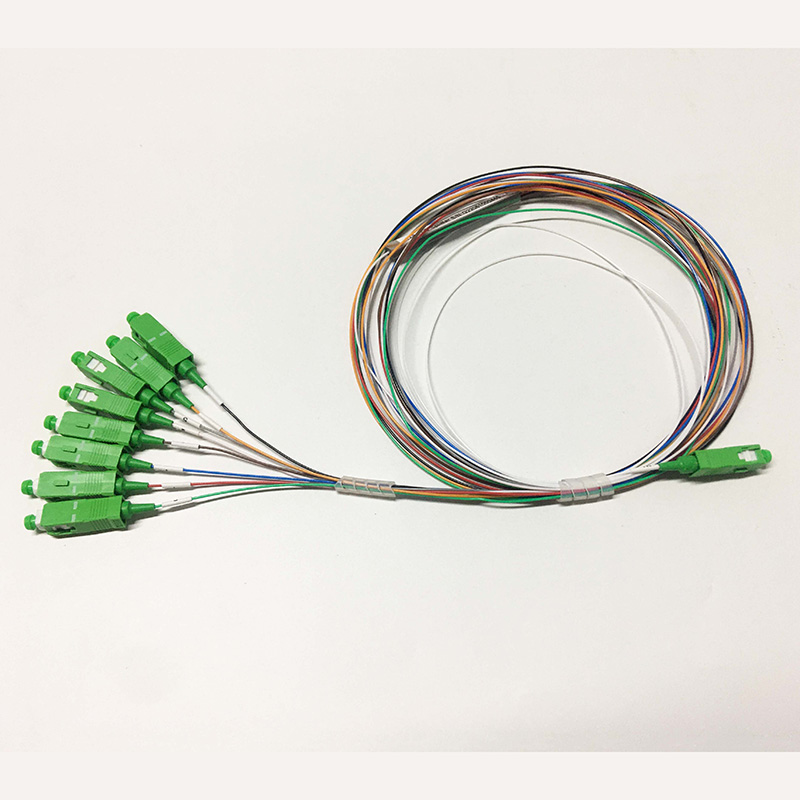

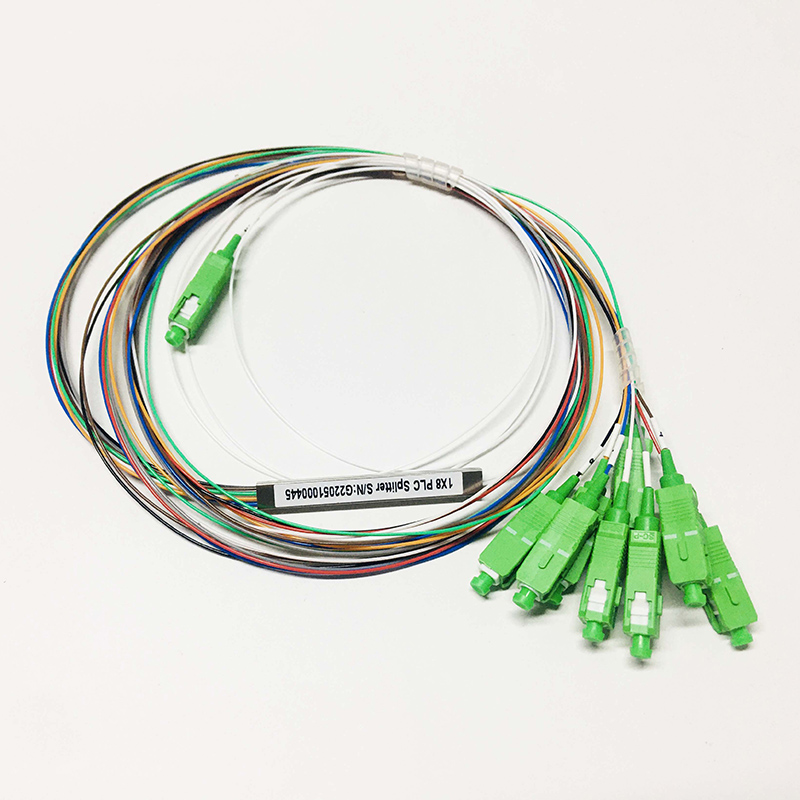

1x8 PLC splitter comes with 1 input and 8 outputs; cable lengths (0.6m, 1.0m, 1.5m) or customization available.
Available with SC/UPC, SC/APC, LC/UPC, LC/APC connector types.
Ideal for 8-port rack mount boxes, distribution frames, and outdoor fiber optic distribution boxes.
Applications & Features
- Data Communication & Telecommunication
- Optical Signal Distribution
- FTTX & PON Networks
- CATV Links
- Low insertion loss & High return loss
- Excellent Temperature stability & Mechanical endurance
- Good repeatability and exchangeability
- Strict quality control: curing time and temperature standards
- Environment protection (ROHS Compliance)
- Full customization available (Connector/Length/Package)
| Port Configuration |
Insertion Loss (dB) Max |
Loss Uniformity (dB) |
PDL (dB) |
Wavelength Dependent Loss (dB) |
Temp. Dependent Loss (-40~85℃) (dB) |
| 1*8 |
10.6 |
1.0 |
0.25 |
0.3 |
0.4 |

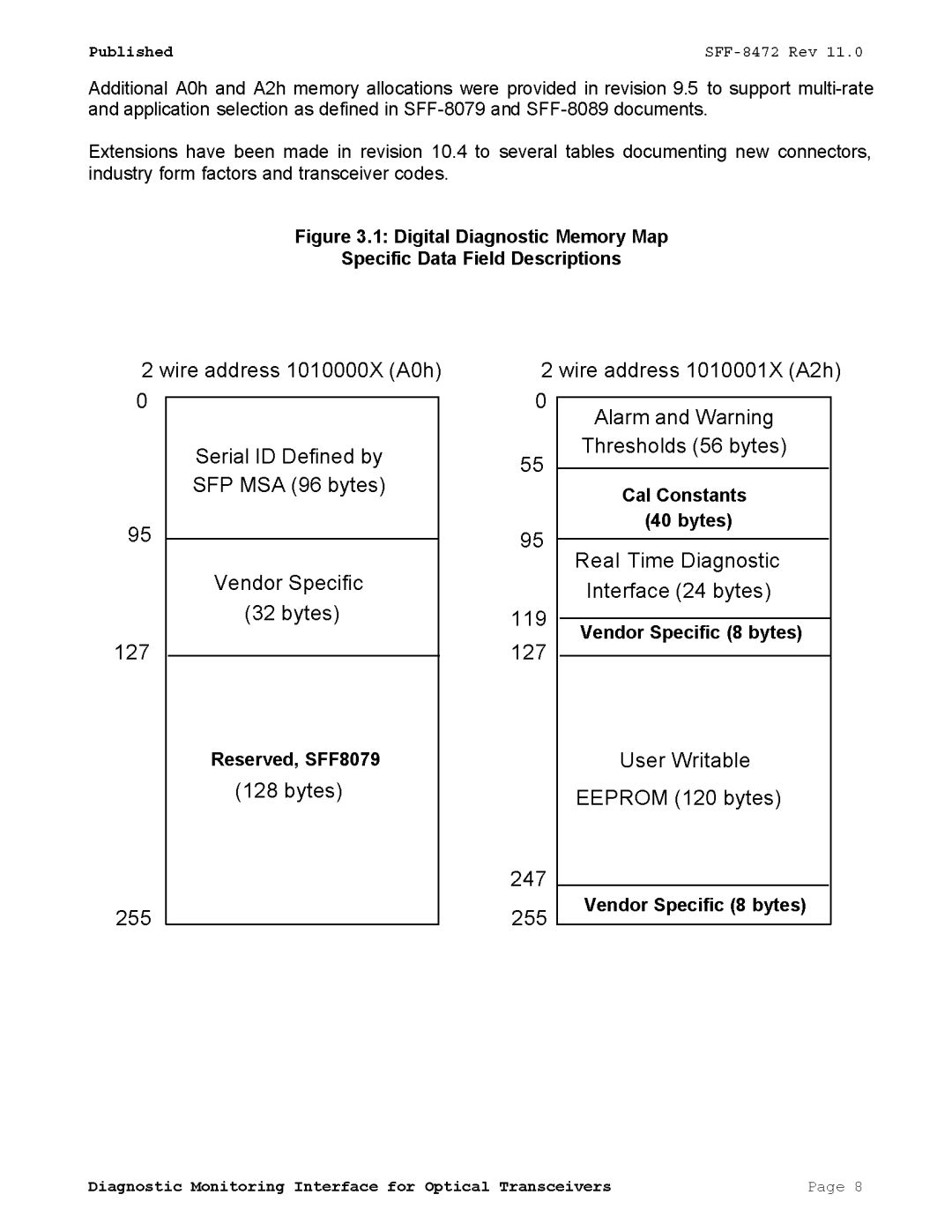

Transceiver Monitoring & Diagnostics
| Data Address |
Parameter |
Accuracy |
Unit |
| 96-97 |
Transceiver Internal Temperature |
±3.0 |
°C |
| 100-101 |
Laser Bias Current |
±10 |
% |
| 100-101 |
Tx Output Power |
±3.0 |
dBm |
| 100-101 |
Rx Input Power |
±3.0 |
dBm |
| 100-101 |
VCC3 Internal Supply Voltage |
±3.0 |
% |
| Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
| Storage Temperature |
Ts |
-40 |
- |
+85 |
°C |
| Case Operating Temperature |
SFP+ -10G-LR |
TA |
0 |
- |
70 |
°C |
| SFP+ -10G-LR-I |
TA |
-40 |
- |
+85 |
°C |
| Maximum Supply Voltage |
Vcc |
-0.5 |
- |
4 |
V |
| Relative Humidity |
RH |
0 |
- |
85 |
% |

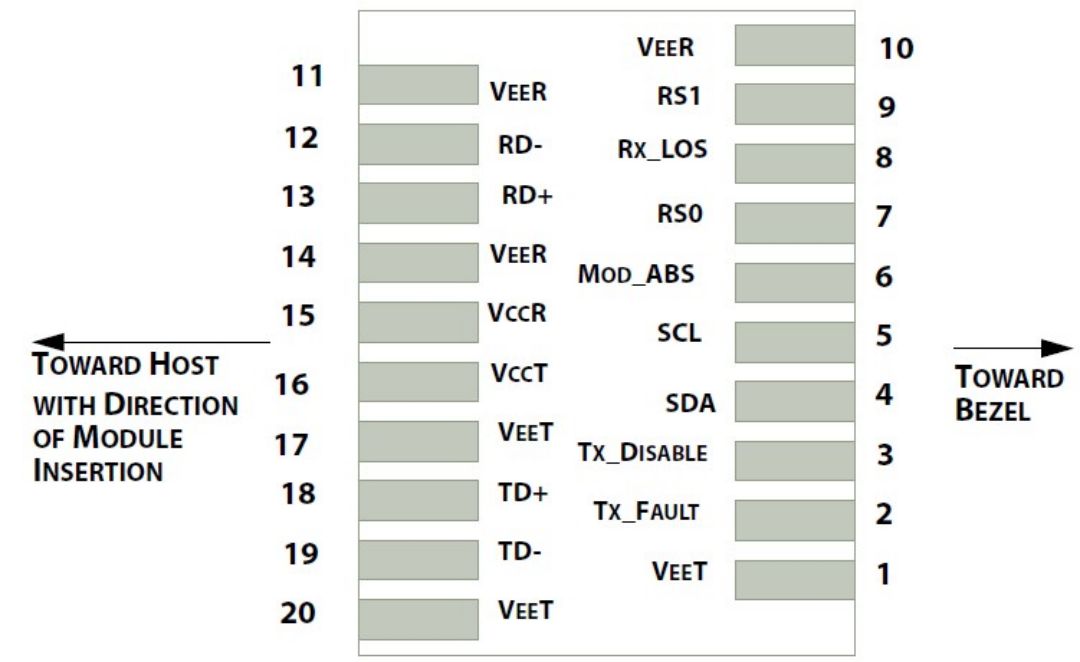

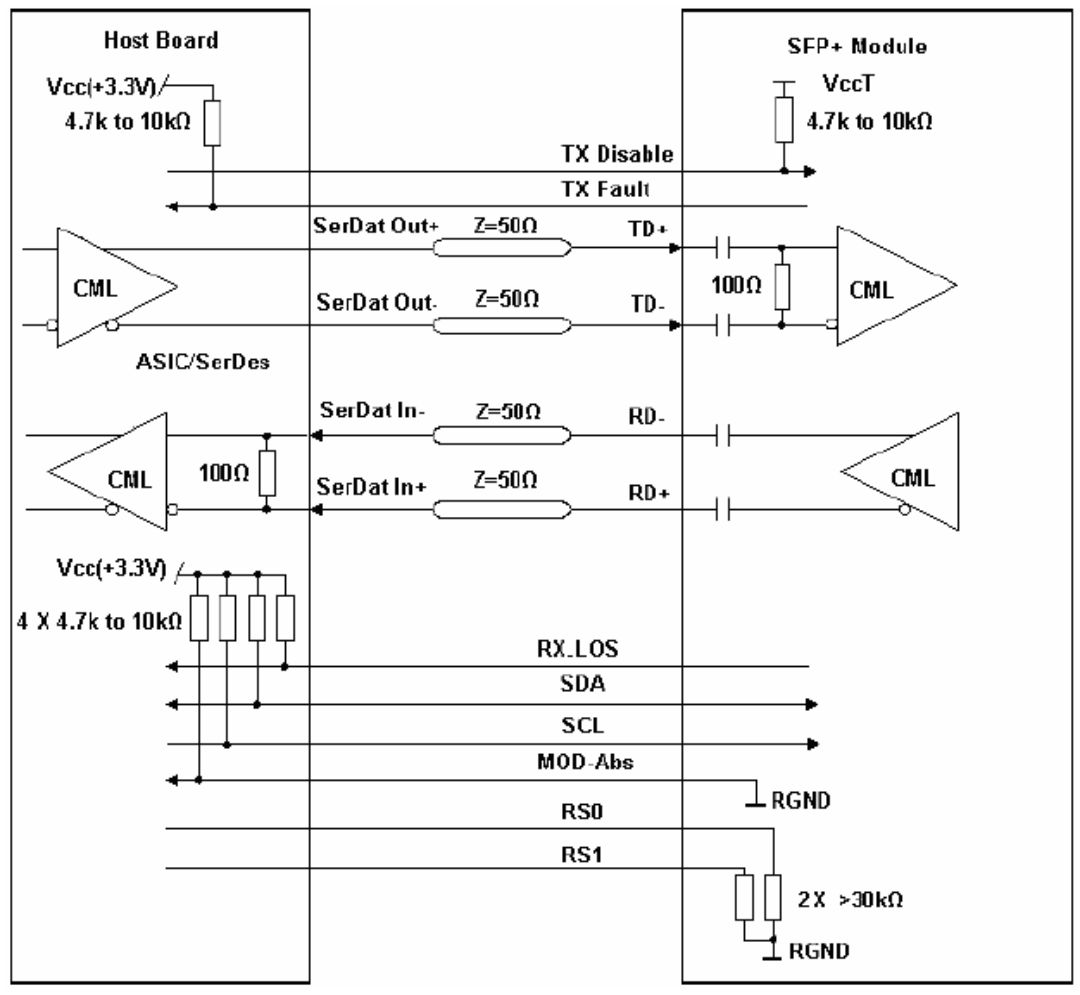

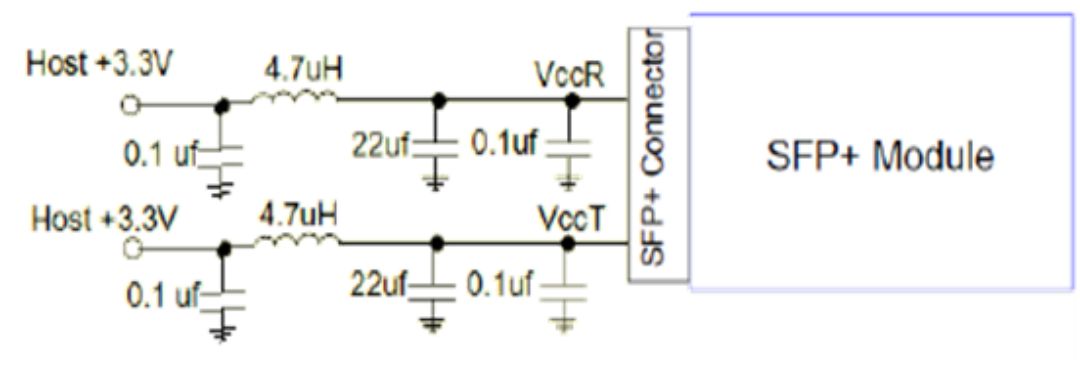

Host Board Connector Pin Definitions
| PIN |
Name |
Function |
Notes |
| 1 | VeeT | Module transmitter ground | 1 |
| 2 | Tx Fault | Module transmitter fault | 2 |
| 3 | Tx Disable | Transmitter Disable; Turns off laser output | 3 |
| 4 | SDL | 2 wire serial interface data (SDA) | - |
| 5 | SCL | 2 wire serial interface clock (SCL) | - |
| 6 | MOD-ABS | Module Absent, connect to VeeR or VeeT | 2 |
| 8 | LOS | Receiver Loss of Signal Indication | 4 |
| 15 | VccR | Module receiver 3.3V supply | - |
| 16 | VccT | Module transmitter 3.3V supply | - |
Notes:
1. Module ground pins isolated from the module case.
2. Open collector/drain output; pull up with 4.7K-10Kohms to Host_Vcc.
3. Pull up with 4.7K-10Kohms to VccT in the module.
Detailed Splitter Specifications
| Parameter |
Specification (Without Connector) |
Specification (With Connector) |
| Insertion Loss (dB) Max | 10.8 | 10.6 |
| Loss Uniformity (dB) | 1.0 | 1.0 |
| PDL (dB) | 0.2 | 0.25 |
| Wavelength Range (nm) | 1260 ~ 1650 |
| Directivity (dB) Min | 55 |
| Return Loss (dB) Min | 55 (50) |
| Operating Temp (°C) | -40 ~ +85 |
Frequently Asked Questions (FAQ)
What is a PLC fiber optic splitter?
A Planar Lightwave Circuit (PLC) splitter is an optical power management device that uses silica optical waveguide technology to distribute optical signals from one or two input ports to multiple output ports uniformly.
What are the common applications for 1x8 PLC splitters?
They are widely used in PON (Passive Optical Networks), FTTX deployments, CATV links, and general optical signal distribution in telecommunication environments.
Can the cable length and connector types be customized?
Yes. While standard lengths are 0.6m, 1.0m, and 1.5m, they can be customized. Connector options include SC/UPC, SC/APC, LC/UPC, LC/APC, and FC.
How does temperature affect the performance of the splitter?
These splitters are designed for high stability with an operating temperature range of -40°C to +85°C, featuring a very low temperature-dependent loss (typically ≤0.4dB).
What is the difference between splitters with and without connectors?
Splitters without connectors (bare fiber) generally have slightly lower insertion loss (e.g., 10.5dB vs 10.7dB for 1x8) because the loss from the connector mating is not included.
Are these products compliant with environmental standards?
Yes, all splitters follow strict curing and quality control methods and are fully ROHS compliant for environmental protection.
