📋 Compliance Standards
✓
ITU-T and IEC and China standards.
✓
YDT 2341.1-2011 Field Assembled Optical Fiber Active Connector. Part 1: Mechanical Type.
✓
China Telecom fast Connector Standard [2010] No. 953.
✓
01C GR-326-CORE (Issue 3, 1999) General requirements for single-mode optical connectors and jumpers.
✓
YD/T 1636-2007 Fiber to the Home (FTTH) Architecture and General Requirements Fiber Optic Cable Connector Part 4: Sectional Specification Optical Fiber Optical Cable Mechanical Connector.
⚙️ Technical Parameters
| Item |
Parameter |
| Cable Scope |
3.0 x 2.0 mm / 1.6*2.0mm Bow-type Drop Cable |
| Size: |
51*9*7.55mm |
| Fiber Diameter |
125μm ( 652 & 657 ) |
| Coating Diameter |
250μm |
| Mode |
SM (Single Mode) |
| Operation Time |
about 15s (exclude fiber presetting) |
| Insertion Loss |
≤ 0.4dB (1310nm & 1550nm) |
| Return Loss |
≤ -50dB for UPC, ≤ -55dB for APC |
| Success Rate |
>98% |
| Reusable Times |
>10 times |
| Tighten Strength of Naked Fiber |
>1 N |
| Tensile Strength |
>50 N |
| Temperature |
-40 ~ +85 C |
| On-line Tensile Strength Test (20 N) |
IL ≤ 0.3dB |
| Mechanical Durability (500 times) |
IL ≤ 0.3dB |
| Drop Test (4m concrete floor, once each direction) |
IL ≤ 0.3dB |
🚀 Key Features & Applications
● Passive fiber optic system and all fiber interconnection.

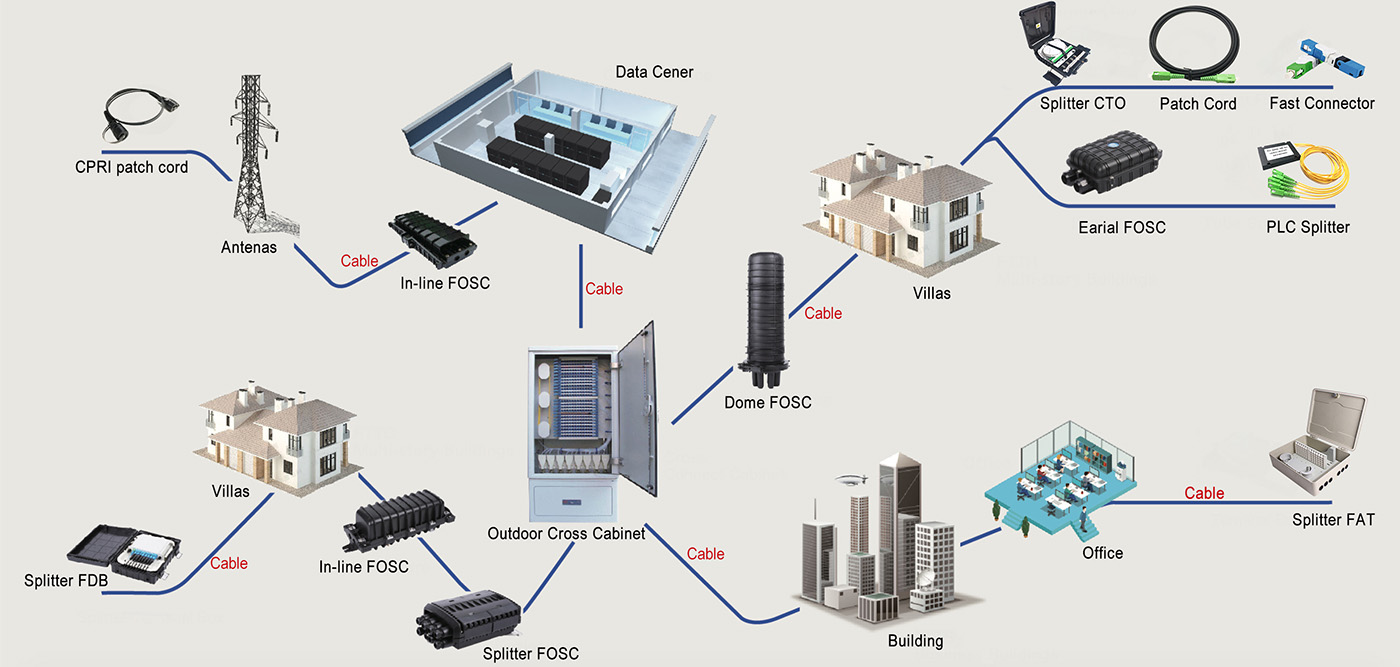

● Telecom distribution, local area networks, FTTH and FTTX.
● Comply with TIA/EIA and IEC; Rohs compliant.
● Quick and easy fiber termination with no special tools required.
● Reusable termination capability (up to 5-10 times).
● High success rate of connections with low insertion loss.
● Passive optical networks (ATM, WDM, Ethernet), Broadband, and CATV.
💡 Product Advantages
- Easy Operating: The connector can be directly used in ONU, with a fasten strength of more than 5 kg. It is widely used in FTTH projects, reducing the need for sockets and adapters, thus saving project costs.
- Standard Compatibility: With 86 standard socket and adapter, the connector makes a seamless connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.
- Versatile Application: Applicable to connection with field mountable indoor cable, pigtail, patch cord, and transformation of patch cord in data rooms.
❓ Frequently Asked Questions
Q1: What is the typical insertion loss for this connector?
The insertion loss is ≤ 0.4dB for both 1310nm and 1550nm wavelengths.
Q2: Are special tools required for installation?
No, this connector is designed for quick and easy termination without the need for any special tools.
Q3: Can the connector be reused if the first connection fails?
Yes, the connector features reusable termination capability, supporting more than 10 reusable times.
Q4: What types of cables are compatible with this connector?
It is compatible with 3.0 x 2.0 mm and 1.6 x 2.0 mm bow-type drop cables.
Q5: What is the operating temperature range?
The connector is designed to operate reliably in temperatures ranging from -40°C to +85°C.
Q6: Does it comply with international standards?
Yes, it complies with ITU-T, IEC, TIA/EIA, and various China national standards like YD/T 1636-2007.
