  • Standard PDLC connector, well connected with standard LC duplex adapter.
  • Low insertion loss and back reflection loss.
  • Good waterproof preformance.
  • IP67 moisture and dust protection for harsh environments.
  • Low smoke, zero halogen and flame retardant sheath.
  • Smaller diameter, simple structure, light weight, and high practicability.
  • Special low-bend-sensitivity fiber provides high bandwidth data transmission.
  • Available Single mode and Multimode.
  • Compact design.
  • Broad temperature range and wide range of indoor and outdoor cables.
  • Easy Operation, reliable and cost-effective installation.
Send Inquiry

Product Description

Product Overview & Features
PDLC Outdoor waterproof optic fiber patch cord is standard size for Duplex LC Connectors, featuring an outer housing with a metal protective device.
Safe and reliable connection with high-performance waterproof and dustproof functions.
Widely applied in FTTA, Base stations, and various outdoor waterproof conditions.
Specifically designed for outdoor RRU transmitting optical signals and remote fiber feeders.
PDLC Fiber Patch Cord
Technical Specifications
Mode Single Mode (SM) Multi Mode (MM)
End-face Polish UPC APC PC
Insertion Loss ≤0.3dB ≤0.3dB
Return Loss ≥50dB ≥55dB ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strength > 10kg
Temperature -40 to + 85℃
Humidity (+25, +65 93 R.H. 100 hours)
Durability 500 mating cycles

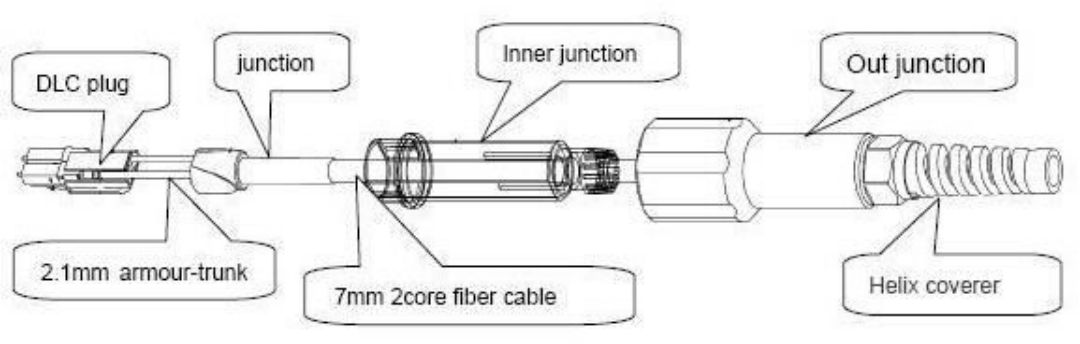

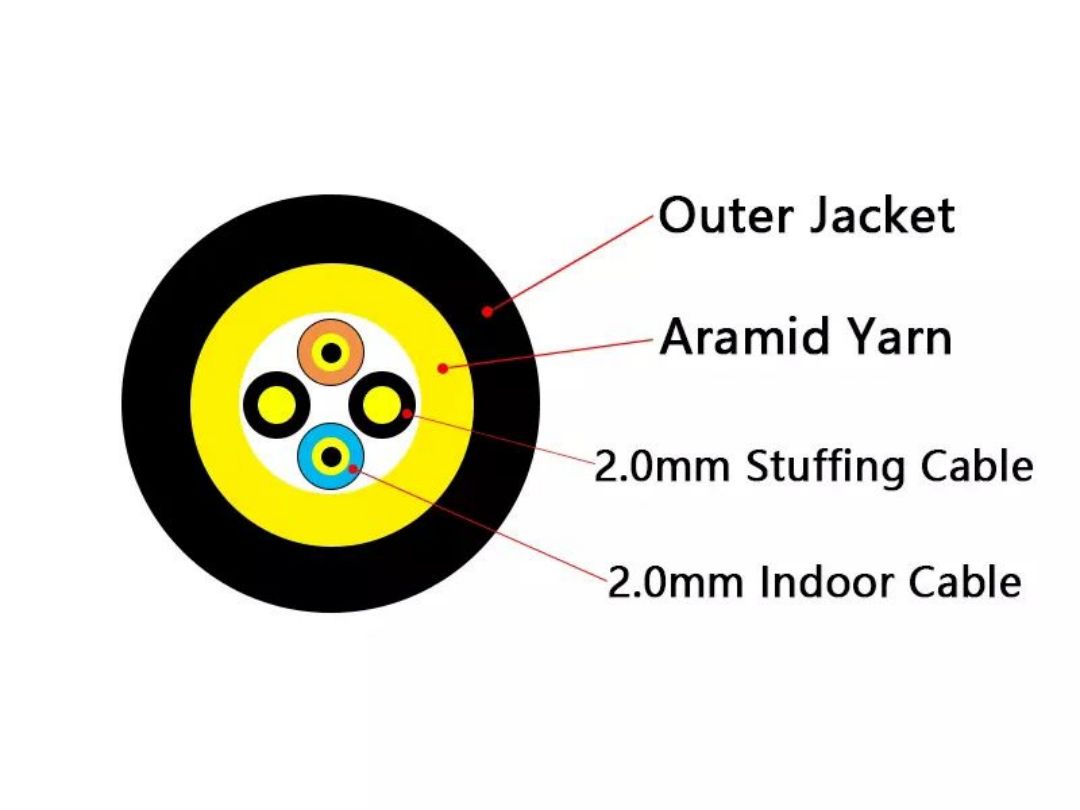

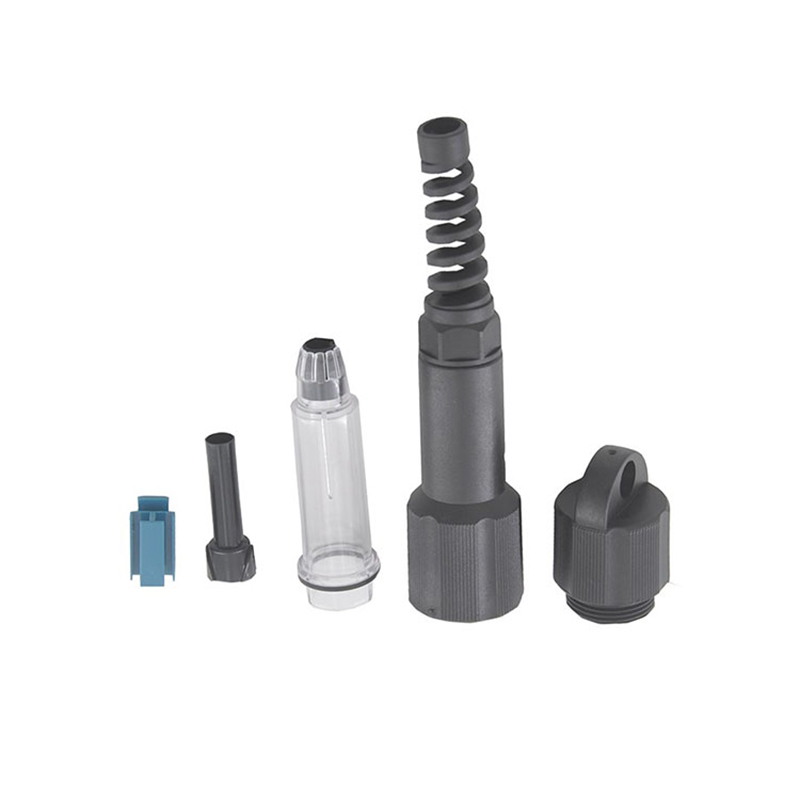

PDLC Connector Detail Fiber Optic Cable Construction
Key Advantages & Application
Factory pre-installation with corrugated tube protection on both sides for safe deployment.
7.0mm black cable available in armored or non-armored options with UV anti-function.
IP67 moisture and dust protection suitable for harsh environmental conditions.
Low smoke, zero halogen (LSZH) and flame retardant sheath for enhanced safety.
Compact design with low bend-sensitivity fiber for high bandwidth data transmission.
Easy operation and cost-effective installation for FTTX, FTTA, and FTTH applications.

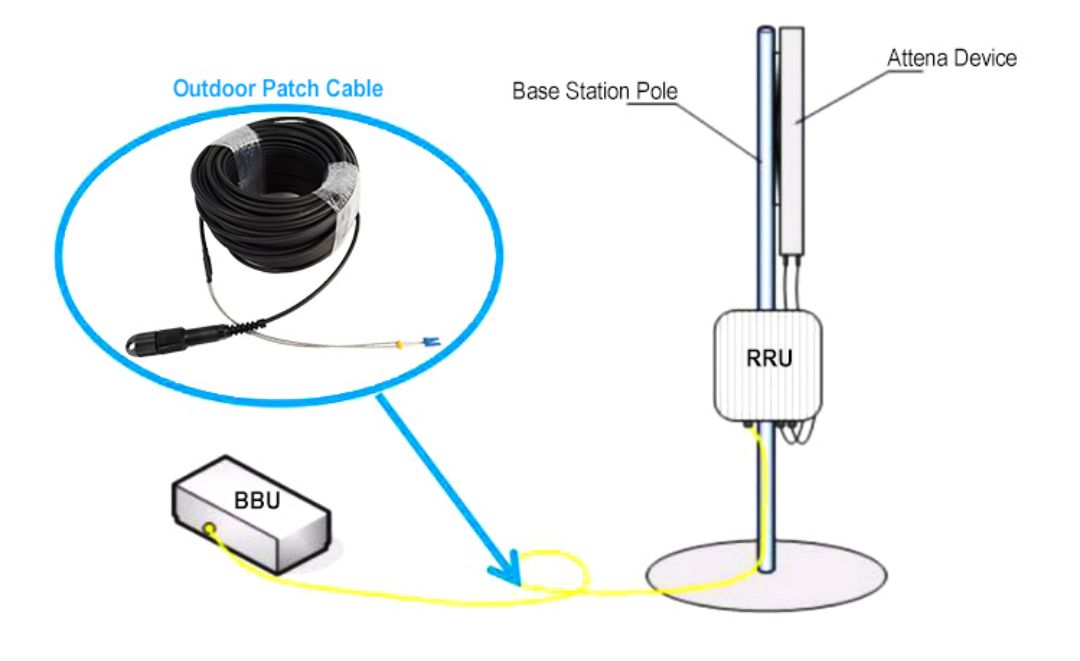

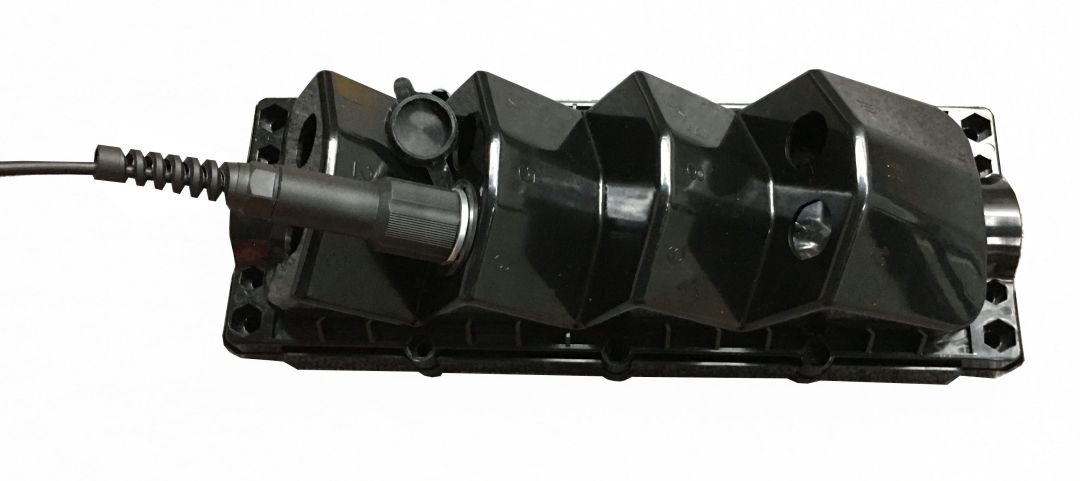

Outdoor Fiber Application
Frequently Asked Questions
Q1: What are the main applications for PDLC outdoor patch cords? They are primarily used in FTTA (Fiber to the Antenna), base stations, RRU signal transmission, and other harsh outdoor environments requiring waterproof connectivity.
Q2: Does this patch cord provide protection against water and dust? Yes, it features IP67-rated protection, making it highly resistant to moisture and dust in extreme conditions.
Q3: What types of fiber cables can be used with PDLC connectors? Standard PDLC patch cords typically use 7.0mm cables, which are available in both armored and non-armored versions with UV-resistant black sheaths.
Q4: Are these patch cords compatible with standard LC equipment? Absolutely. The internal structure uses standard Duplex LC connectors, allowing them to connect seamlessly with standard LC adapters.
Q5: What is the operating temperature range? The PDLC outdoor fiber patch cords are designed to operate reliably in temperatures ranging from -40°C to +85°C.
Q6: Is it available in both Single Mode and Multimode? Yes, the assemblies are available in Single Mode (SM) with UPC/APC polishing and Multimode (MM) with PC polishing.
