| Parameter | Specification Details | Value/Performance |
|---|---|---|

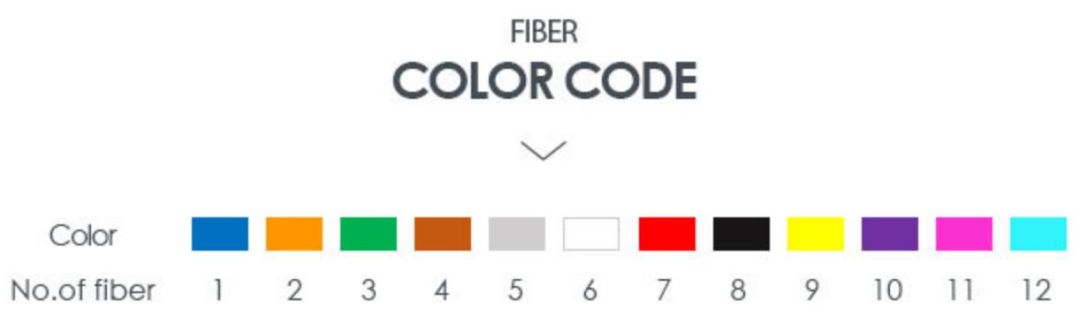

| Fiber number | 1~12 | - |
| Cable diameter / Weight | 8.0mm ± 0.3mm | 70kg/km |
| 7.0mm ± 0.1mm | 50kg/km | |
| Temperature range | -40°C to +70°C | |
| Min Bending Radius (Long term) | 10D | Based on Diameter |
| Min Bending Radius (Short term) | 20D | Based on Diameter |
| Tensile Strength (Long term) | 1200 N | Minimum Allowable |
| Tensile Strength (Short term) | 1500 N | Minimum Allowable |
| Installation temperature | -20°C to +60°C | |
| Fiber Style: MM OM3-300 | Unit | Performance | |
|---|---|---|---|
| Condition wavelength | nm | 850 / 1300 | |
| Attenuation | dB/km | ≤ 3.0 / 1.0 | |
| Dispersion | 1550nm / 1625nm | Ps/(nm*km) | Standard Compliant |
| Bandwidth | 850nm / 1300nm | MHZ.KM | Optimized for 10G |
| Zero dispersion wavelength | nm | ≥ 1295, ≤ 1320 | |
| PMD Maximum Individual Fiber | - | ≤ 0.11 | |
| Numerical Aperture (NA) | - | 0.200 +/- 0.015 | |
| Point Irregularities | dB | ≤ 0.10 | |

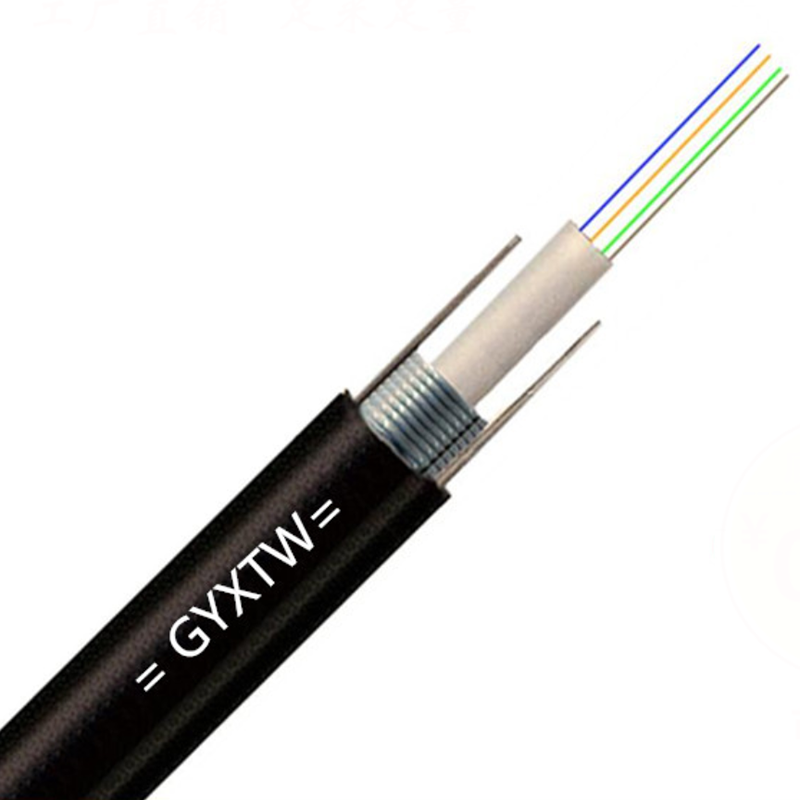

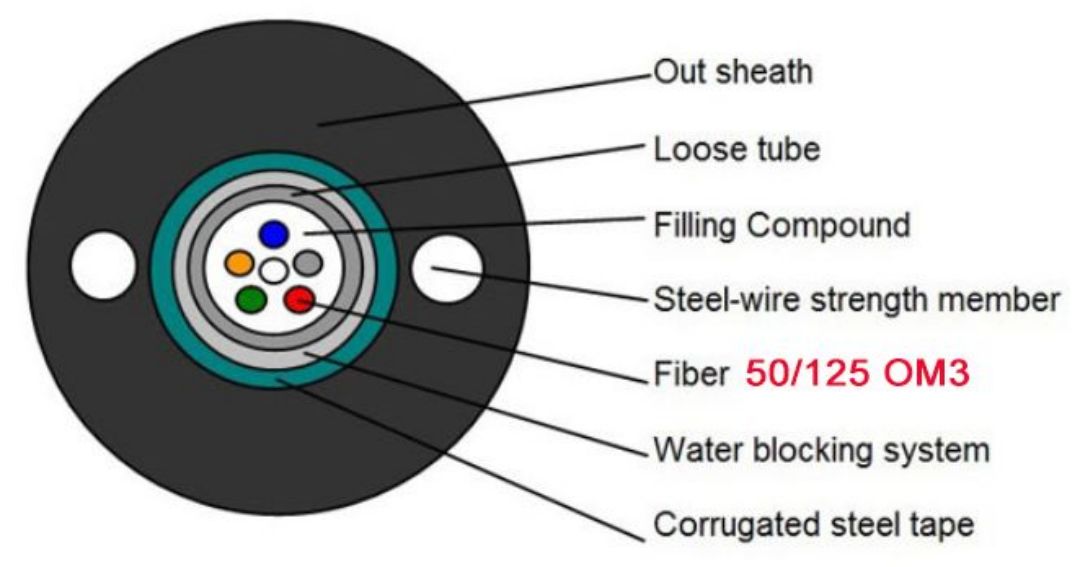

The GYXTW fiber optic cable features fibers (250μm) positioned in a loose tube made of high-modulus plastic, filled with a water-resistant compound. The tube is wrapped longitudinally with a layer of PSP (Plastic Steel Polyethylene). Water-blocking material is applied between the PSP and the loose tube to ensure the cable remains compact and watertight.
Structural integrity is enhanced by two parallel steel wires placed on both sides of the steel tape. The assembly is finished with a durable Polyethylene (PE) sheath.
The OM3 fiber cable supports 10Gbit standards, allowing data transmission over distances up to 300m at 850nm. Its superior optical characteristics make it ideal for cost-efficient multi-mode technology backbone connections.
