Wholesale FTTH Tools FC-6S Fiber Optic Cleaver Manufacturers, Product

• Used for Single Fiber Cleaving • Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency • Prevents Double Scoring of the Fibers • Has Superior Blade Height and Rotational Adjustment • Available With Automatic Fiber Scrap Collection • Can Be Operated With Minimal Step

Product Description

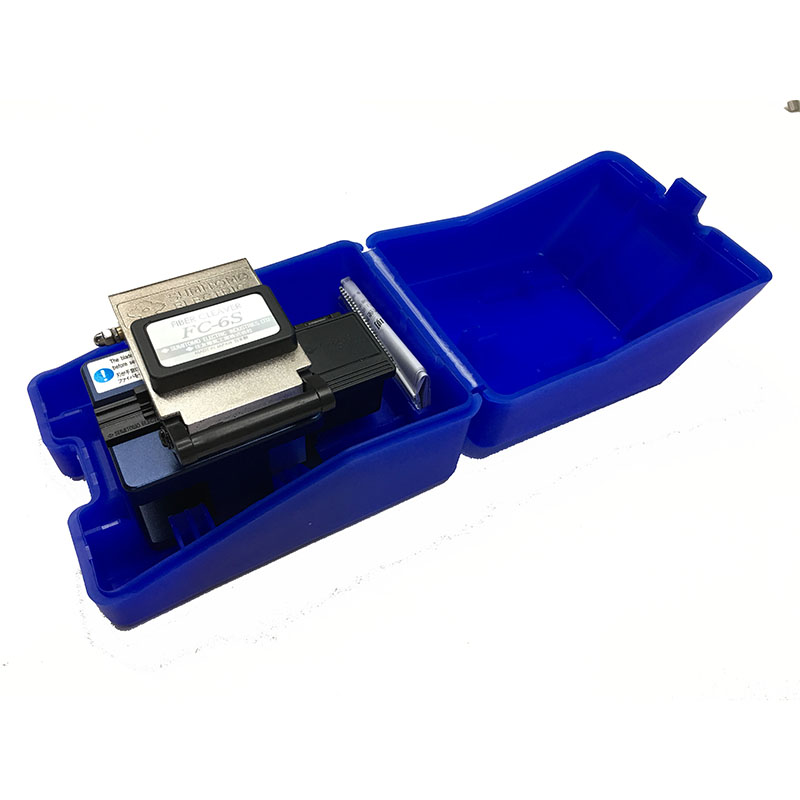

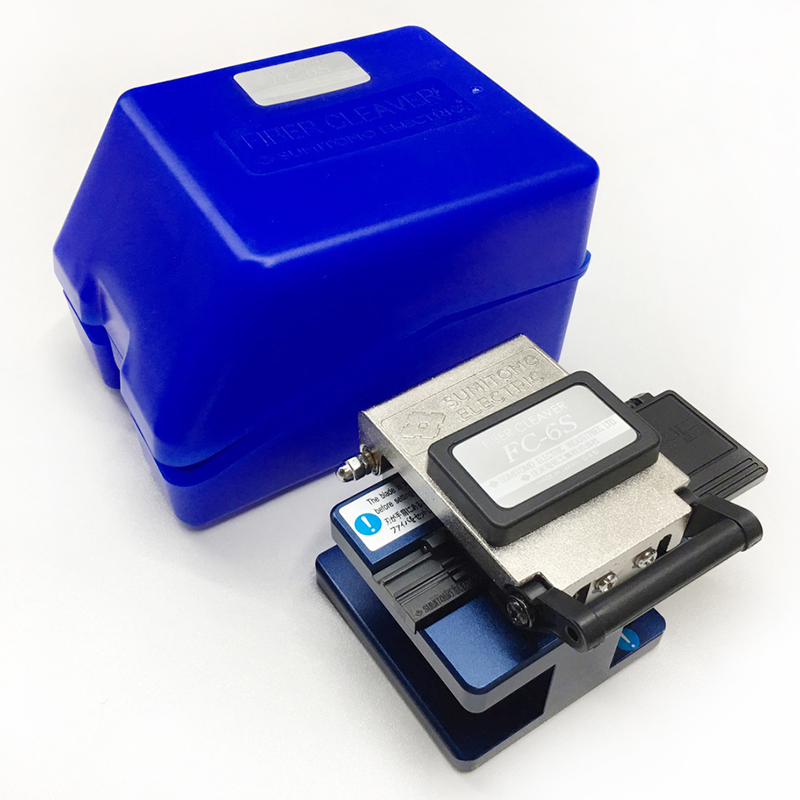

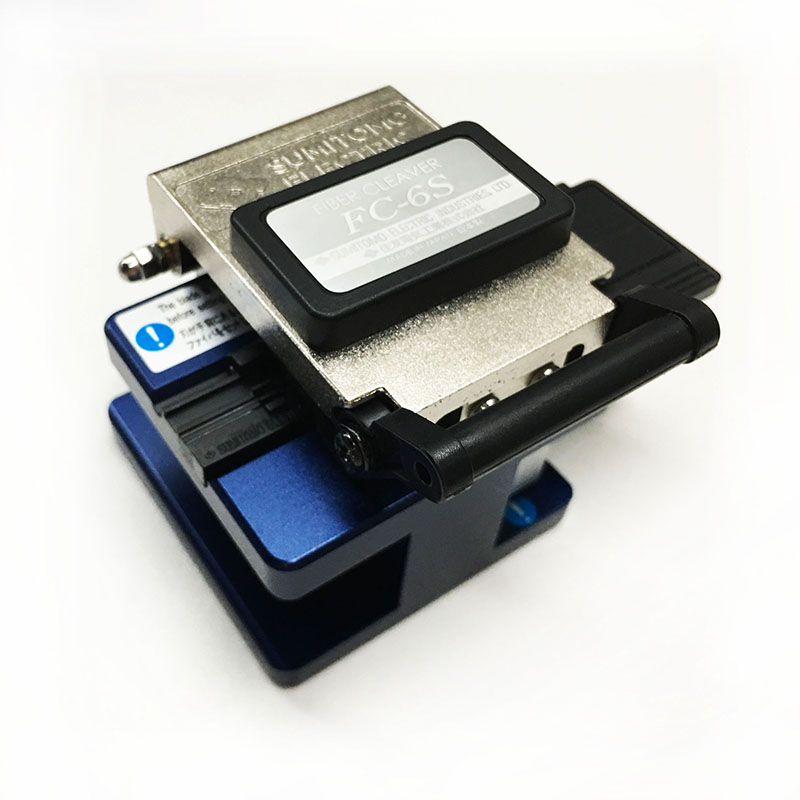

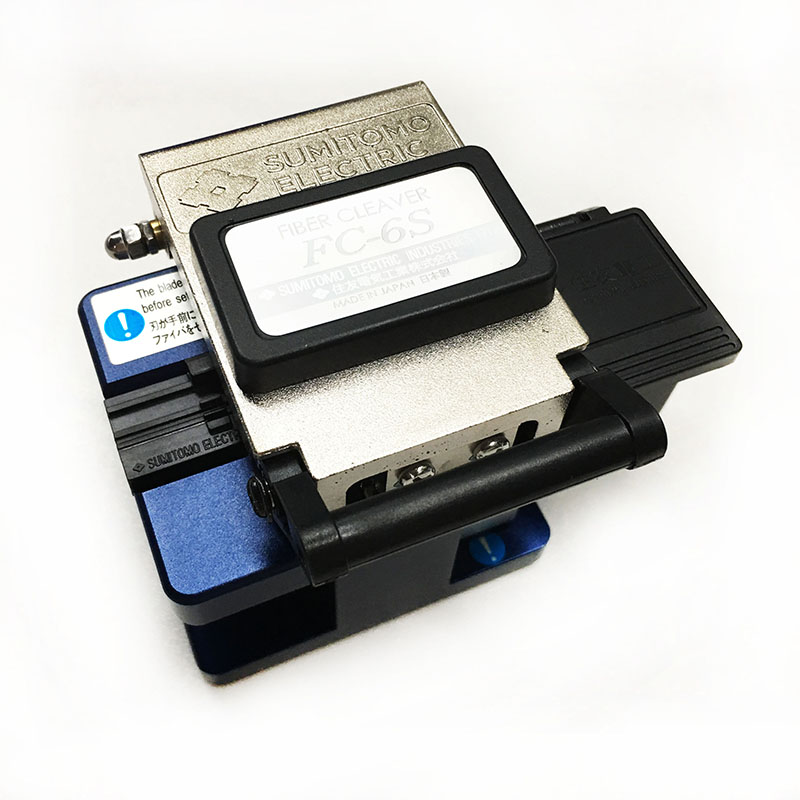

With the introduction of the TC-6S, you now can have the ultimate precision tool for single fiber cleaving. The TC-6S is available with a single fiber adapter for 250 to 900 micron coated single fibers. It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving.

Built on a robust high-quality platform, the FC-6S is ideal for use with fusion splicing or other precision applications, setting a new standard for flexibility and performance. An optional fiber scrap collector can be installed with the FC-6S to help maintain loose scraps, resulting from the cleaving process. The scrap collector works to automatically grab and store the scrap fibers as the cleaver’s lid is raised, following a completed cleave.

Dimensions 63W x 65D x 63H (mm)
Weight 430g Without Scrap Collector; 475g With Scrap Collector
Coating Diameter 0.25mm - 0.9mm (Single)
Cladding Diameter 0.125mm
Cleave Length 9mm - 16mm (Single Fiber - 0.25mm coating); 10mm - 16mm (Single Fiber - 0.9mm coating)
Typical Cleave Angle 0.5 Degrees
Typical Blade Life 36,000 Fiber Cleaves
Number of Steps for Cleave 2
Blade Adjustments Rotational & Height
Automatic Scrap Collection Optional
Used for Single Fiber Cleaving
Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency
Prevents Double Scoring of the Fibers
Has Superior Blade Height and Rotational Adjustment
Available With Automatic Fiber Scrap Collection
Can Be Operated With Minimal Steps
What types of fibers can the TC-6S cleave?
The TC-6S is designed for single fiber cleaving and is compatible with 250 to 900 micron coated single fibers using its dedicated adapter.
How long does the blade typically last?
The precision blade is designed for high durability, offering a typical life of approximately 36,000 fiber cleaves.
Is the fiber scrap collector included?
The automatic fiber scrap collector is an optional accessory that can be installed to help manage and store loose fiber scraps automatically.
What is the typical cleave angle achieved by this tool?
The TC-6S/FC-6S provides a highly accurate performance with a typical cleave angle of 0.5 degrees.
Can the blade height be adjusted?
Yes, the cleaver features superior adjustment capabilities, allowing for both rotational and height adjustments of the blade.
Is it suitable for fusion splicing applications?
Absolutely. It is built on a high-quality platform that is ideal for fusion splicing and other precision fiber optic applications.
