Wholesale Duplex High Dusty Cap Single Mode SM DX LC to LC Fiber Optic Adaptor Factories, Products
Wholesale Duplex High Dusty Cap Single Mode SM DX LC to LC Fiber Optic Adaptor Factories, Products
Wholesale Duplex High Dusty Cap Single Mode SM DX LC to LC Fiber Optic Adaptor Factories, Products
Wholesale Duplex High Dusty Cap Single Mode SM DX LC to LC Fiber Optic Adaptor Factories, Products
Wholesale Duplex High Dusty Cap Single Mode SM DX LC to LC Fiber Optic Adaptor Factories, Products
1 / 5
Wholesale Duplex High Dusty Cap Single Mode SM DX LC to LC Fiber Optic Adaptor Factories, Products
Wholesale Duplex High Dusty Cap Single Mode SM DX LC to LC Fiber Optic Adaptor Factories, Products
Wholesale Duplex High Dusty Cap Single Mode SM DX LC to LC Fiber Optic Adaptor Factories, Products
Wholesale Duplex High Dusty Cap Single Mode SM DX LC to LC Fiber Optic Adaptor Factories, Products
Wholesale Duplex High Dusty Cap Single Mode SM DX LC to LC Fiber Optic Adaptor Factories, Products

Wholesale Duplex High Dusty Cap Single Mode SM DX LC to LC Fiber Optic Adaptor Factories, Products

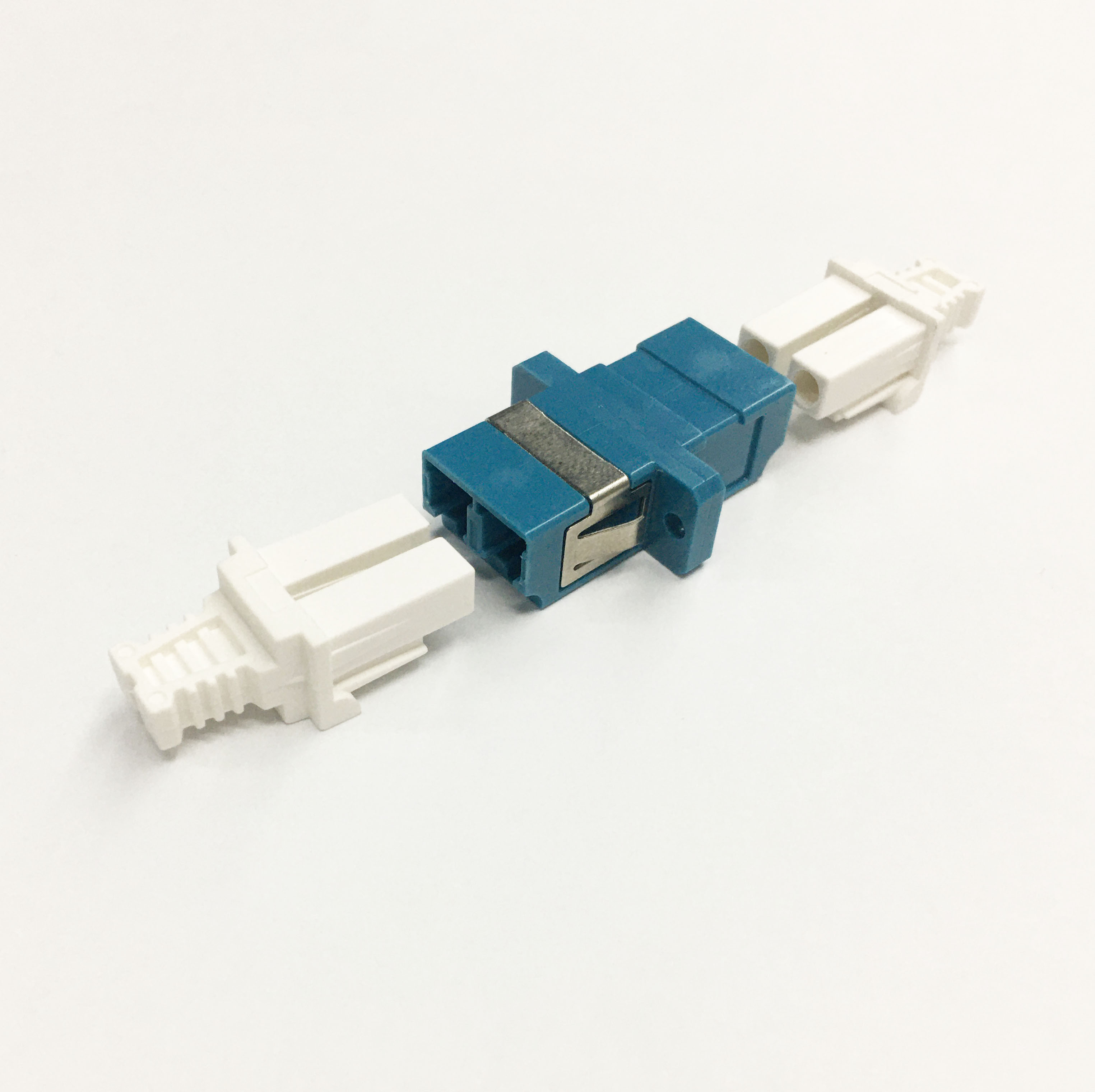

  • LC to LC UPC Single mode Duplex Fiber Optic Adapter.
  • Connector type: LC/UPC.
  • Fiber type: Single mode G652D, G657A, G657B.
  • Fiber count: duplex, 2fo.
  • Color: Blue.
  • Dusty cap type: high cap.
  • Logo print: acceptable.
  • Packing lable print: acceptable.
Send Inquiry

Product Description

Fiber optic adapters (also called couplers) are designed to connect two fiber optic patch cables together. They come in versions to connect single fibers together (simplex), two fibers together (duplex), or sometimes four fibers together (quad) and even eight fibers together.

Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). Note: It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables. This can cause misalignment of the small singlemode fibers and loss of signal strength (attenuation).

Product Key Features
  • High density applications and feature a quick plug in installation.
  • Utilize high quality zirconia and phosphorous bronze sleeves.
  • Unique duplex clip design allows reverse polarity even after assembly.
  • LC Duplex connectors are small form factor (SFF), utilizing 1.25mm diameter optical ferrules.
  • Precision alignment zirconia ceramic sleeve within a molded polymer body.
  • Supports two optical ports with each LC duplex adapter.
Characteristics Unit Single mode UPC
Insertion Loss (IL) dB ≤0.2
Exchangeability dB IL≤0.2
Repeatability (500 remates) dB IL≤0.2
Sleeve material -- Zirconia Ceramic
Housing Material -- Plastic
Operating Temperature °C -20°C~+70°C
Storage Temperature °C -40°C~+70°C
Technical Standards
  • Fiber: Single mode
  • Connector: Standard LC Duplex
  • Style: with flange
  • Durability: 500 mates
  • Standard: TIA/EIA, IEC and Telcordia compliance
  • Meets with RoHS
Main Applications
  • Passive Fiber Optic Networks (PON)
  • Telecommunication networks & LANs
  • Metro & Data Centers
  • Test equipment
  • FTTx (FTTH, FTTA, FTTB, FTTC, FTTO)
  • Fiber Optic Cabinet and Patch Panel

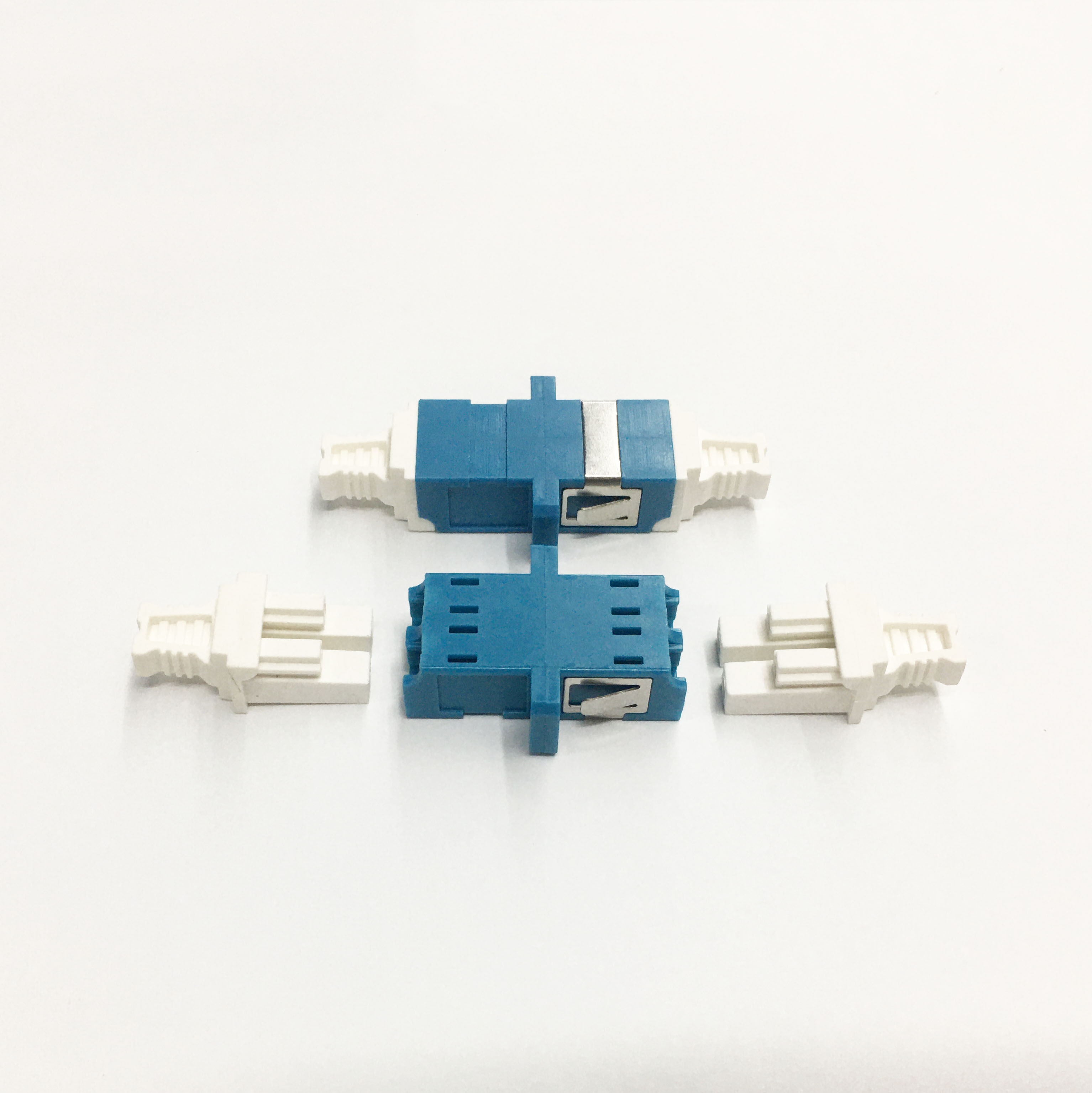

Fiber Optic Adapter View 1

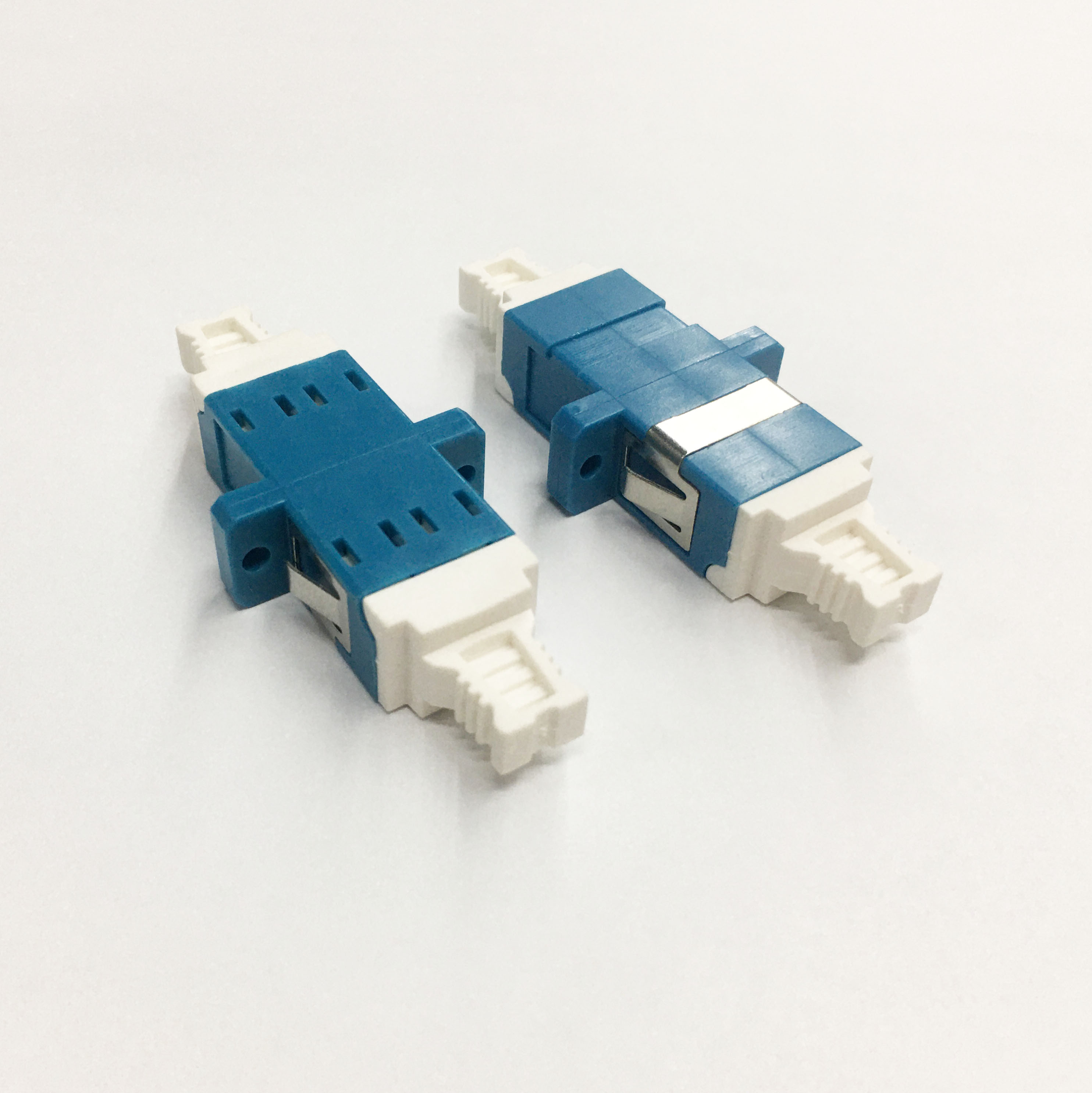

Fiber Optic Adapter View 2

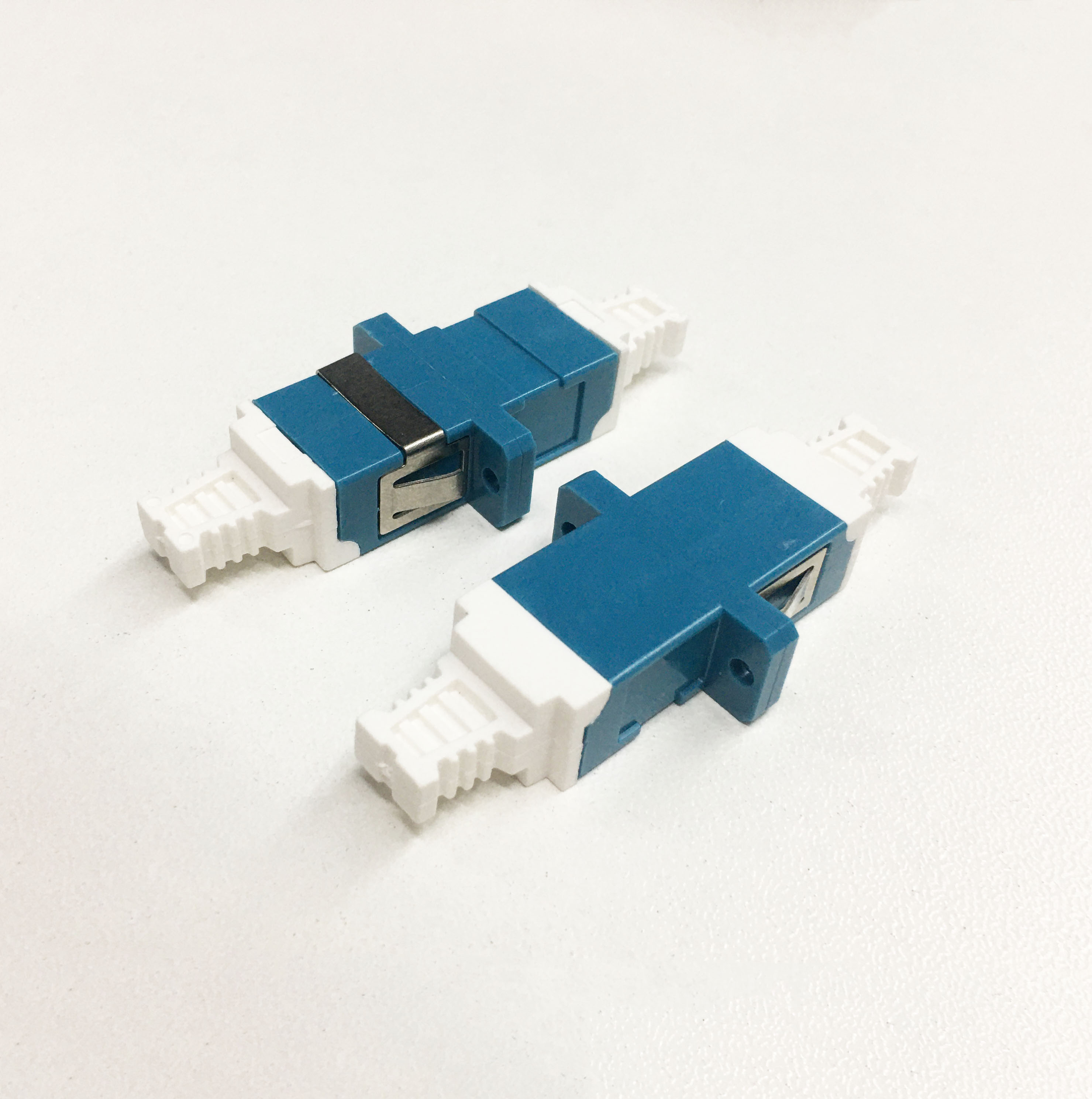

Fiber Optic Adapter View 3
Frequently Asked Questions (FAQ)
Q: What is the main purpose of a fiber optic adapter? A: Fiber optic adapters, or couplers, are primarily used to connect two fiber optic patch cables together, allowing for seamless signal transmission between cables.
Q: Can I use singlemode adapters for multimode cables? A: Yes, it is acceptable to use singlemode adapters to connect multimode cables. However, you should never use multimode adapters for singlemode cables as it causes signal loss (attenuation).
Q: What materials are used in the alignment sleeves? A: High-quality fiber adapters utilize zirconia ceramic or phosphorous bronze sleeves to ensure precision alignment of the fiber ferrules.
Q: What are the typical insertion loss levels for LC Duplex adapters? A: For single mode UPC LC Duplex adapters, the insertion loss (IL) is typically ≤0.2 dB, ensuring high performance in network applications.
Q: Are these adapters compliant with international standards? A: Yes, these adapters comply with TIA/EIA, IEC, and Telcordia standards, and are fully RoHS compliant.
Q: What applications are LC adapters suitable for? A: They are ideal for high-density environments including Data Centers, FTTx (FTTH, FTTA, etc.), Telecommunication networks, and Fiber Optic Cabinets.
