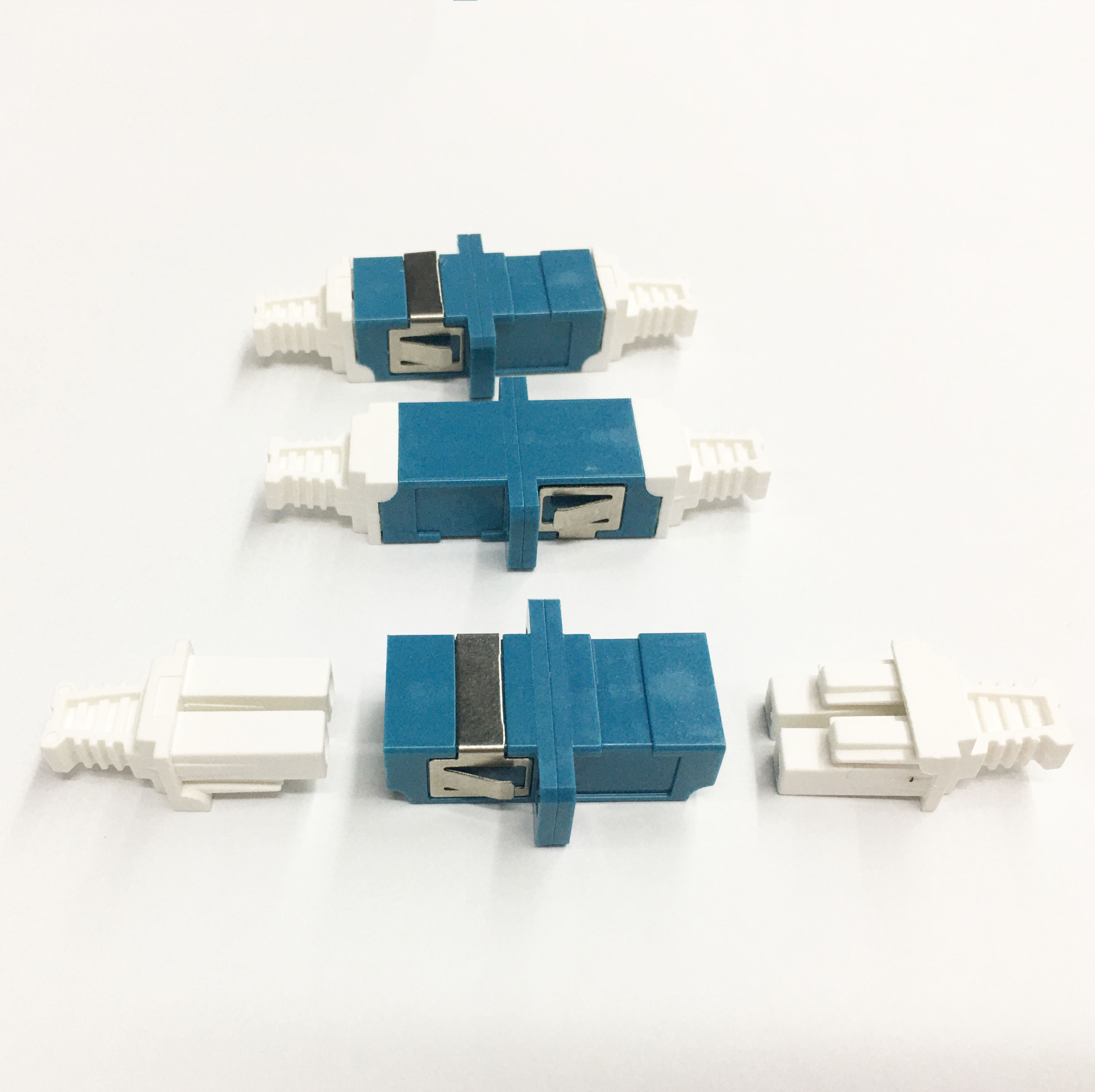

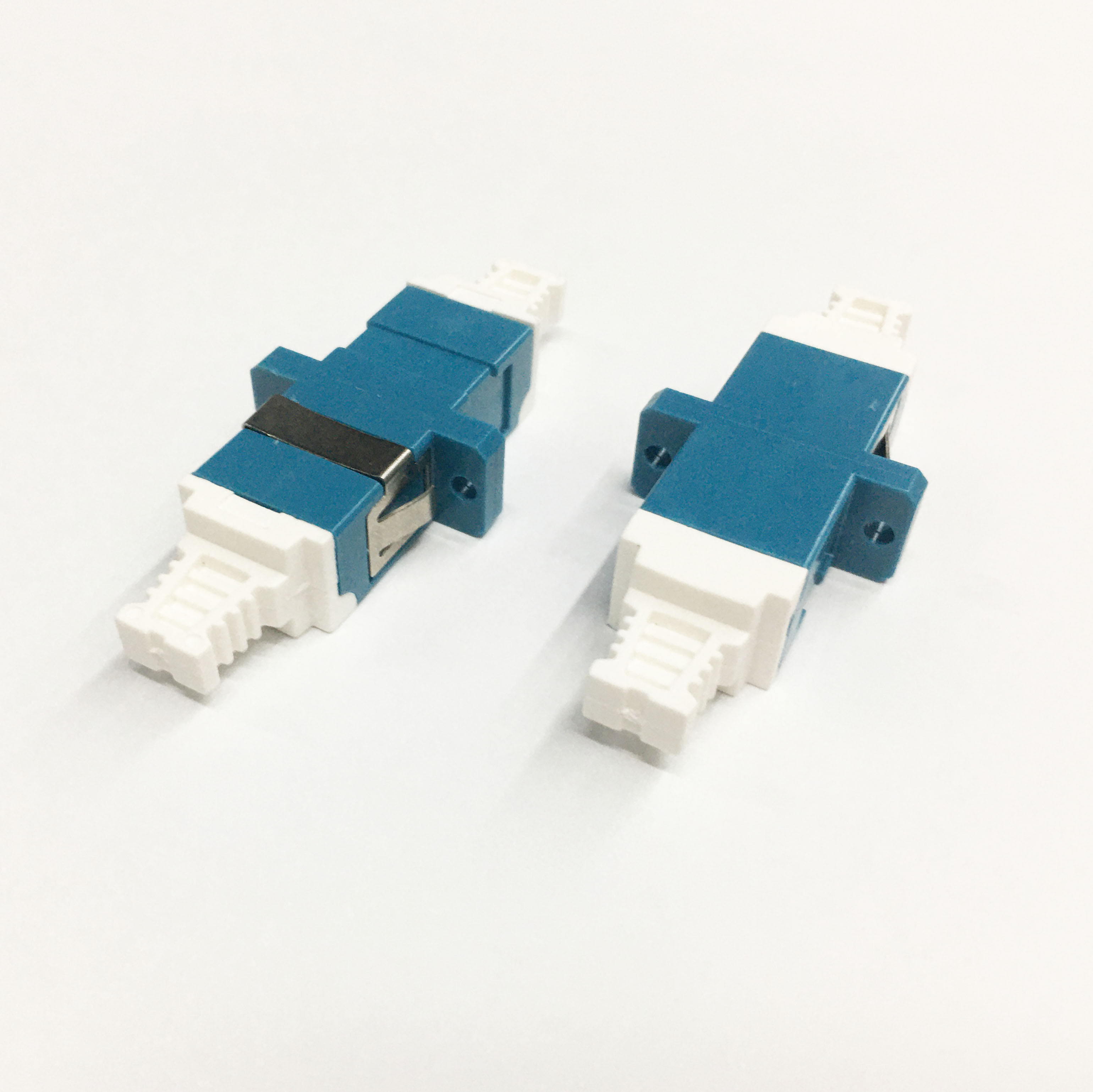

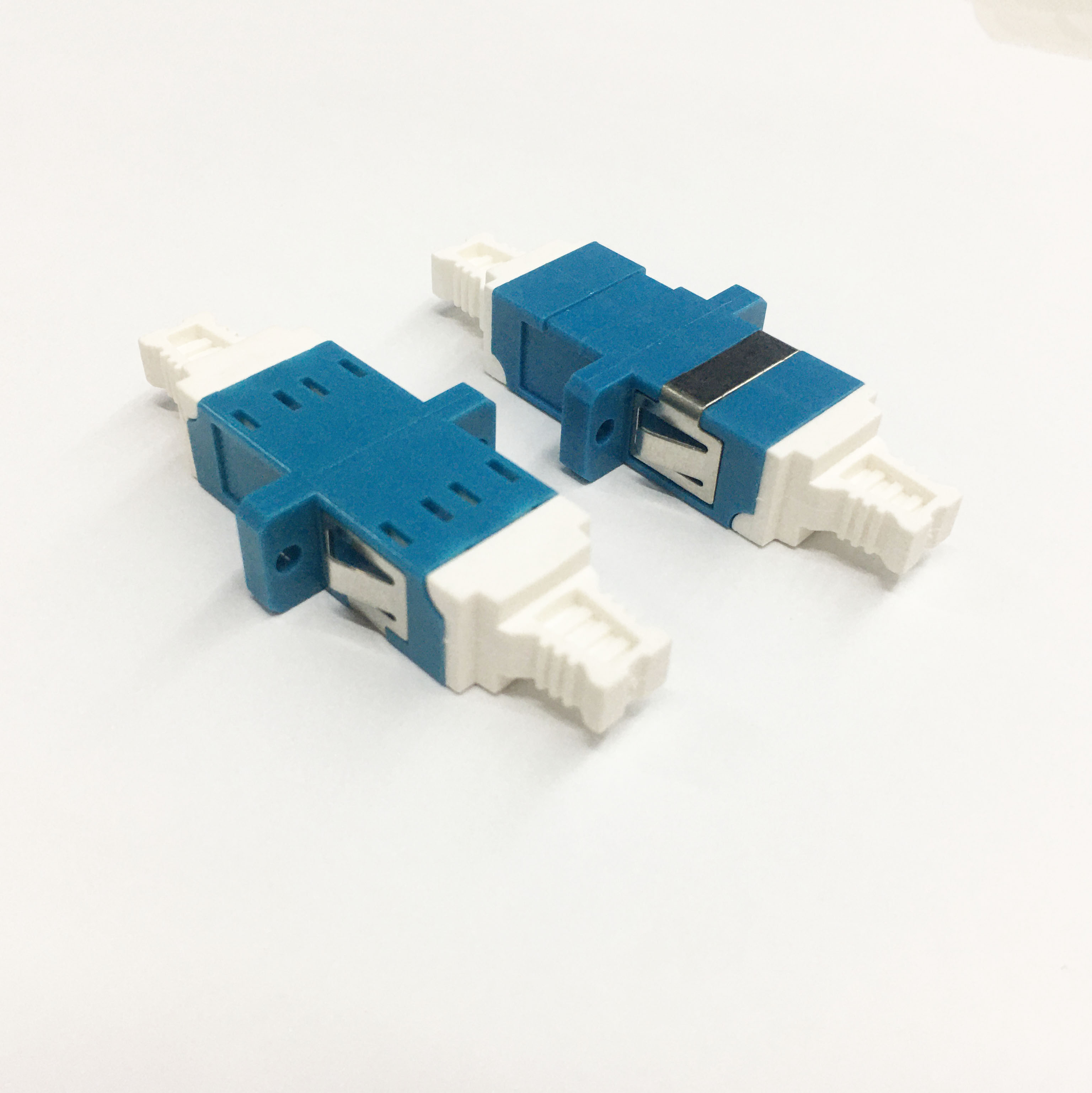

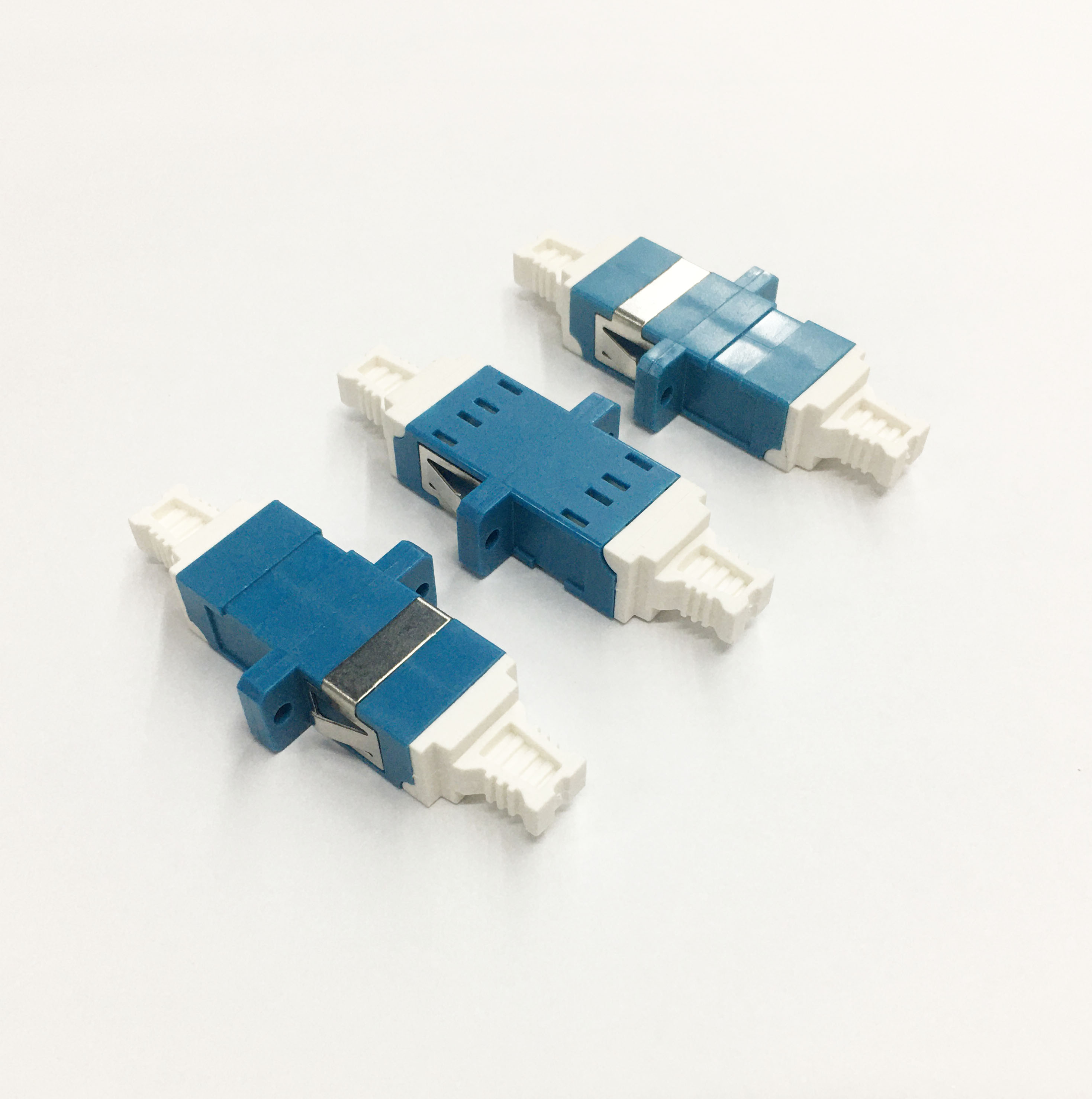

High-Quality Blue Color High Cap LC/UPC to LC/UPC Single Mode Duplex Fiber Optic Adapter Manufacturer, Products

Suitable with connector type: LC/UPC
Number of fibers: Duplex
Transmission type: Single-mode
Color: Blue
LC/UPC to LC/UPC Simplex Single Mode Fiber Optic Adapter with Flange.
The LC/UPC fiber optic adapters are suitable for Fiber Optics Patch Panel Adapters, which means you can use them in any type of enclosure with rectangular cutouts.
This LC/UPC to LC/UPC Fiber Optic Adapters are lightweight due to their plastic bodies.

Send Inquiry

Product Description

◈

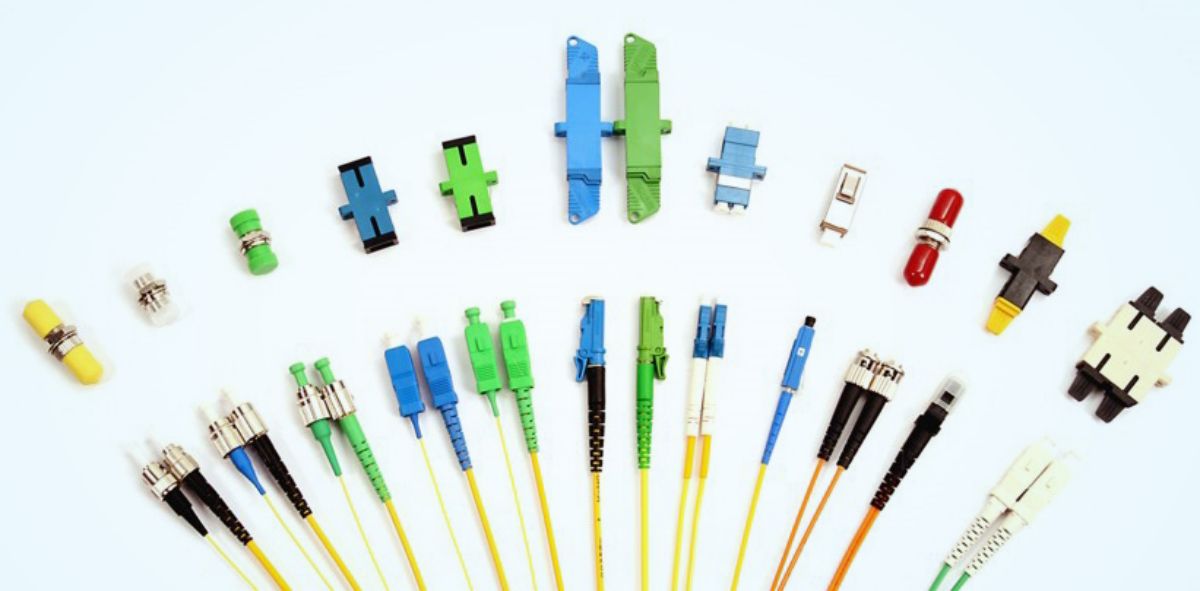

Fiber optic adapters (couplers) are precision-engineered to connect two fiber optic cables seamlessly, available in simplex, duplex, or quad versions.

◈

Designed for both multimode and singlemode cables, with singlemode variants offering highly precise tip alignment.

◈

LC small form factor (SFF) adapters feature integrated panel retention clips and are fully TIA/EIA-604 compatible.

◈

Highly versatile, these LC Duplex adapters fit standard Simplex SC cutouts, making them compatible with most patch panels, racks, and wall mounts.

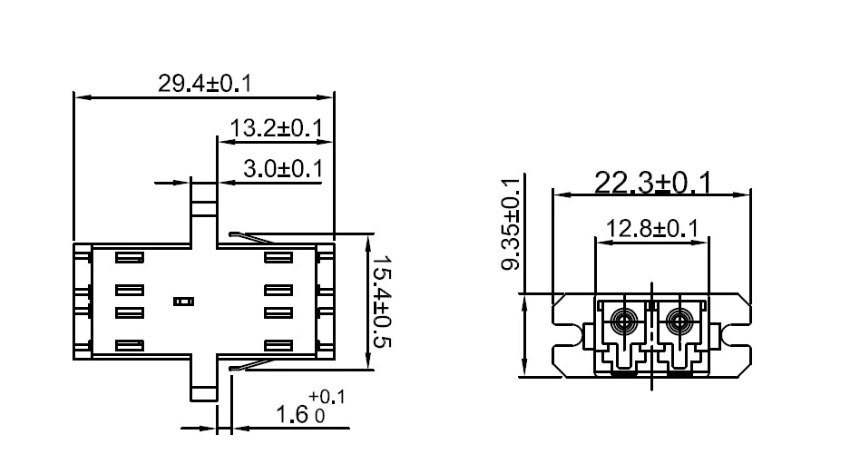

Technical Specifications

Characteristics	Unit	Single Mode (UPC)
Connector Type	--	LC Duplex
Insertion Loss (IL)	dB	≤0.2
Return Loss (RL)	dB	≥45
Exchangeability	dB	IL≤0.2
Repeatability (500 remates)	dB	IL≤0.2
Sleeve Material	--	Zirconia Ceramic
Housing Material	--	Plastic
Operating Temperature	°C	-20°C ~ +70°C
Storage Temperature	°C	-40°C ~ +70°C
Standard	--	TIA/EIA-604

Key Features & Benefits

Compatible with standard LC duplex connectors

Zirconia alignment sleeve for high precision

Durable metal side spring for a tight fit

Fast and easy snap-in installation

Lightweight and durable plastic body

Reduced signal loss architecture

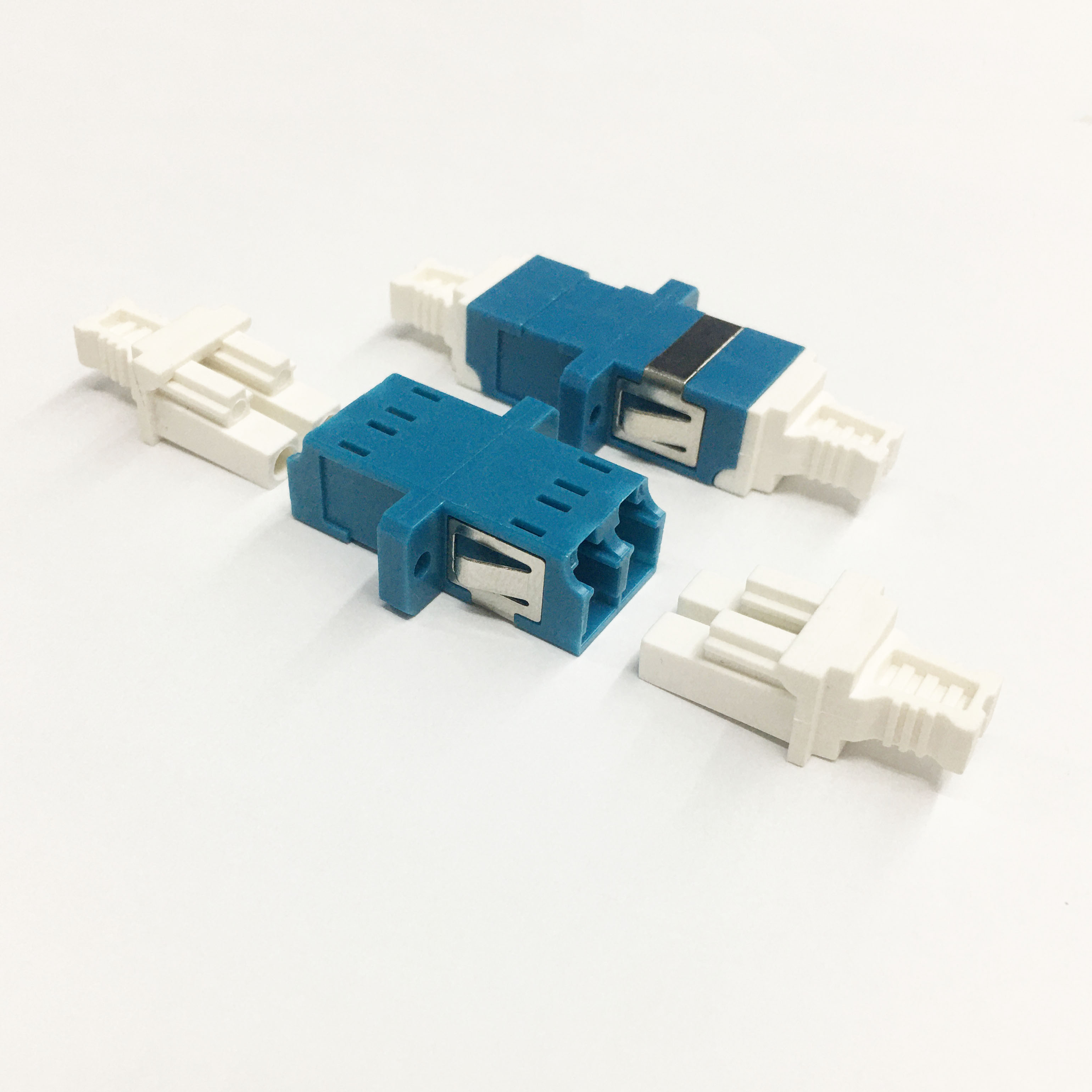

Standard plug-style dust caps included

100% factory tested performance

OEM service availability

Typical Applications

CATV LAN / WAN Metro Networks PON / GPON FTTH Test Equipment Patch Panels Fiber Terminal Boxes Distribution Frames

Frequently Asked Questions

What types of fiber cables can these adapters be used with?

These adapters are designed for both multimode and singlemode cables, ensuring versatile use across different network types.

What is the advantage of the Zirconia alignment sleeve?

The Zirconia Ceramic sleeve provides highly precise alignment of connector ferrules, which significantly reduces insertion loss and ensures stable signal transmission.

Will these LC duplex adapters fit into my existing SC panels?

Yes, these LC Duplex adapters are specifically designed to fit standard Simplex SC adapter cutouts, allowing you to increase fiber density in existing panels.

What are the environmental operating limits?

The adapters are built to operate reliably in temperatures ranging from -20°C to +70°C and can be stored in environments between -40°C and +70°C.

Is the quality of the adapters verified?

Absolutely. Each adapter undergoes 100% testing before shipment to ensure it meets technical standards such as an insertion loss of ≤0.2dB.

Are dust caps provided with the adapters?

Yes, all adapters ship with standard plug-style dust caps to protect the internal sleeves from contamination before installation.

Product Detail
