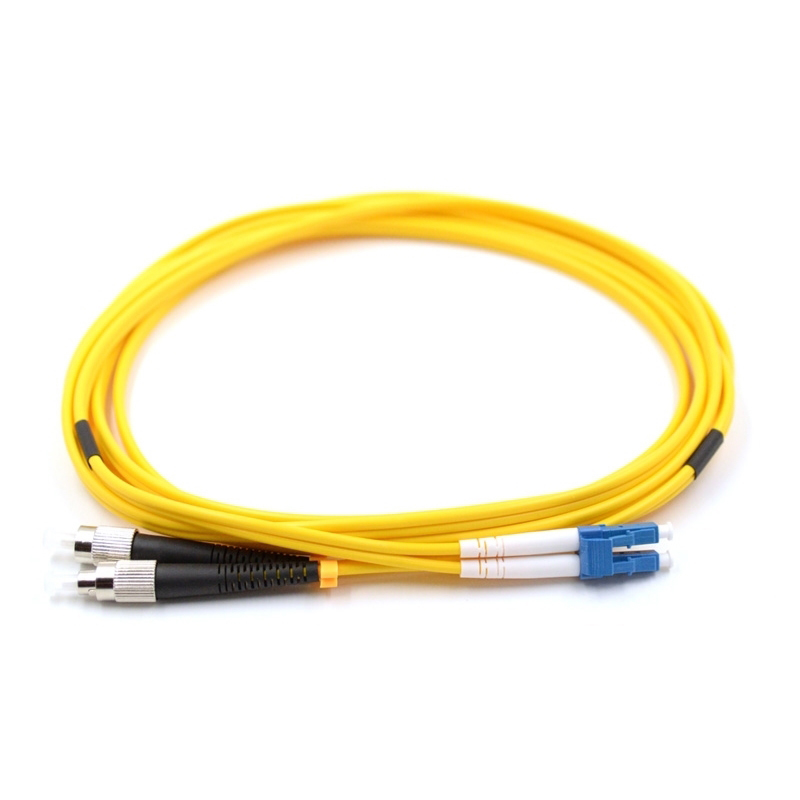

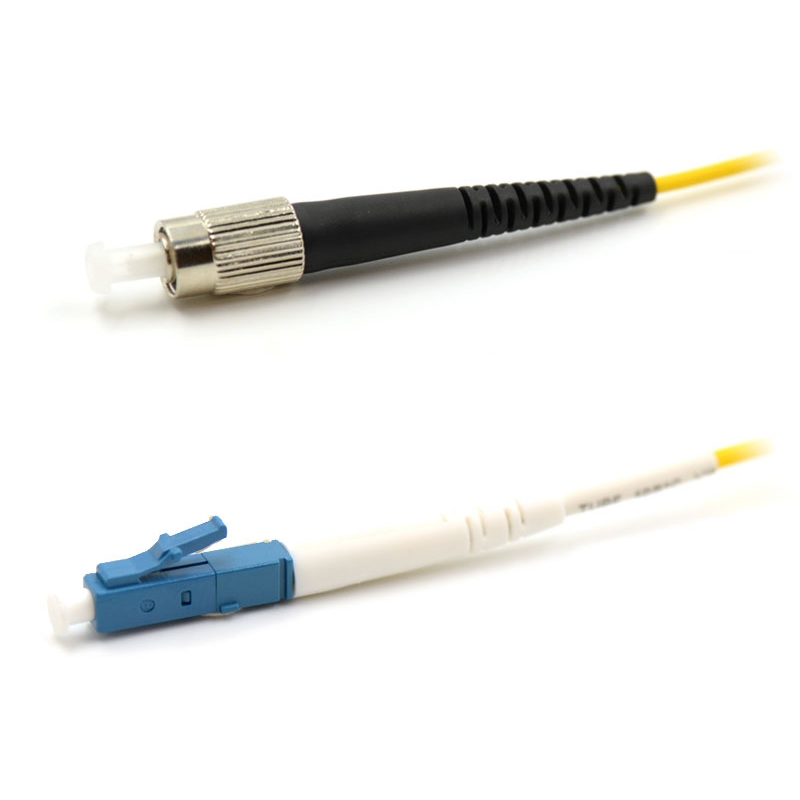

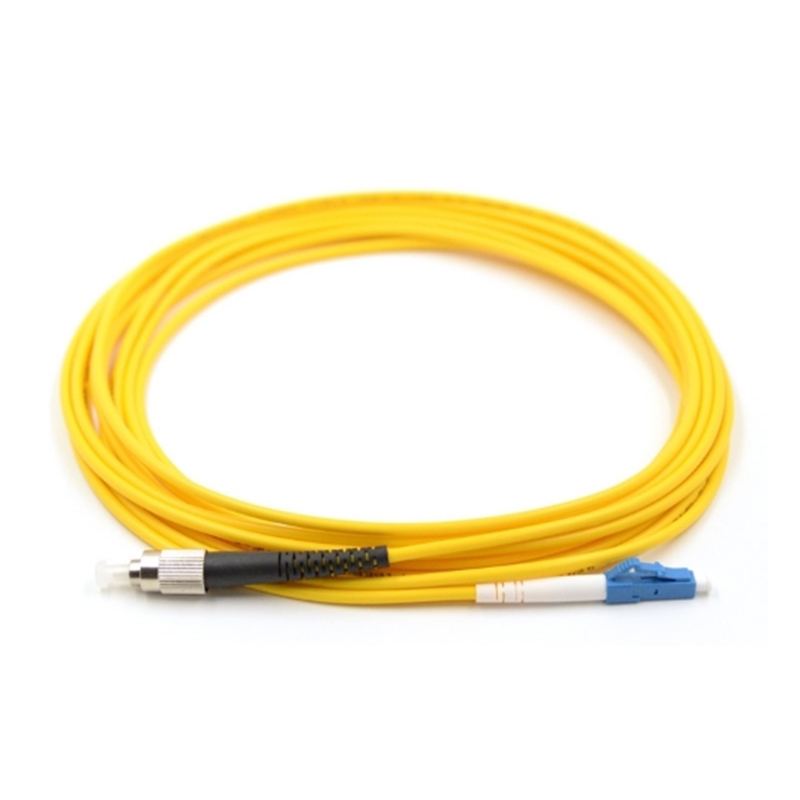

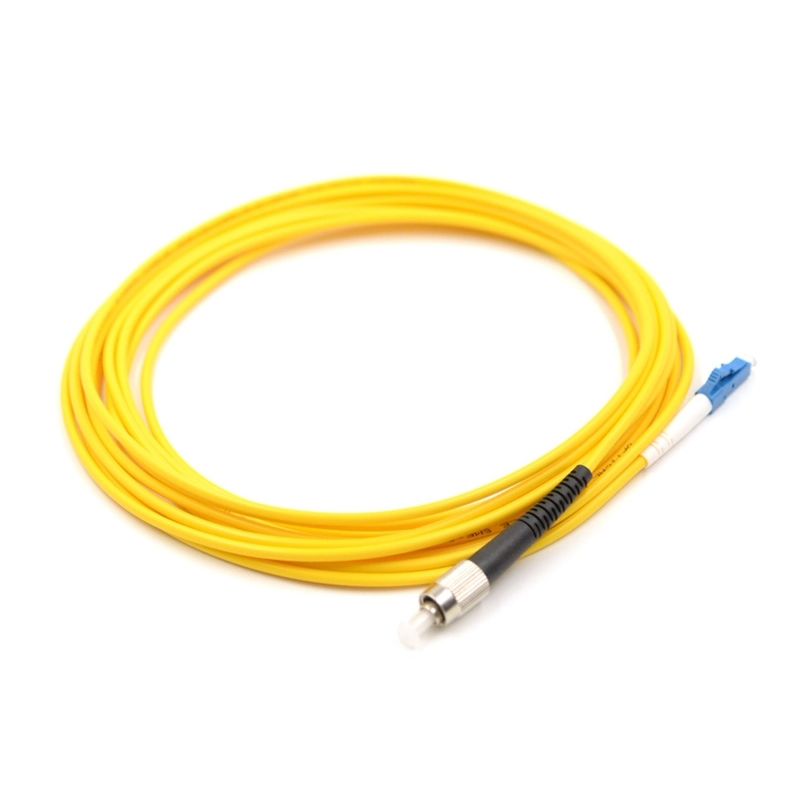

The LC and FC connectors are designed with threaded bodies for high-vibration environments, commonly used with single-mode and polarization-maintaining optical fibers. A popular configuration is the LC/UPC to FC/UPC patch cord, featuring LC/UPC termination on one side and FC/UPC on the other.
Termination options include Single mode UPC, APC, or Multimode PC. Standard cables typically use single mode G652D, with alternatives like G657A1, G657A2, G657B3, or Multimode OM1 through OM5.
| Type | Standard |
| Style | LC, SC, ST, FC, MU, DIN, D4, MPO, SMA, SC/APC, FC/APC, LC/APC, MU/APC, Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type | 9/125 Single mode: G652D, G657A1, G657A2, G657B3; 62.5/125 OM1; 50/125 OM2; 50/125 OM3; 50/125 OM4; 50/125 OM5 |
| Cable Type | Simplex, Duplex, Multi-fibers... |
| Cable Diameter | Φ3.5mm, Φ3.0mm, Φ2.0mm, Φ1.8mm, Φ1.6mm, Φ0.9mm, Φ0.6mm, Customized |
| Cable Outsheath | PVC, LSZH, OFNR |
| Polishing Manner | UPC, APC |
| Insertion Loss | ≤ 0.3dB (For Singlemode Standard & Multi mode) |
| Return Loss (SM) | UPC ≥ 50dB, APC ≥ 55dB |
| Repeatability | ±0.1dB |
| Operating Temperature | -40°C to 85°C |
