Cheap Indoor Single mode Simplex 1 Cores Armored Fiber Optic Cable Supplier, Product
Cheap Indoor Single mode Simplex 1 Cores Armored Fiber Optic Cable Supplier, Product
Cheap Indoor Single mode Simplex 1 Cores Armored Fiber Optic Cable Supplier, Product
Cheap Indoor Single mode Simplex 1 Cores Armored Fiber Optic Cable Supplier, Product
1 / 4
Cheap Indoor Single mode Simplex 1 Cores Armored Fiber Optic Cable Supplier, Product
Cheap Indoor Single mode Simplex 1 Cores Armored Fiber Optic Cable Supplier, Product
Cheap Indoor Single mode Simplex 1 Cores Armored Fiber Optic Cable Supplier, Product
Cheap Indoor Single mode Simplex 1 Cores Armored Fiber Optic Cable Supplier, Product

Cheap Indoor Single mode Simplex 1 Cores Armored Fiber Optic Cable Supplier, Product

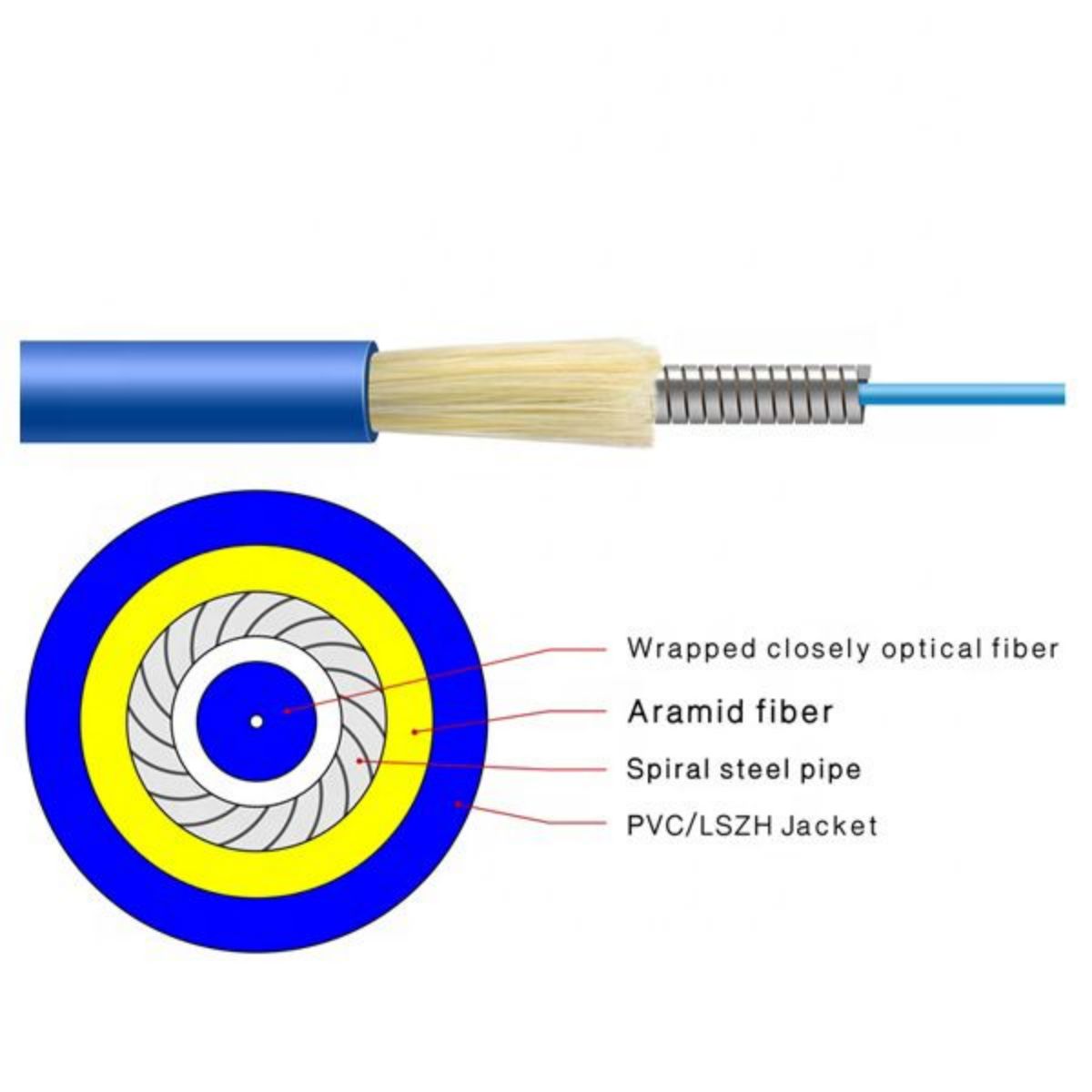

• The Armored fiber optic cables possess several layers to secure the cable. • The plastic outer jacket provides protection against rodents, abrasion, and twist. • Then the light steel tube between the optic fibers and the outer jacket offers better protection to the fibers in the center. • And the Kevlar is placed inside the outer jacket to cover the steel tube. • Good mechanical and environment characteristics. • Flame retardant characteristics meet the requirements of relevant standards. • The mechanical characteristics meet the requirements of relevant standards. • Soft, flexible, easy to splice, and with big capacity data transmission. • Meet various requirements of market and clients.
Send Inquiry

Product Description

Technical Specifications

Component Details
Optical Fiber 0.9mm colored fiber * 1 core
Flexible Steel Tube Material SUS204 Stainless Steel
Outer Diameter 1.45 ± 0.05 mm
Inside Diameter 0.95 ± 0.05 mm
Thickness / Gap 0.22 ± 0.02 mm / 0.15 ± 0.05 mm
Strength Member Aramid Yarn Model 1000 DEN
Count 5 branches (outside stainless steel tube)
Outer Sheath Material Options PVC, LSZH, TPU
Color Options SM (Blue, Yellow), MM (Grey, Orange), Outdoor (Black)
OD / Thickness 3.0 ± 0.1mm / 0.5 ± 0.1 mm
Item Singlemode (SM) Multimode (MM)
Standard Color Blue Grey
Cable Weight 15kg/km approx
Operating Temperature -40℃ ~ +80℃
Tensile Strength (Short/Long Term) 200N / 400N
Compression Resistance ≥ 3000N/100MM
Attenuation (Typical) 1310nm ≤ 0.4dB/km | 1550nm ≤ 0.3dB/km 850nm ≤ 3.0dB/km | 1300nm ≤ 1.0dB/km
Minimal Bending Radius ≥ 30D

Key Features & Advantages

🛡️ Armored protection by flexible stainless steel tube for high compression & impact resistance.
🔥 Flame retardant characteristics meeting global safety standards.
🌀 Highly soft, flexible, and easy to bend like standard electrical wire.
💪 Dupon Kevlar strength member ensures tensile strength above 300N.
⚙️ Excellent crush resistance up to 3000N with mini diameter SUS spring tube.
🌍 Outer jacket options (PVC, LSZH, TPU) are fully RoHS compliant.

Applications

📍 Used in indoor cabling, especially as distribution cable.
📍 Interconnect lines for optical communication equipment rooms and distribution frames.
📍 Ideal for manufacturing pigtails and armored patch cords.

Product Visualization

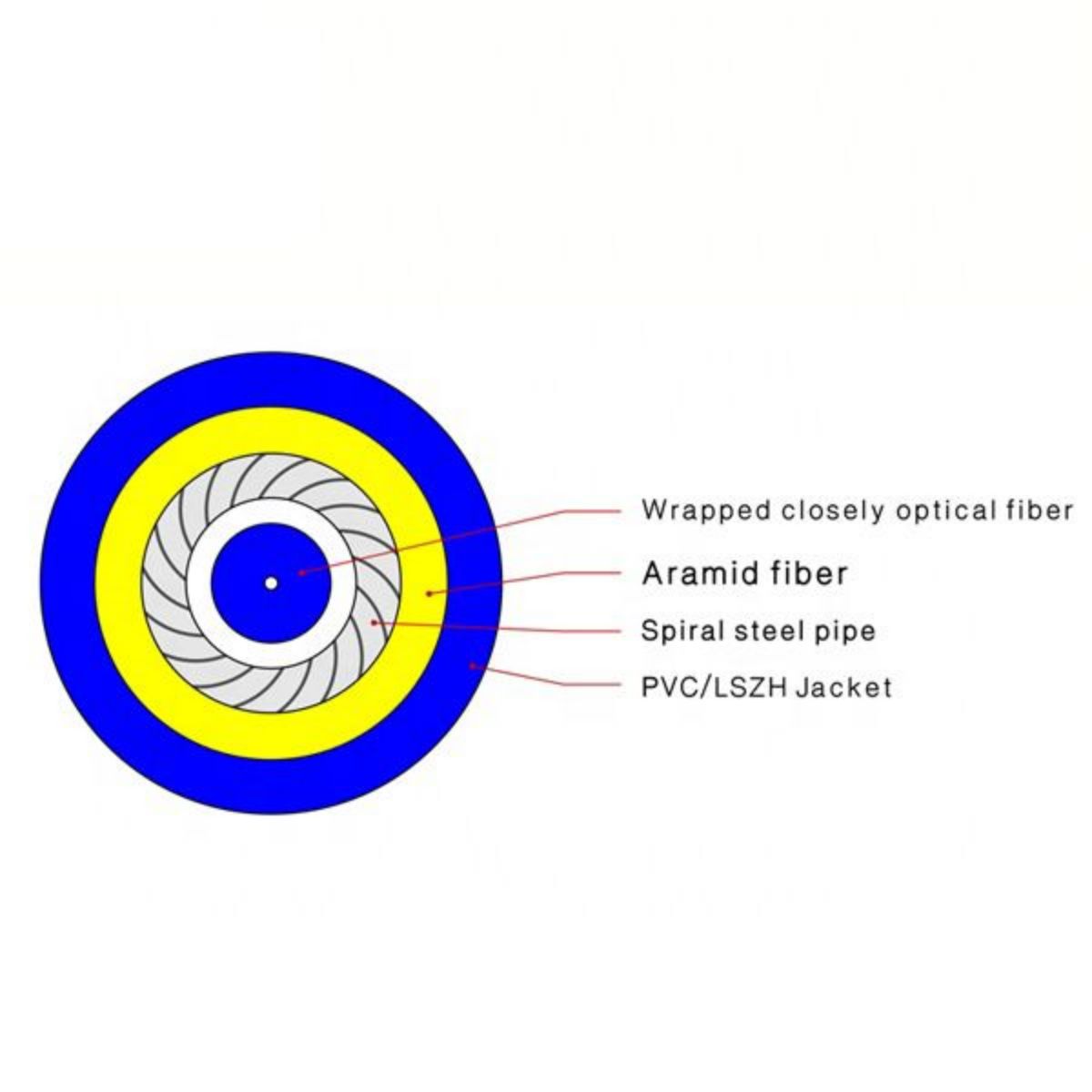

Armored Fiber View 1
Armored Fiber View 2
Armored Fiber View 3
Armored Fiber View 4

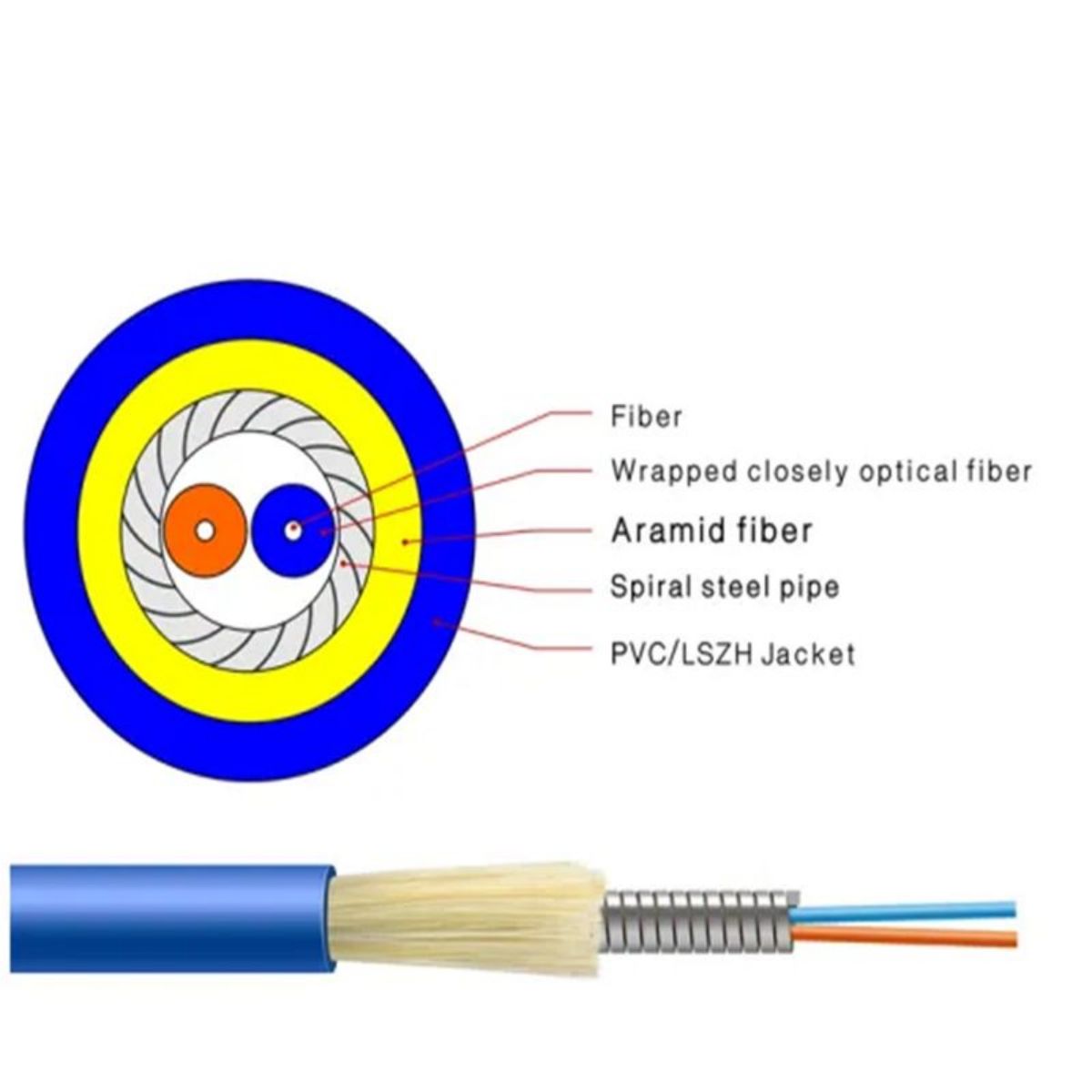

Armored Fiber View 5

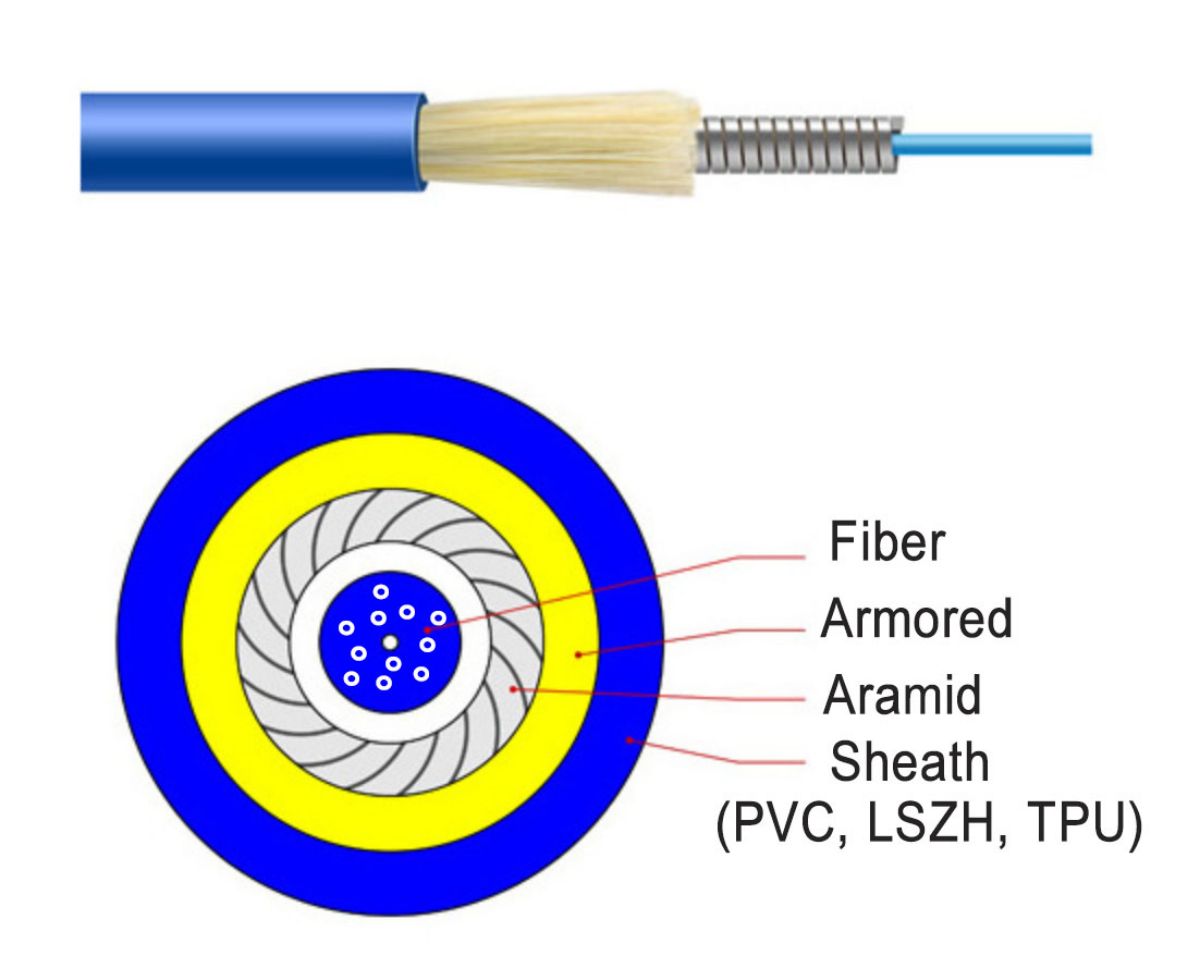

Armored Fiber View 6

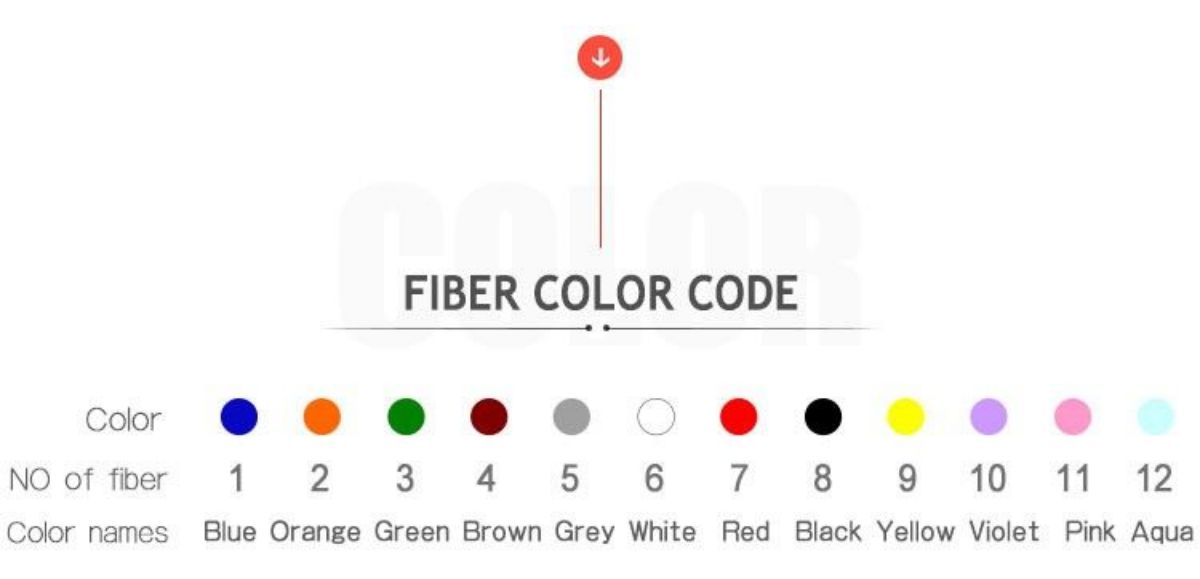

Armored Fiber View 7

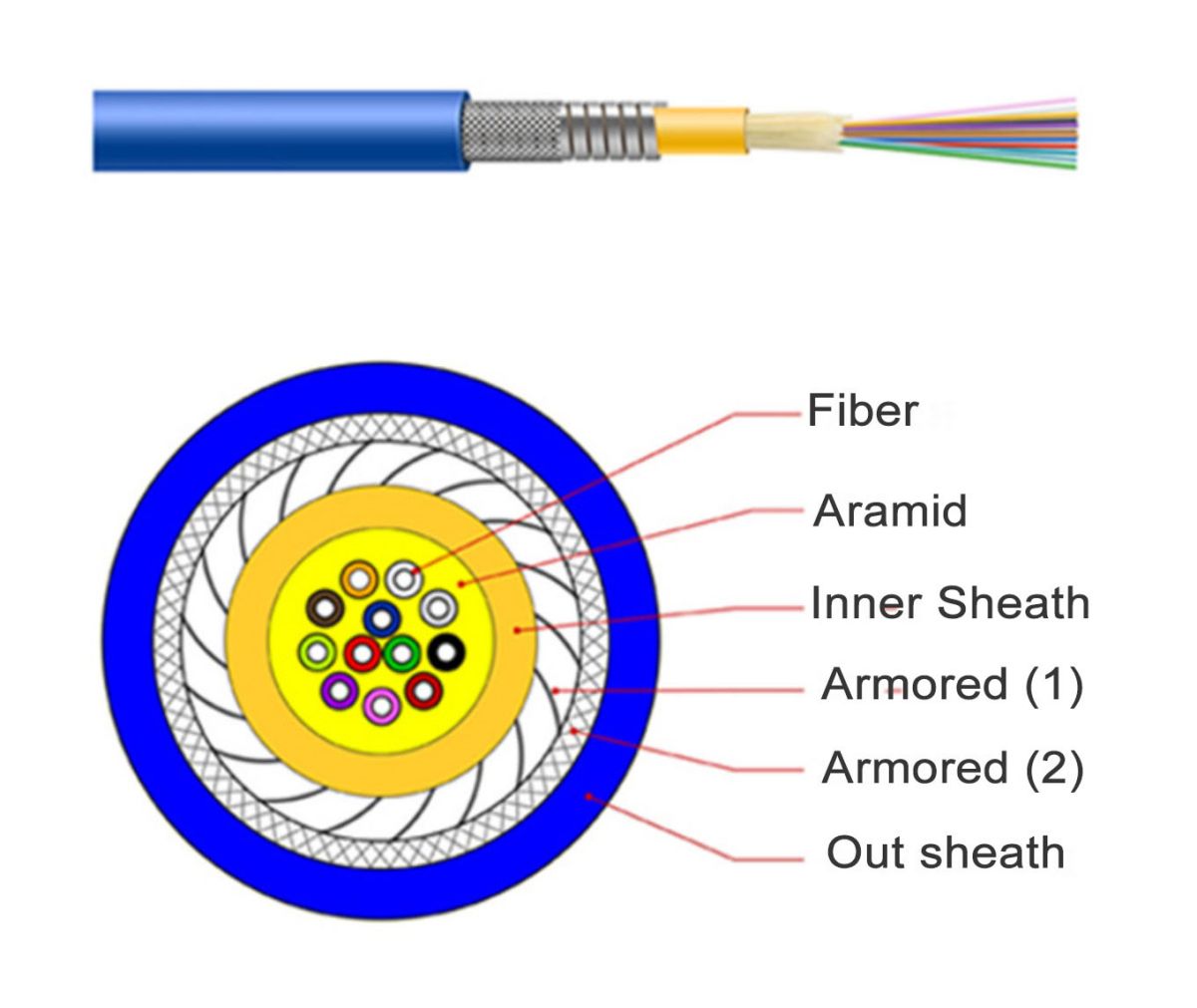

Armored Fiber View 8

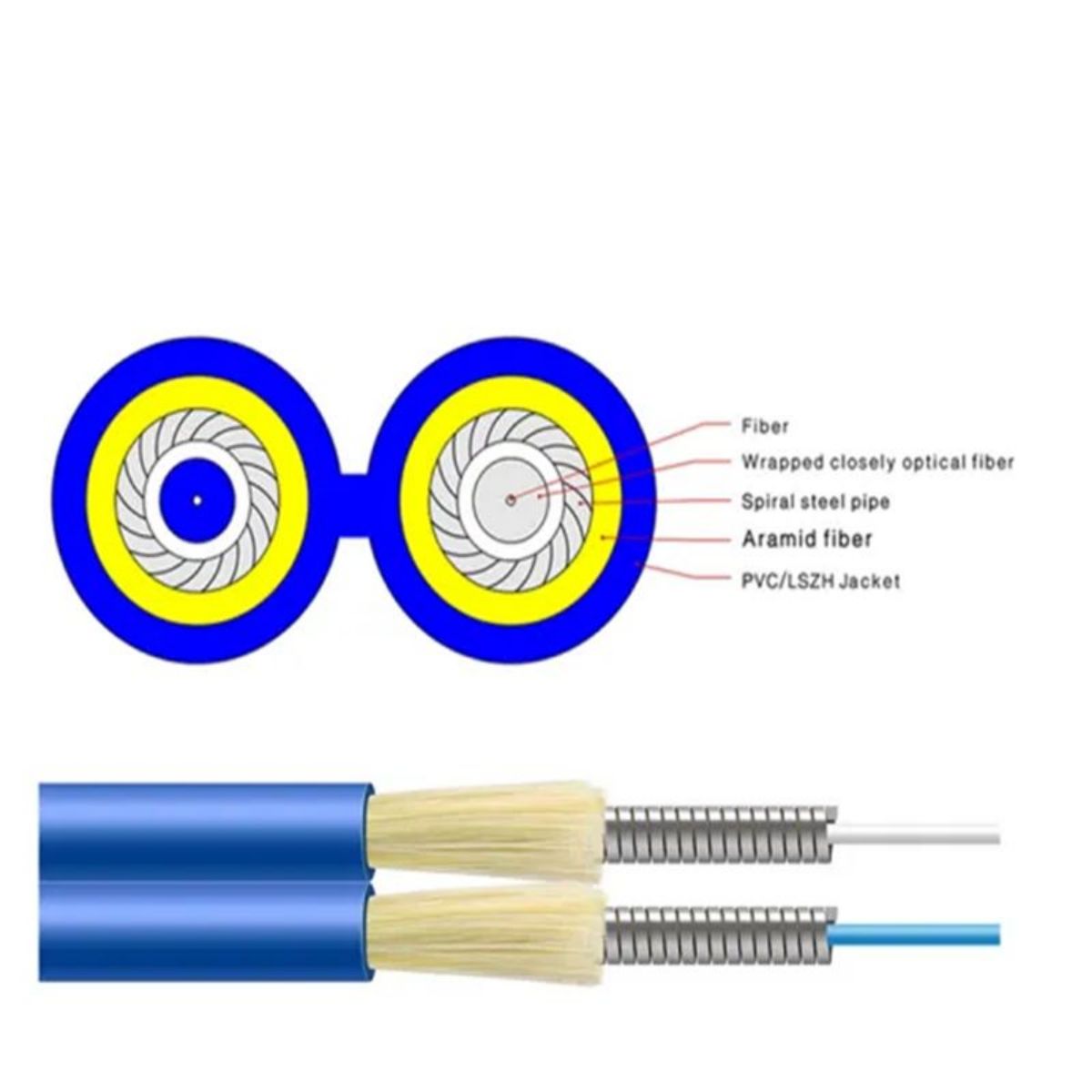

Armored Fiber View 9

Frequently Asked Questions

Q1: What makes armored fiber optic cable different from regular cable?
Armored fiber cable features a flexible stainless steel tube protection layer, making it significantly more resistant to high pressure, impact, and rodent damage compared to standard fiber cables.
Q2: Can this cable be used for tight bending applications?
Yes, the mini-diameter SUS spring tube design ensures the cable remains light, flexible, and easy to bend with a minimal bending radius of ≥ 30D.
Q3: Which jacket materials are available for different environments?
We offer PVC for general use, LSZH (Low Smoke Zero Halogen) for safety-critical indoor areas, and TPU for superior mechanical and environmental durability.
Q4: What is the crush resistance rating of this cable?
The cable is designed to withstand a compression resistant strength of ≥ 3000N/100MM, making it suitable for harsh environments.
Q5: Is this cable suitable for outdoor use?
Yes, when ordered with the black outer sheath, it is specifically designed for outdoor environments, providing high resistance to environmental factors.
Q6: Does the armoring interfere with the optical performance?
Not at all. The armor provides mechanical protection while maintaining standard low attenuation rates (≤0.4dB/km at 1310nm for singlemode).
