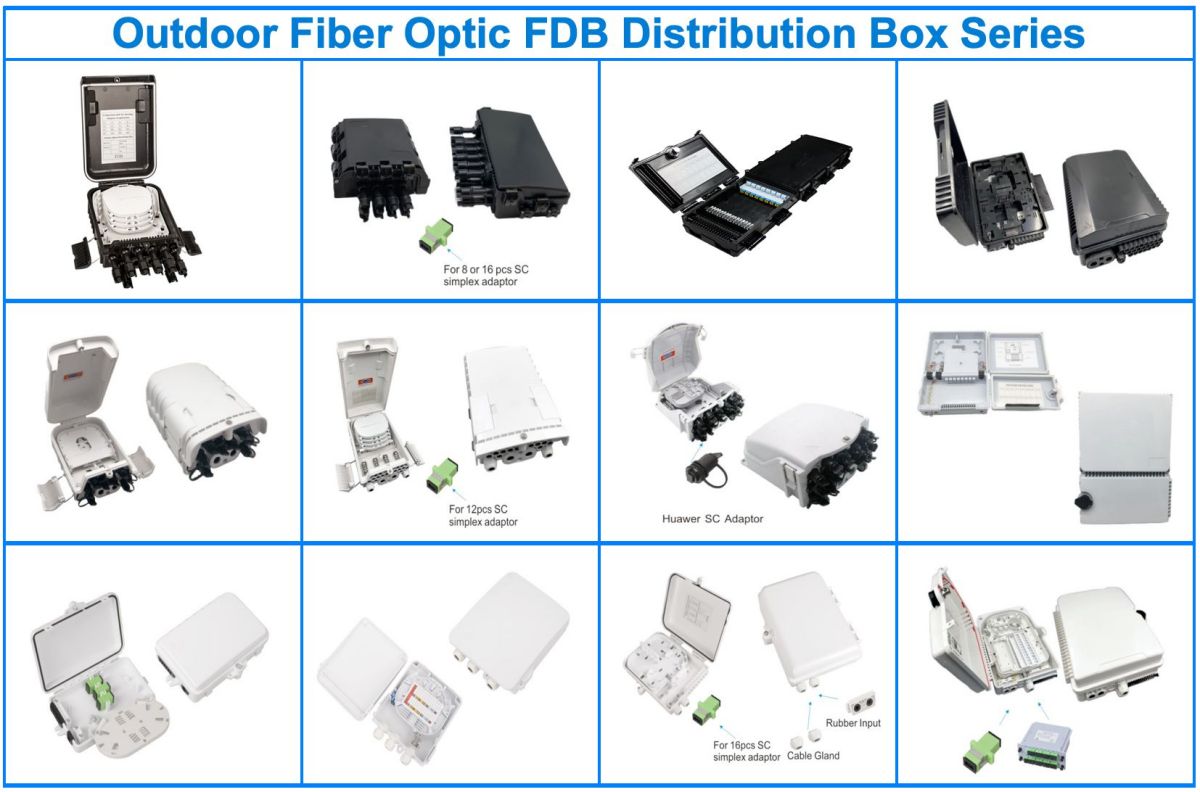

Product Overview
✦

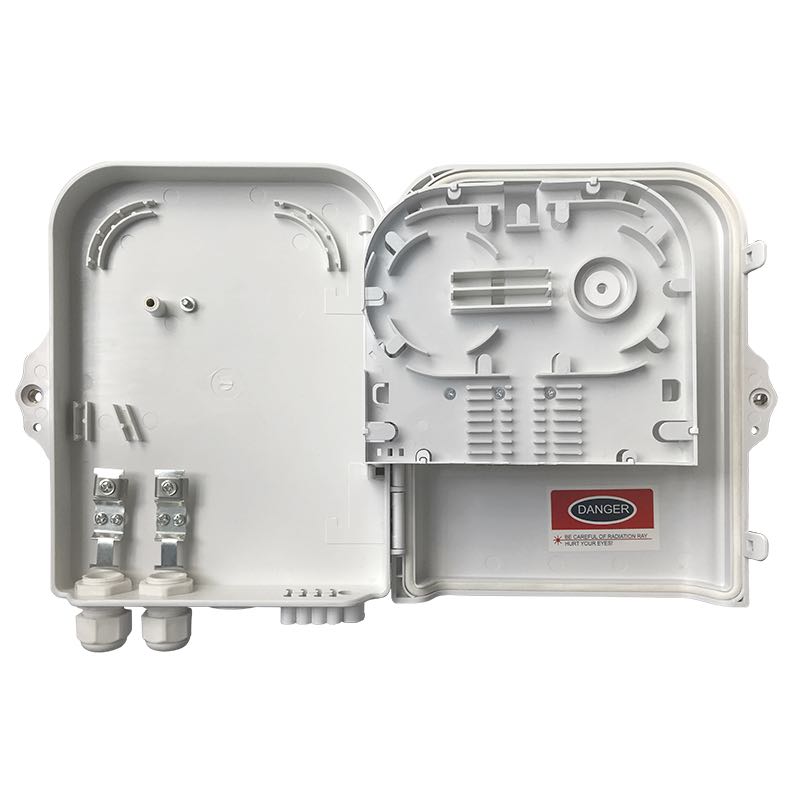

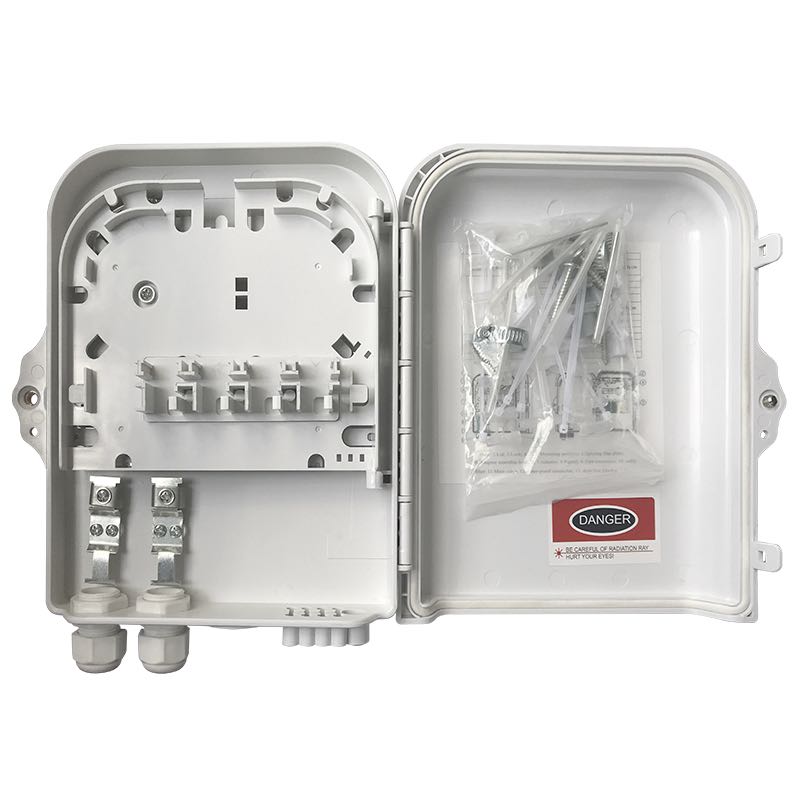

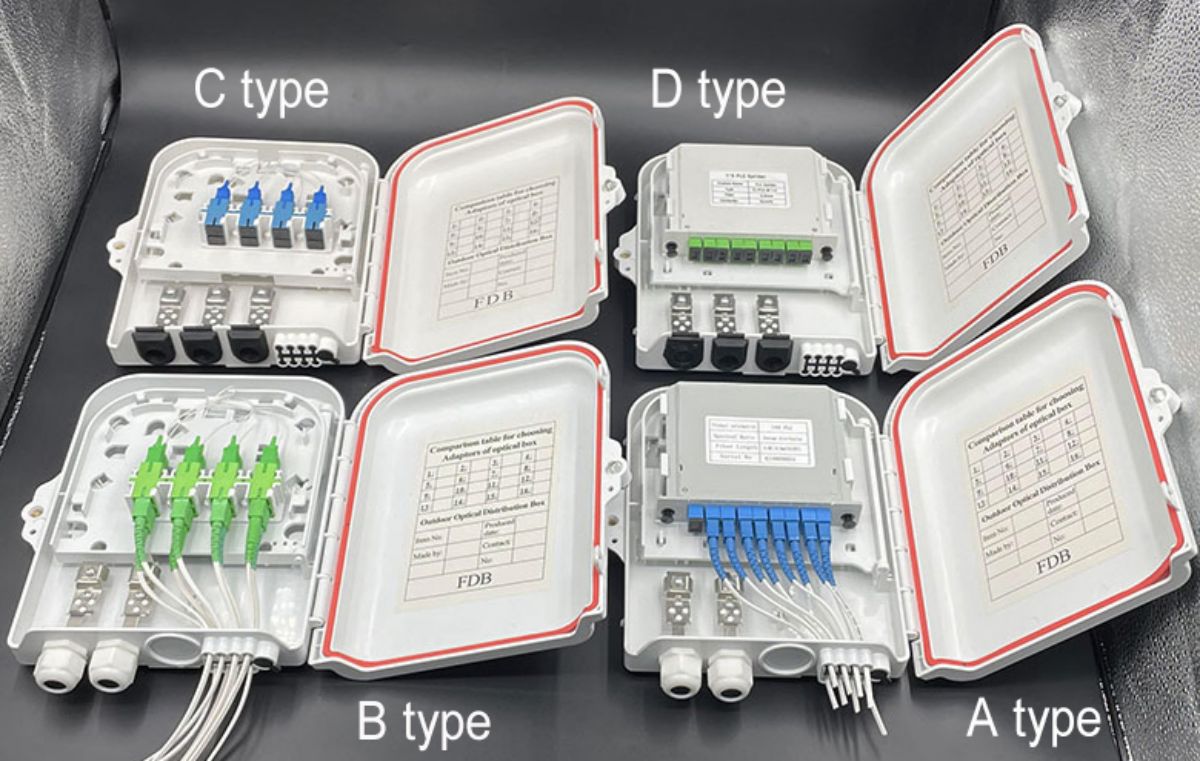

FDB-08A Outdoor Fiber Optic Distribution Box is able to hold up to 8/16 subscribers.
✦
Used as a termination point for the feeder cable to connect with drop cable in FTTx network system.
✦
Integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
✦
Widely used in residential buildings and villas to fix and splice with pigtails.
✦

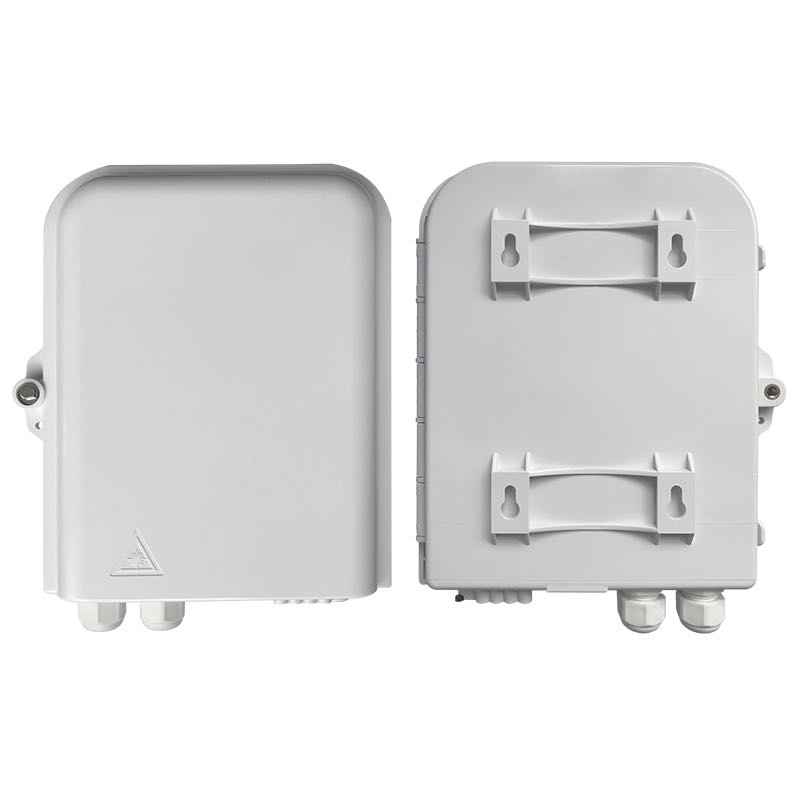

Wall-mountable design adapting to various optical connection styles.
✦
Effective optical fiber management, available for 1:2, 1:4, 1:8 fiber optic splitters.
Technical Specifications
| Item |
Material |
Size (mm) |
Weight (kg) |
Capacity |
Color |
Packing |
| FDB-08A |
ABS |
240*200*50 |
0.60 |
8 |
white |
20pcs/ carton/ 52*42*32cm/12.5kg |
Key Capabilities
- Suitable for the fusion splice or mechanical splice.
- 1*8 and 1*16 Splitter can be installed as an option.

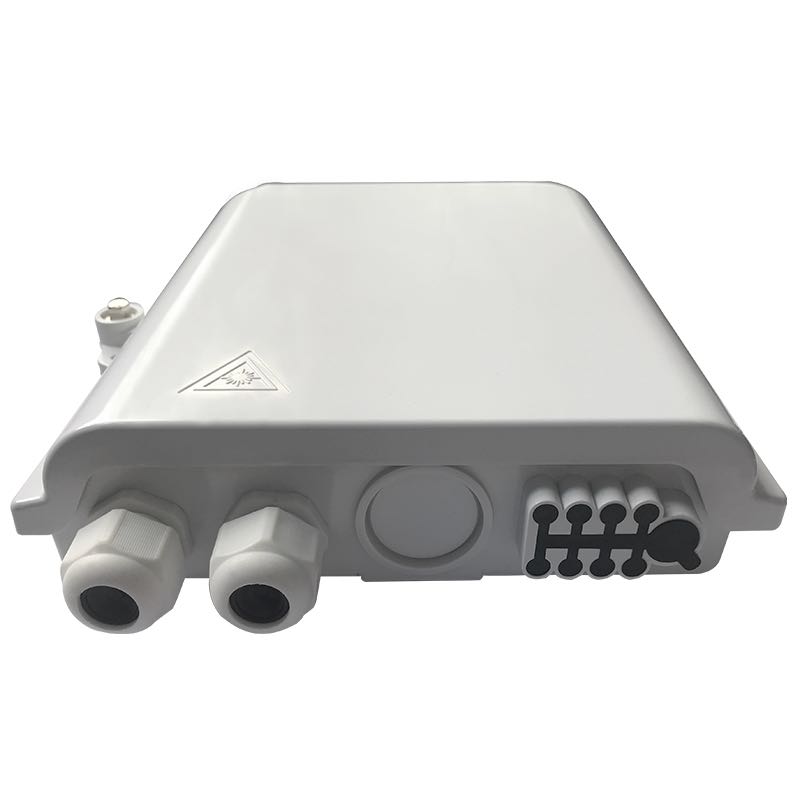

- Efficient cable management with 8/16 ports cable entrance for drop cable.
- Widely used in FTTH access networks, Telecommunication, CATV, Data communications, and LAN.
Installation Guide
- Insert small diameter cable and fix it.
- Connect small diameter cable with splitter input cable by fusion splicing or mechanical splicing.
- Fix the PLC splitter.
- Connect splitter ribbon fibers with output pigtails that coated loose tube.
- Fix the arranged output pigtails with loose tube to tray.
- Lead output pigtail to the other side of the tray, and insert adapter.
- Pre-insert optical drop cables to outlet holes in order, then seal it by soft block.
- Pre-installed field assembly connector of drop cable, then insert connector to optical adapter in order and tie it by cable tie.
- Close the cover, the installation is finished.
Protection & Accessories
Design Features:
- Water-proof design with IP-65 Protection level.
- Integrated with splice cassette and cable management rods.
- Fiber bend radius control more than 40mm.
- Easy to maintain and extend capacity.
Standard Accessories:
- Empty box cover: 1 set
- Lock: 1/2pcs
- Heat shrink tube: 8/16pcs
- Ribbon tie: 4pcs
- Screw: 4pcs
- Expansion tube for screw: 4pcs
Frequently Asked Questions
What is the protection rating of the FDB-08A box?
The box features a water-proof design with an IP-65 protection level, making it suitable for outdoor environments.
How many subscribers can this distribution box support?
The FDB-08A is designed to hold up to 8 or 16 subscribers, depending on the configuration.
What materials is the box made of?
The distribution box is made of high-quality ABS material, ensuring durability and solid protection for internal components.
Does it support optical splitters?
Yes, it is available for 1:2, 1:4, and 1:8 fiber optic splitters, and a 1:16 splitter can be installed as an option.
What is the fiber bend radius control for this unit?
The box ensures fiber bend radius control of more than 40mm to maintain optimal signal integrity.
Is the box suitable for wall installation?
Yes, it is specifically designed to be easily installed on walls, making it ideal for residential buildings and villas.
