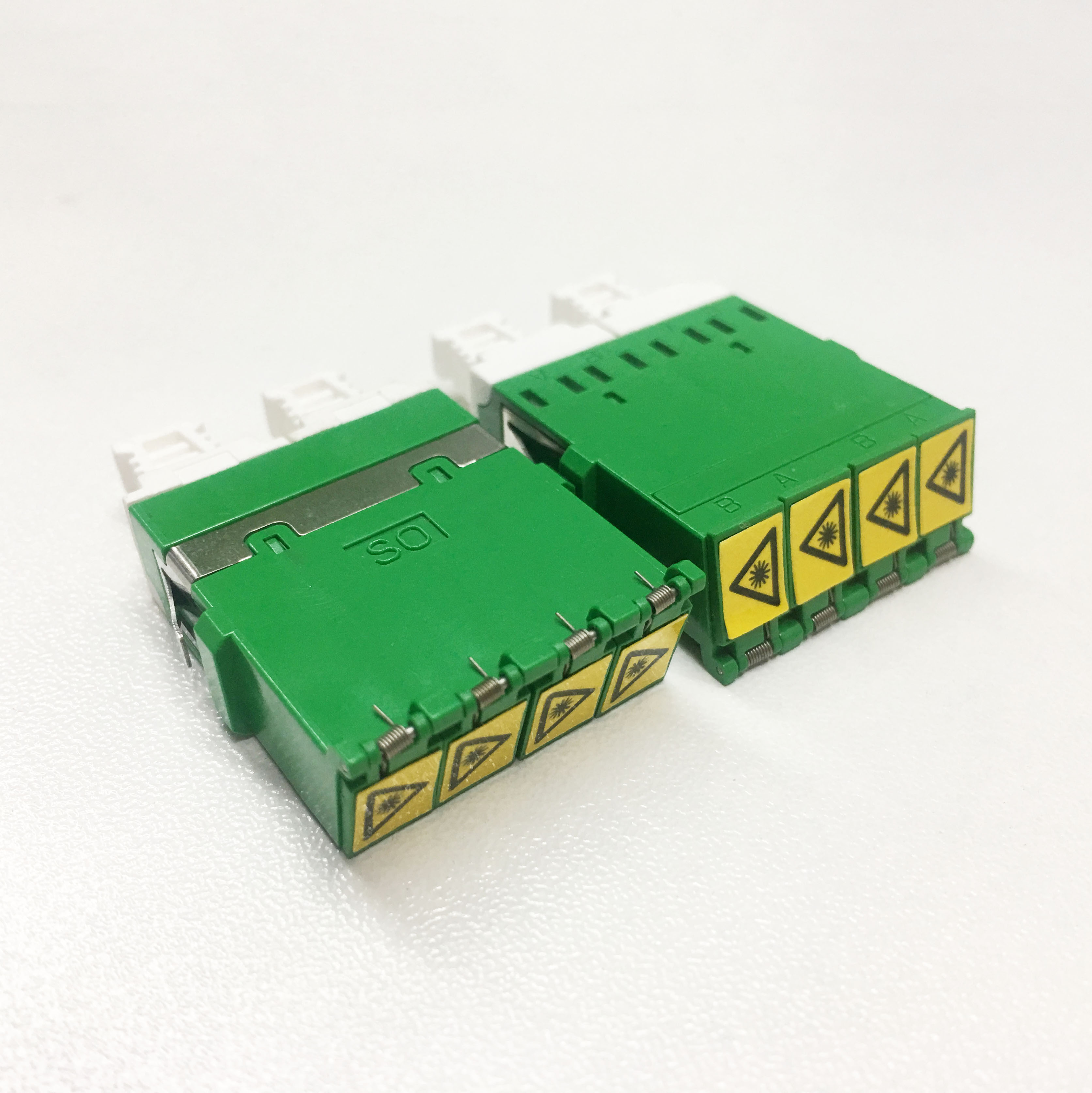

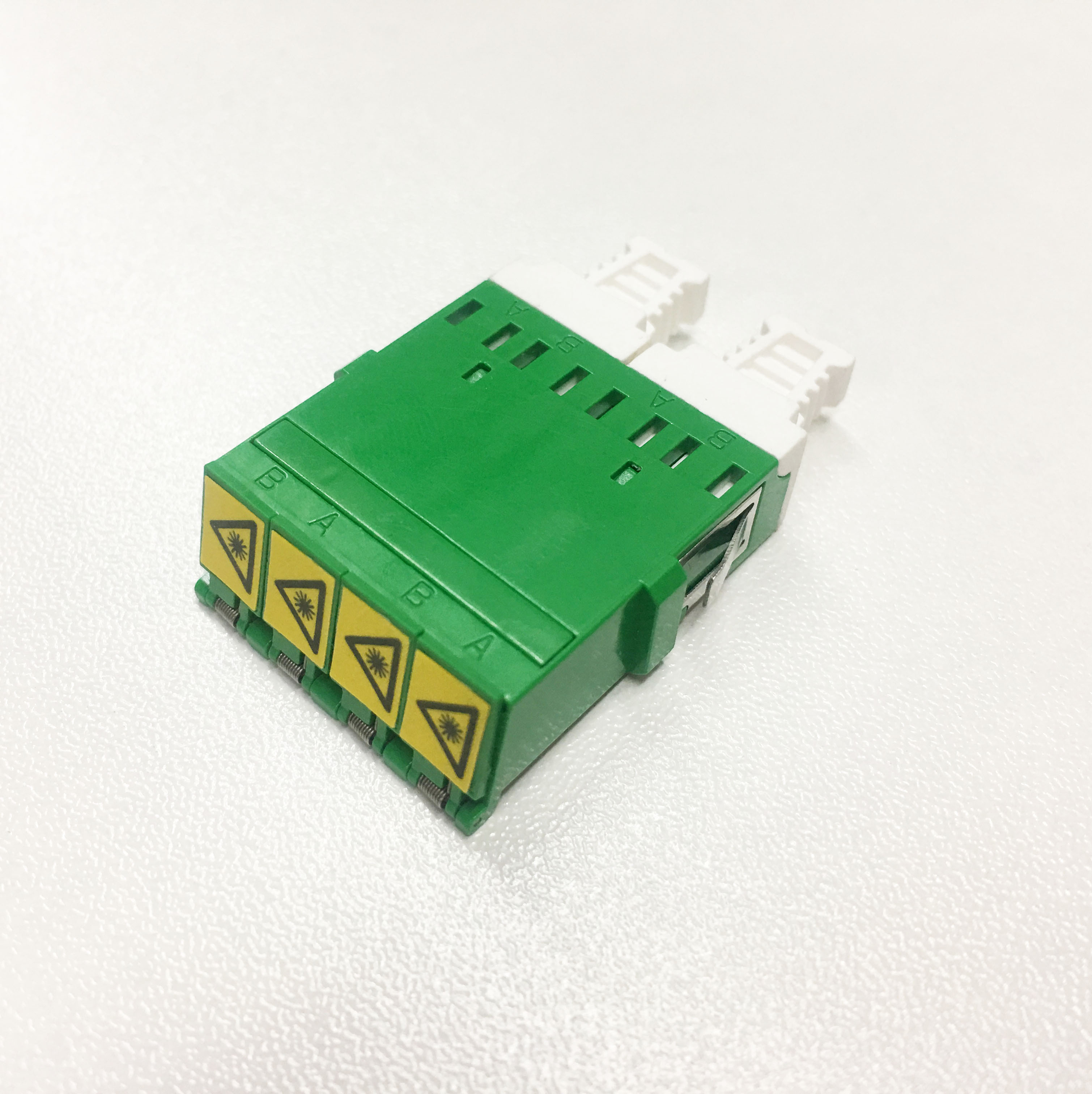

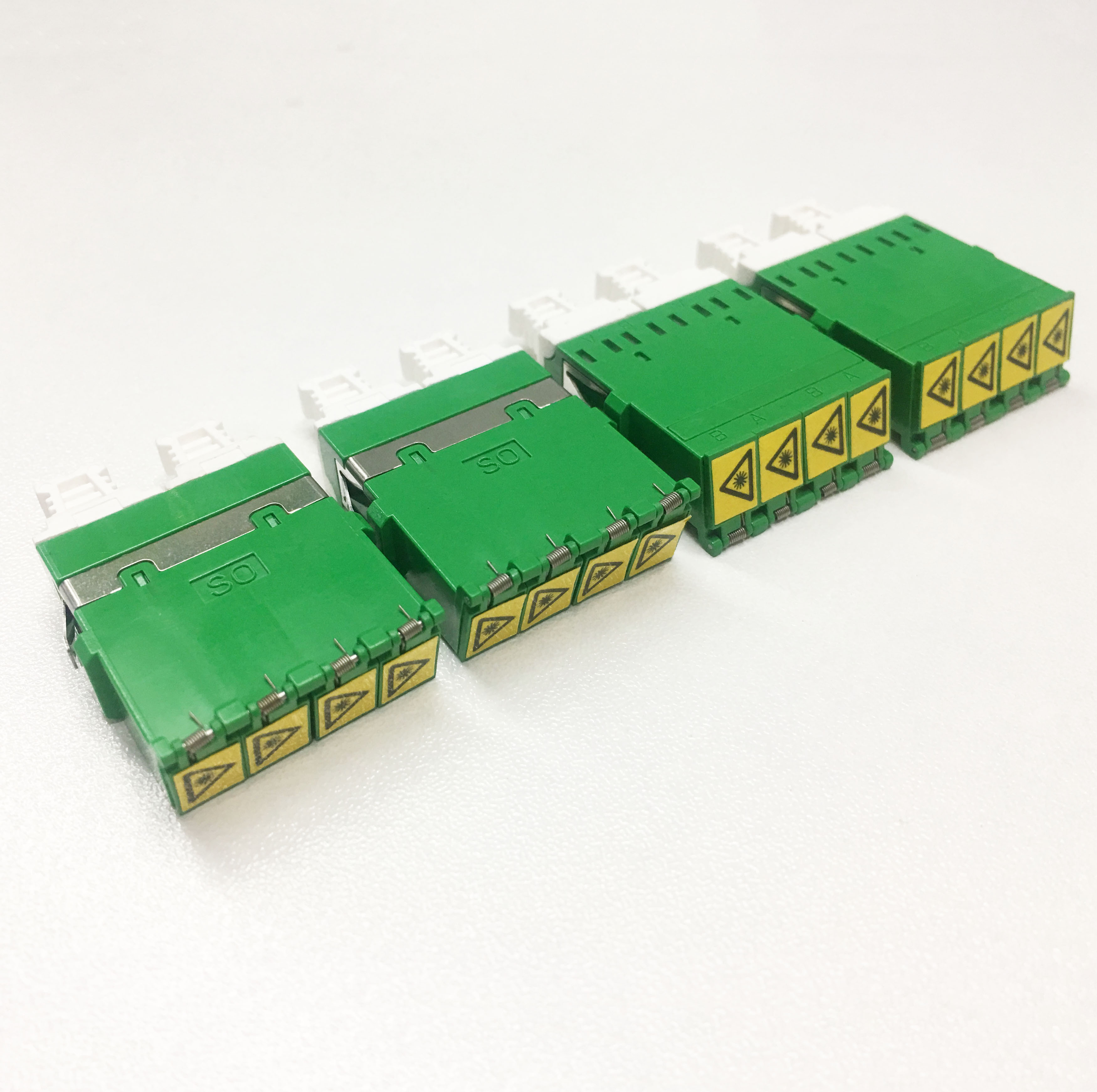

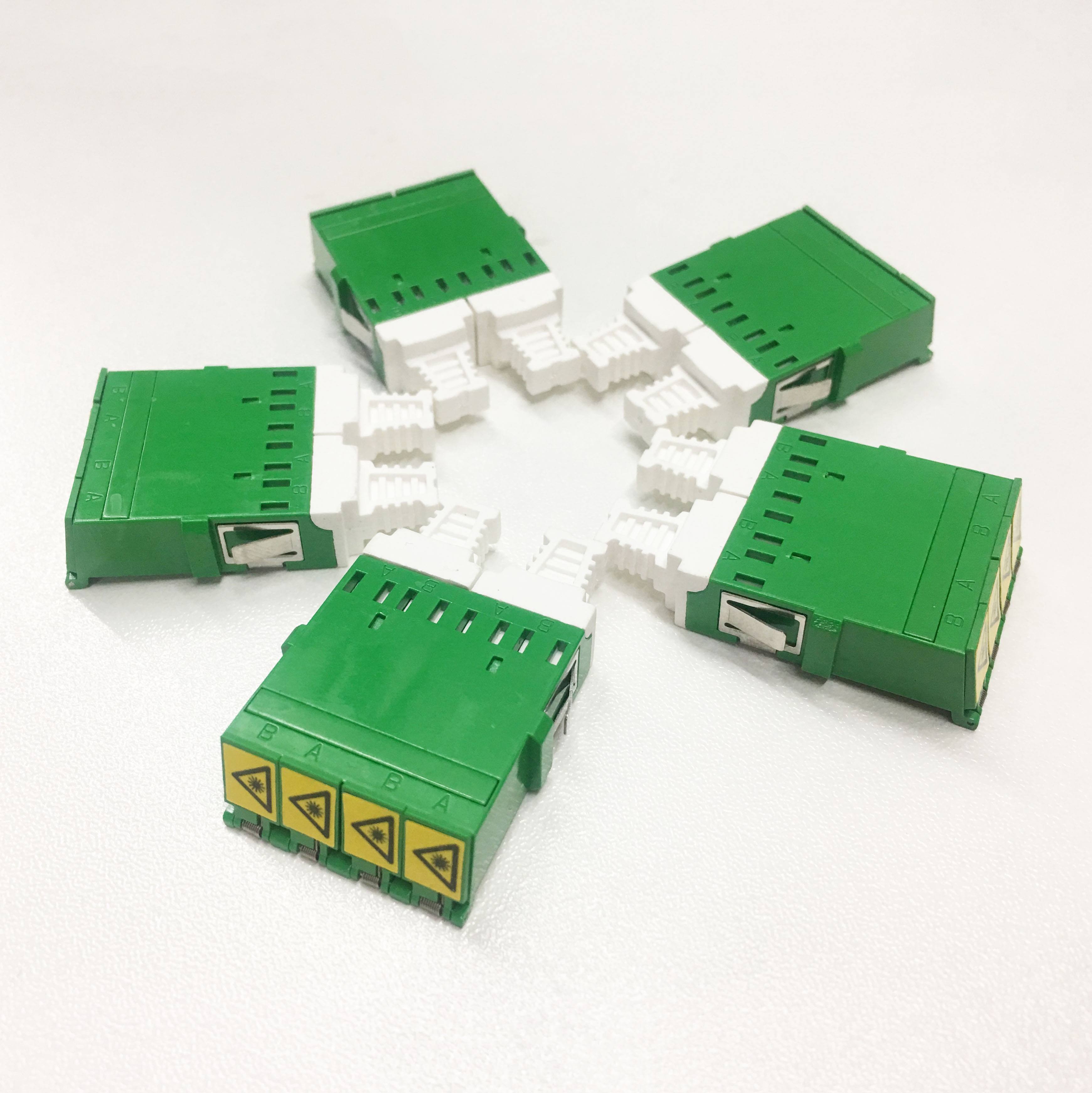

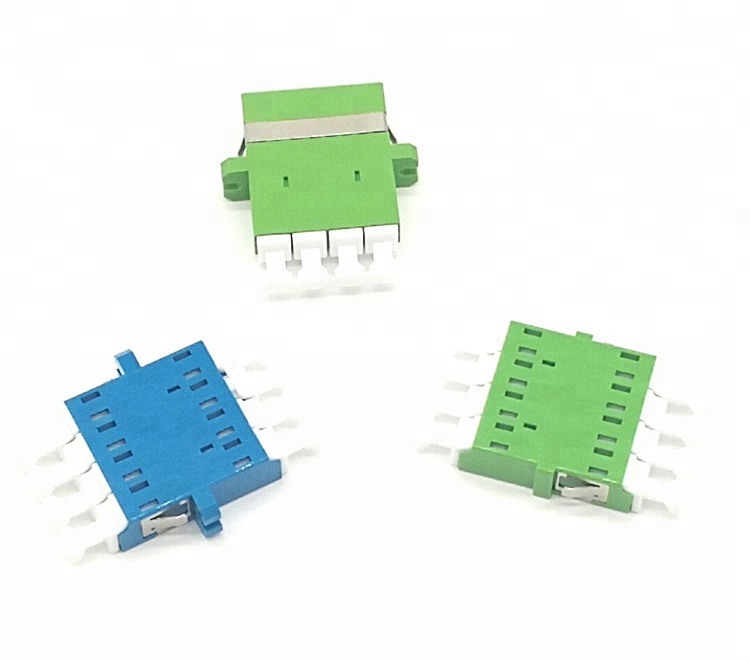

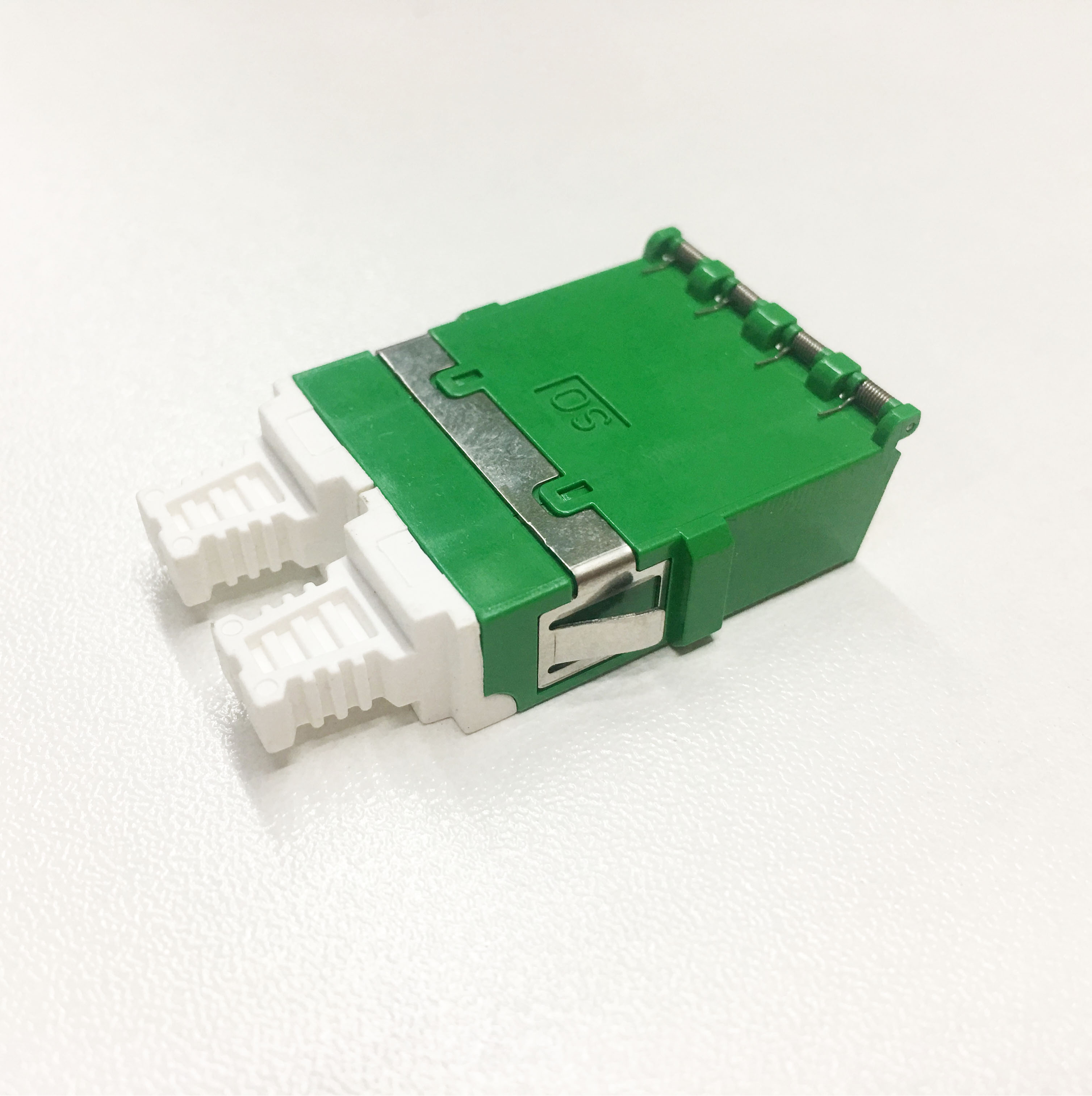

The LC fiber optical adapters (also called couplers) are designed to connect two LC type of fiber optic patch cables together. These adapters are designed for multimode or singlemode cables and serve as special connectors to mate or connect two ends of a fiber optic cable with high precision.
It is widely used in optical fiber optic patch panel, fiber optic distribution frames (ODFs), fiber optic terminal box, fiber optic distribution box, fiber optic instruments, and fiber optic testing equipment, providing superior, stable, and reliable performance.
LC fiber optical adapters feature high precision alignment sleeves for improved reliability and better reconnectability. They come with ceramic sleeves for both single mode and multimode. The housing is available in different colors with options for flange or flangeless body and metal or inbuilt clips. The LC connector utilizes a convenient modular jack (RJ) latch mechanism, with pins and sleeves at 1.25mm—half the size of normal SC or FC connectors.
Frequently Asked Questions
1. What is the main purpose of an LC fiber optical adapter?
LC fiber optical adapters, also known as couplers, are designed to connect two LC type fiber optic patch cables together with high precision, ensuring stable signal transmission.
2. Can these adapters be used for both single mode and multimode cables?
Yes, LC fiber optical adapters are designed to accommodate both single mode and multimode fiber optic cables, typically featuring high-quality ceramic sleeves.
3. What is the significance of the Zirconia ceramic sleeve?
The Zirconia ceramic sleeve provides high precision alignment for the fiber connectors, which improves reliability and ensures low insertion loss over many reconnects.
4. How does the LC adapter compare in size to SC or FC adapters?
The pins and sleeves used in LC adapters are 1.25mm, which is half the size of the 2.5mm pins used in standard SC and FC connectors, allowing for higher density in patch panels.
5. What mounting options are available for these adapters?
LC adapters come in various configurations, including simplex, duplex, and quad versions, with options for flanged or flangeless bodies and different clipping mechanisms.
6. Are these adapters compliant with international standards?
Yes, these adapters meet TIA/EIA-604, IEC, and Telcordia compliance standards, and are also RoHS compliant.
