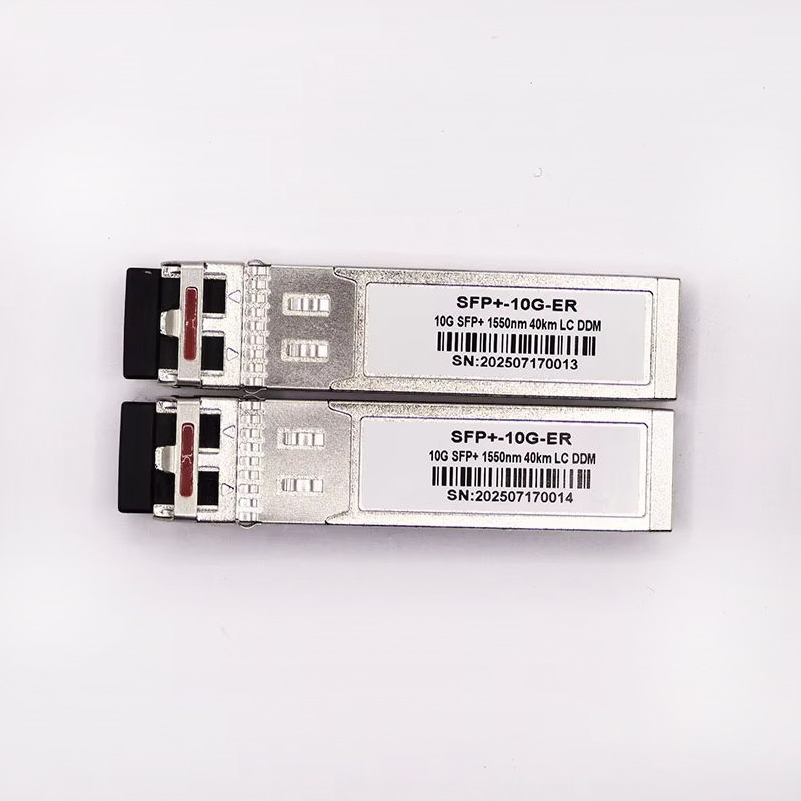

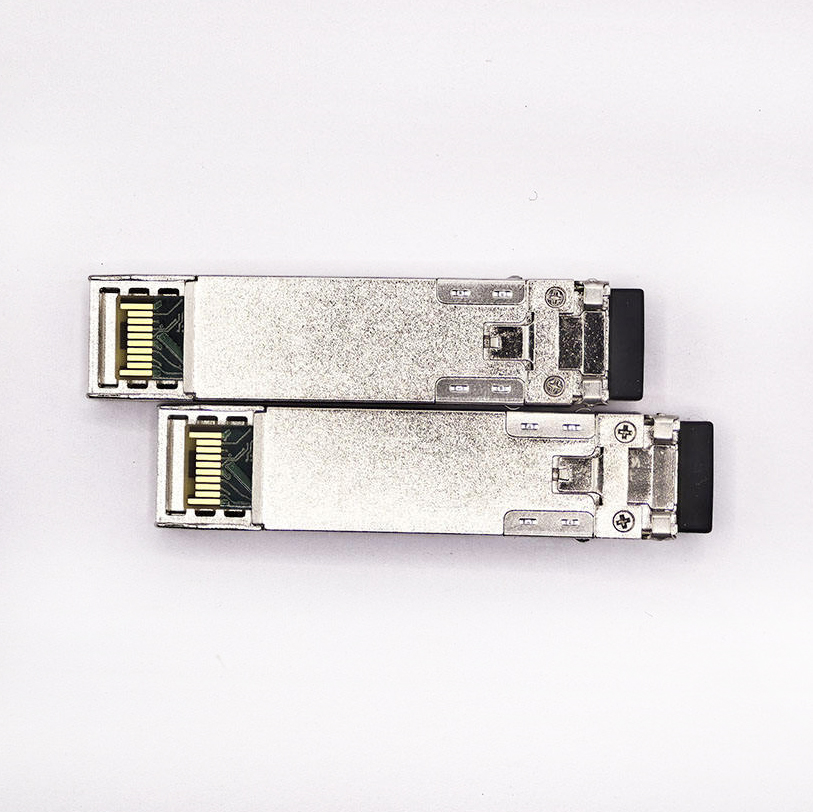

Wholesale KCO-SFP+-10G-ER 10Gb/s 1550nm SFP+ 40kmTransceiver Pricelist, Products

KCO SFP+ 10G ER is a standard for 10 Gigabit Ethernet over fiber optic cables, specifically designed for long-distance transmission. It allows for data transfer up to 40 km over single-mode fiber (SMF) at a wavelength of 1550nm. KCO SFP+ 10G ER fiber optic modules, often implemented as SFP+ transceivers, are used in various applications where extended reach is needed, such as connecting buildings on a large campus or within a metropolitan area network.

Send Inquiry

Product Description

High-Speed Transmission

Standard for 10 Gigabit Ethernet over fiber optic cables, specifically designed for long-distance transmission up to 40 km over single-mode fiber (SMF) at 1550nm.

Versatile Applications

Ideal for extended reach applications such as connecting buildings on large campuses or within metropolitan area networks (MAN).

Absolute Maximum Ratings

Parameter	Symbol	Min.	Typ.	Max.	Unit
Storage Temperature	Ts	-40	-	85	ºC
Relative Humidity	RH	5	-	95	%
Power Supply Voltage	VCC	-0.3	-	4	V
Signal Input Voltage	-	Vcc-0.3	-	Vcc+0.3	V

Recommended Operating Conditions

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Case Operating Temperature	Tcase	0	-	70	ºC	Without air flow
Power Supply Voltage	VCC	3.14	3.3	3.47	V	-
Power Supply Current	ICC	-	-	450	mA	-
Data Rate	BR	-	10.3125	-	Gbps	-
Transmission Distance	TD	-	-	40	km	-
Coupled fiber	Single mode fiber					9/125um SMF

Optical Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Transmitter
Average Launched Power	PO	-1	-	+3	dBm	Note (1)
Extinction Ratio	ER	6	-	-	dB	-
Center Wavelength	λc	1530	1550	1565	nm	-
Spectrum Band Width (RMS)	σ	-	-	1.0	nm	-
SMSR	-	30	-	-	dB	-
Transmitter OFF Output Power	POff	-	-	-30	dBm	-
Receiver
Input Optical Wavelength	λ	1270	-	1610	nm	-
Receiver Sensitivity	Psen	-	-	-15.8	dBm	Note (2)
Input Saturation Power	Psat	0.5	-	-	dBm	-
LOS Detect Assert	PA	-28	-	-	dBm	-
LOS Detect Deassert	PD	-	-	-19	dBm	-

Note: 1. Launched power (avg.) is power coupled into a SMF with master connector. 2. Measured with BER = 10^-12 @10.3125Gbps, PRBS=2^31-1, NRZ.

Key Features & Compliance

Compliant to SFF-8431 & SFF-8472
RoHS Compliant
Up to 11.1Gbps Data Links
Up to 40km transmission on SMF
EML transmitter and PIN receiver
Metal enclosure for lower EMI
2-wire interface with DDM
Hot-pluggable SFP+ footprint
Single 3.3V power supply
Operating Temperature: 0°C to 70°C
Power dissipation < 1.5 W

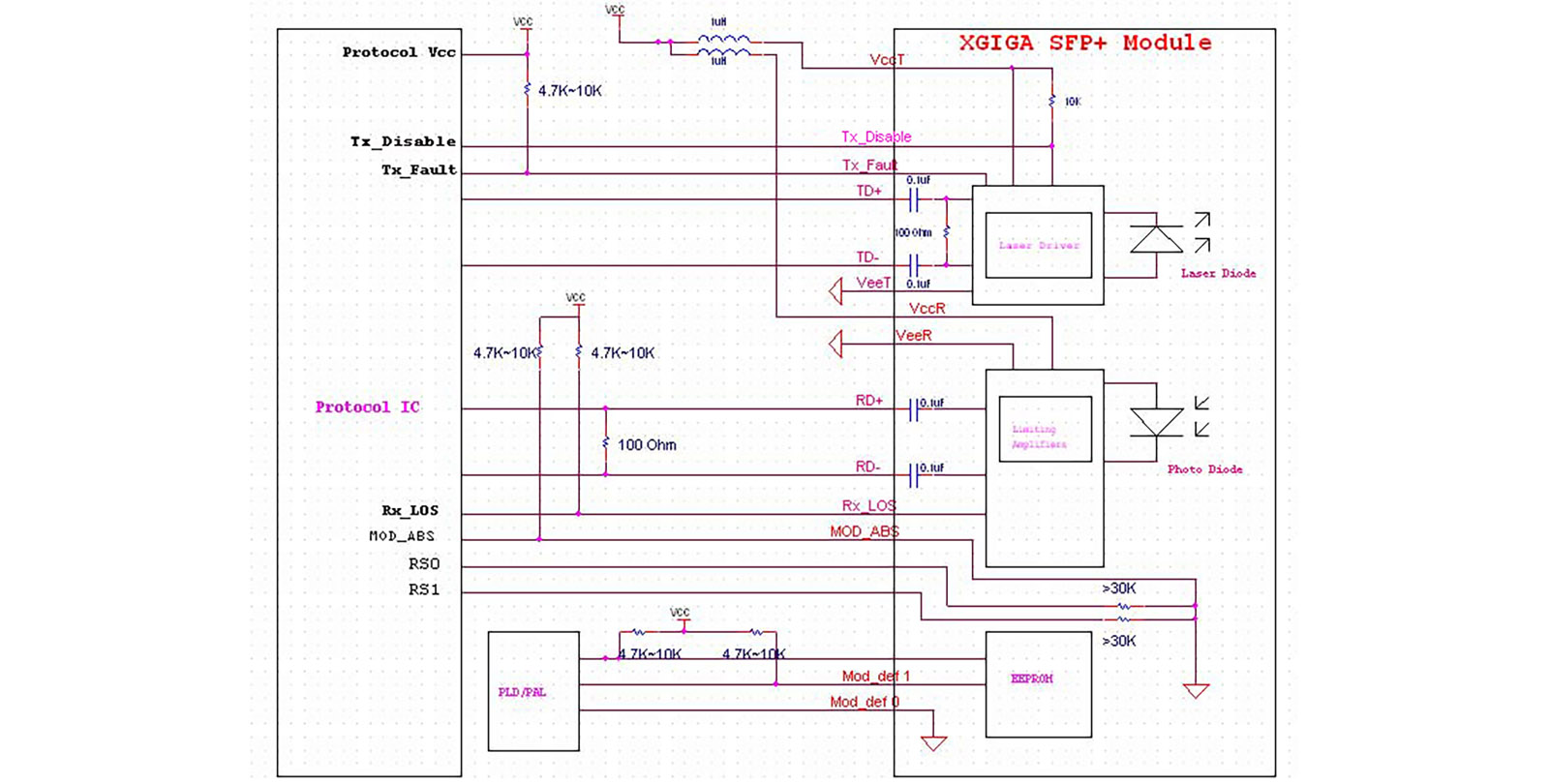

Pin Function Definitions

Pin	Symbol	Name/Description	Note
1	VEET	Transmitter Ground	1
2	TFAULT	Transmitter Fault	2
3	TDIS	Transmitter Disable	3
4	SDA	2-wire Serial Interface Data Line	4
5	SCL	2-wire Serial Interface Clock Line	4
6	MOD_ABS	Module Absent. Grounded within module	4
8	LOS	Loss of Signal indication	6
10	VEER	Receiver Ground	1
12	RD-	Receiver Inverted DATA out	-
13	RD+	Receiver Non-inverted DATA out	-
15	VCCR	Receiver Power Supply	-
16	VCCT	Transmitter Power Supply	-
18	TD+	Transmitter Non-Inverted DATA in	-
19	TD-	Transmitter Inverted DATA in	-
20	VEET	Transmitter Ground	1

Electrical Characteristics

Parameter	Symbol	Min	Typ	Max	Unit
Supply Voltage	Vcc	3.14	3.3	3.46	V
Supply Current	Icc	-	-	450	mA
Input differential impedance	Rin	-	100	-	Ω
Data output rise time	tr	28	-	-	ps
Data output fall time	tf	28	-	-	ps

Frequently Asked Questions (FAQ)

Q1: What is the maximum transmission distance for this SFP+ 10G ER module?

A1: This module is designed for long-reach applications and supports data transmission up to 40 km over single-mode fiber (SMF).

Q2: Which wavelength does the SFP+ 10G ER operate on?

A2: The module operates at a center wavelength of 1550nm, which is optimal for long-distance single-mode fiber communication.

Q3: Does the module support real-time monitoring?

A3: Yes, it features an integrated Digital Diagnostic Monitoring (DDM/DOM) interface, allowing real-time access to parameters like temperature, laser bias, and optical power.

Q4: Is the SFP+ 10G ER module hot-pluggable?

A4: Yes, it has a hot-pluggable SFP+ footprint, which means it can be installed or removed without powering down the host system.

Q5: What are the main applications for this 40km transceiver?

A5: It is primarily used for 10GBASE-ER/EW Ethernet links, metropolitan area networks (MAN), and connecting buildings across large campuses.

Q6: What is the power consumption of this module?

A6: The power dissipation of this SFP+ 10G ER module is typically less than 1.5 W, ensuring efficient operation within high-density network equipment.
