KOCENT OPTEC
1 / 5
| Standards | IEEE802.3u (100Base-TX/FX), IEEE 802.3 (10Base-T) |
| Certifications | CE, FCC, RoHS |
| Data Transfer Rate | 100Mbps, 10Mbps |
| Wavelength | Single mode: 1310nm, 1550nm; Multimode: 850nm or 1310nm |
| Ethernet Port | Connector: RJ45; Data Rate: 10/100M; Distance: 100m; UTP Type: UTP-5E or higher |
| Fiber Port | Connector: SC/UPC; Data Rate: 155Mbps; Distance: Multimode 550m~2km, Singlemode 20~100km |
| Optical Power | TX Power: -15 ~ -8 dBm; Max RX Power: -8 dBm; RX Sensitivity: ≤ -25 dBm (for 20km SM) |
| Performance | Processing Type: Direct forwarding; Jumbo packet: 9k bytes; Time Delay: <150μs |

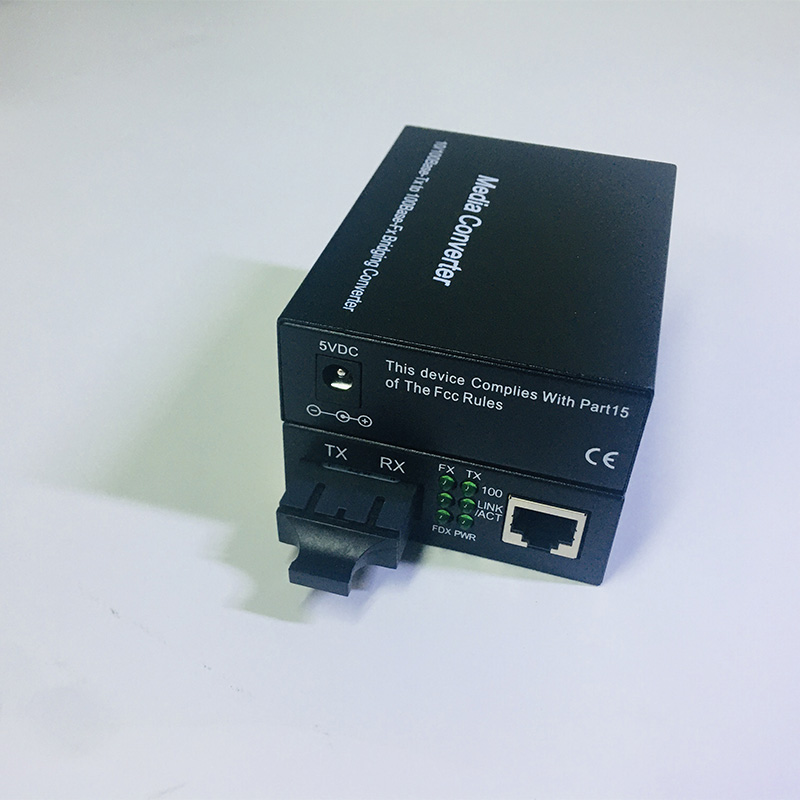

| LED Indicators | PWR, TX LNK/ACT, FX LNK/ACT, 100M |
| Power | External 5VDC 1A; Input 100V~240VAC; Consumption: 0.7W~2.0W; 2KV Surge protection |
| Environment | Storage: -40~70℃; Operating: -10~55℃; Humidity: 5-90% (no condensation) |
| Physical | Dimension: 94×71×26mm; Weight: 0.15kg; Color: Metal Black |
| Warranty | 12 months |
