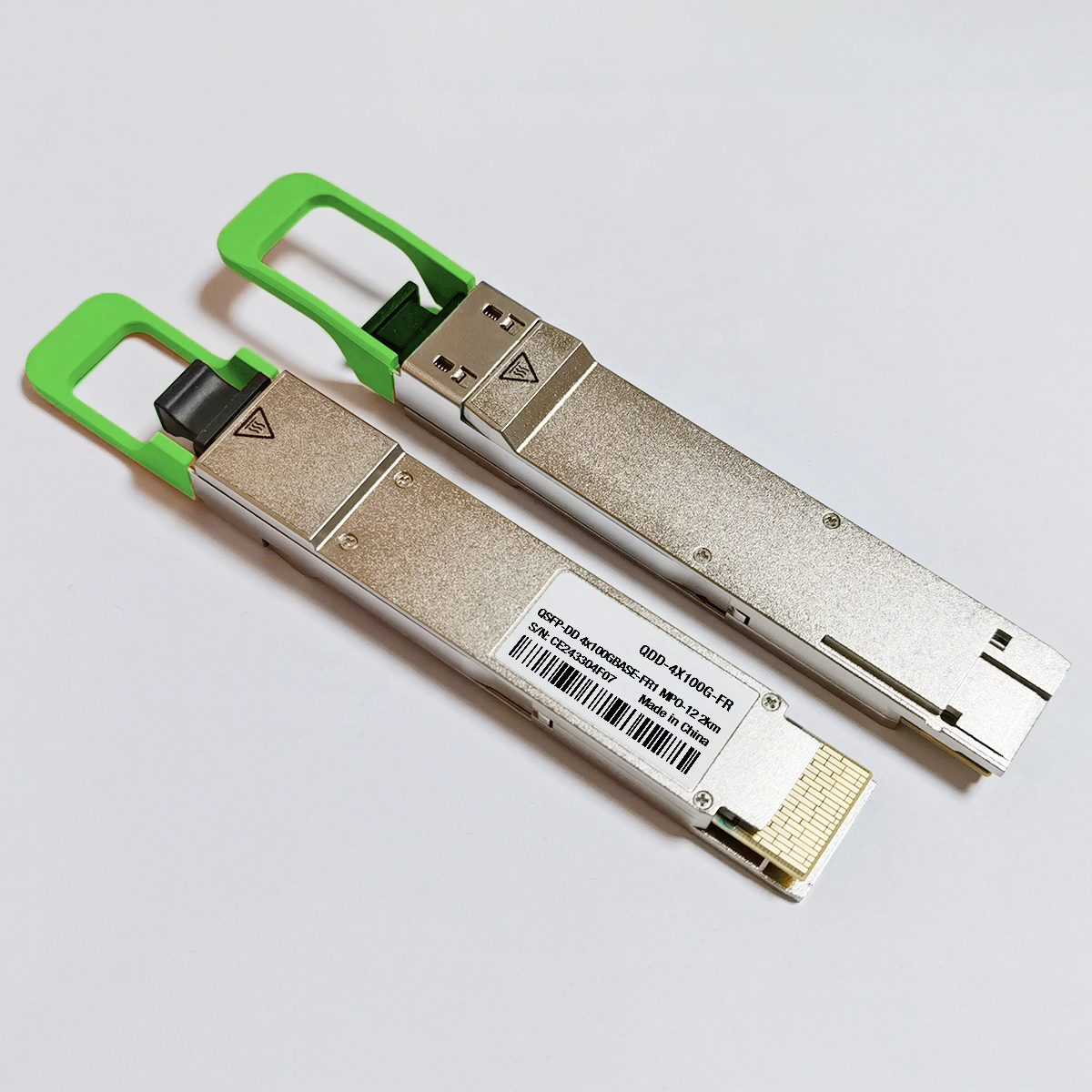

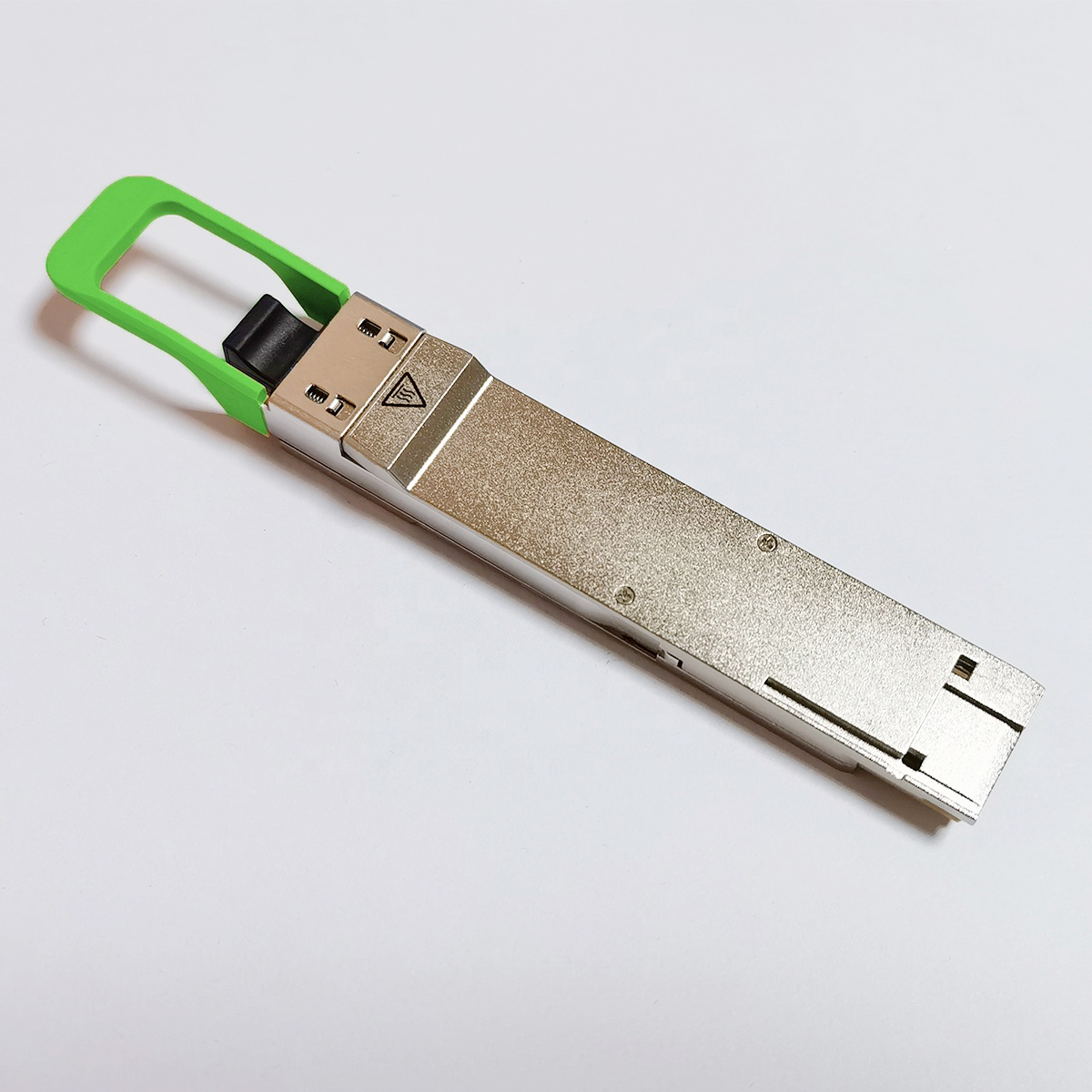

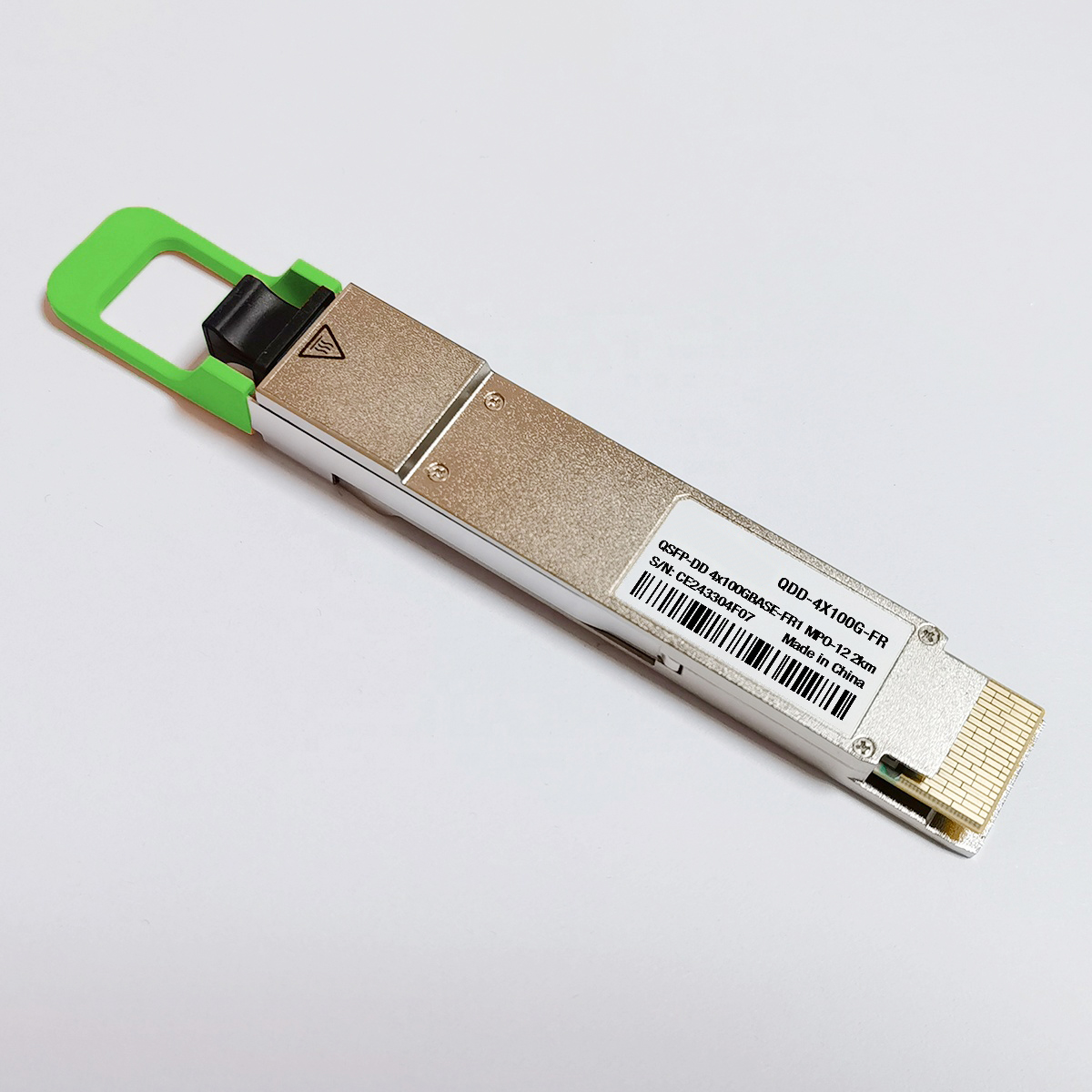

This easy-to-install, hot-swappable transceiver includes built-in digital diagnostics monitoring (DDM) for real-time operating parameters. Each unit is uniquely serialized and has undergone extensive data-traffic and application testing to ensure identical performance and initialization.
The module is ideally suited for 400G Ethernet and data center interconnect applications, and can also function as a 4x100G breakout to QSFP-FR-100G.
| Cisco Compatible | QDD 4x100G FR S / QDD 400G FR |
| Form Factor | QSFP-DD |
| Max Data Rate | 400Gbps |
| Wavelength | 1310nm |
| Distance | 2km |
| Connector | MPO-12 |
| Modulation (Electrical) | 8x50G-PAM4 |
| DSP | TX and RX |
| Core Size | 9um/125um |
| Temperature Range | 0 to 70°C |
| Transmitter Type | CW DFB |
| Receiver Type | PIN |
| DDM/DOM | Supported |
| TX Power | -3.1~4.0dBm |
| Min Receiver Power | -7.1dBm |
| Media | SMF |
| Modulation (Optical) | 4x100G-PAM4 |
| Max Power Consumption | 11W |
| Protocols | IEEE Std 802.3, QSFP-DD MSA, CMIS 4.0 |
| Warranty | 5 years |
