The 800Gbase high speed fiber optic module is a high-bandwidth transceiver for short-reach (up to 100m) multimode fiber applications, primarily used in data centers, high-performance computing (HPC), and Artificial Intelligence (AI) environments for applications requiring low-latency connections.
| Cisco Compatible | OSFP-800G-VR8 |
| Form Factor | Twin-port OSFP Finned Top |
| Max Data Rate | 850Gbps (8x 106.25Gbps) |
| Wavelength | 850nm |
| Max Cable Distance | 30m@OM3 / 50m@OM4 |

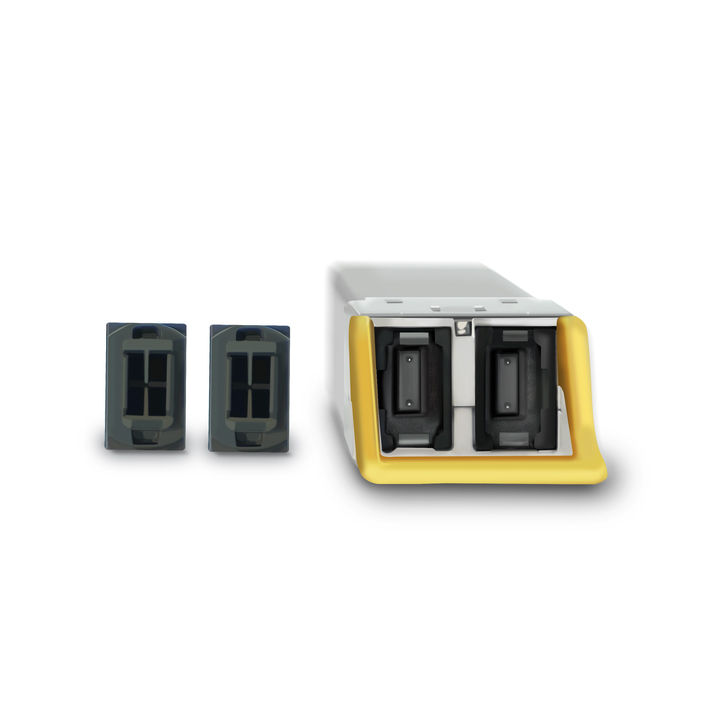

| Connector Type | Dual MTP/MPO-12 APC |
| Fiber Type | MMF |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| TX Power | -4.6~4dBm |
| Min Receiver Power | -6.4dBm |
| Power Budget | 1.8dB |
| Max Power Consumption | 16W |
| DDM/DOM | Supported |
| Temperature Range | 0 to 70°C (Commercial) |
| Modulation (Optical) | Dual 4x100G-PAM4 |
| CDR | TX & RX Built-in CDR |
| Warranty | 5 Years |

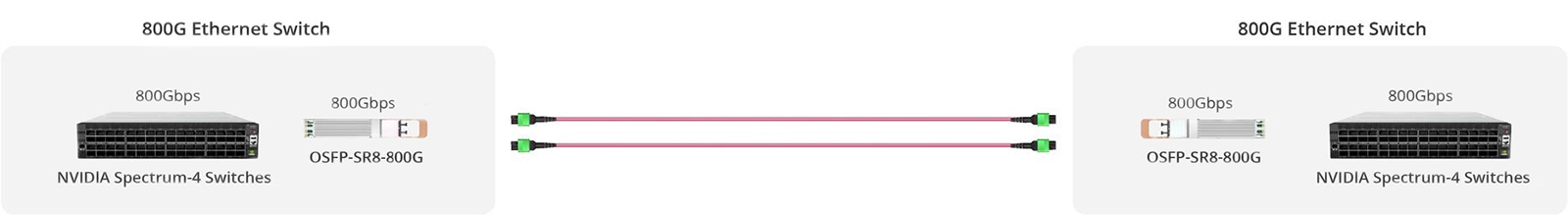

Data Center Interconnects: Connects high-density switches in spine-leaf architectures and enables top-of-rack switch-to-server links.
AI/ML Clusters: Provides high bandwidth and low latency for compute servers, DPUs, and network adapters in AI workloads.
High-Performance Computing (HPC): Supports demanding network requirements, linking InfiniBand or Ethernet elements.
Ethernet and InfiniBand Networks: Versatile support for 800G Ethernet and InfiniBand (like NVIDIA Quantum-2) protocols.
