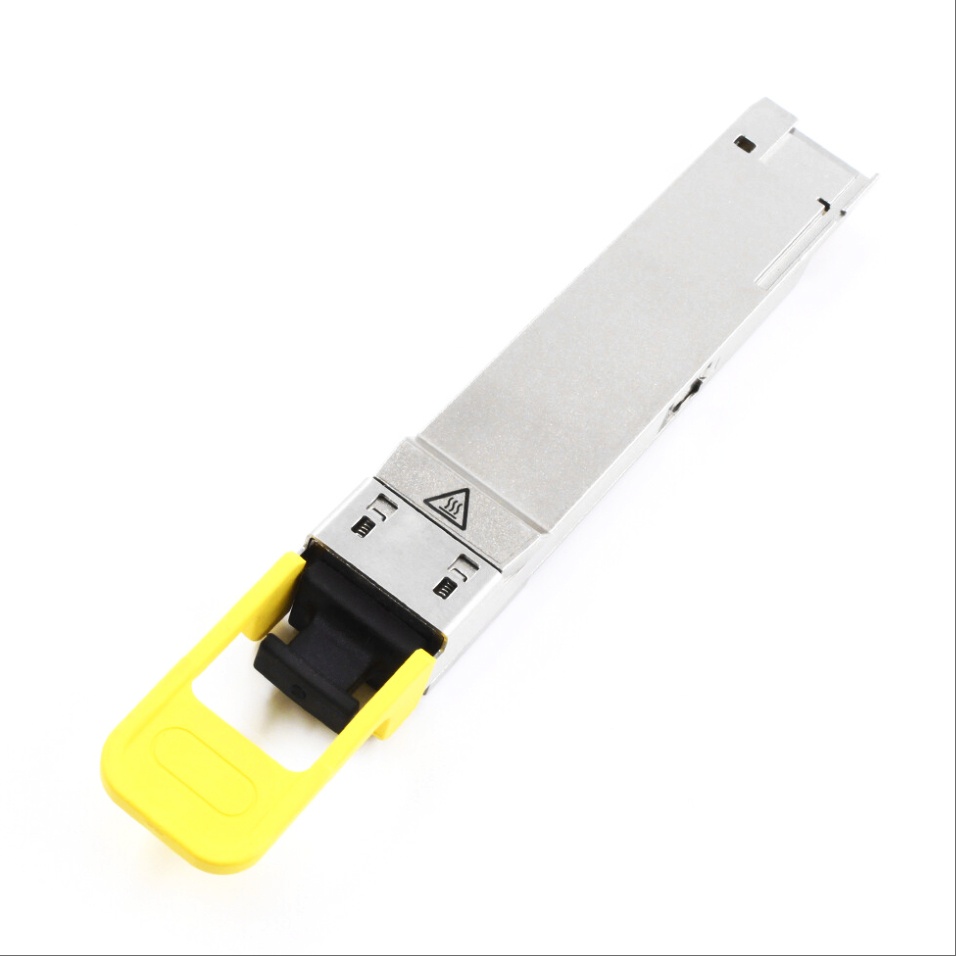

Wholesale 800GBASE 2xDR4/DR8 OSFP Finned Top PAM4 1310nm 500m DOM Dual MPO-12/APC SMF Fiber Optical Transceiver Module Factory, Pricelist

NVIDIA/Mellanox MMS4X00-NM Compatible The Cisco OSFP-800G-DR8 Compatible Juniper Networks OSFP-2X400G-DR4-P Compatible H3C OSFP800-800G-DR8-SM1310-DMPO Compatible

Send Inquiry

Product Description

The OSFP-800G-DR8 fiber optic transceiver provides ultra-high-speed, low-latency connectivity for modern data centers and High-Performance Computing (HPC) environments. It enables 800 Gigabit Ethernet (800GE) and InfiniBand NDR connections up to 500 meters over single-mode fiber (SMF).

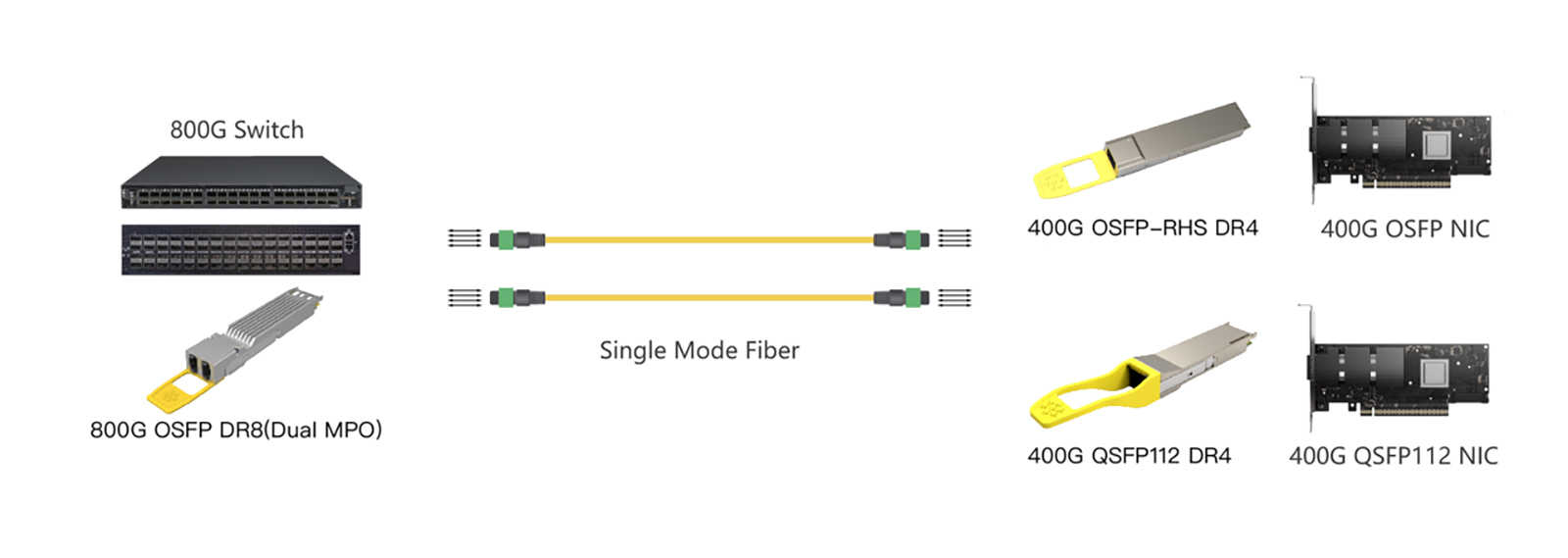

Supports breakout connections for 2x400G, 4x200G, or 8x100G links.

Compatible with NVIDIA switches, ConnectX-7 adapters, and BlueField-3 DPUs.

Compliant with IEEE 802.3ck, IEEE 802.3cu, and OSFP MSA standards.

Technical Specifications

P/N	OSFP-800G-DR8-SM1310
Form Factor	Twin-port OSFP Finned Top
Max Data Rate	850Gbps (8x 106.25Gbps)
Wavelength	1310nm
Max Cable Distance	500m

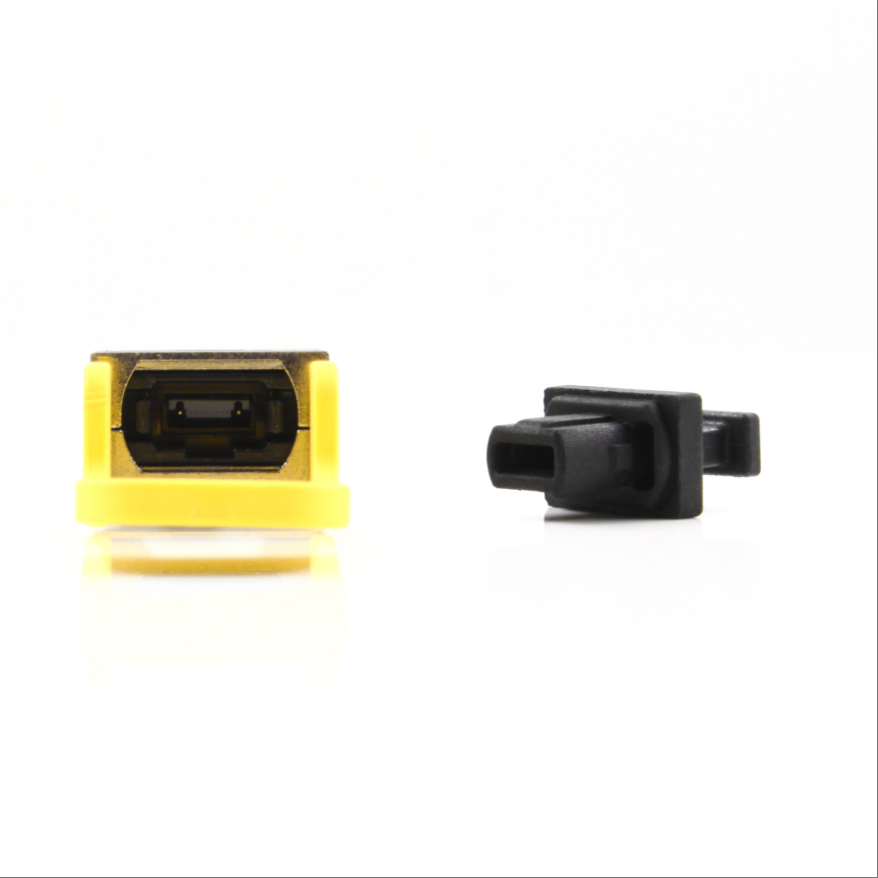

Connector Type	Dual MTP/MPO-12 APC
Fiber Type	SMF (Single-Mode Fiber)
Transmitter Type	EML
Max Power Consumption	16.5W
Modulation Format	PAM4
CDR	TX & RX Built-in DSP
Warranty	5 Years

Key Applications

High-Performance Data Centers: Provides necessary bandwidth for interconnecting switches, servers, and infrastructure for cloud computing.
High-Performance Computing (HPC): Facilitates massive data transmission speeds for supercomputers and HPC clusters.
Ethernet and InfiniBand: Versatile support for both protocols within diverse data center environments.
Flexible Breakout: Functions as a single 800G link or breaks out into 2x400G, 4x200G, or 8x100G links.
Long-Reach Connectivity: Supports distances up to 500 meters using OS2 single-mode fiber.

Frequently Asked Questions

Q1: What is the maximum transmission distance of the OSFP-800G-DR8?

The module supports link lengths up to 500 meters over OS2 single-mode fiber (SMF).

Q2: Which connector type is used for this transceiver?

It utilizes dual MTP/MPO-12 APC connectors for optical connectivity.

Q3: Is this module compatible with InfiniBand NDR?

Yes, it is designed to support both 800 Gigabit Ethernet and InfiniBand NDR (Next-gen Data Rate) protocols.

Q4: Does the OSFP-800G-DR8 support breakout configurations?

Yes, it offers flexible breakout capabilities for 2x400G, 4x200G, or 8x100G link configurations.

Q5: What are the power requirements for this module?

The transceiver has a maximum power consumption of 16.5W and includes a built-in DSP for TX and RX.

Q6: What standards does this transceiver comply with?

It is fully compliant with IEEE 802.3ck, IEEE 802.3cu, and OSFP MSA HW Rev 4.1 standards.
