This connector and cabling system first supported telecommunications systems especially in the Central and Branch offices. Later it became the primary connectivity used in HPC or high-performance computing labs and enterprise datacenters. MPO connectors increase your data capacity with a highly efficient use of space.

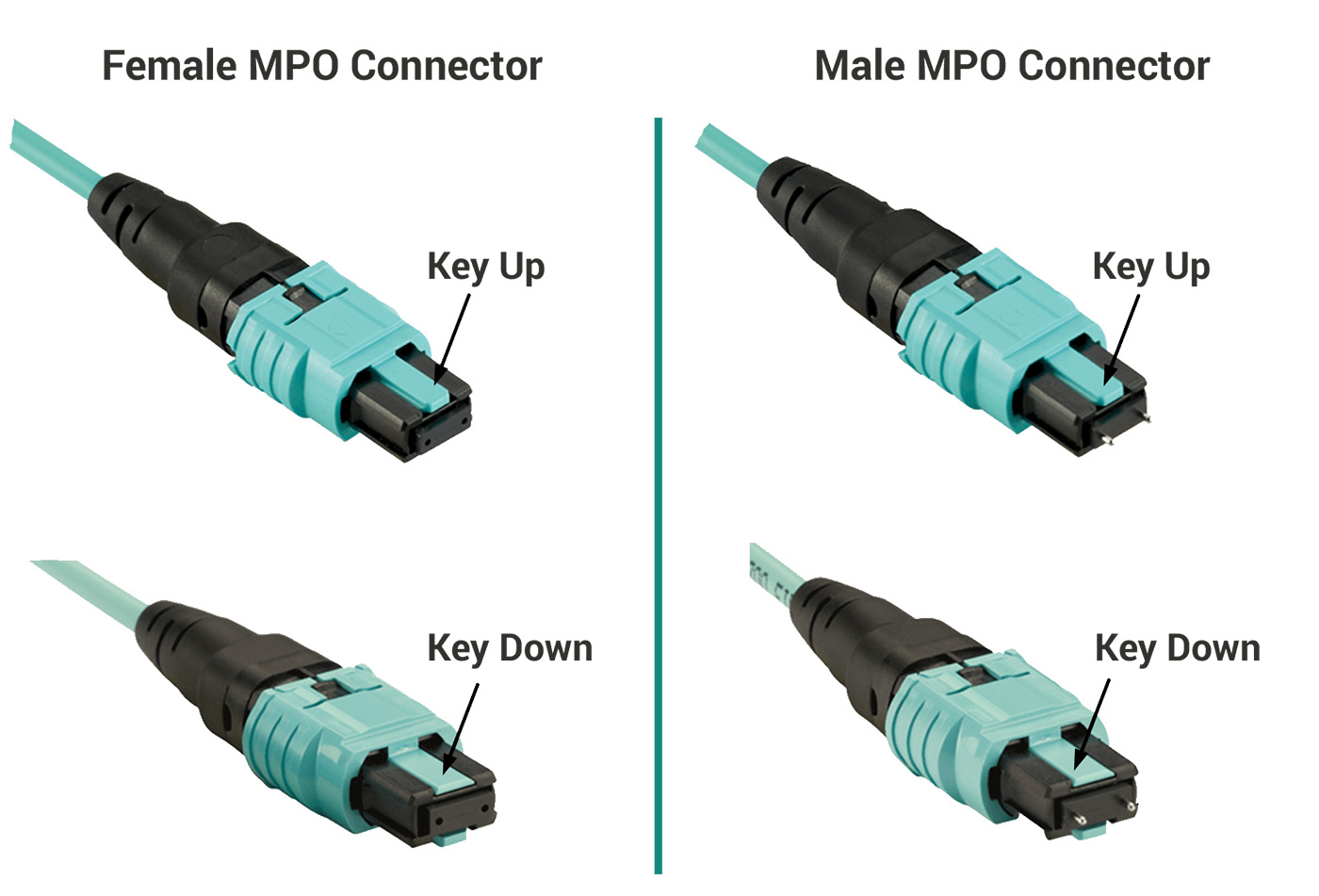

The MPO connector family has evolved to support a wider range of applications. Originally a single row 12-fiber connector, there are now 8 and 16 single row fiber types that can be stacked to form 24, 36, and 72 fiber connectors using multiple precision ferrules. The MPO connector is available in both Male (with pins) and Female (without pins) types.

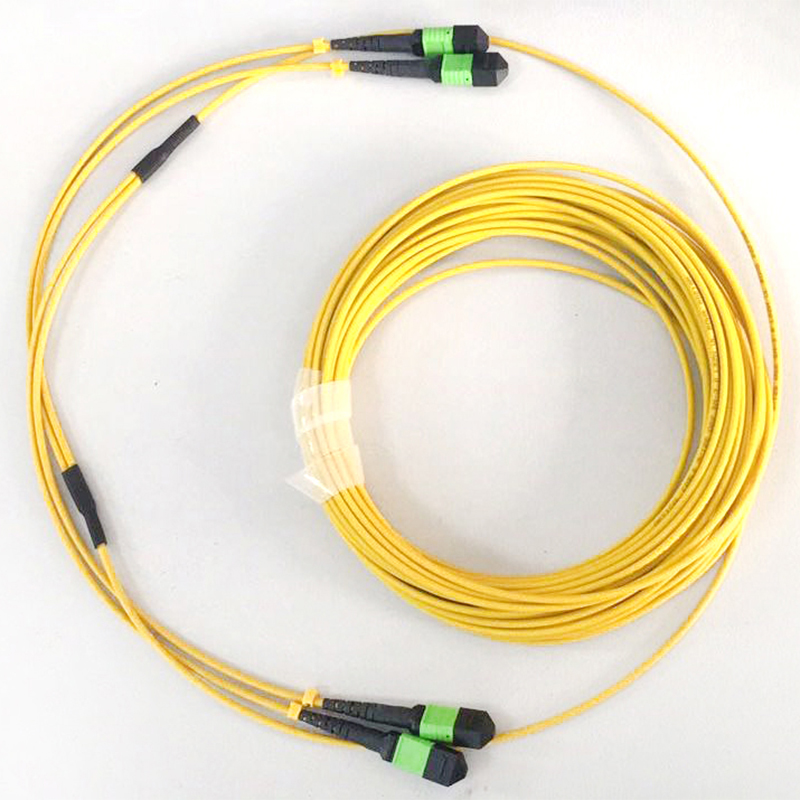

MTP/MPO harness cables (breakout or fan-out cables) are terminated with MTP/MPO connectors on one end and standard connectors like LC, FC, SC, ST, or MTRJ on the other. Typically, these use 3.0mm LSZH round main cables and 2.0mm breakout cables.
| Type | Single Mode (APC) | Single Mode (UPC) | Multi Mode (PC) | |||
| Fiber Count | 8, 12, 24 etc. | 8, 12, 24 etc. | 8, 12, 24 etc. | |||
| Fiber Type | G652D, G657A1 etc. | G652D, G657A1 etc. | OM1, OM2, OM3, OM4, OM5 | |||
| Max. Insertion Loss | Elite (Low Loss) | Standard | Elite (Low Loss) | Standard | Elite (Low Loss) | Standard |
| Loss Value | ≤ 0.35 dB | ≤ 0.75 dB | ≤ 0.35 dB | ≤ 0.75 dB | ≤ 0.35 dB | ≤ 0.60 dB |
| Return Loss | ≥ 60 dB | ≥ 60 dB | NA | |||
| Durability | ≥ 500 times | |||||
| Operating Temp | -40°C to +80°C | |||||
| Test Wavelength | 1310nm / 850nm | |||||
| Anti-tensile force | 15kgf | |||||
Single Mode Fiber: Features a small diametral core allowing only one mode of light to propagate. This reduces light reflections and attenuation, enabling signals to travel further. It is ideal for long-distance, high-bandwidth applications.
