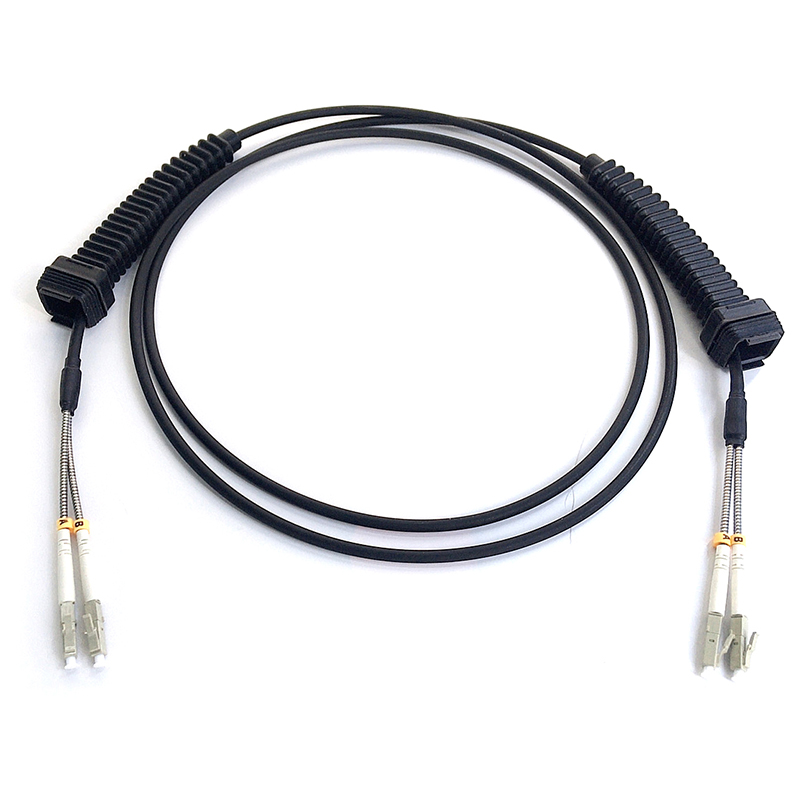

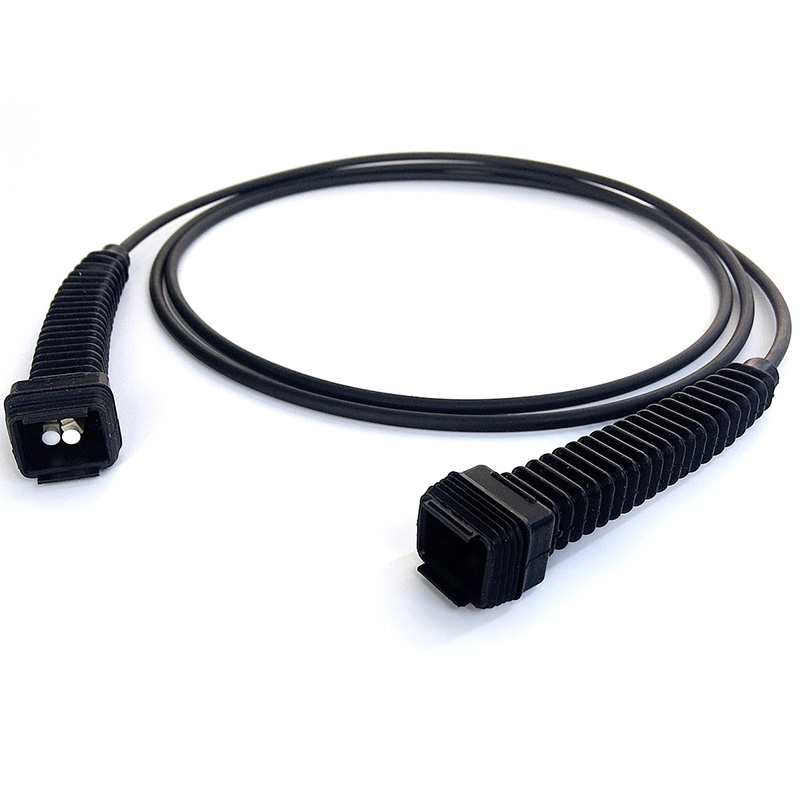

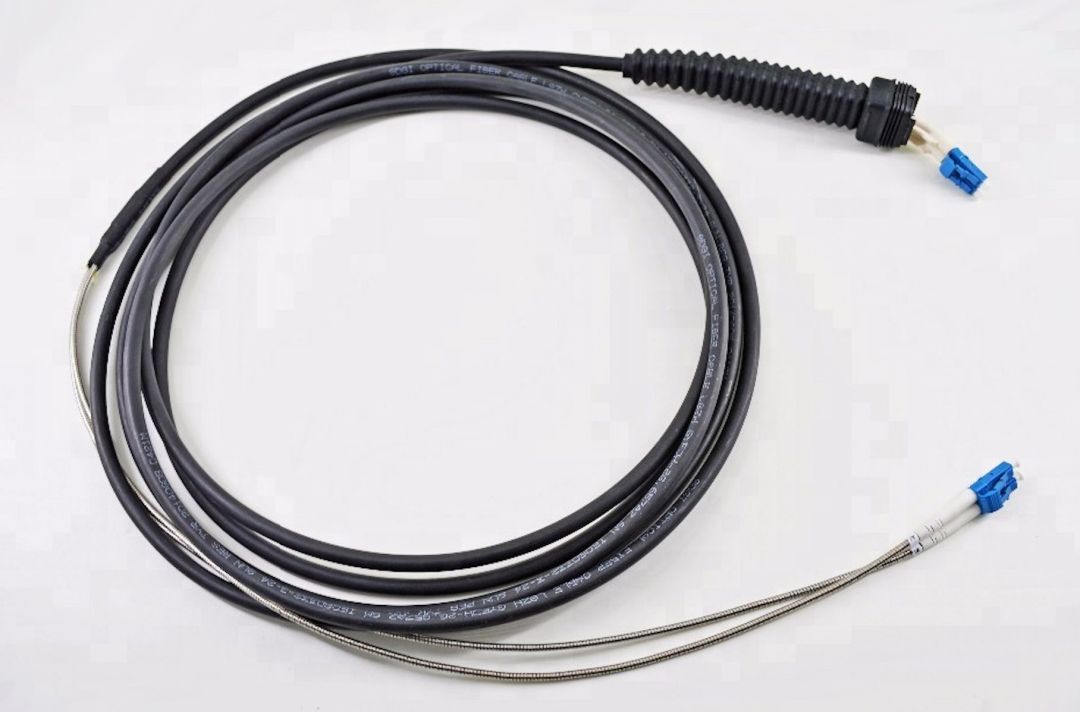

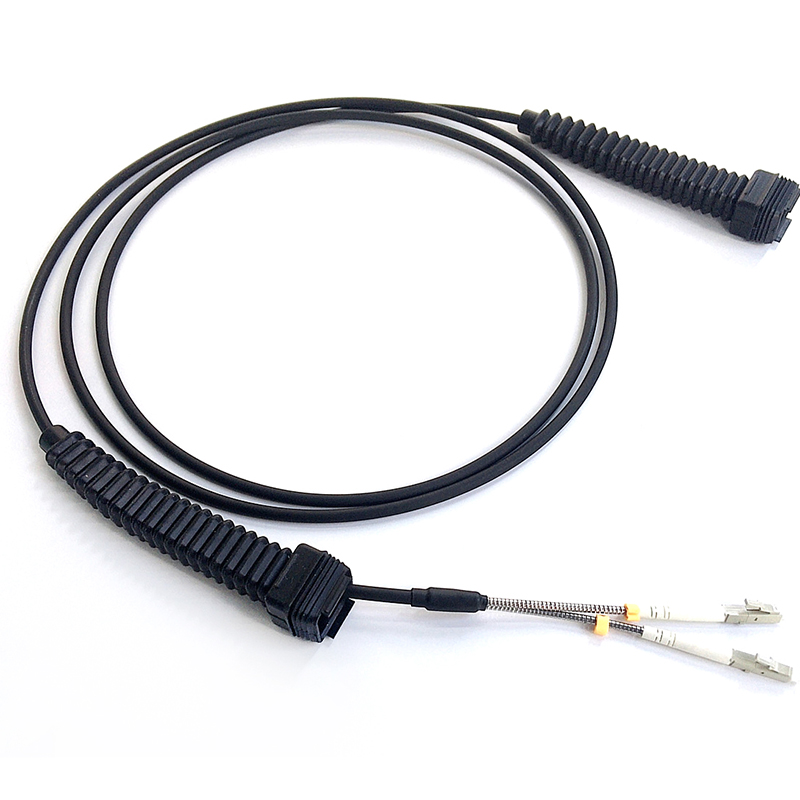

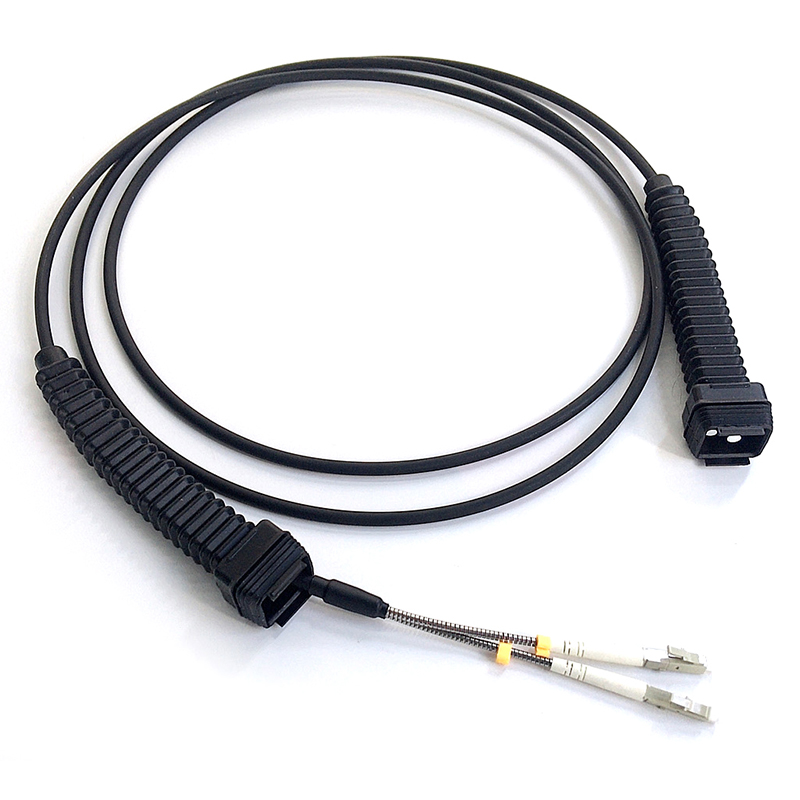

Compatible Nokia NSN fiber optic connectors are specifically designed for new generation wireless base stations (WCDMA/ TD-SCDMA/ WIMAX/ GSM). These tailored products meet the stringent FTTA (Fiber-to-the-Antenna) program requirements for outdoor environments and adverse weather conditions. They are also ideally suited for Industrial, Aerospace, and Defense applications.
These connectors, combined with supporting optical cables, have become the standard interface for 3G, 4G, 5G, and WiMax Base Station remote radios. Their utility extends beyond mobile networks to various ruggedized communication needs.
| Item | Parameter (Single Mode) | Parameter (Multi Mode) |
|---|---|---|
| Fiber Type | G652D, G655, G657A1, G657A2, G658B3 | OM1, OM2, OM3, OM4, OM5 |
| IL (Insertion Loss) | Typical: ≤0.15dB | Max: ≤0.3dB | Typical: ≤0.15dB | Max: ≤0.3dB |
| RL (Return Loss) | APC: ≥60dB | UPC: ≥50dB | PC: ≥30dB |

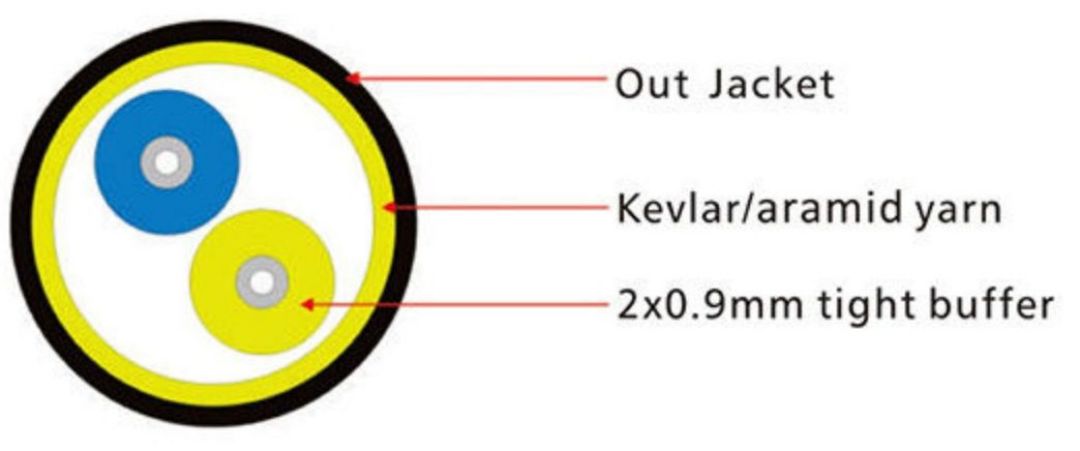

| Cores | Cable Diameter | Weight | Storage Temp |
|---|---|---|---|
| 2 / 4 / 6 cores | 5.0mm | 25.00kg/km | -20°C to +60°C |
| 8 cores | 5.5mm | 30.00kg/km | -20°C to +60°C |
| 10 cores | 5.5mm | 32.00kg/km | -20°C to +60°C |
| 12 cores | 6.0mm | 38.00kg/km | -20°C to +60°C |
| Physical Property | Long Term | Short Term |
|---|---|---|
| Min Bending Radius | 10D | 20D |
| Min Tensile Strength | 200N | 600N |
| Crush Load | 200N/100mm | 1000N/100mm |
