Supports speeds up to 40 GbE/100 GbE. Push/pull tab connector installs/removes with one hand 8, 12, 24-fibers MTP/MPO connectors. Single mode and Multimode are available. High size precision. Fast and easy connection. Lightweight and durable plastic housings. One-piece coupler design maximizes coupling strength while minimizing debris generation. Color-coded, allowing for easy fiber mode identification. High wearable. Good repeatability.
Send Inquiry

Product Description

Key Features & Advantages
✓ Die-cast and industry compliant to ensure intermateability with standard assemblies.
✓ Supports high-density system designs while maintaining industry-standard footprints.
✓ Precise connection via dual 0.7mm guide pin holes on the MPO connector core.

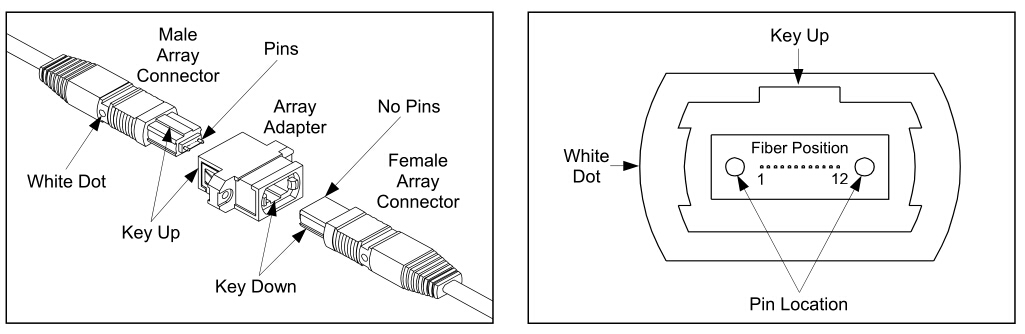

✓ Key-Up to Key-Up alignment orientation.
✓ Versatile compatibility with MPO/MTP connectors from 4 to 72 fibers.
✓ High-speed support for 40 GbE and 100 GbE networks.
✓ Push/pull tab design for easy one-handed installation and removal.
✓ Available for 8, 12, 24-fibers MTP/MPO configurations.
Technical Specifications
Connector Type MPO/MTP Body Style Simplex
Fiber Mode Multimode / Singlemode Body Color SM UPC: Black; SM APC: Green; MM: Black; OM3: Aqua; OM4: Violet
Insertion Loss ≤0.3dB Mating Durability 500 times

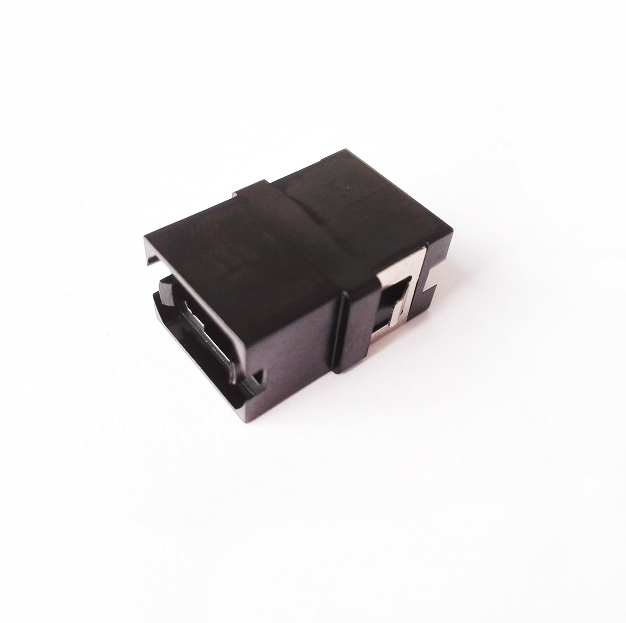

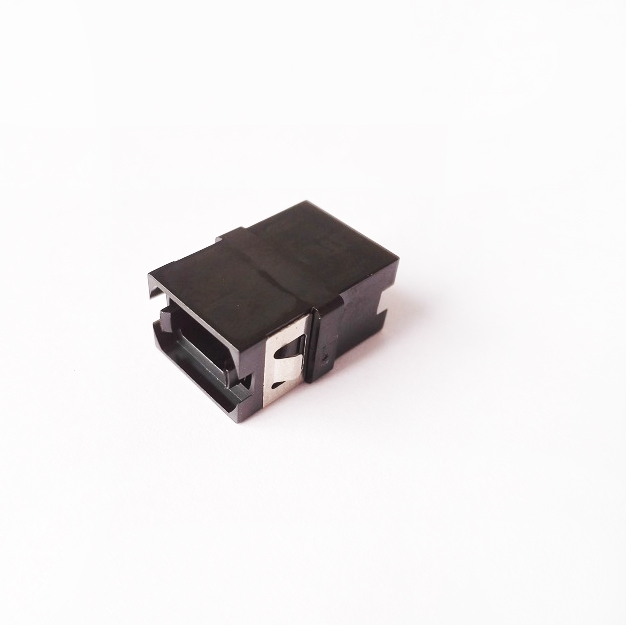

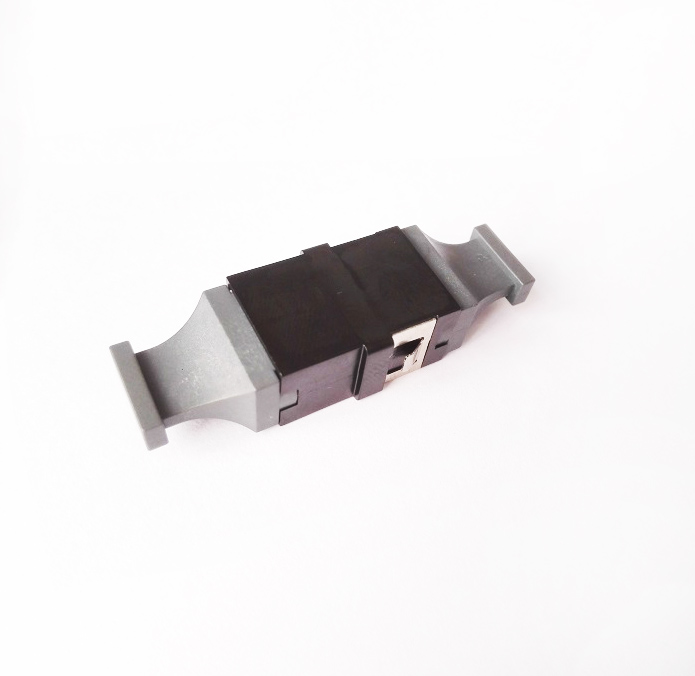

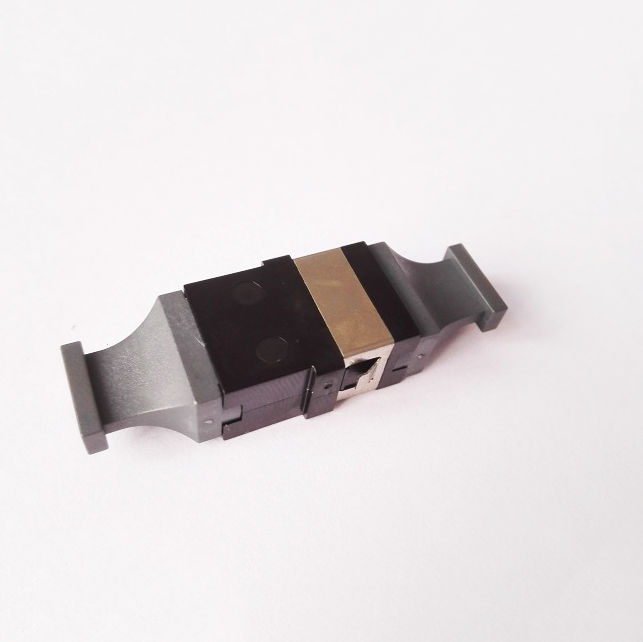

Flange With flange / Without flange Key Orientation Aligned (Key Up – Key Up)
MPO Optic Fiber Adapter
Applications & Performance
Parallel Interconnection Fiber Optic Patch Panel 10G/40G/100G Networks MPO MTP Data Center Active Optical Cable
★ Lightweight and durable plastic housings for long-term reliability.
★ One-piece coupler design maximizes strength and minimizes debris.
★ Color-coded housings for rapid fiber mode identification.
★ High wearable material with excellent repeatability.
Environmental Parameters
Operating Temperature -20°C to 70°C
Storage Temperature -40°C to 85°C
Humidity 95%RH
Frequently Asked Questions (FAQ)
Q1: How many fibers do these MPO adapters support?
The adapters are highly versatile, working with any MPO/MTP connector ranging from 4 fibers up to 72 fibers, including standard 8, 12, and 24-fiber configurations.
Q2: What is the benefit of the Key-Up to Key-Up orientation?
Key-Up to Key-Up (Aligned) orientation is a standard method for maintaining proper fiber polarity and alignment across the connection in high-density networking.
Q3: Can these adapters be used in 100G networks?
Yes, these adapters are designed to support high-speed data transmission, including 40 GbE and 100 GbE network requirements.
Q4: How do I identify different fiber modes?
The adapters are color-coded for easy identification: Green for SM APC, Black for SM UPC/Multimode, Aqua for OM3, and Violet for OM4.
Q5: What is the typical insertion loss for these adapters?
These MPO optic fiber adapters offer high precision with an insertion loss of ≤0.3dB, ensuring minimal signal degradation.
Q6: Are the housings durable for data center environments?
Yes, they feature one-piece coupler designs and lightweight, high-wearable plastic housings that maximize coupling strength and minimize debris generation.
