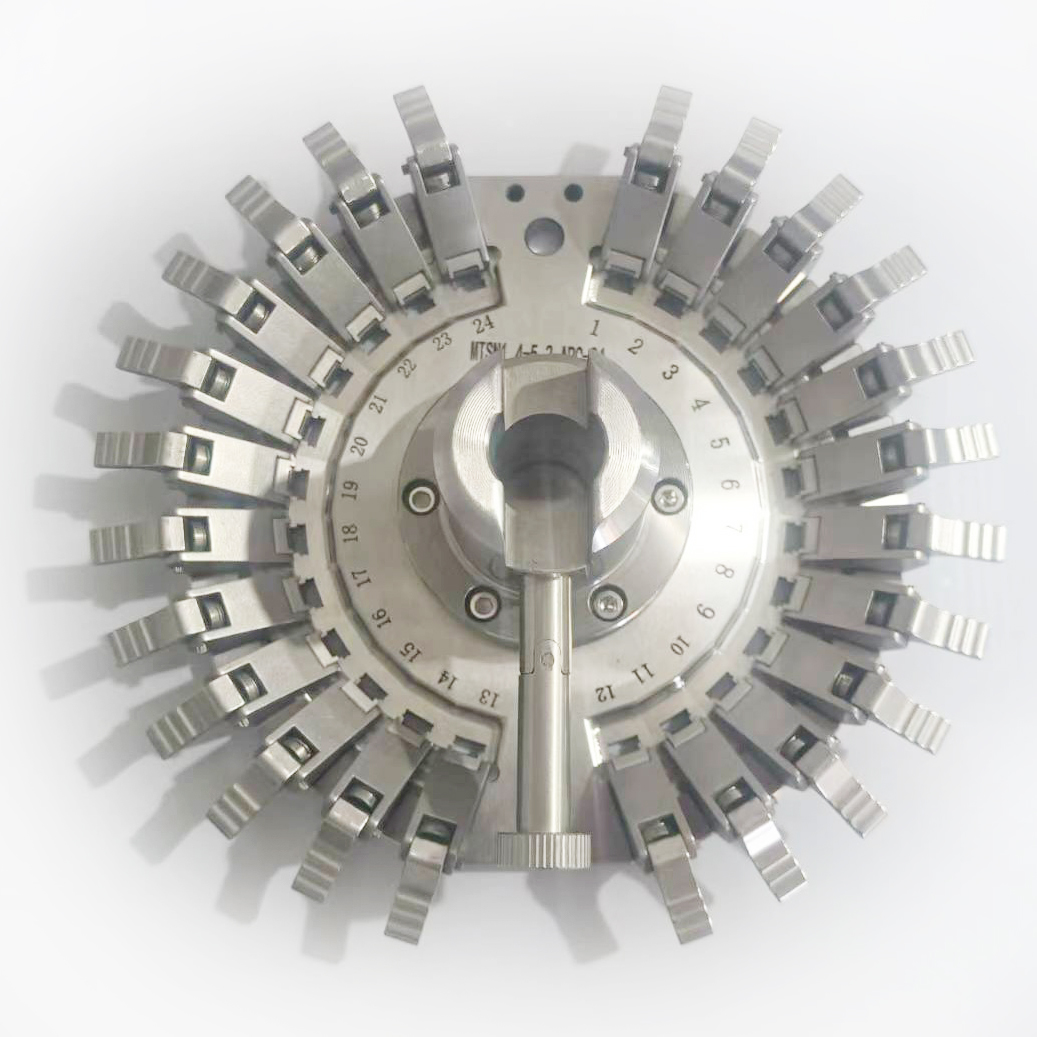

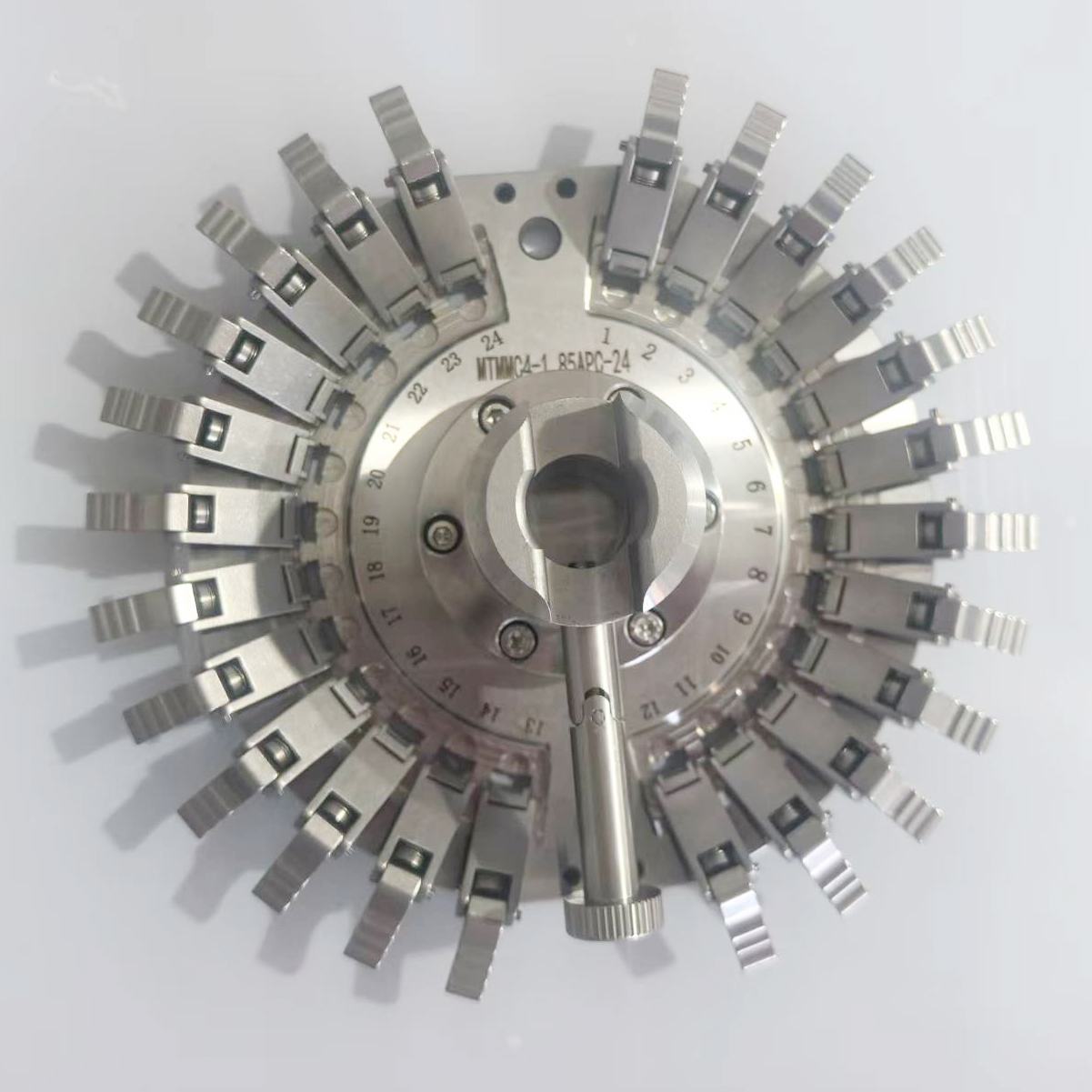

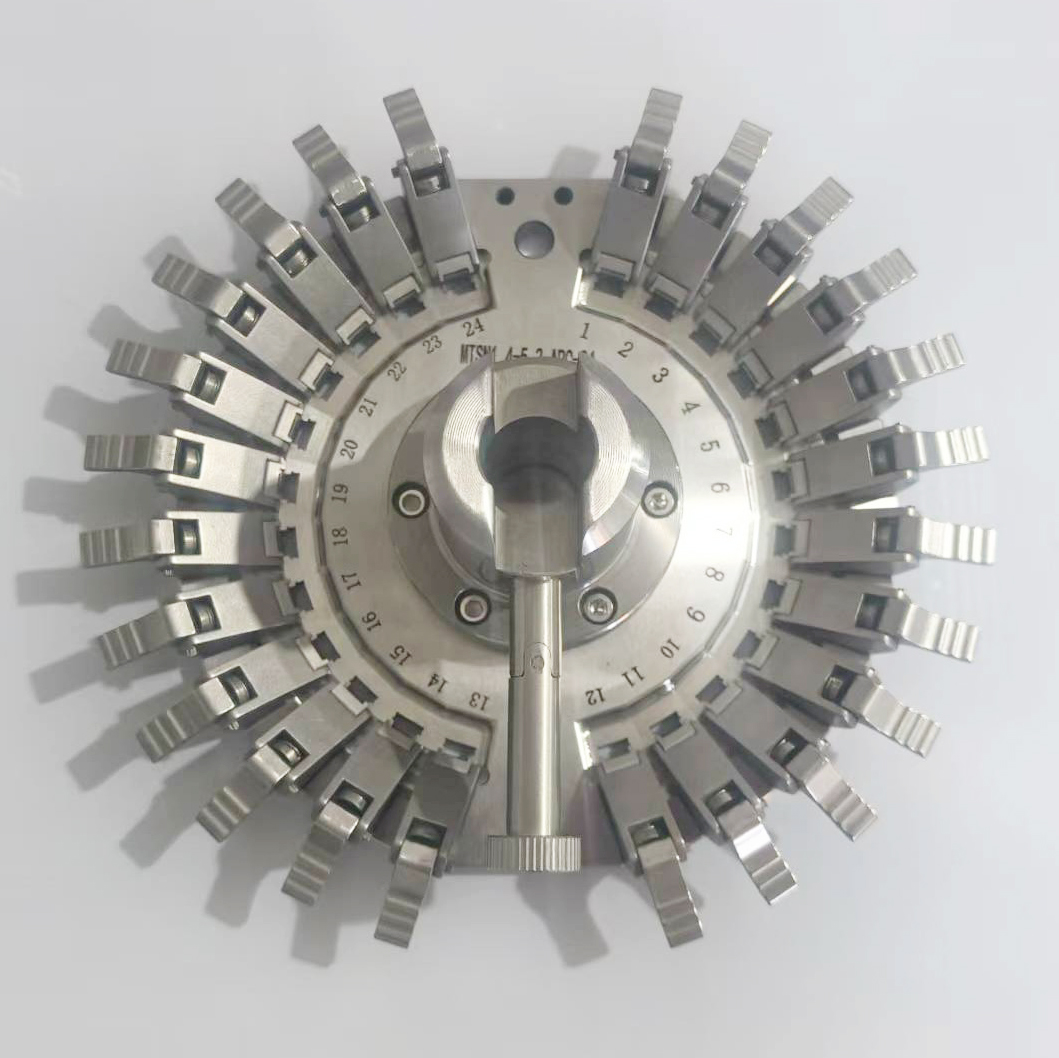

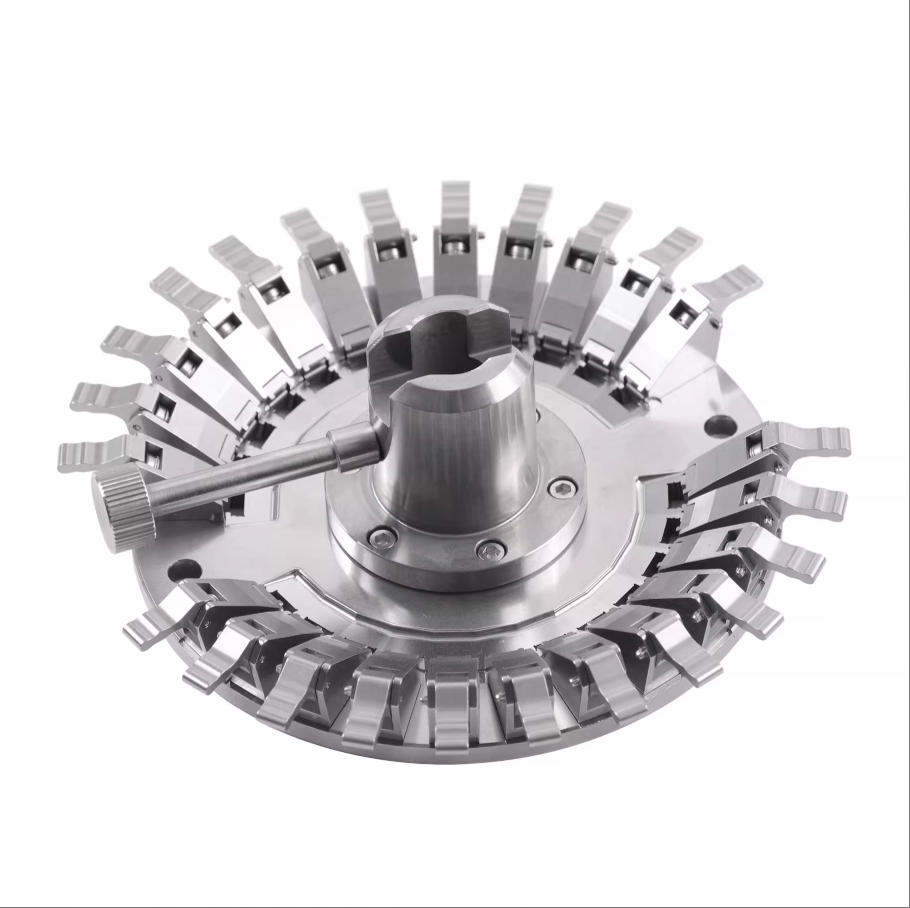

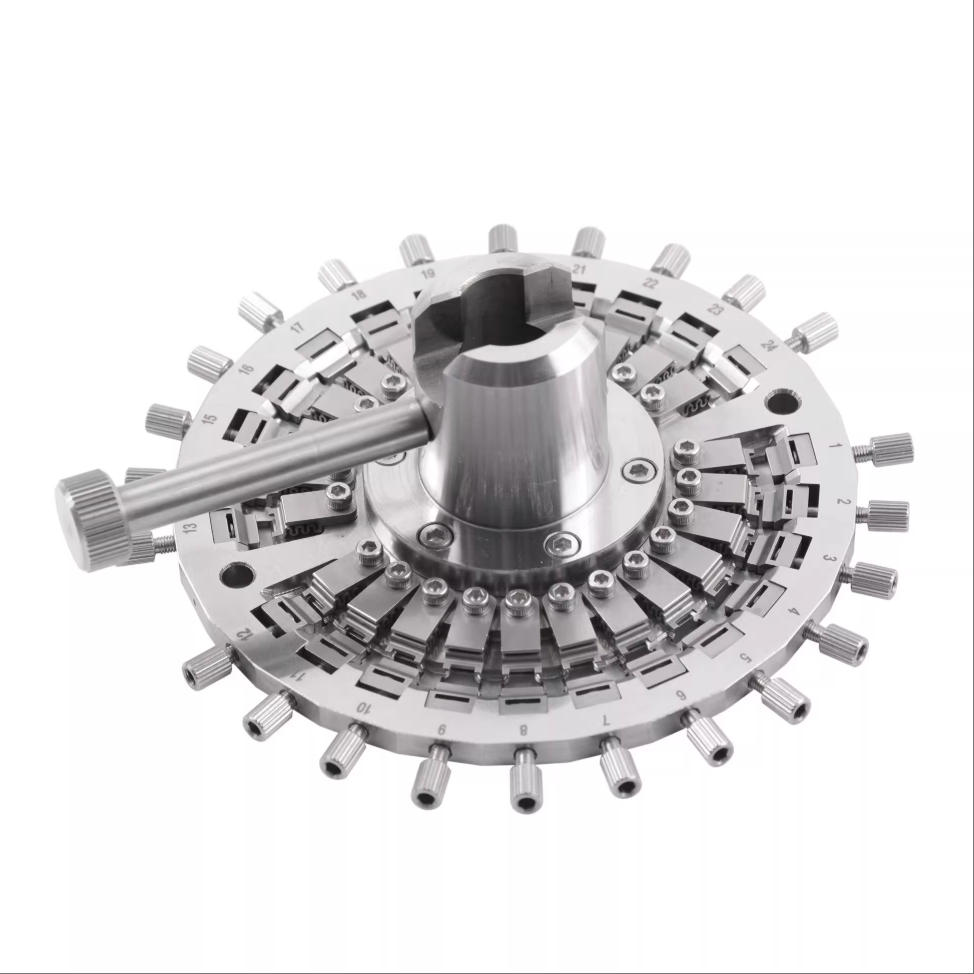

MT/PC polishing fixture is used MT/APC ferrule high density polishing. provides effective solutions to three critical issues during fiber optic connectors polishing with traditional method: (1) low polishing efficiency. (2) long operation time with fixing ferrules. Without increase in labor cost and equipment cost, one piece of MT/APC could make your polishing efficiency increase several times.
Send Inquiry

Product Description

✓ Applicate to MT/APC connector polishing.
✓ The geometry dimensions of polished ferrules comply with IEC standards.
✓ The first pass yield for end face quality reaches 95%.
Model MT-PC-24 MT-APC-24
Ferrule Type MT PC MT APC
End-face UPC APC
Capacity 24 connectors 24 connectors
Application Polishing MT/APC Ferrule Polishing MT/APC Ferrule
Material Stainless Steel S136
Dimension (L*W*H) D110*H45 mm
Weight (kg) 0.6 kg / 1.0 kg
Frequently Asked Questions
What is the capacity of the MT-APC-24 polishing jig?
The MT-APC-24 polishing jig is designed to hold and polish up to 24 connectors simultaneously, significantly increasing production efficiency.
Does the polished ferrule meet international quality standards?
Yes, the geometry dimensions of the ferrules polished using this equipment strictly comply with IEC standards.
What is the expected pass rate for end-face quality?
This equipment offers high stability, with a first-pass yield for end-face quality reaching as high as 95%.
What material is used for the polishing fixture?
The fixture is made from high-quality Stainless Steel S136, ensuring durability, corrosion resistance, and long-term precision.
Can this equipment handle both UPC and APC end-faces?
Yes, we provide specific models: MT-PC-24 is optimized for UPC end-faces, while MT-APC-24 is designed for APC end-faces.
What are the physical dimensions and weight of the product?
The device measures approximately D110*H45 mm and has a weight range between 0.6 kg and 1.0 kg depending on the specific configuration.
