Technical Design & Construction

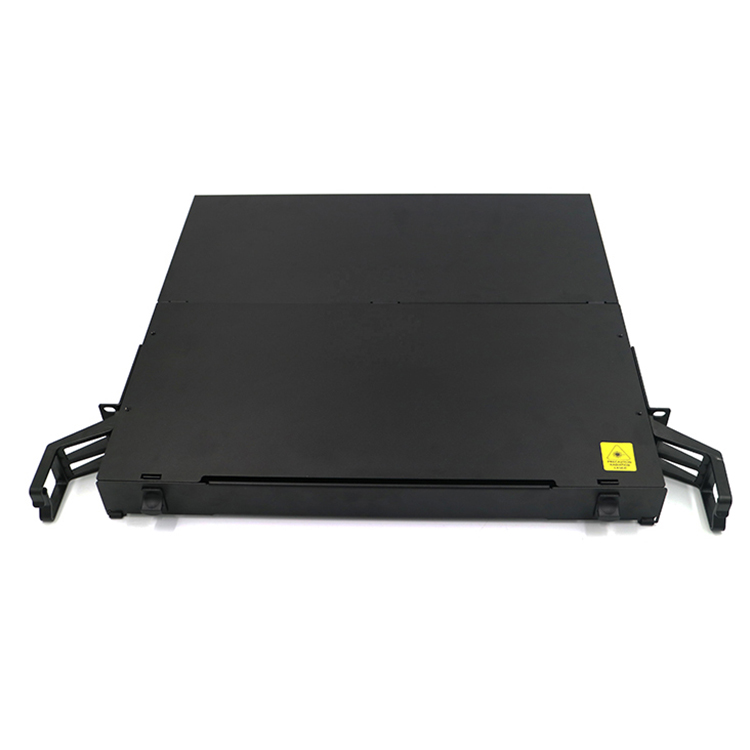

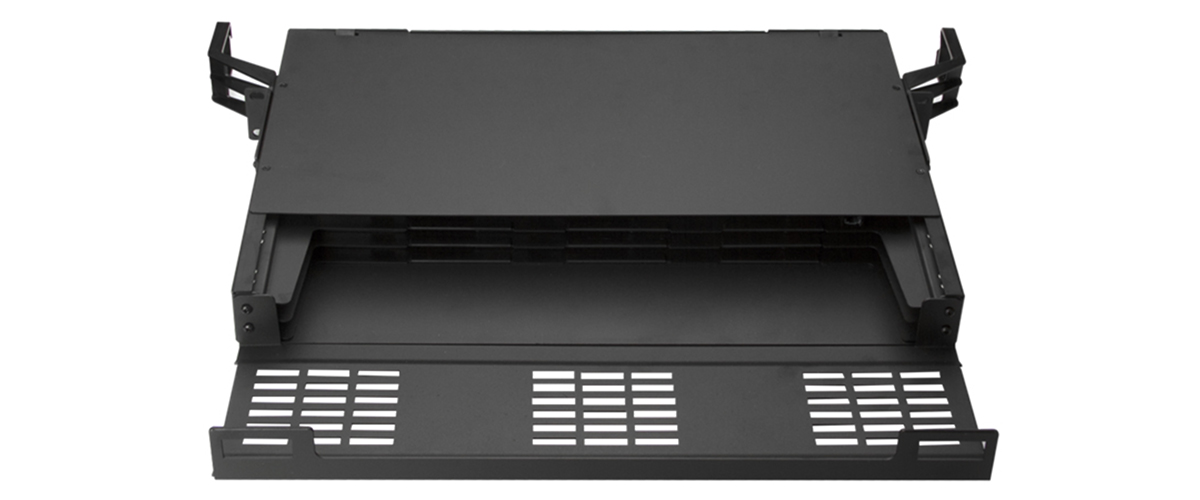

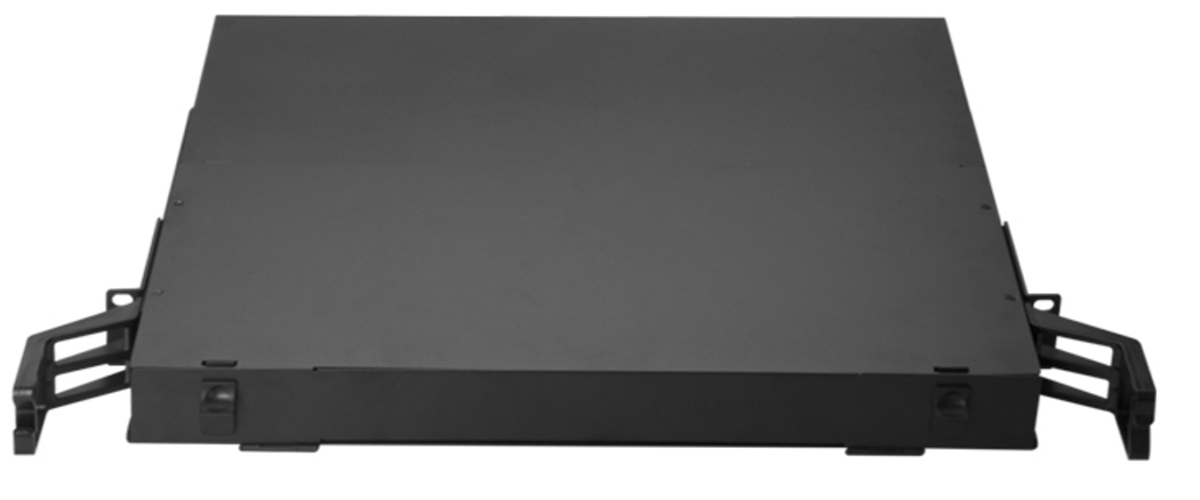

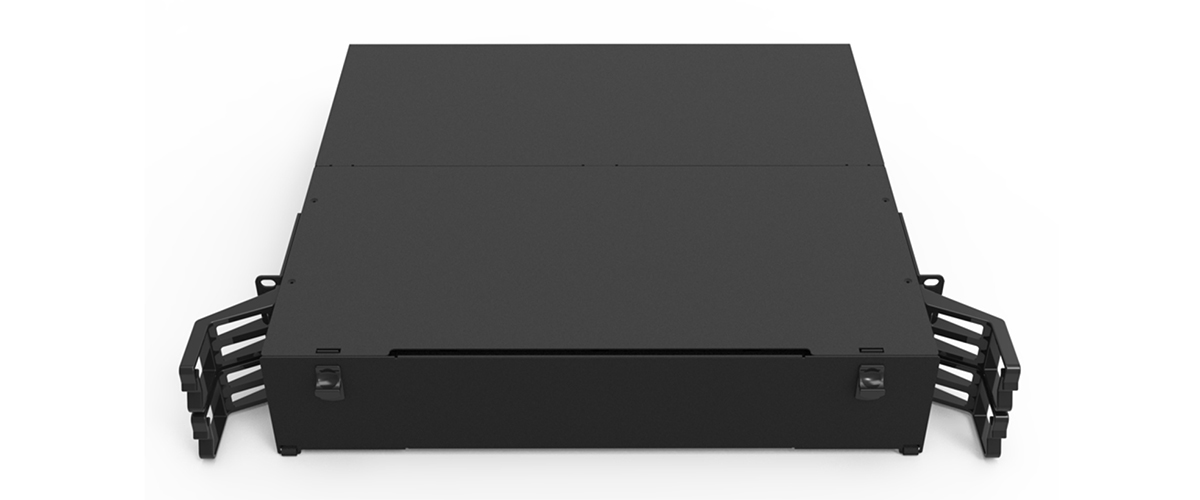

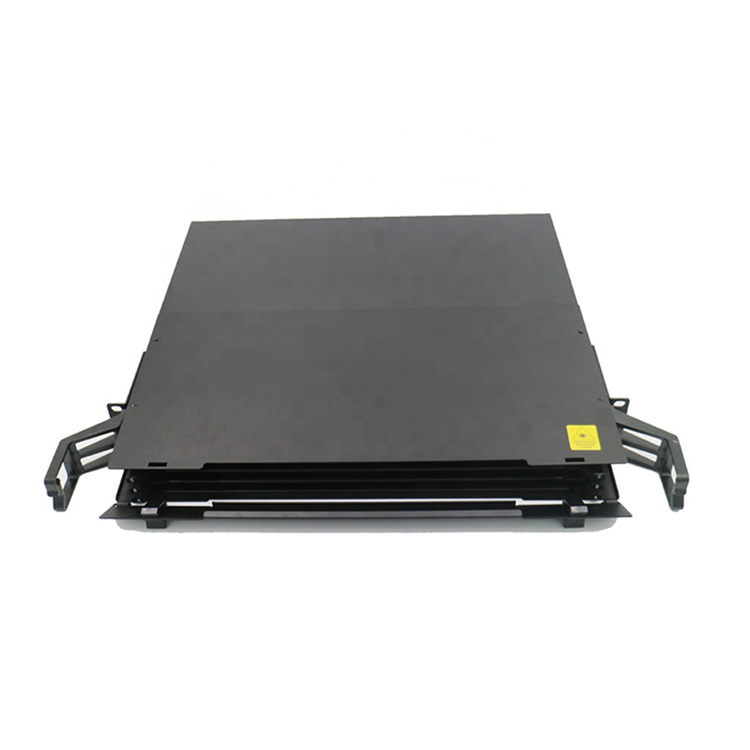

Structure: Front/rear removable top cover, pull-out double guide rails.

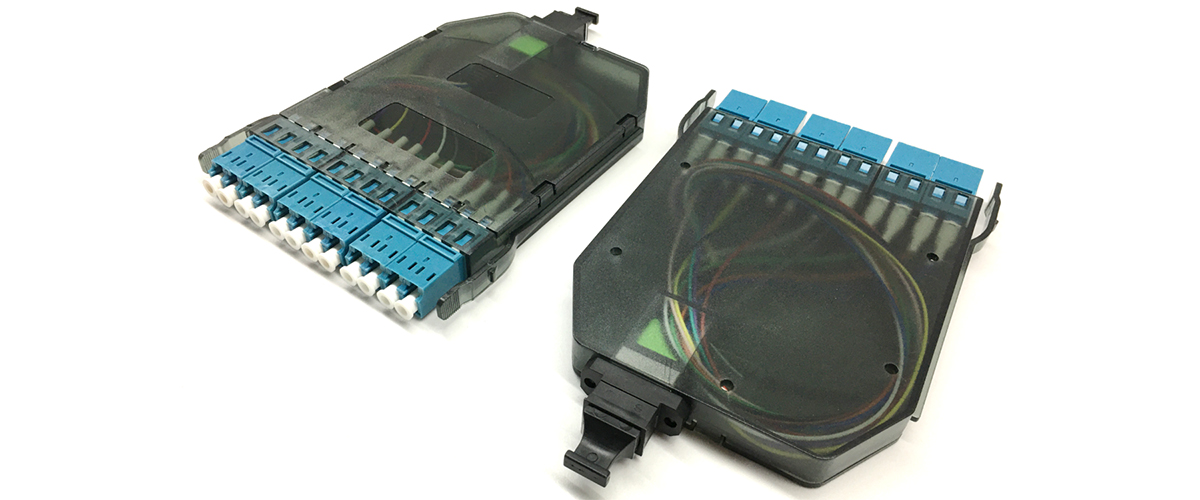

Cassette: Lightweight ABS module boxes with separate ABS rails for easy installation.

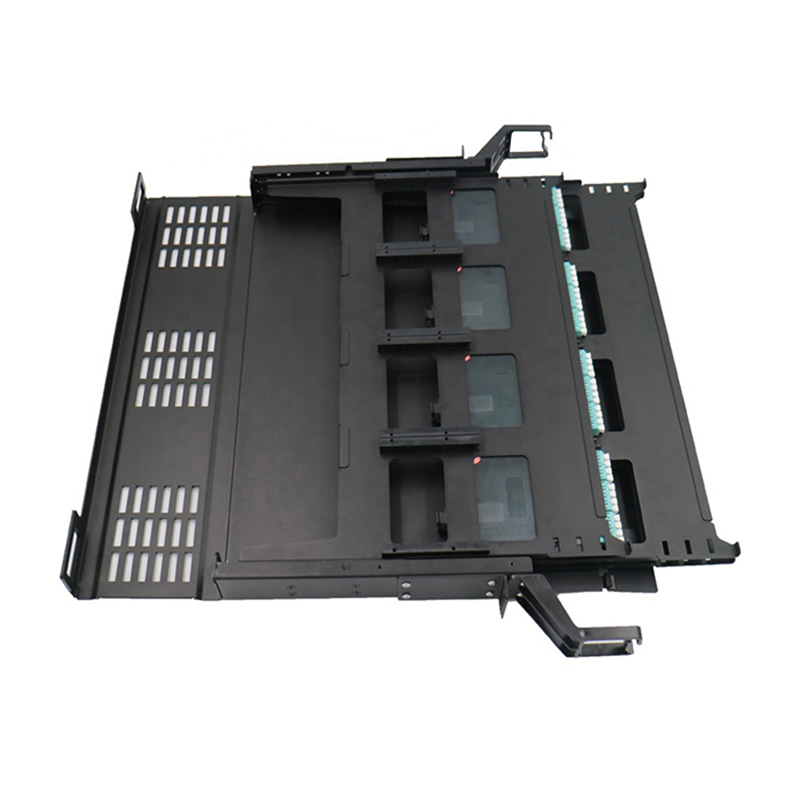

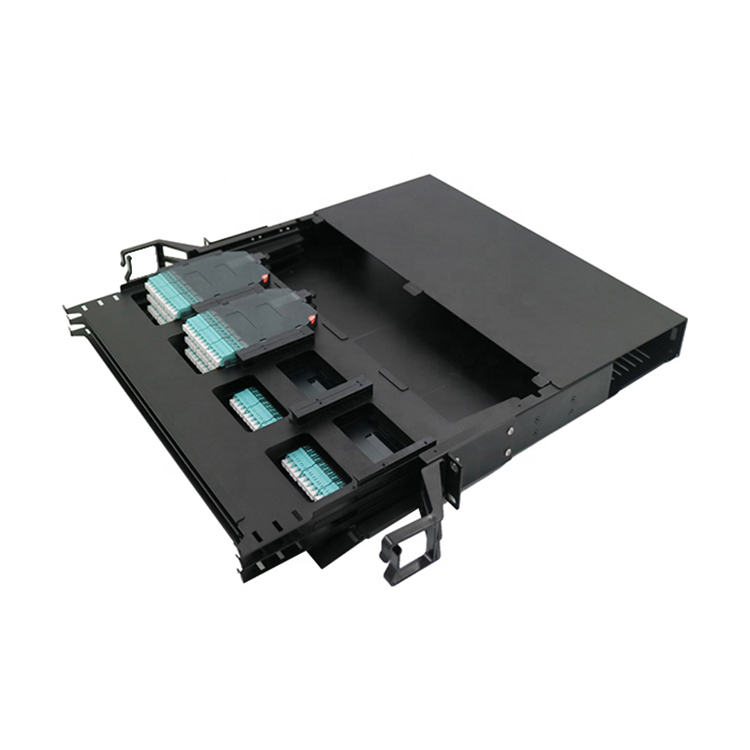

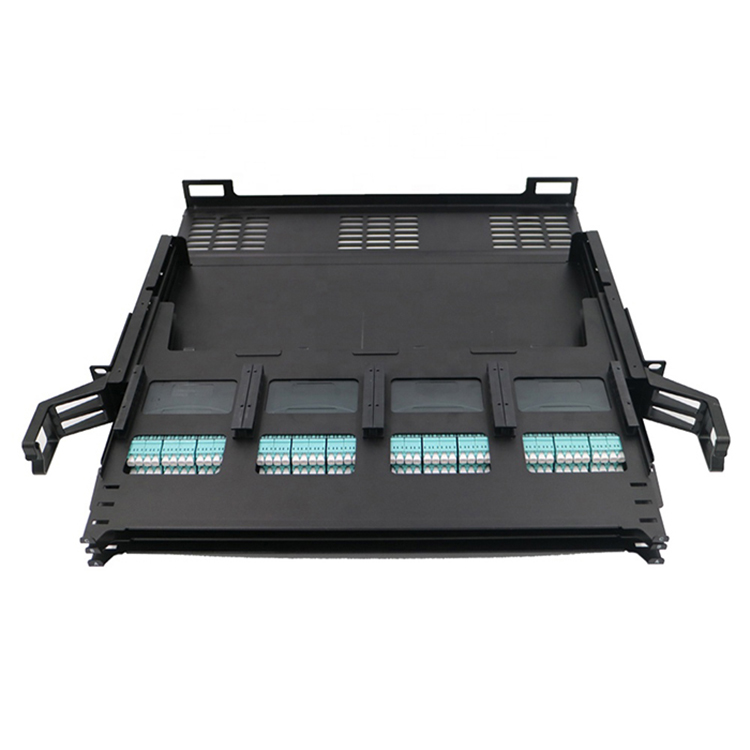

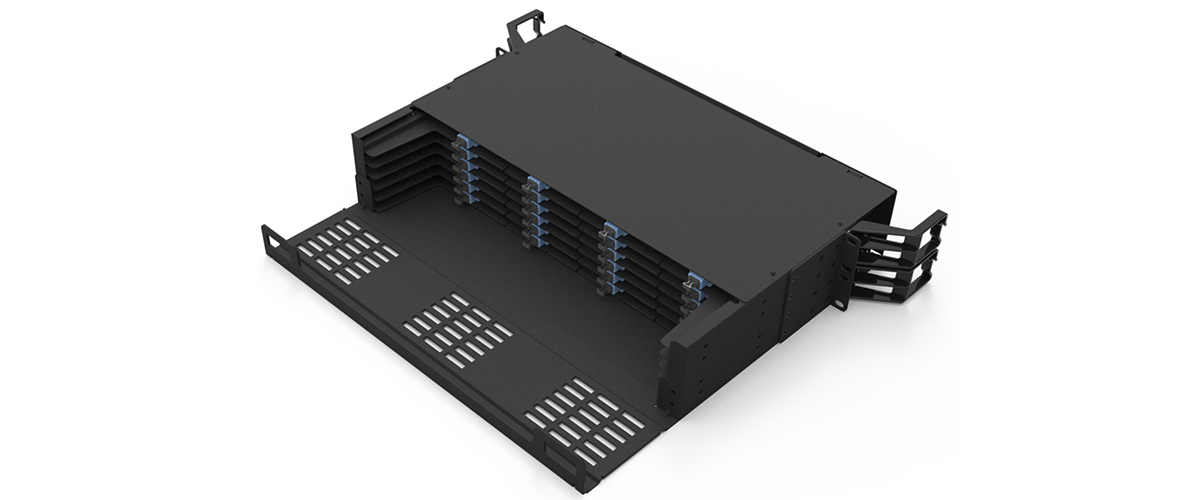

Trays: E-layer trays with independent aluminum guide rails (110mm sliding distance).

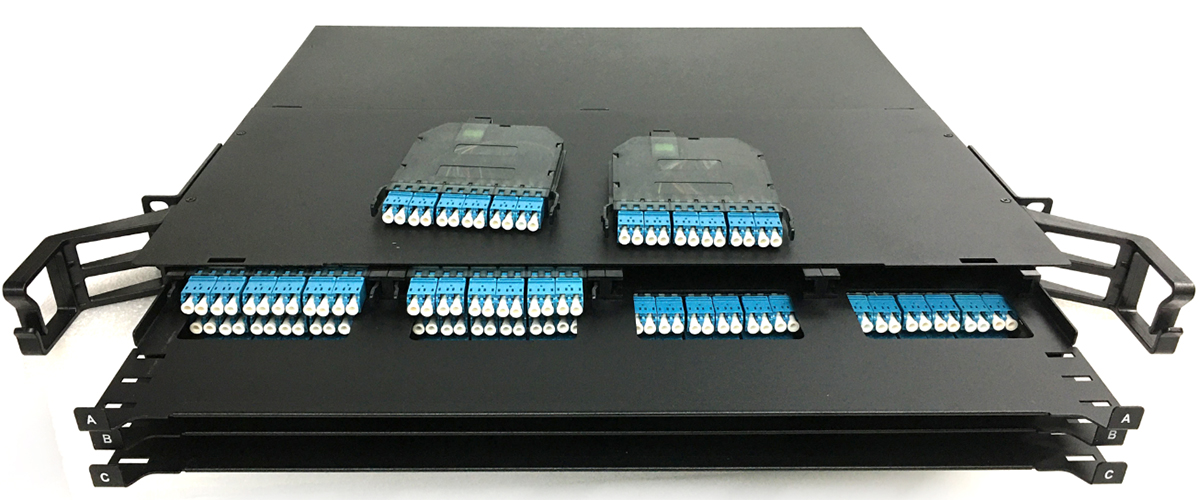

Capacity: 4 MPO module boxes per tray, each with 6 DLCs (12 cores).
Material: Spray surface treatment and high-quality ABS.
Width: Standard 19-inch width.
Execution & Performance Standards
Execution Standard: YD/T 778 Optical Distribution Frame
Operating Temperature: -5 °C ~ +40 °C
Storage Temperature: -25 °C ~ +55 °C
Insertion Loss: UPC≤0.2dB; APC≤0.3dB
Return Loss: UPC≥50dB; APC≥60dB
Durability: ≥1000 times
Salt Spray: 72 hours
Relative Humidity: ≤95% (at +40 °C)
Atmospheric Pressure: 76-106kpa
Frequently Asked Questions
What is the primary application of this MPO patch panel?

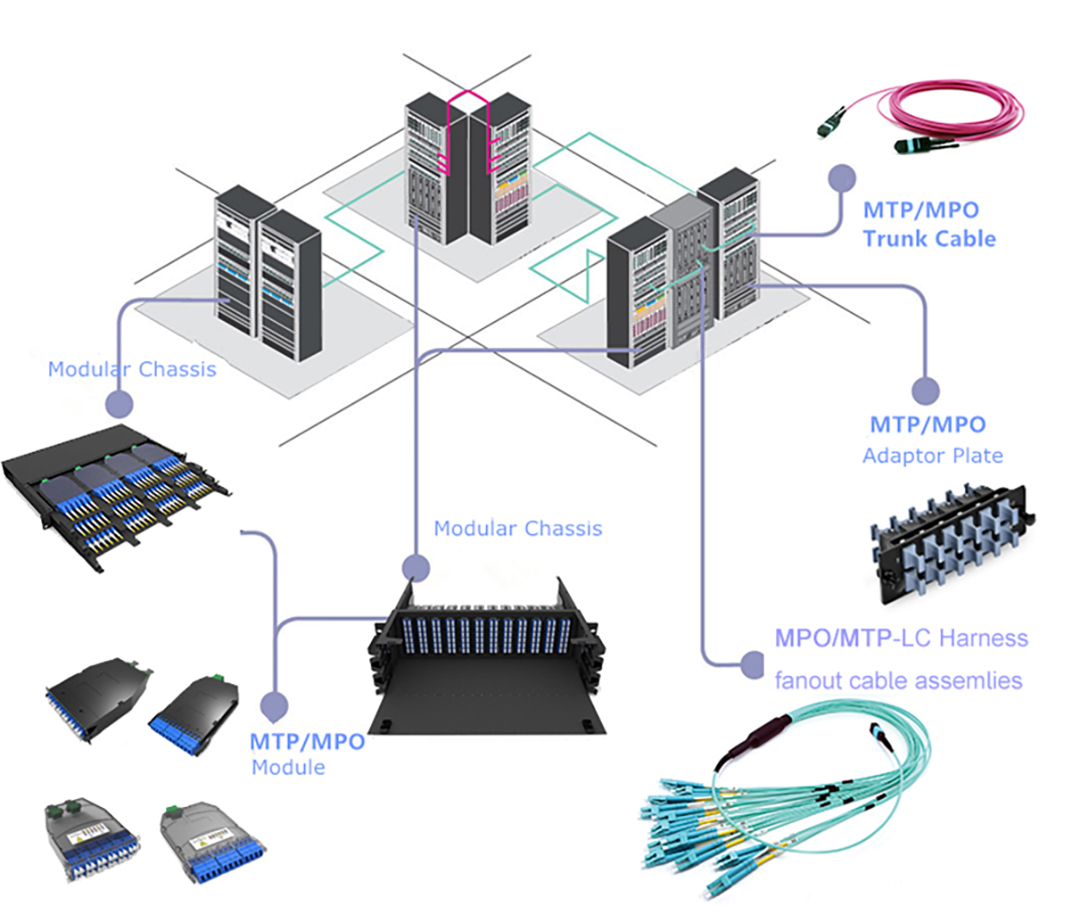

It is designed for high-density wiring environments such as data centers, computer rooms, and database management facilities.
How many LC cores can be installed in a 1U height panel?
The ultra-high-density design allows for up to 144 cores of LC connections within a single 1U height.
What features facilitate easy maintenance of the cabling?
The panel features a double guide rail design, front and rear removable covers, and a pull-out tray system for effortless access.
What is the material used for the MPO module boxes?
The module boxes are made from lightweight ABS material, which provides durability while remaining easy to handle and install.
Does the unit come fully assembled?
The product can be ordered as a full assembly (loaded) or as an empty panel to suit specific project requirements.
What is the insertion loss performance of this equipment?
The insertion loss is ≤0.2dB for UPC connectors and ≤0.3dB for APC connectors, ensuring high signal integrity.
