The 16-fibers (MPO-16 or MTP-16) connector is a high-density fiber optic connector designed for 400G and 800G Ethernet applications in modern data centers. It features a single row of 16 fibers, utilizing an offset keying mechanism to prevent accidental mating with standard 12-fiber (Base-12) connectors. These connectors are essential for parallel optics, such as 400G-SR8 and 800G-SR8, providing higher data capacity and improved bandwidth.
📏 Capacity

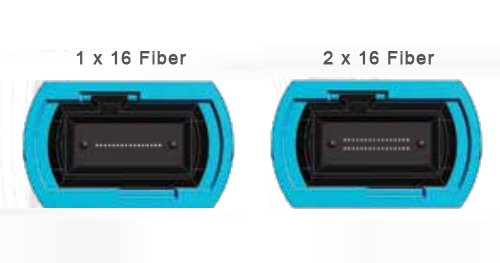

16 fibers per connector in a single row.
🏙️ Density
Offers superior density compared to traditional 12-fiber connectors, utilizing a similar footprint to allow 16 times higher density in some applications.
🚀 Applications
Ideal for 400GBASE-SR8, 800G QSFP-DD/OSFP DR8, and AI/ML data center links.
🔄 Polarity & Type
Typically features Type B polarity (or A/C) for direct connection to transceiver lanes, frequently using APC (Angled Physical Contact) for low insertion loss.
✅ Standards Compliance
Complies with IEC 61754-7, TIA/EIA 604-5, and Telcordia GR-1435-CORE.
🔌 Connector Variants
Available in female (no pins) or male (with pins) versions, often in Single-mode G657A1, OM1, OM2, OM3, OM4 or OM5 (Multimode).
🛡️ Durability
Supports high-speed, low-loss connections with options like 0.65dB standard IL or 0.35dB elite IL.
🔗 Hybrid Patch Cords

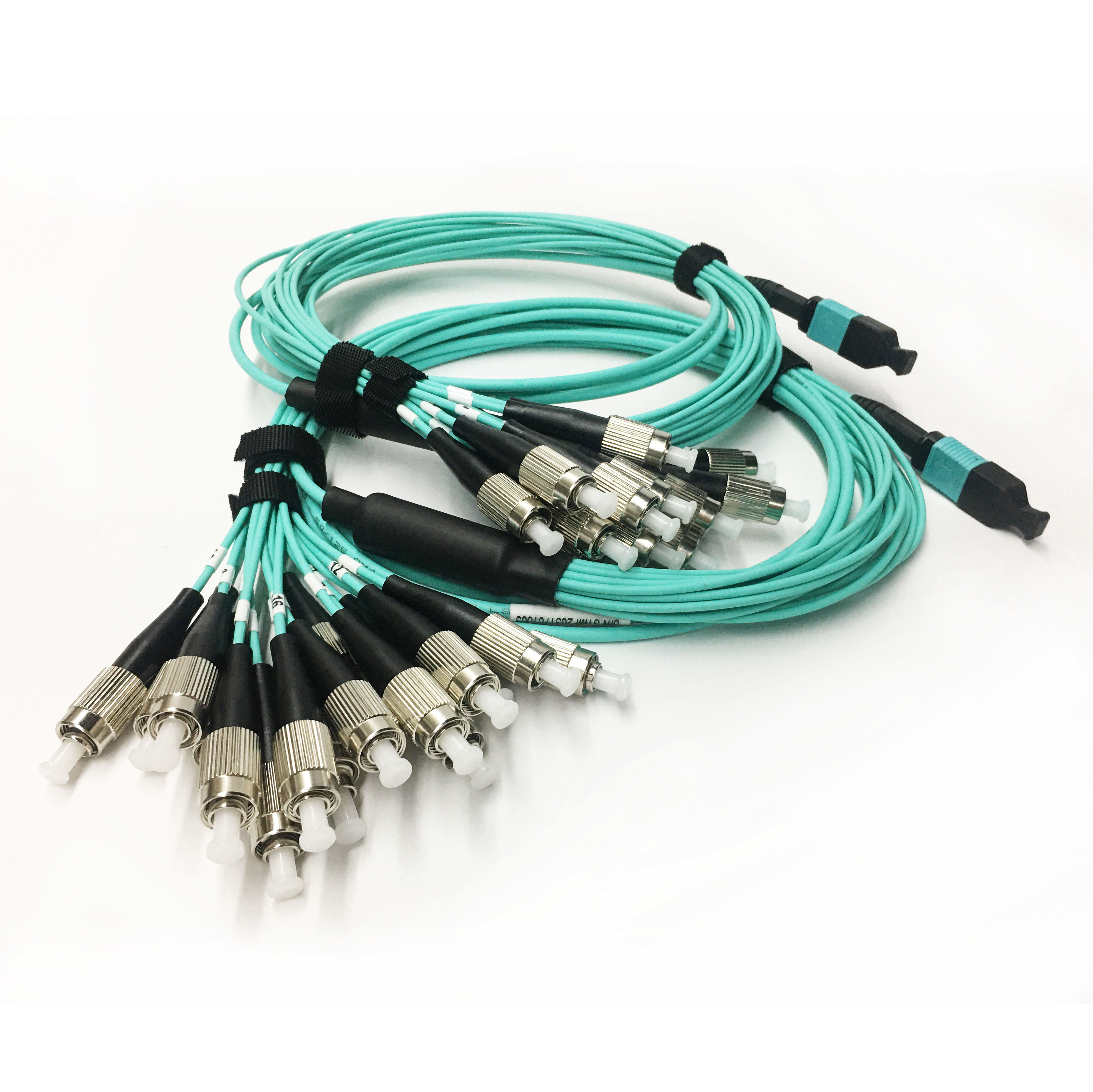

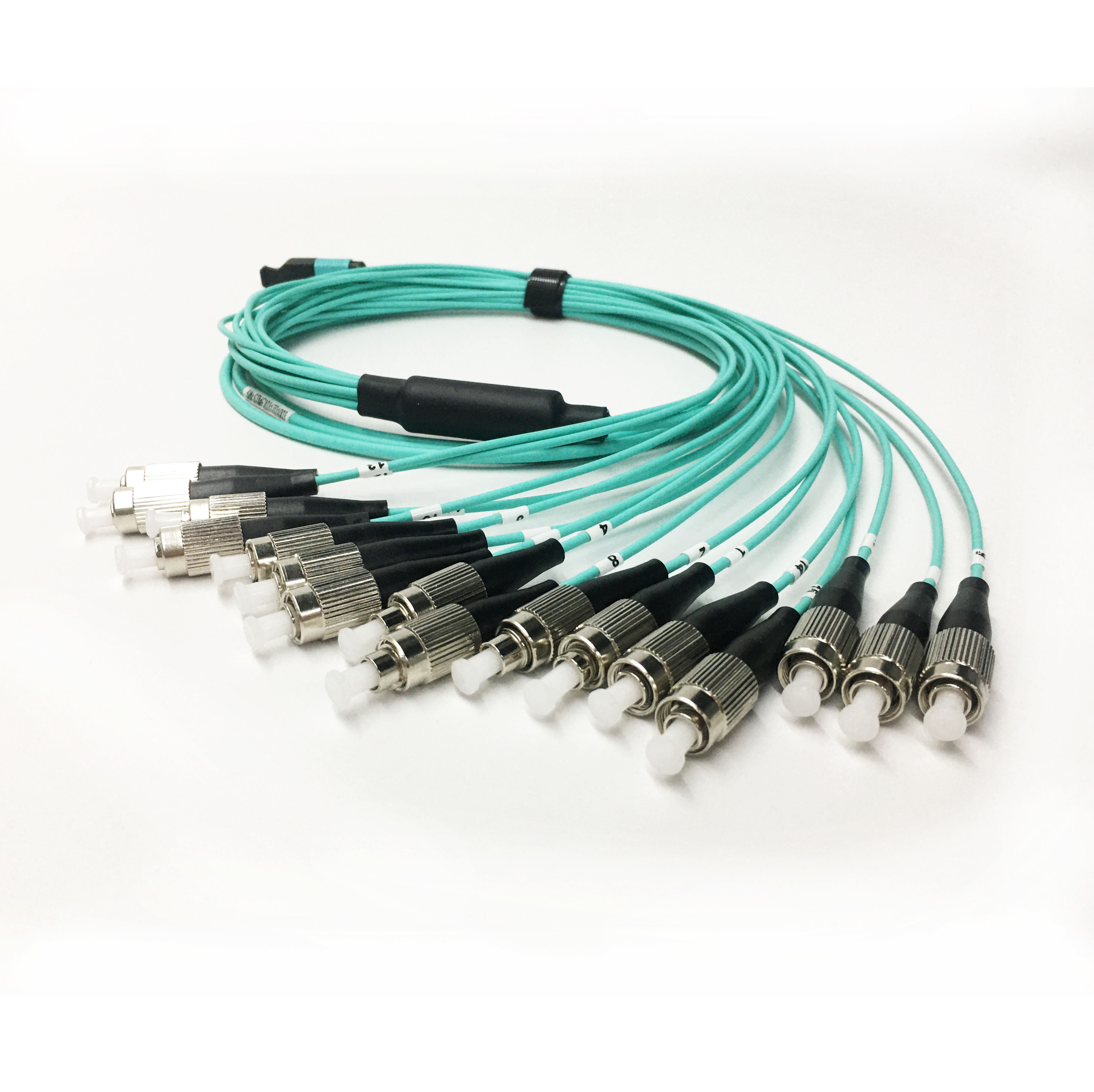

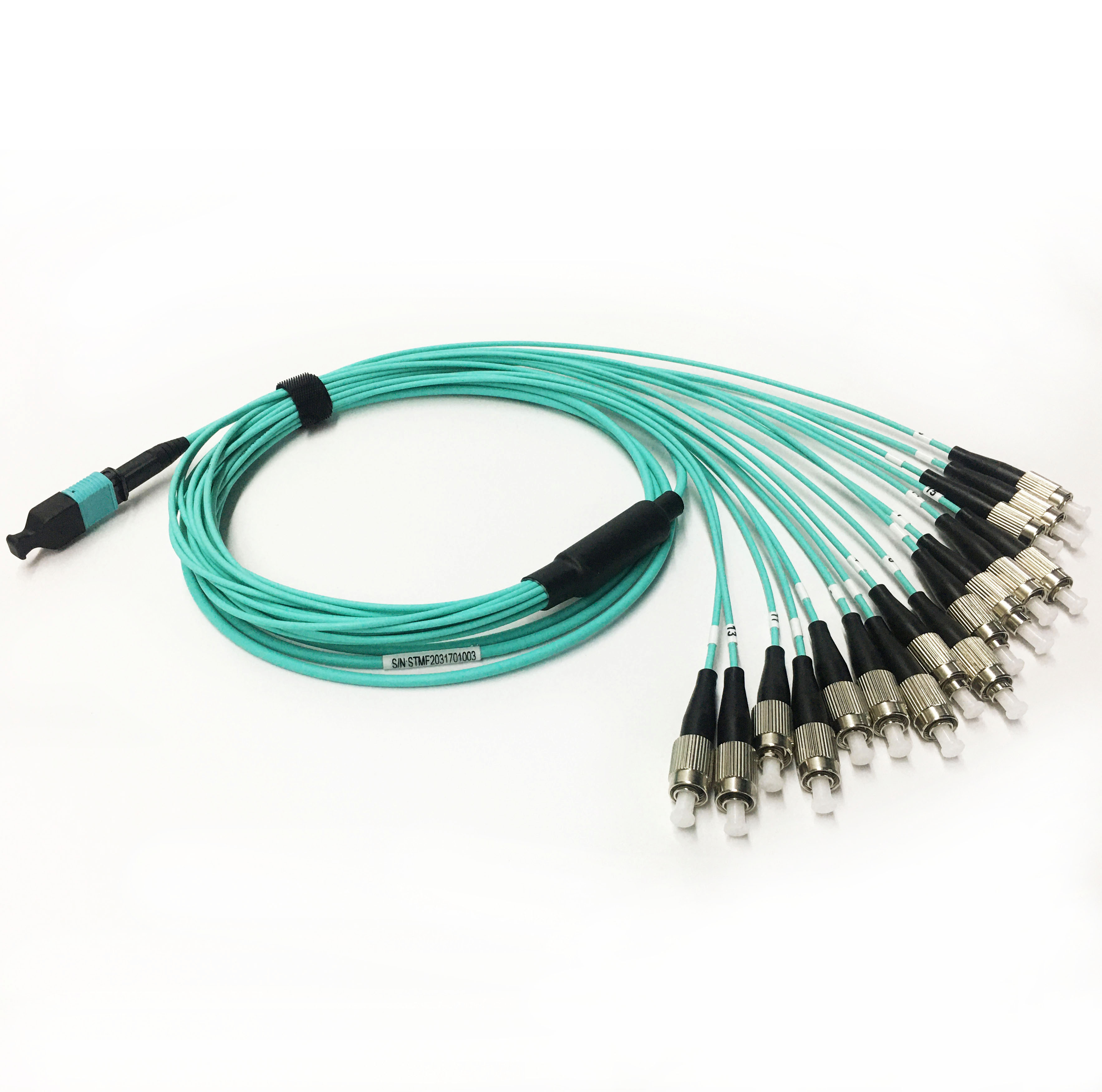

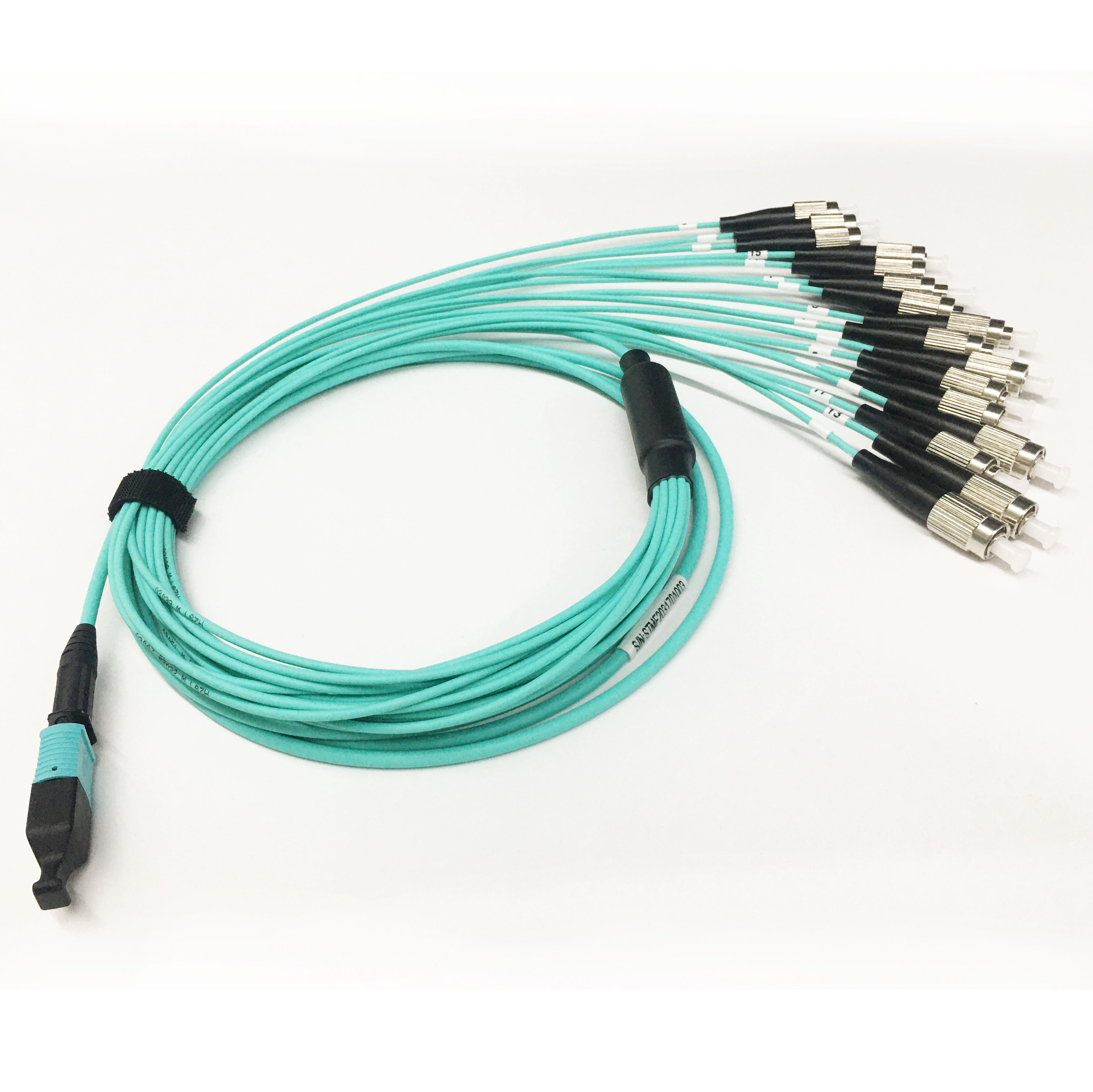

MPO-16 to FC fiber optic patch cord with one side termination connector is MPO-16 fiber optic connector and an other side with FC fiber optic connector. Patch cable length is customized to satisfy customer's request.
| Type |
Single Mode (APC Polish) |
Single Mode (UPC Polish) |
Multi Mode (PC Polish) |
| Fiber Count |
8, 12, 24 etc. |
8, 12, 24 etc. |
8, 12, 24 etc. |
| Fiber Type |
G652D, G657A1 etc. |
G652D, G657A1 etc. |
OM1, OM2, OM3, OM4, OM5, etc. |
| Max. Insertion Loss |
Elite (Low Loss) |
Standard |
Elite (Low Loss) |
Standard |
Elite (Low Loss) |
Standard |
| Value |
≤ 0.35 dB |
≤ 0.75 dB |
≤ 0.35 dB |
≤ 0.75 dB |
≤ 0.35 dB |
≤ 0.60 dB |
| Return Loss |
≥ 60 dB |
≥ 60 dB |
NA |
| Durability |
≥ 500 times |
| Operating Temp |
-40℃ ~ +80℃ |
| Test Wavelength |
1310nm / 850nm |
| Insert-pull test |
1000 times < 0.5 dB |
| Interchange |
< 0.5 dB |
| Anti-tensile force |
15kgf |
Key Application Scenarios
Data Centers: High-density fiber interconnections for modern data centers requiring high-speed and low-latency performance.
Telecom Networks: Reliable fiber cabling for LAN, WAN, metro network infrastructures, high-speed railway infrastructures.
Ethernet Systems: Supports 40G/100G/400G/800G high-bandwidth transmissions with minimal signal loss.
FTTx Deployments: Ideal for fiber breakout and extensions in FTTP and FTTH installations.
Enterprise Networks: Connects core-to-access layers in robust, high-capacity enterprise setups.
Frequently Asked Questions
What is the primary benefit of MPO-16 connectors?
The primary benefit is the support for 400G and 800G applications by providing 16 fibers in a single row, maximizing density for high-speed parallel optics.
Can MPO-16 be plugged into standard MPO-12 ports?
No. MPO-16 connectors feature an offset keying mechanism specifically designed to prevent accidental mating with standard 12-fiber (Base-12) ports.
What is the difference between Elite and Standard Insertion Loss?
Elite (Low Loss) versions offer a maximum insertion loss of ≤ 0.35 dB, while standard versions typically range from 0.60 dB to 0.75 dB, depending on the fiber type.
What fiber types are available for MPO-16 patch cords?
They are available in Single-mode (G652D, G657A1) and Multimode (OM3, OM4, OM5) to suit different distance and bandwidth requirements.
Is the cable length for MPO-16 to FC patch cords fixed?
No, the patch cable length is fully customizable to satisfy specific customer requests and installation environments.
Are these connectors compliant with international standards?
Yes, they comply with major standards including IEC 61754-7, TIA/EIA 604-5, and Telcordia GR-1435-CORE.
