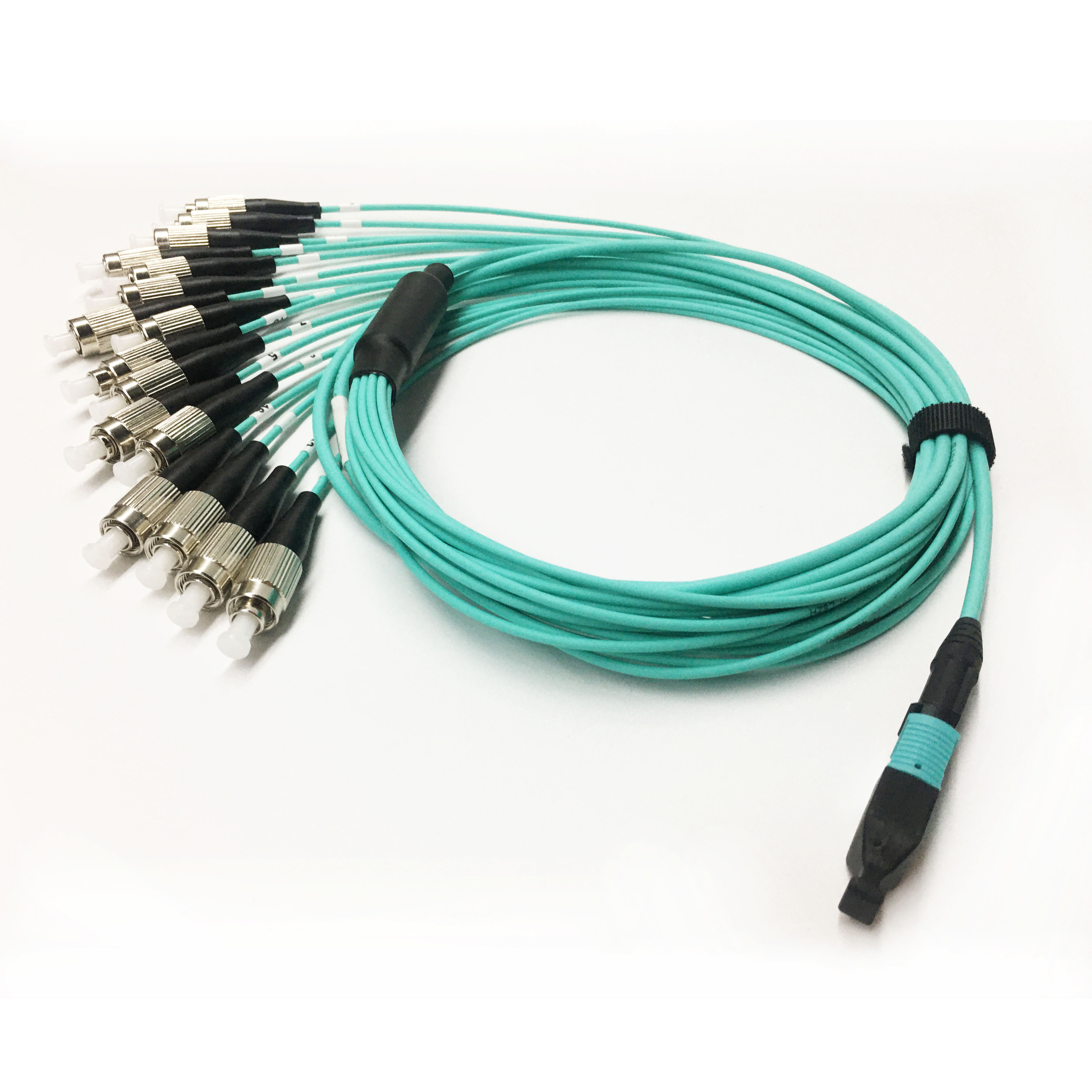

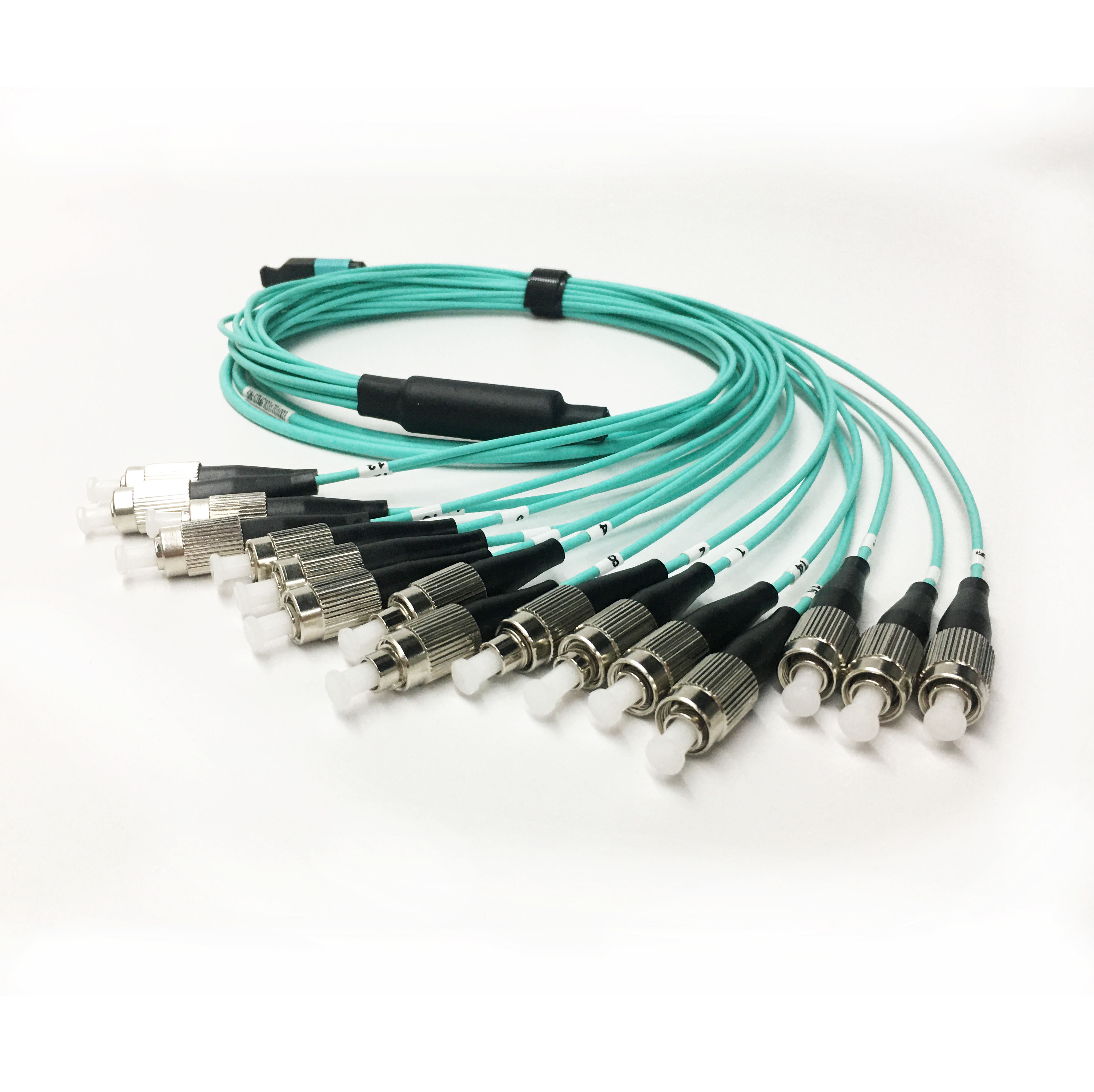

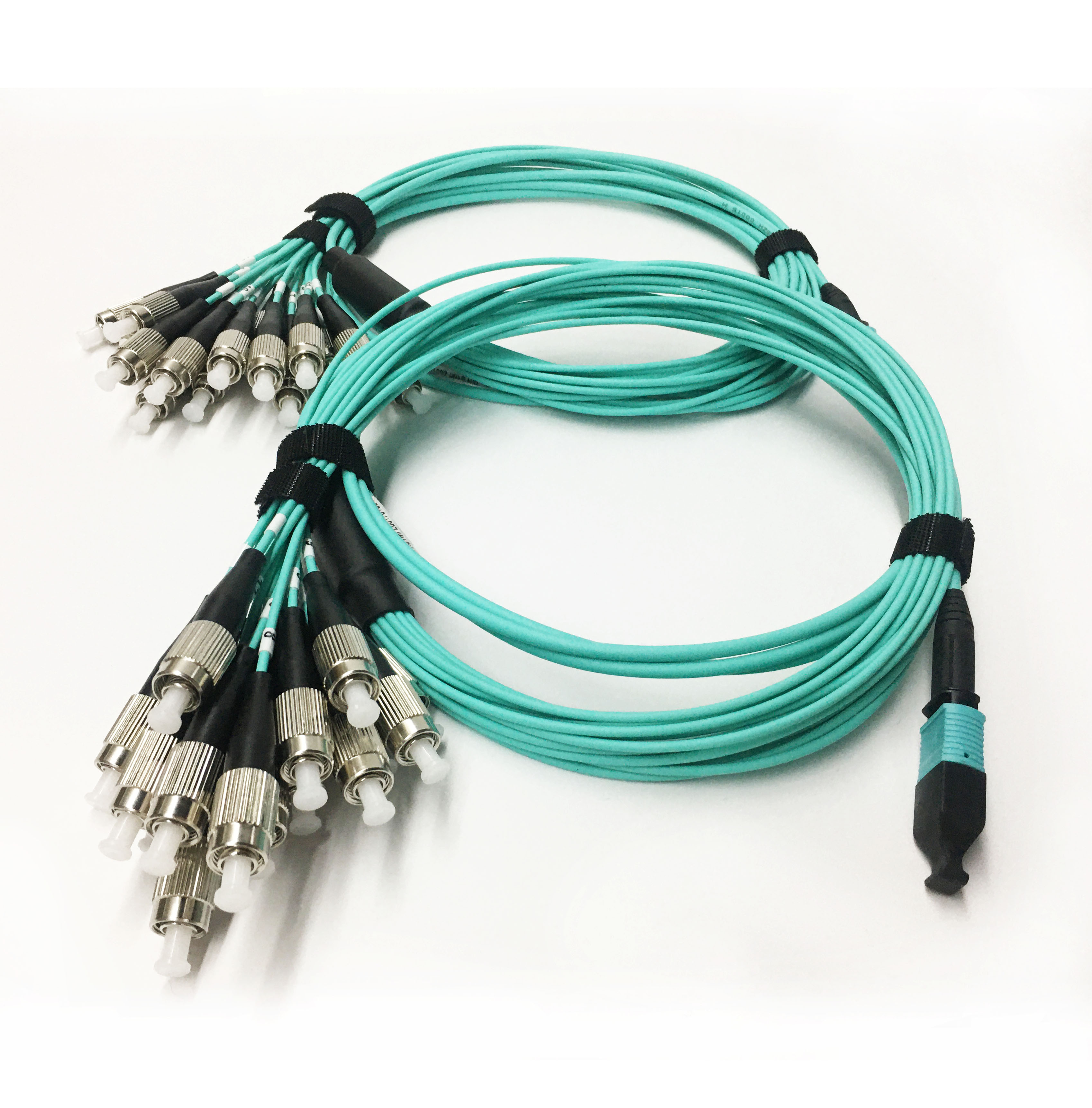

Wholesale MTP-16 MPO-16 OM4 Fiber Optic Break-out Patch Cable Supplier, Pricelist

- MTP-16 MPO-16 Connector Termination - OM3-150, OM3-300 and OM4 Optional - Length: Customized - Cable Dia: 3.0mm - Cable color: Aqua - Packing: export standard - IL: Standard IL (0.65dB), Elite type (0.35dB) - RL: Standard - Cable print and labelling service: Accept

Send Inquiry

Product Description

✔ MTP-16 / MPO-16 Connectors utilize 16-fiber cables, compatible with SC, FC, LC, ST, and E2000 terminals.

✔ Standard 3.0mm LSZH Round main cable with 2.0mm breakouts (approx. 30cm length).

✔ Available in both Standard and Elite types for optimized performance.

✔ OM4 Aqua color jacket with eco-friendly LSZH outer-sheath.

✔ Core options: 8, 12, 16, 24, 48 cores and more.

✔ Available in Male (with pins) and Female connector types.

Signal Transfer Distance

10G: OM3-300 (300m) / OM4 (550m)

40G/100G: OM3-300 (100m) / OM4 (150m)

Identification & Cost

Jacket: Typically Aqua (OM4 can be Violet).

Performance: OM4 offers higher bandwidth and lower attenuation.

Cost: OM3 for standard links; OM4 for high-density and future-proofing (40G/100G).

Type	Single Mode (APC)		Single Mode (UPC)		Multimode (PC)
Fiber Count	8, 12, 24 etc.		8, 12, 24 etc.		8, 12, 24 etc.
Fiber Type	G652D, G657A1 etc.		G652D, G657A1 etc.		OM1, OM2, OM3, OM4, OM5, etc.
Max. Insertion Loss	Elite	Standard	Elite	Standard	Elite	Standard
Performance	≤0.35 dB	≤0.75 dB	≤0.35 dB	≤0.75 dB	≤0.35 dB	≤0.60 dB
Return Loss	≥60 dB		≥60 dB		NA
Durability	≥500 times
Operating Temp	-40℃ ~ +80℃
Test Wavelength	1310nm / 850nm

Key Advantages

Pre-terminated and certified for maximum optical performance.
100% factory tested for low insertion loss and reflection.
Plug-and-play deployment upon arrival.
Protection & pulling sleeves for crush-resistance.
Direct factory export saves production time and costs.

Applications

Data Center Interconnect
Fiber Backbone Terminations
Fiber Rack Systems & Metro Networks
High-Density Cross Connects
Broadband/CATV/LAN/WAN
Telecommunication Test Labs

Frequently Asked Questions

Q1: What is the maximum distance for OM4 40G/100G networks?

OM4 fiber supports distances up to 150 meters for 40G/100G applications, compared to 100 meters for OM3.

Q2: Can I use different terminal connectors with the MTP-16?

Yes, the breakout ends can be customized with SC, FC, LC, ST, E2000, or other standard fiber optic connectors.

Q3: What is the benefit of the Elite type connector?

Elite connectors are designed for low loss, with a maximum insertion loss of ≤0.35 dB, ensuring higher performance in sensitive data environments.

Q4: Are these cables environmentally friendly?

Yes, the cables use LSZH (Low Smoke Zero Halogen) outer sheaths, which are safer for the environment and indoor installations.

Q5: Is there a difference between Male and Female MPO/MTP connectors?

Yes, Male type connectors include alignment pins, while Female type connectors do not. This distinction is crucial for proper mating.

Q6: What fiber counts are available for these harness cables?

Standard options include 8, 12, 16, 24, and 48 cores, allowing for high-density configurations in various rack systems.
