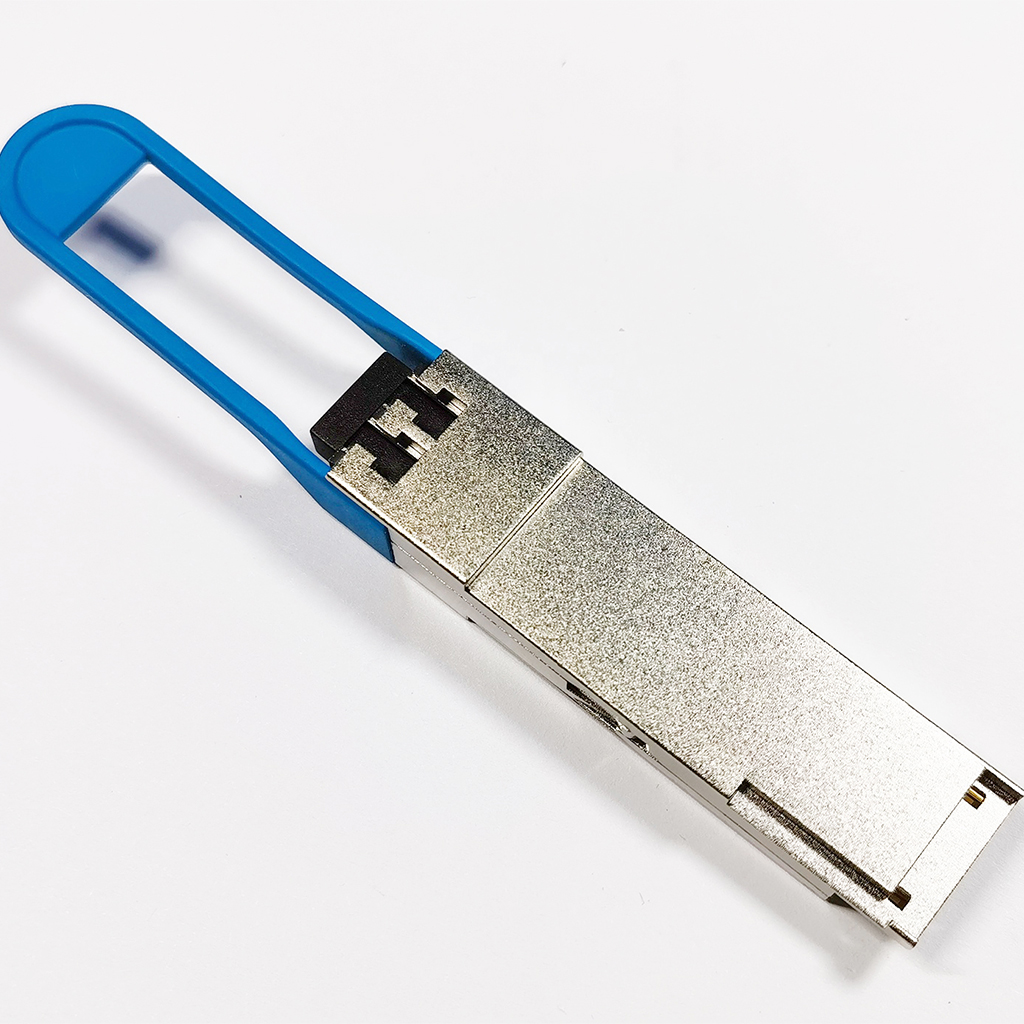

The QSFP56 200G LR4 Fiber Optic Transceiver supports high-performance link lengths of up to 10km over single-mode fiber (SMF) via an LC duplex connector. Fully compliant with SFF-8661 and IEEE 802.3bs standards, this transceiver ensures robust and reliable high-speed data transmission.
Equipped with built-in Digital Diagnostics Monitoring (DDM), it provides real-time access to critical operating parameters. This easy-to-install, hot-swappable module is an ideal solution for 200G Ethernet, Data Center architectures, and 5G backhaul networks.
| Compatibility | Compatible with Mainstream Brands |
| Form Factor | QSFP56 |
| Max Data Rate | 200Gbps |
| Wavelength | 1310nm |
| Distance | 10Km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| DDM/DOM | Supported |
| TX Power | -3.4~5.3dBm |
| Mini Receiver Power | -9.7dBm |
| Temperature Range | 0 to 70°C |
| Warranty | 3 years |
Designed for high-density environments, enabling a rapid transition to 200G transmission speeds in Data Center and Telecom applications.
Configurable and versatile, ensuring the transceiver works seamlessly across different network infrastructures and brands.
Rigorous host-device testing guarantees flawless operation and full compatibility within your targeted switch environment.
Advanced equipment and comprehensive testing processes ensure you receive high-quality optics with long-term stability.
