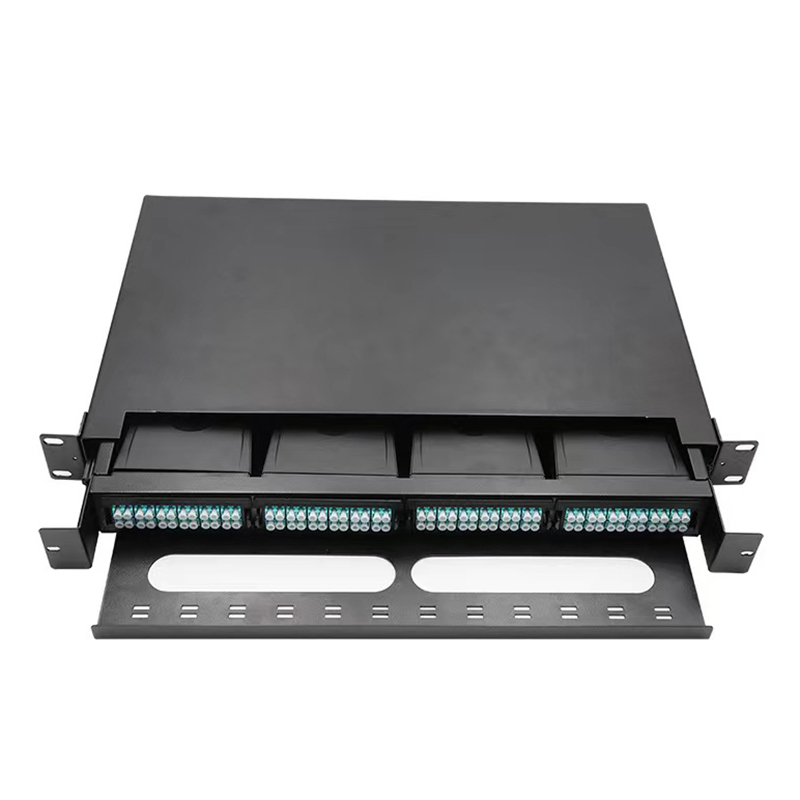

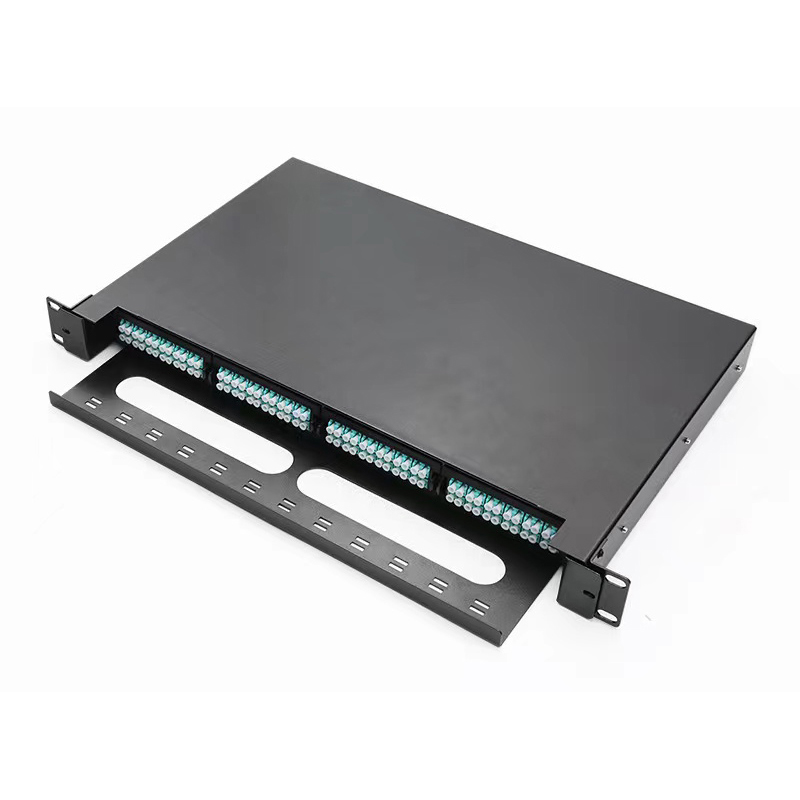

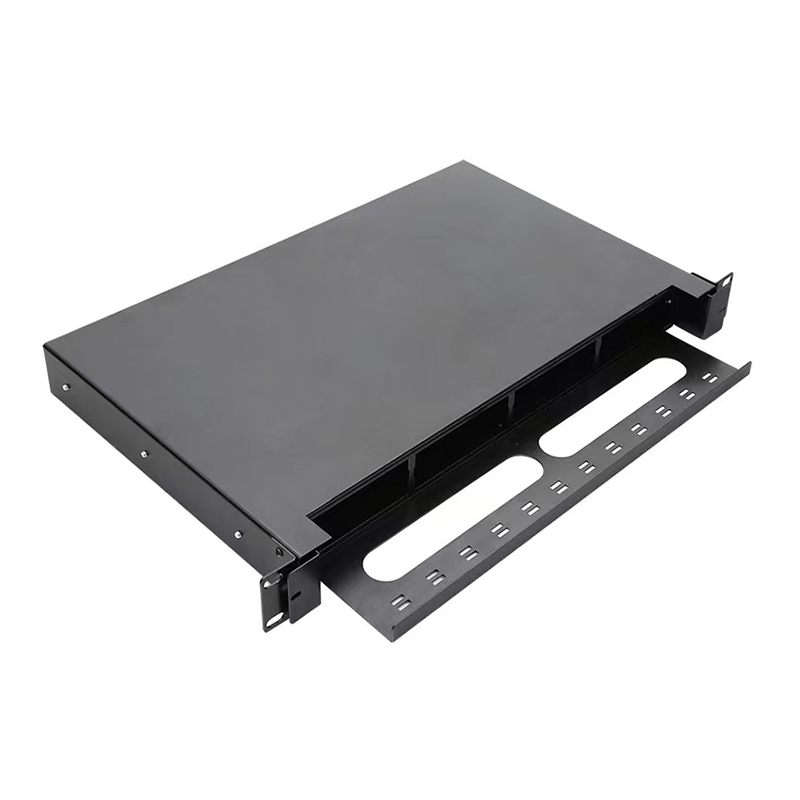

Rack mounted optical distribution frame (ODF) KCO-MPO-1U-01 is designed for termination between optical cables and communication equipment, handling splicing, termination, storage, and patching.
📦
Ultra-High-Density: 19-inch, 1U height pre-terminated MPO wiring box specifically designed for data centers.
⚡

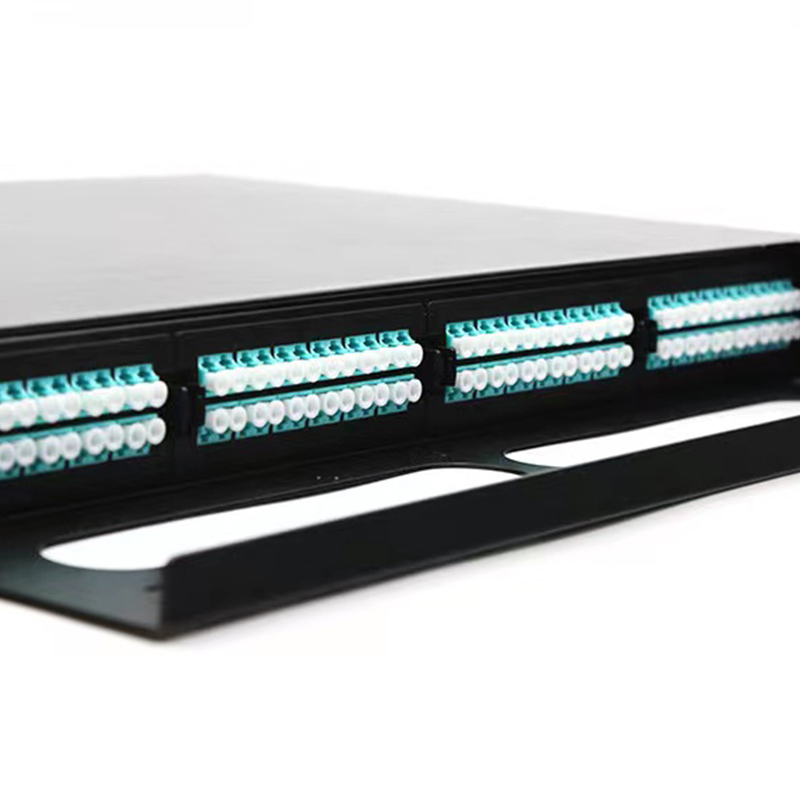

High Capacity: Supports up to 96 cores of LC within a single 1U patch panel.
🛠️

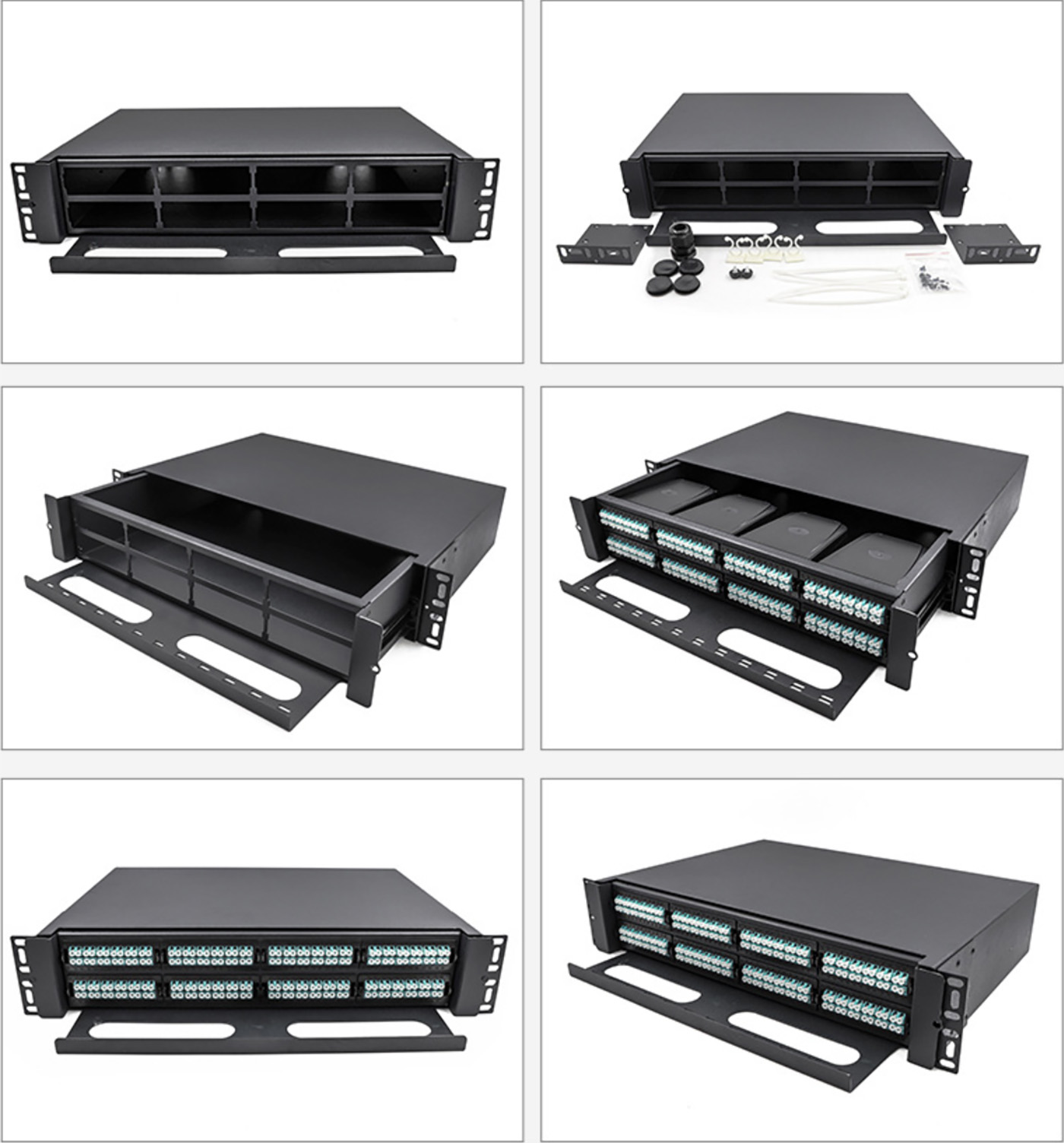

Technical Design: Features front and rear removable top covers, pull-out double guides, and detachable front bezels for easy high-density cable management.
⚙️

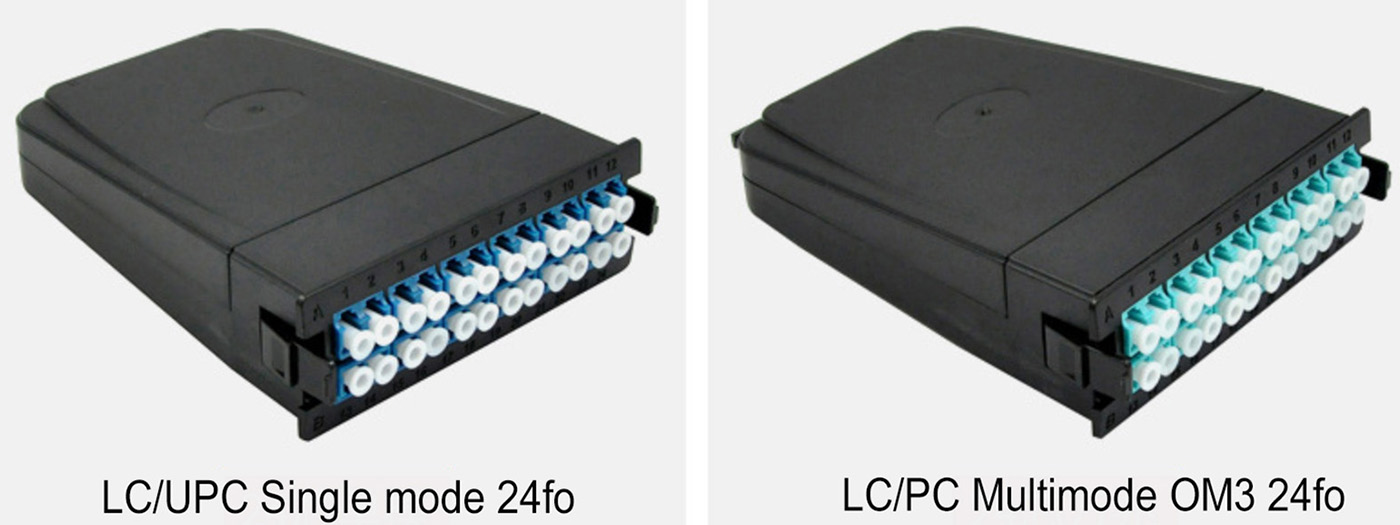

Modular Structure: Equipped with E-layer trays with independent aluminum guide rails. Each tray houses four MPO module boxes, each containing 12 DLC adapters and 24 cores.
Frequently Asked Questions (FAQ)
Q1: What is the maximum fiber density for the KCO-MPO-1U-01 patch panel?
The 1U height patch panel can accommodate up to 96 cores of LC fiber connectors, making it ideal for ultra-high-density data center applications.
Q2: Can the top cover of the ODF be removed?
Yes, it features a special design with both front and rear removable top covers and a detachable front bezel to facilitate easy access and maintenance.
Q3: What materials are used in the construction of this ODF?
The main body is constructed from durable steel tape, while the lightweight module boxes are made from high-quality ABS plastic.
Q4: Is this equipment suitable for Multi-Mode fibers?
Absolutely. It supports both Single Mode (9/125) and various Multi-Mode fibers, including OM3, OM4, and OM5.
Q5: How are the modules installed in the tray?
The modules use a "Buckled Type" installation method on E-layer trays, which feature independent aluminum guide rails for smooth pull-out operation.
Q6: What is the insertion loss performance for the MPO connections?
For Single Mode, the MPO insertion loss is ≤ 0.75dB, while for Multi-Mode, it is optimized to ≤ 0.35dB.
