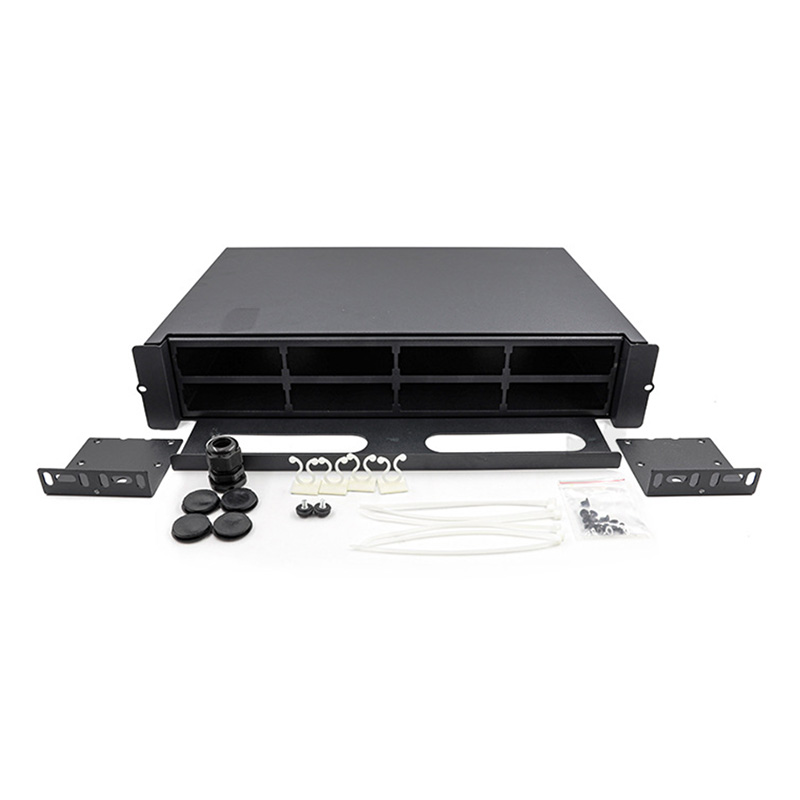

– Ultra-high density wiring application scenario – Standard 19-inch width – Ultra-high density 1U 96 cores and 2U 192 cores – Lightweight ABS material MPO module box – Pluggable MPO Cassette, smart but deliciated, speed deployment and improve flexibility and manager ability for lower installation cost – Comprehensive accessory kit for cable entry and fiber management. – Full assembly (loaded) or empty panel.
Send Inquiry

Product Description

The Rack mounted fiber optic patch panel KCO-MPO-2U-01 is a high-performance 192-core fiber optic termination box designed for standard 19’’ fiber optic distribution frames. It serves as the critical interface between optical cables and communication equipment, providing essential functions including splicing, termination, storage, and patching.

📊

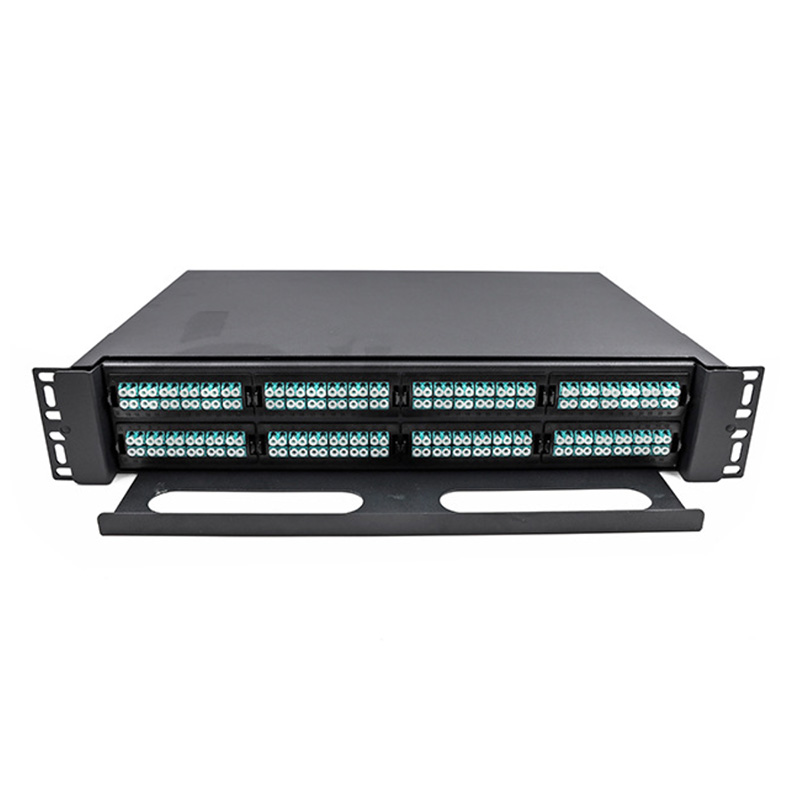

High-Density Data Center Solution: This specialized patch panel features an MTP/MPO pre-terminated ultra-high-density wiring design, optimized for 1U and 2U heights. It is specifically engineered for data centers, supporting up to 192 cores of LC ports per panel.
⚙️

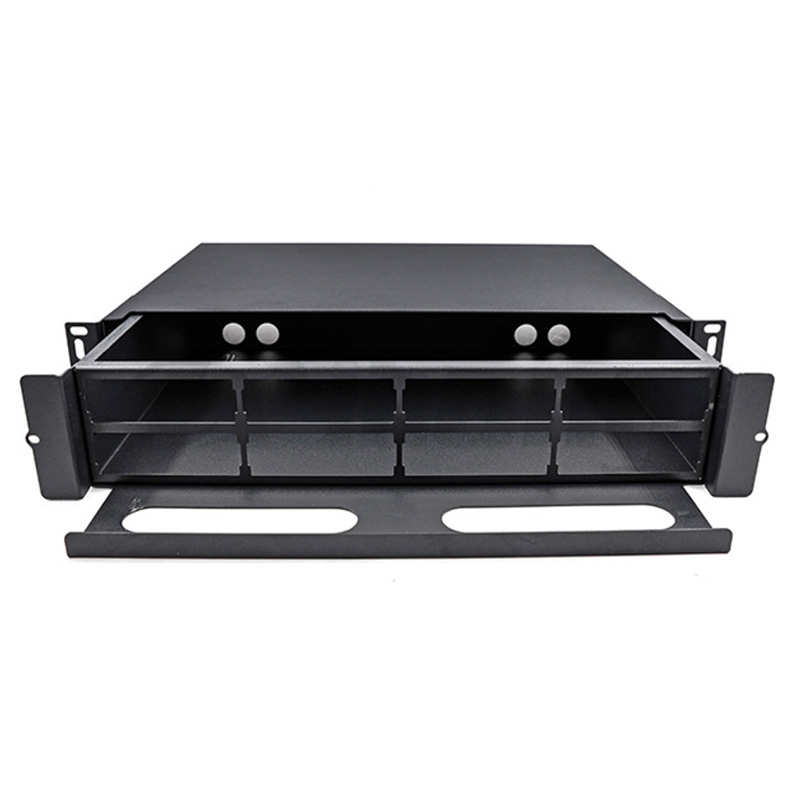

Advanced Mechanical Design: Equipped with front and rear removable top covers, pull-out double guides, and a detachable front bezel. The use of ABS lightweight module boxes ensures ease of use in complex, high-density cabling environments.
🏗️

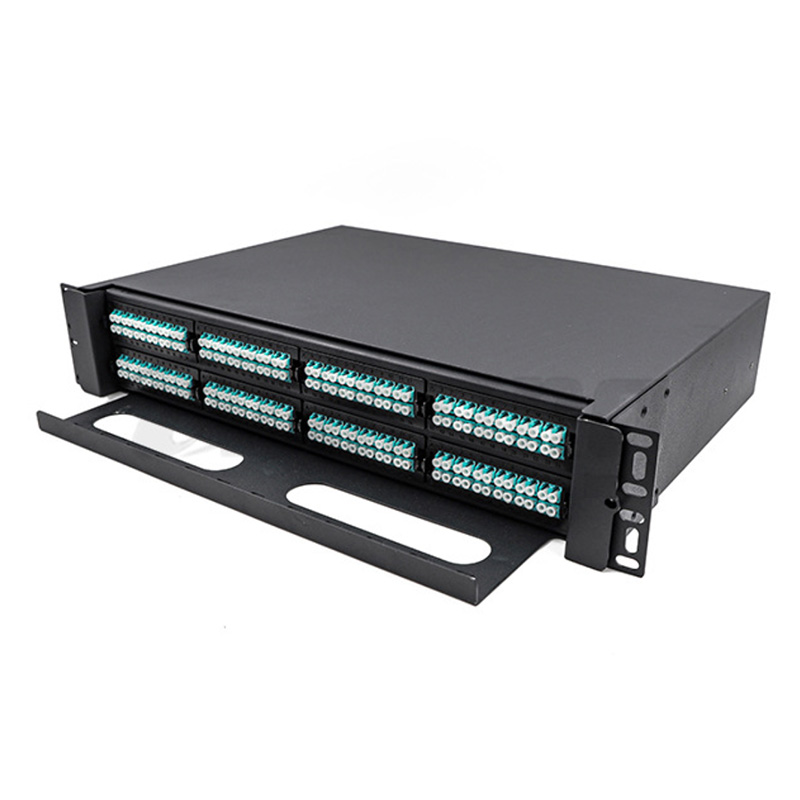

Modular Structure: The panel features an E-layer tray system, with each tray utilizing independent aluminum guide rails. Each tray accommodates eight MPO module boxes, with each box housing 12 DLC adapters and supporting 24 cores.

Technical Specifications

Environment

Operating Temp: -5°C ~ +40°C
Storage Temp: -25°C ~ +55°C
Relative Humidity: ≤95% (+40°C)
Pressure: 76-106kpa

Optical Performance

Elite Insertion Loss: ≤0.35dB (UPC/APC)
Standard Insertion Loss: ≤0.6dB (UPC/APC)
Return Loss: UPC ≥50dB; APC ≥60dB
Durability: ≥1000 times

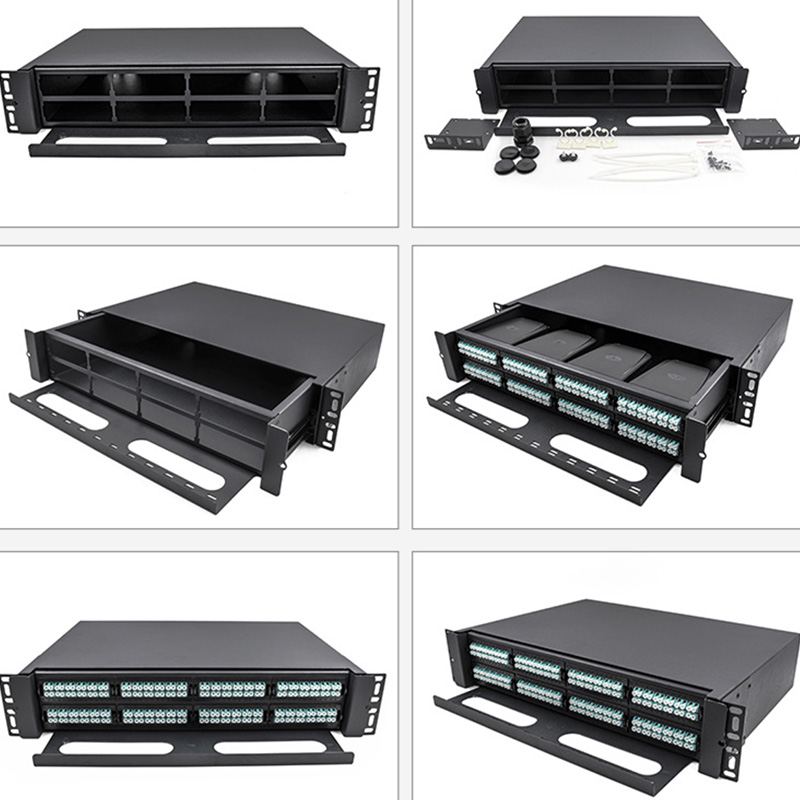

Fiber Optic Patch Panel View 1
Fiber Optic Patch Panel View 2
P/N Module no. Fiber Type Module Type Connector 1 (MPO) Connector 2 (LC)
KCO-MPO-1U-01 1, 2, 3, 4 SM, OM3-150, OM3-300, OM4, OM5 12fo, 12fo*2, 24fo MPO/APC, MPO SM, MPO OM3, MPO OM4 LC/UPC, LC/APC, LC MM, LC OM3, LC OM4
KCO-MPO-2U-01 1, 2, 3, 4, 5, 6, 7, 8 SM, OM3-150, OM3-300, OM4, OM5 12fo, 12fo*2, 24fo MPO/APC, MPO SM, MPO OM3, MPO OM4 LC/UPC, LC/APC, LC MM, LC OM3, LC OM4

Frequently Asked Questions (FAQ)

What is the maximum fiber capacity of the KCO-MPO-2U-01?
The KCO-MPO-2U-01 model supports ultra-high-density wiring with a maximum capacity of 192 cores using LC ports.
Is this patch panel compatible with standard server racks?
Yes, it is designed specifically for standard 19-inch fiber optic distribution frames commonly used in computer centers and databases.
What makes the maintenance of this panel "easy"?
Maintenance is simplified through front and rear removable top covers, pull-out double guide rails, and a detachable front bezel, allowing easy access even in high-density cabling scenarios.
What is the difference between Elite and Standard type insertion loss?
The Elite type offers a lower insertion loss of ≤0.35dB, while the Standard type provides an insertion loss of ≤0.6dB for both UPC and APC connections.
What types of fiber does the modular system support?
The system is highly versatile, supporting Single Mode (SM), OM3 (150/300), OM4, and OM5 fiber types.
What is the durability rating for the connectors?
The patch panel connectors are rated for an insertion durability of at least 1000 times.
