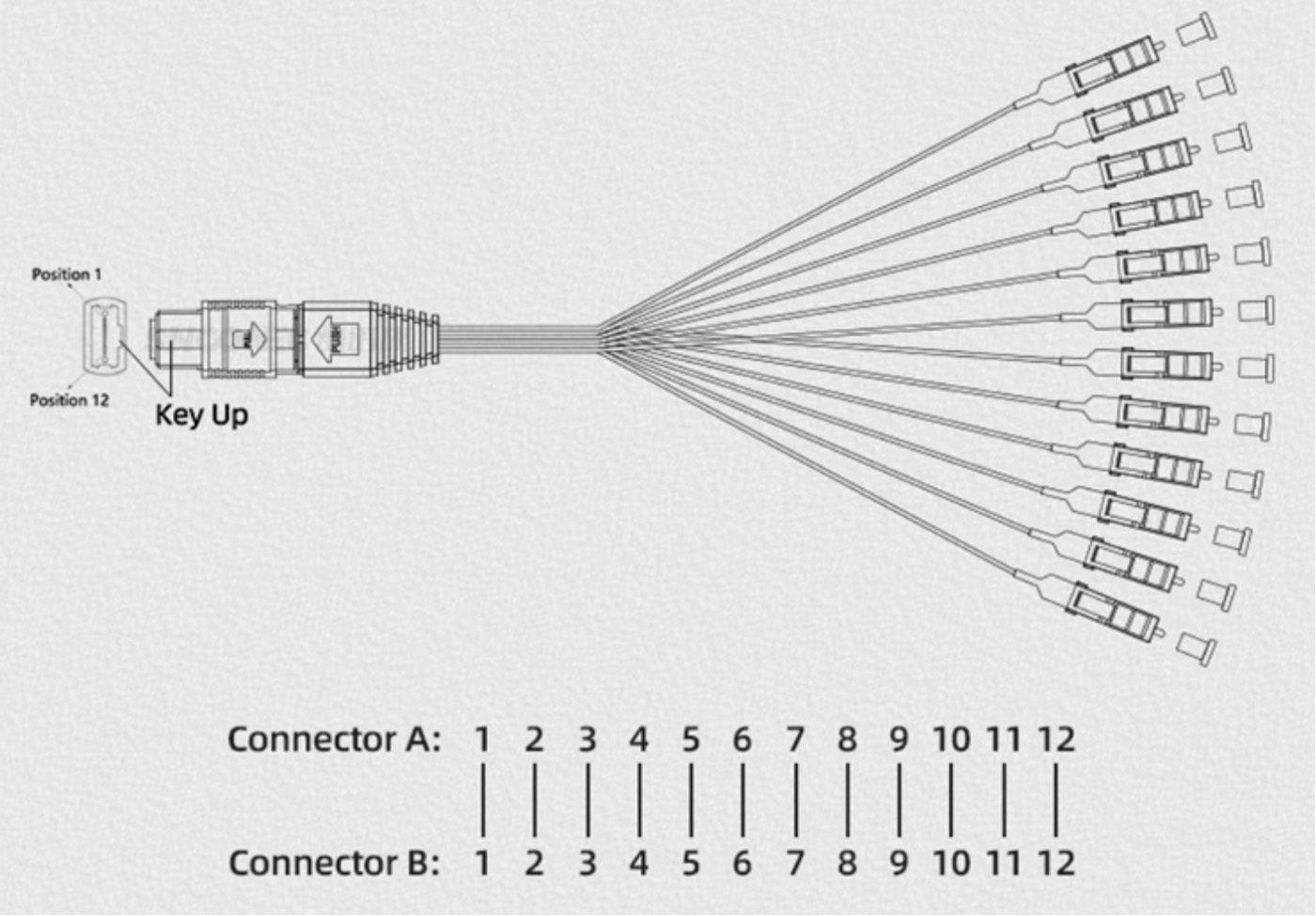

MTP/MPO harness cable, also called MTP/MPO breakout cable or MTP/MPO fan-out cable, is a fiber optic cable terminated with MTP/MPO connectors on one end and MTP/MPO/LC/FC/SC/ST/MTRJ connectors (generally MTP to LC) on the other end. The main cable is usually 3.0mm LSZH Round cable, breakout 2.0mm cable. Female and Male MPO/MTP Connector is available and Male type connector has pins.

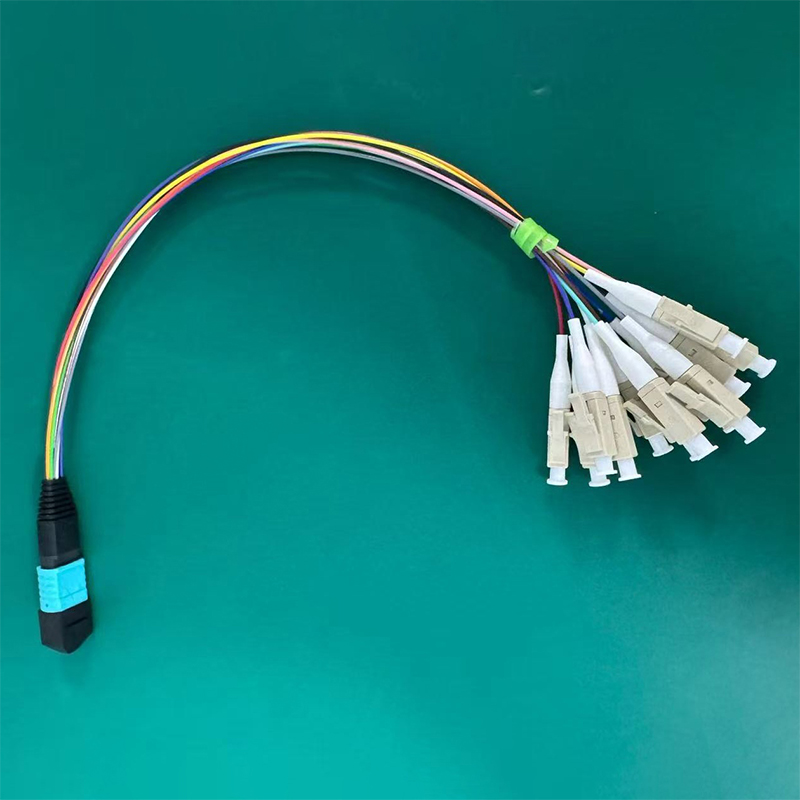

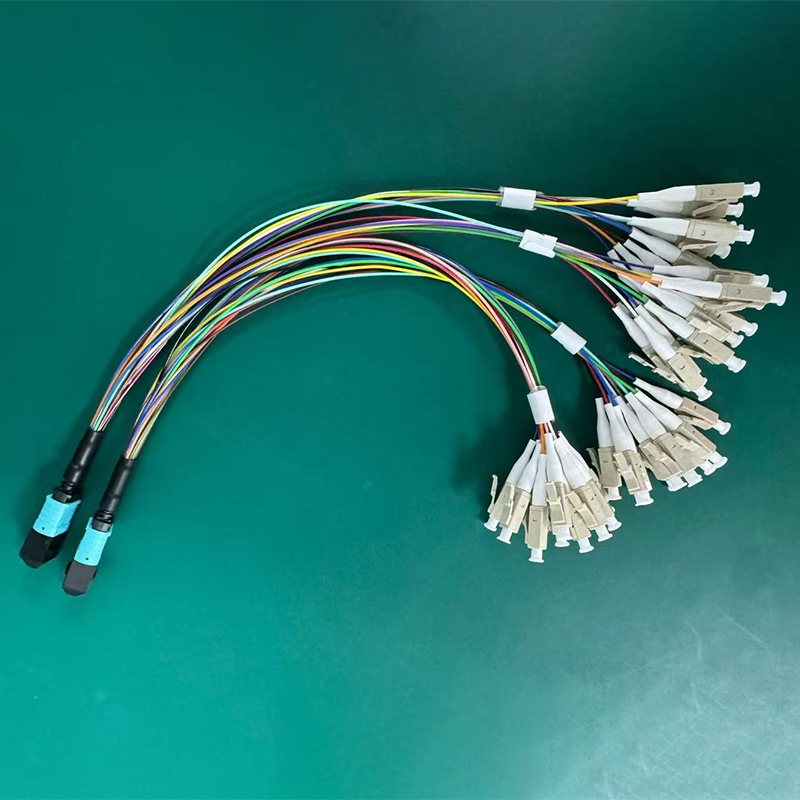

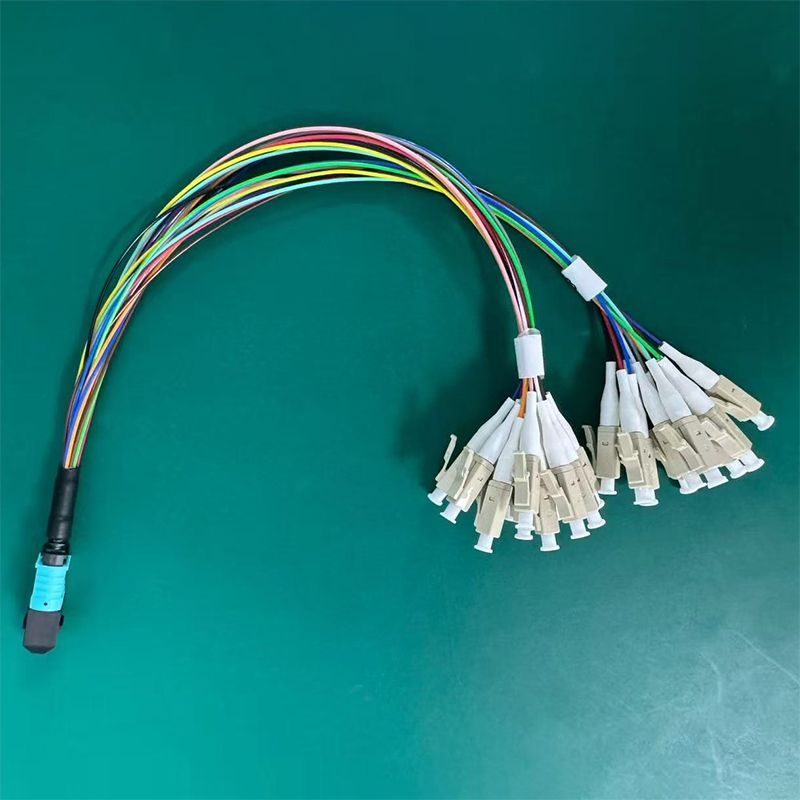

An MPO-LC breakout cable is a type of fiber optic cable that transitions from a high-density MTP MPO connector on one end to multiple LC connectors on the other. This design allows for efficient connectivity between backbone infrastructure and individual network devices.
Frequently Asked Questions (FAQ)
What is the difference between MTP/MPO harness and breakout cables?
They are different terms for the same product. These cables feature a high-density MTP/MPO connector on one end and multiple individual connectors (like LC, SC, or ST) on the other.
Do these cables support both Single Mode and Multimode fibers?
Yes, they are available in Single Mode (G652D, G657A1) and Multimode (OM1, OM2, OM3, OM4, OM5) to suit different network requirements.
What is the advantage of using MPO-LC breakout cables in data centers?
They allow for high-density connectivity between backbone infrastructure and individual devices like servers and switches, significantly reducing latency and cable congestion.
How many fiber cores can these cables support?
Common configurations include 8 cores, 12 cores, 24 cores, and 48 cores, allowing for scalable bandwidth options.
What is the difference between Male and Female MTP connectors?
The Male MTP/MPO connector is equipped with alignment pins, whereas the Female connector has holes to receive those pins, ensuring precise fiber alignment.
What is the standard operating temperature for these cables?
These cables are designed to operate reliably in environments ranging from -40℃ to +80℃.
