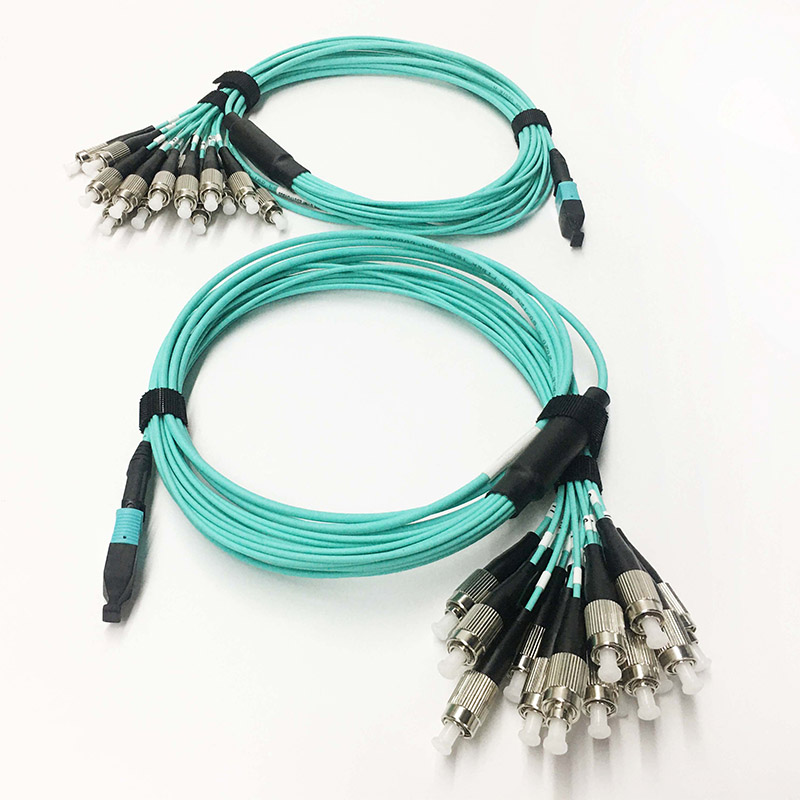

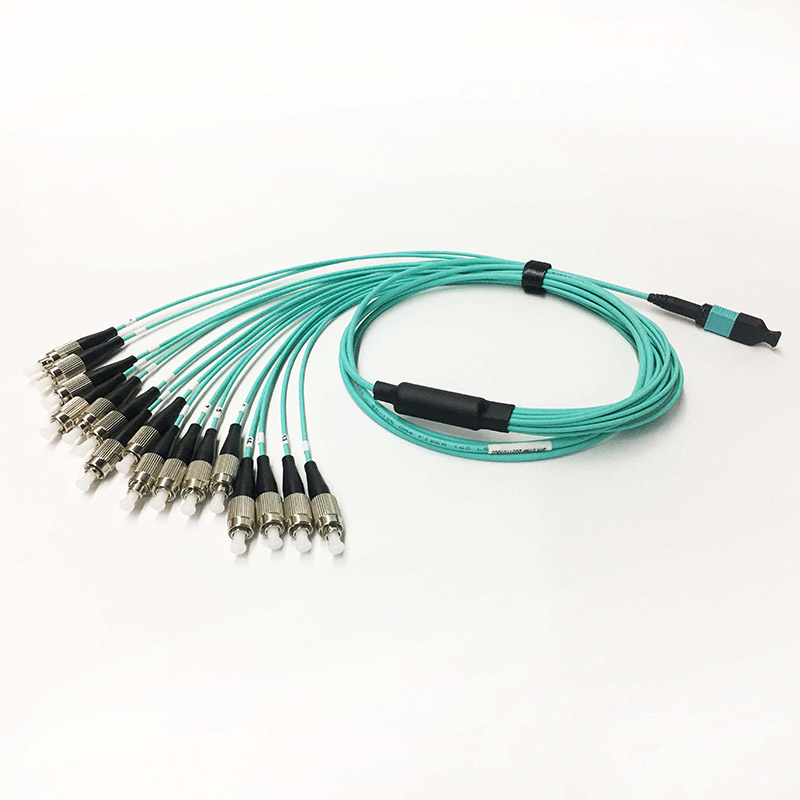

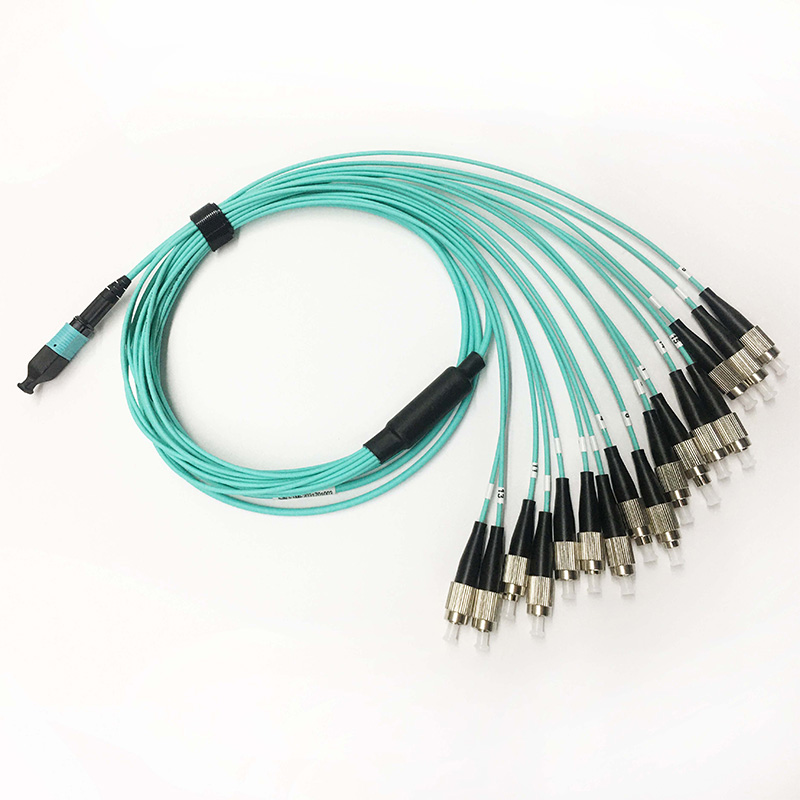

High-Quality MTP/MPO to FC OM3 16fo Fiber Optic Patch Cable Manufacturers, Supplier
High-Quality MTP/MPO to FC OM3 16fo Fiber Optic Patch Cable Manufacturers, Supplier
High-Quality MTP/MPO to FC OM3 16fo Fiber Optic Patch Cable Manufacturers, Supplier
1 / 3
High-Quality MTP/MPO to FC OM3 16fo Fiber Optic Patch Cable Manufacturers, Supplier
High-Quality MTP/MPO to FC OM3 16fo Fiber Optic Patch Cable Manufacturers, Supplier
High-Quality MTP/MPO to FC OM3 16fo Fiber Optic Patch Cable Manufacturers, Supplier

High-Quality MTP/MPO to FC OM3 16fo Fiber Optic Patch Cable Manufacturers, Supplier

- Eliminates the cost of field-termination. - Results in a lower total installation cost. - Eliminates termination errors, Minimize install time - Terminated with low loss 12 fiber MPO connectors - Available in OM3, OM4, OS2 with LSZH sheath - Available in lengths from 10mtrs up to 500mtrs - Utilizes DINTEK MTX Reversible Connector - Pull Tab Optional
Send Inquiry

Product Description

⚙️
MTP/MPO harness cable, also known as breakout or fan-out cable, is a high-performance fiber optic solution terminated with MTP/MPO connectors on one end and various connectors such as LC, SC, ST, or FC on the other end.

Our cables typically feature a 3.0mm LSZH Round main cable with 2.0mm breakout legs. We offer both Standard and Elite types to meet diverse performance requirements. For the cable jacket, options include 3.0mm round cables, flat jacketed ribbon cables, or bare ribbon MTP cables.

MTP MPO Cable
📊
Fiber Options & Core Counts: Available in 8, 12, 16, 24, and 48 cores. We provide Single Mode and Multimode (OM1, OM2, OM3, OM4, OM5) assemblies designed for high-density applications and rapid installation.

MTP/MPO harness cables facilitate a seamless transition from multi-fiber trunk cables to individual fibers or duplex connectors. Connectors are available in both Female and Male types (Male connectors include alignment pins).

Multimode Fiber Comparison:

OM1: Orange jacket; 62.5μm core. Supports 10GbE up to 33m; common for 100MbE.
OM2: Orange jacket; 50μm core. Supports 10GbE up to 82m; common for 1GbE.
OM3: Aqua jacket; 50μm core. Supports 10GbE up to 300m and 40/100GbE up to 100m.
OM4: Aqua jacket; 50μm core. Enhanced version of OM3; supports 10GbE up to 550m and 100GbE up to 150m.
Type Single Mode (APC) Single Mode (UPC) Multimode (PC)
Fiber Count 8, 12, 24 etc. 8, 12, 24 etc. 8, 12, 24 etc.
Fiber Type G652D, G657A1 etc. G652D, G657A1 etc. OM1, OM2, OM3, OM4, OM5 etc.
Max. Insertion Loss Elite: ≤0.35dB Standard: ≤0.75dB Elite: ≤0.35dB Standard: ≤0.75dB Elite: ≤0.35dB Standard: ≤0.60dB
Return Loss ≥60 dB ≥60 dB N/A
Operating Temp -40℃ ~ +80℃
Durability ≥500 times (Insert-pull test ≤0.5 dB)
MTP Connector Detail
MPO Breakout Cable

Key Features:

Factory-pre-terminated and certified for maximum performance.
100% tested for low insertion loss and back reflection.
Equipped with protection and pulling sleeves for crush resistance.
Ready for immediate deployment upon arrival.

Typical Applications:

Data Center Interconnect
High-Density Cross Connect
Telecommunication & Broadband Networks
Fiber Rack System Termination
LAN/WAN & Test Labs
What is the main purpose of an MTP/MPO harness cable?
It is designed to transition multi-fiber cables (terminated with MTP/MPO connectors) to individual fiber connectors like LC or SC, enabling high-density connectivity in data centers.
What is the difference between Elite and Standard MTP connectors?
Elite connectors offer lower insertion loss (typically ≤0.35dB) compared to Standard connectors (typically ≤0.75dB), which is critical for tight power budgets in high-speed networks.
Do your MTP/MPO connectors come with pins?
Male connectors are equipped with pins, while Female connectors are without pins. This is crucial for proper alignment during mating.
Which multimode fiber should I choose for 40G/100G Ethernet?
OM3 and OM4 are the preferred choices for 40G and 100G applications, with OM4 providing longer distance support up to 150 meters for 100G.
Are the cables tested before shipping?
Yes, each cable is 100% factory-tested for insertion loss and back reflection to ensure maximum optical performance and reliability.
What jacket types are available?
We offer 3.0mm round jackets, flat jacketed ribbon cables, and bare ribbon MTP cables, typically using LSZH materials.
