MPO (Multi-fiber Push On) is a type of optical connector that has been the primary multiple fiber connector for high-speed telecom and data communications networks. This connector and cabling system first supported telecommunications systems especially in the Central and Branch offices. Later it became the primary connectivity used in HPC or high-performance computing labs and enterprise datacenters.
MPO connectors increase your data capacity with a highly efficient use of space. But users have faced challenges such as extra complexities and time required for testing and troubleshooting multi-fiber networks. While MPO connectors have many benefits and advantages over typical single fiber connectors, there are also differences that introduce new challenges for technicians.
MTP/MPO harness cable, also called breakout or fan-out cable, is terminated with MTP/MPO connectors on one end and standard connectors (LC/FC/SC/ST/MTRJ) on the other. Typically, the main cable is a 3.0mm LSZH Round cable, branching into 2.0mm cables. These are designed for high-density applications requiring high performance and speedy installation.
All fiber patch cables are compliant with IEC-61754-7 and TIA-604-5(FOCIS-5) standards. Options include Standard and Elite (Low Loss) types, with jacket variations like 3.0mm round, flat ribbon, or bare ribbon cables. Available fiber types cover Single mode and Multimode (OM1, OM2, OM3, OM4, OM5) in 8, 12, 16, and 24 cores.
| Type | Multi Mode (PC Polish) | |
| Fiber Count | 8 | |
| Fiber Type | OM3-150 & OM3-300 | |
| Max. Insertion Loss | Elite (Low Loss) ≤0.35 dB | Standard ≤0.60dB |
| Return Loss | NA | |
| Durability | ≥500 times | |
| Operating Temp | -40°C ~ +80°C | |
| Test Wavelength | 850/1300nm | |
| Insert-pull test | 1000 times ＜0.5 dB | |
| Interchange | ＜0.5 dB | |
| Anti-tensile force | 15kgf | |
Key Benefits:
Applications:

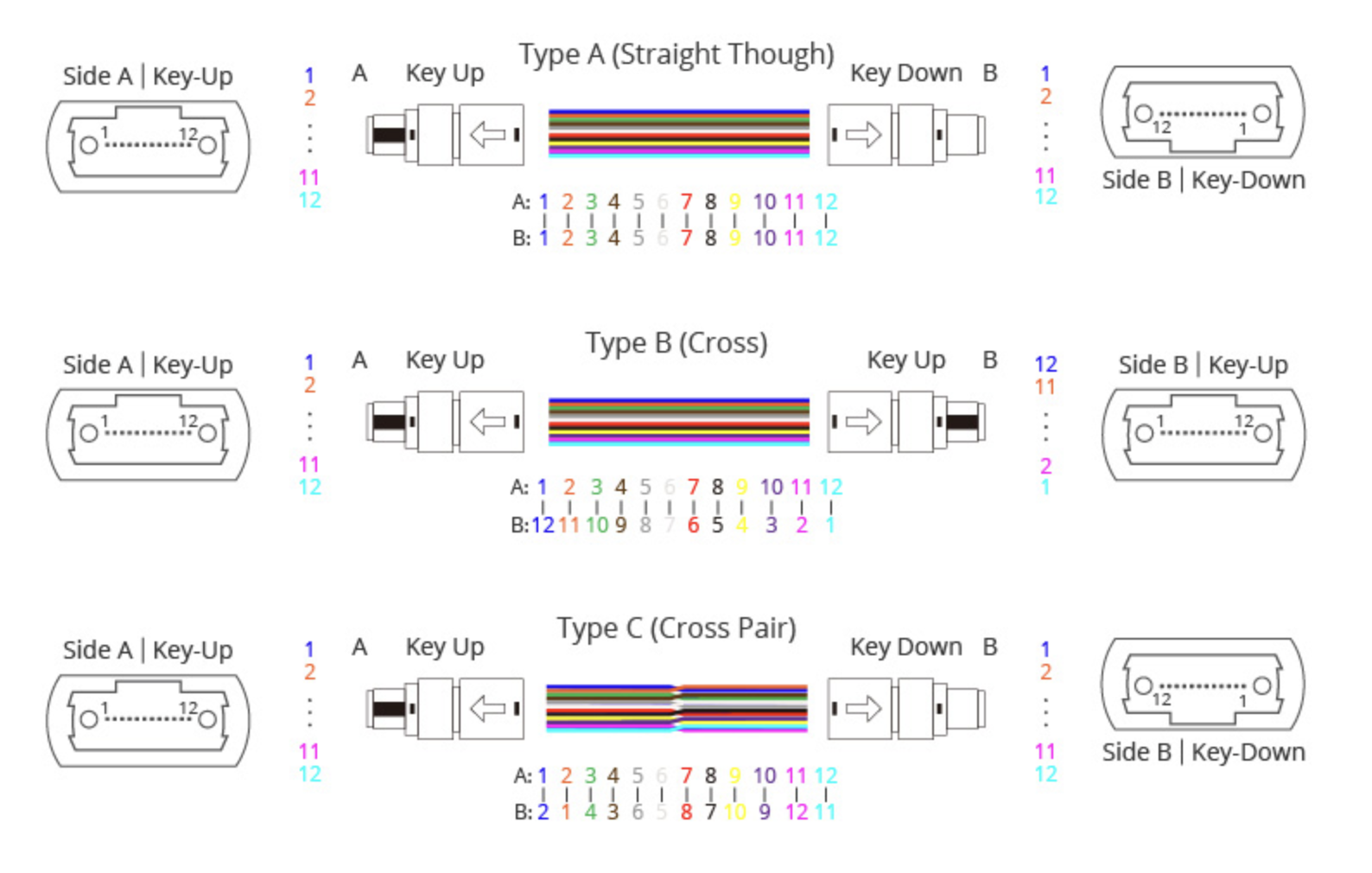

Male MPO connectors feature two alignment pins, while Female MPO connectors have holes to accept those pins. This ensures precise fiber alignment during connection.

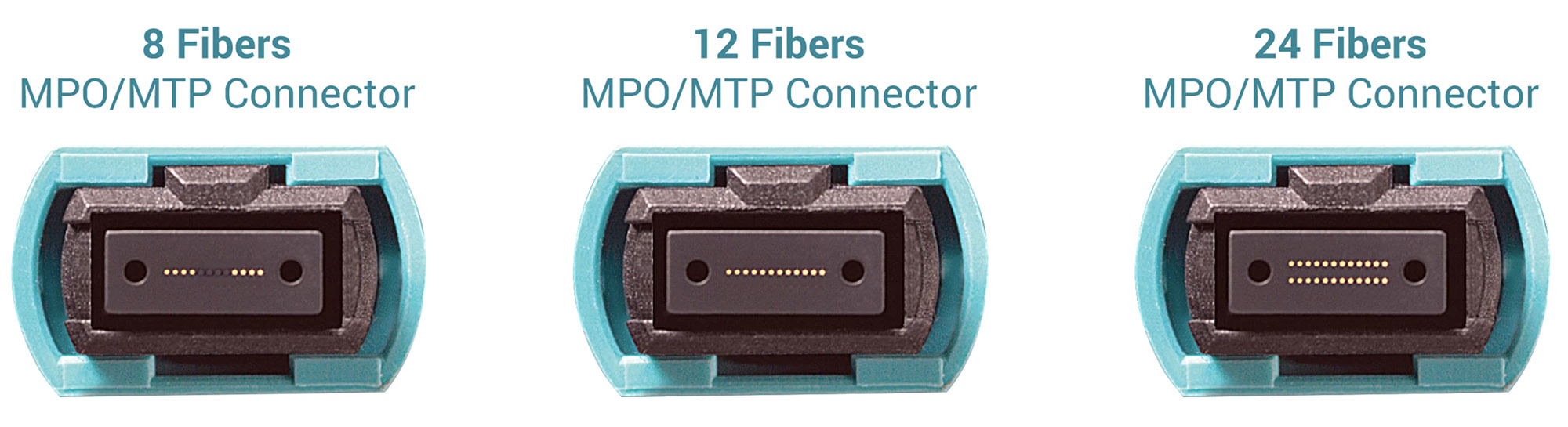

Common MPO connectors support 8, 12, or 24 fibers, although 16-fiber and other high-density configurations are also available for specific applications.
OM3 fiber can support 10 Gigabit Ethernet at lengths up to 300 meters and 40/100 Gigabit Ethernet up to 100 meters.
Pre-terminated cables are 100% factory tested for low insertion loss and back reflection, ensuring maximum performance and immediate deployment upon arrival.
Our MPO/MTP fiber patch cables are fully compliant with IEC-61754-7 and TIA-604-5 (FOCIS-5) international standards.
Harness cables provide a transition from multi-fiber MPO connectors to individual fiber connectors like LC, SC, or ST, facilitating connections between high-density backbones and standard equipment ports.
