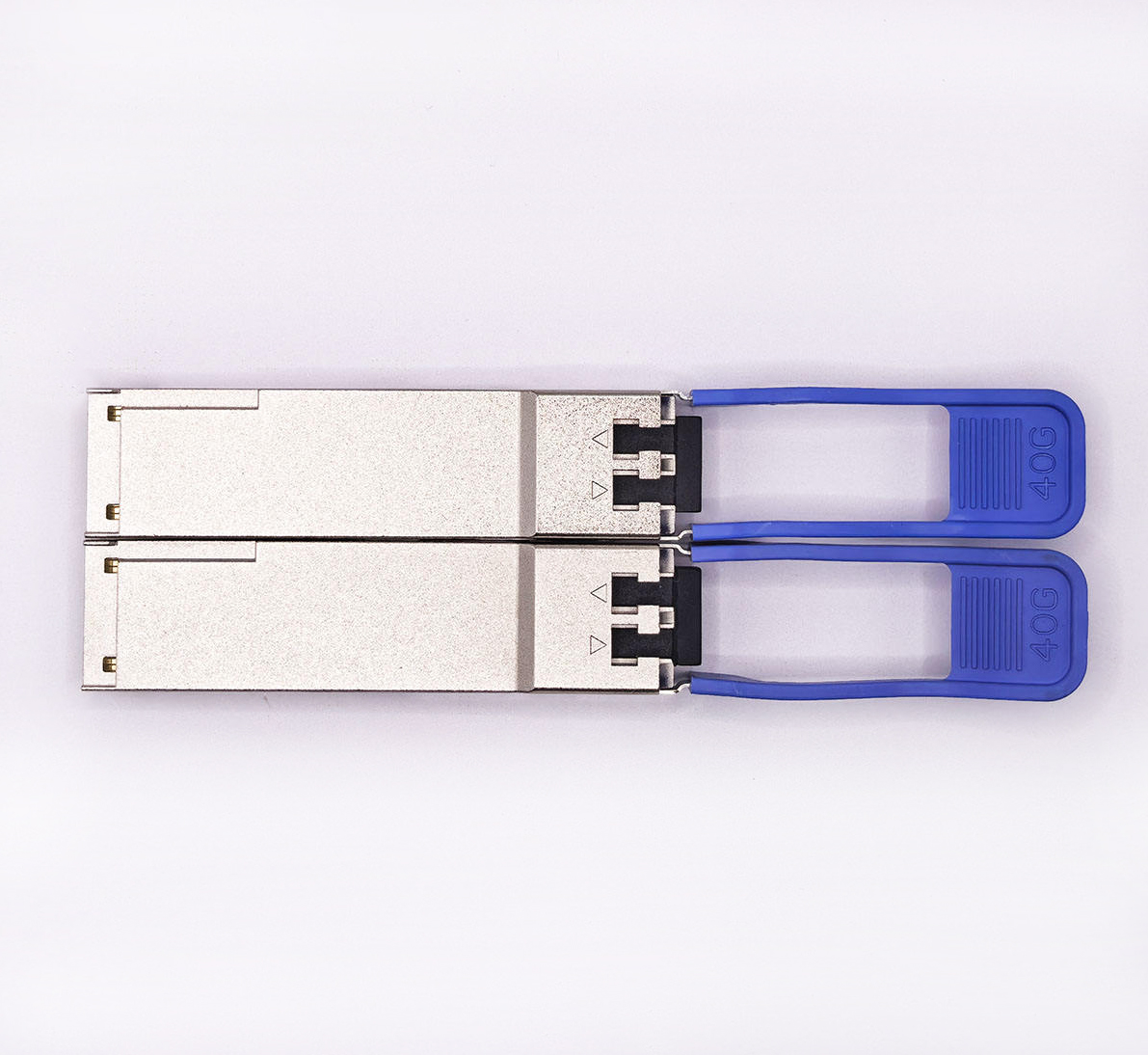

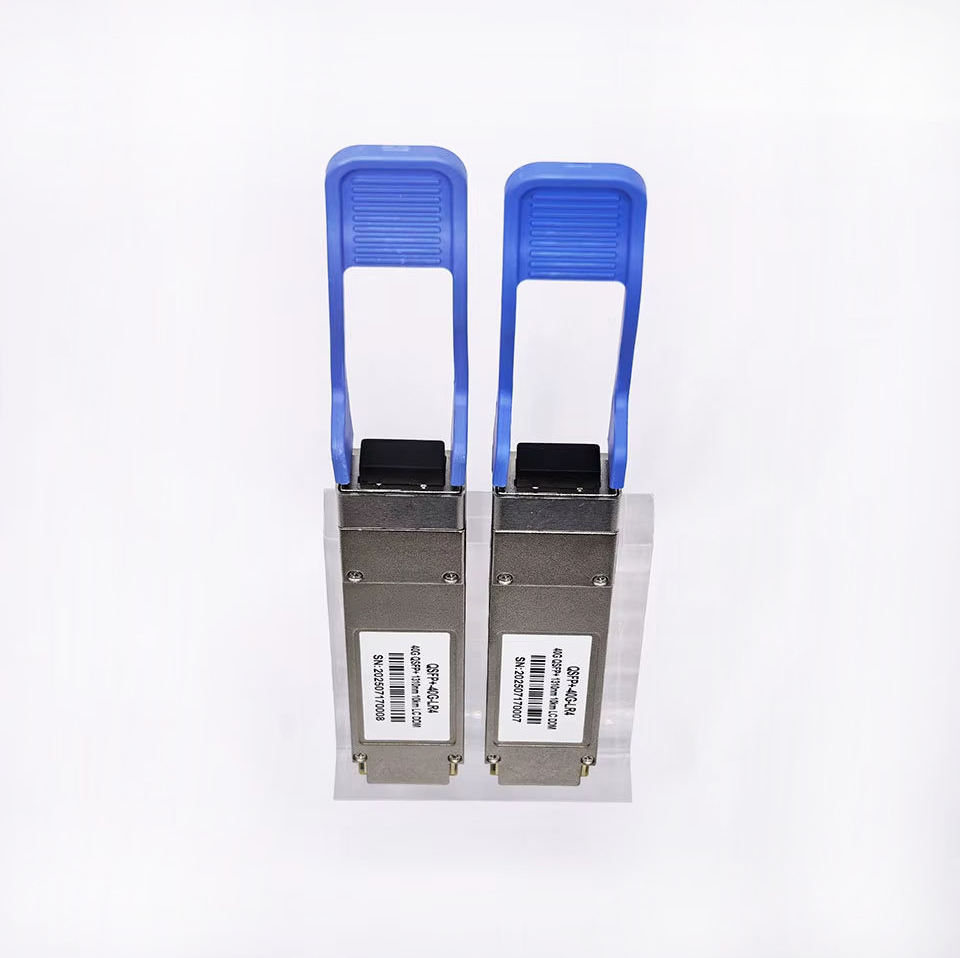

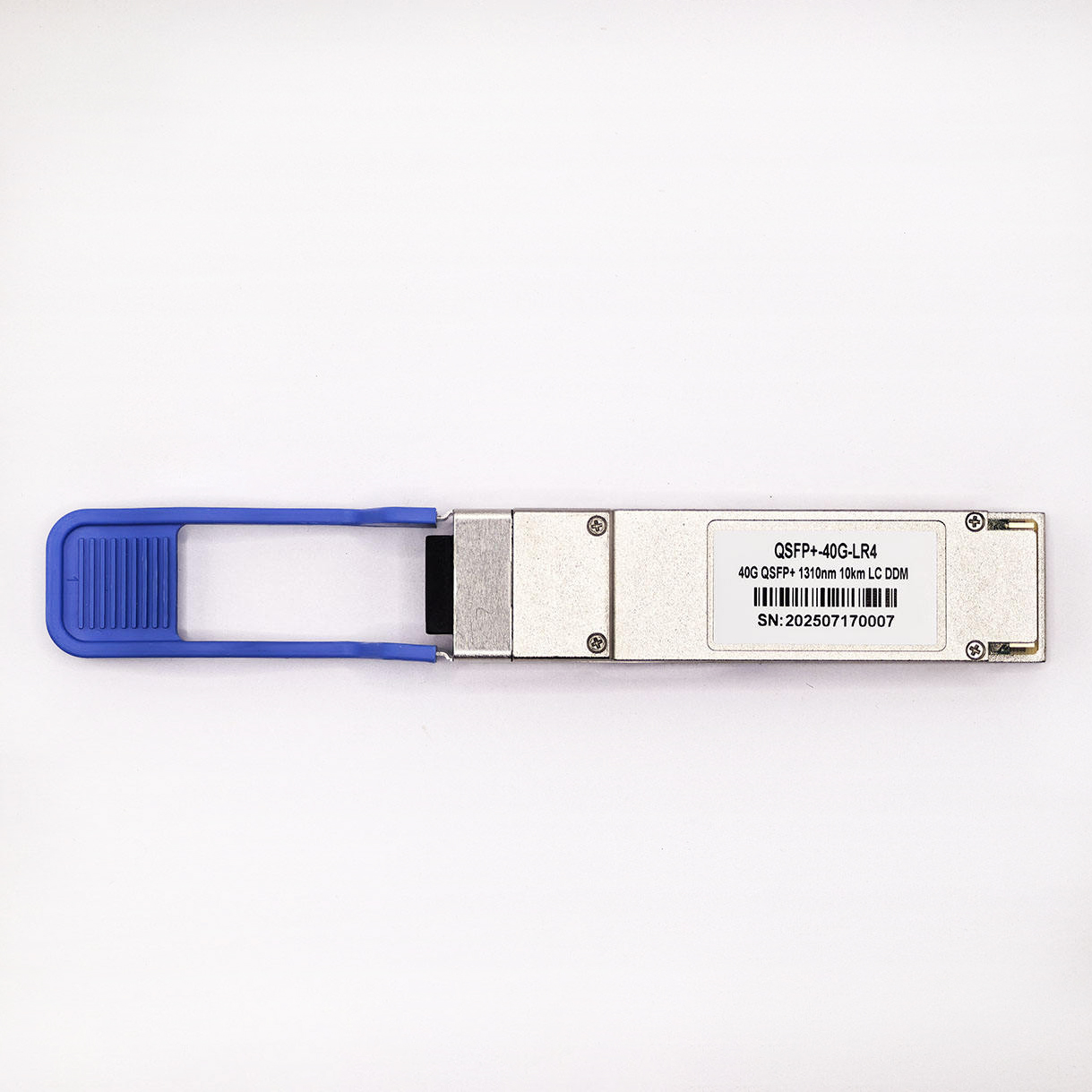

Product Overview
QSFP+ (Quad Small Form-Factor Pluggable Plus)
Small, hot-swappable form factor supporting aggregated optical speeds of 40G.
LR4 (Long Reach 4)
Designed for long-distance applications using four separate wavelengths for transmission.
40G Bandwidth
Total bandwidth achieved by running four independent 10G channels simultaneously.
Single-Mode Fiber (SMF)
Enables longer reach distances compared to multi-mode fiber.
CWDM Technology
Wavelengths centered around 1271, 1291, 1311, and 1331 nm for transmission over two fibers.
LC Connectors & Hot Pluggable
Standard duplex LC connectors; supports installation without shutting down power.
Digital Diagnostics Monitoring (DDM/DOM)
Real-time monitoring of temperature, voltage, and optical power levels.
Key Features & Compliance
4 CWDM lanes Mux/Demux design
Up to 11.1Gbps Data rate per wavelength
Up to 10km transmission on SMF
Electrically hot-pluggable
Digital Diagnostics Monitoring Interface
Compliant with QSFP+ MSA with LC connector
Operating temperature: 0°C to 70°C
Power dissipation < 2.5 W
Compliant to IEEE 802.3ba
Compliant to SFF-8436
RoHS Compliant
40G Ethernet, Data Center and LAN
Frequently Asked Questions
Q1: What is the maximum transmission distance for a 40G LR4 module?
A1: The 40G LR4 transceiver is designed for long-reach applications and can support transmission distances up to 10km over Single-Mode Fiber (SMF).
Q2: What type of fiber cable and connector are required?
A2: It requires Single-Mode Fiber (SMF) and uses standard duplex LC connectors for connectivity.
Q3: How does CWDM technology work in this QSFP+ module?
A3: It uses Coarse Wavelength Division Multiplexing (CWDM) to combine four 10G channels onto four different wavelengths (1271, 1291, 1311, and 1331 nm) to travel over a single pair of fibers.
Q4: Does this module support real-time monitoring?
A4: Yes, it features Digital Diagnostics Monitoring (DDM/DOM), allowing administrators to monitor parameters like temperature, voltage, and optical power.
Q5: Is the 40G QSFP+ LR4 module hot-pluggable?
A5: Yes, the module is electrically hot-pluggable, meaning it can be inserted or removed without powering down the network device.
Q6: What are the main applications for this transceiver?
A6: It is primarily used for 40G Ethernet connections, Data Center interconnects, and Local Area Networks (LAN).
