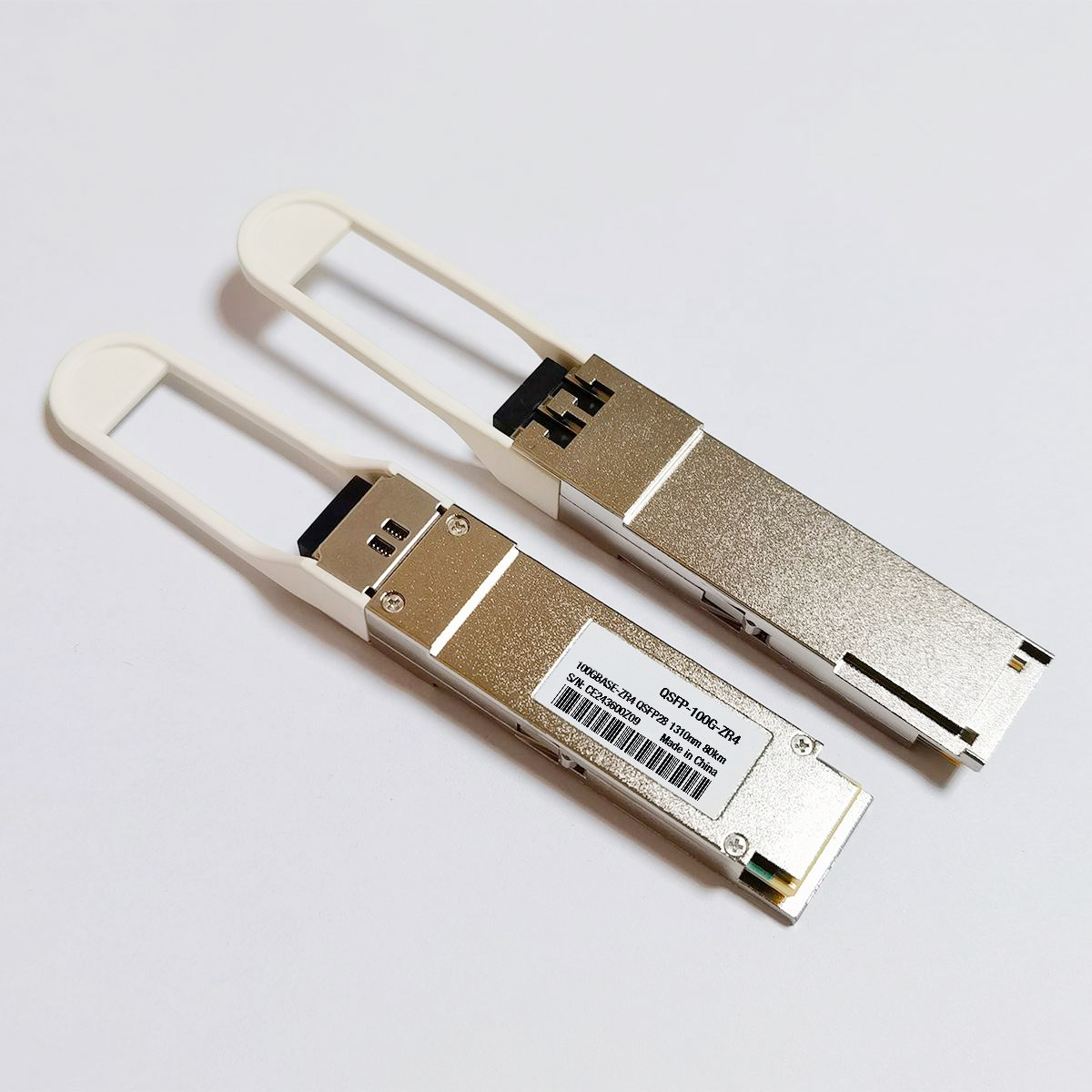

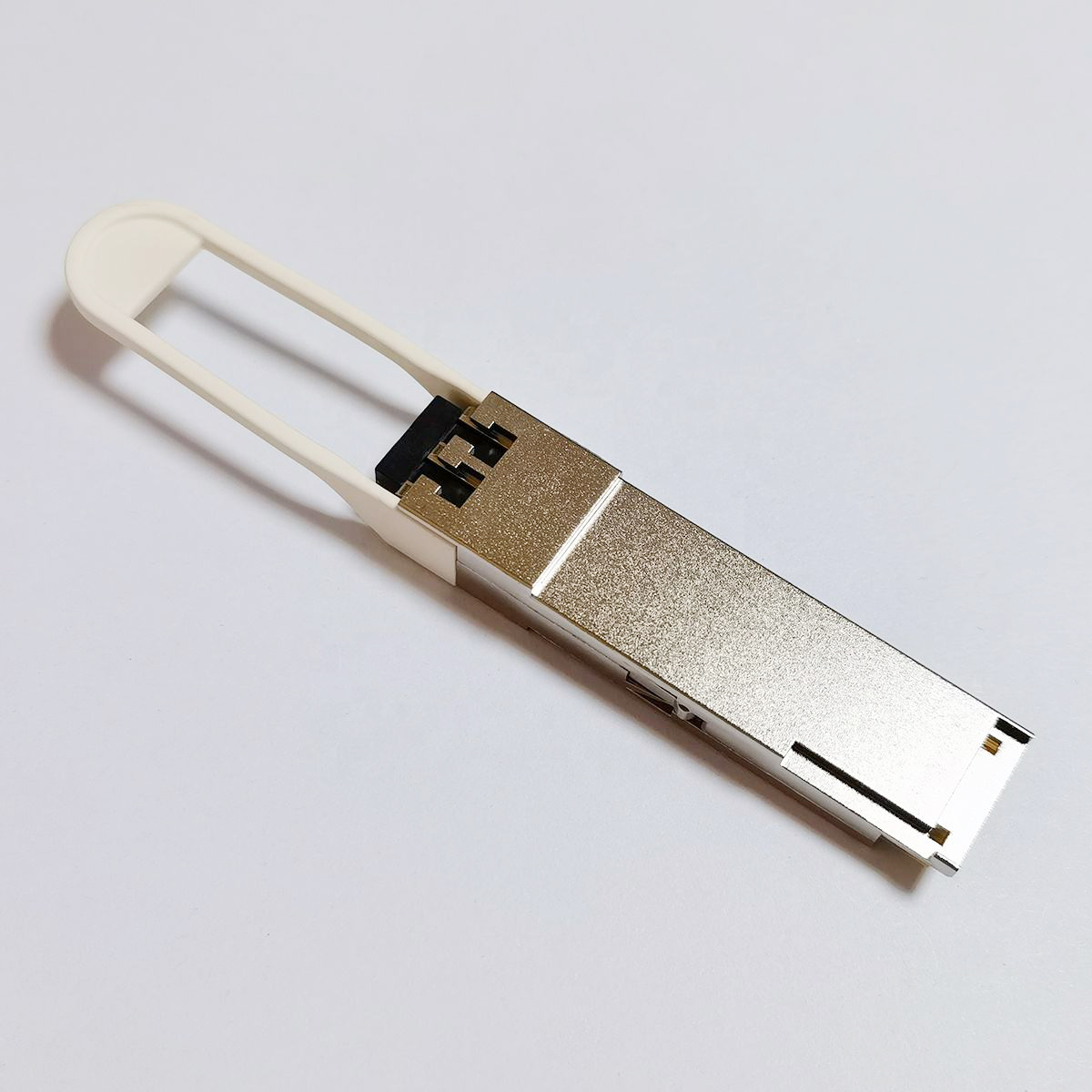

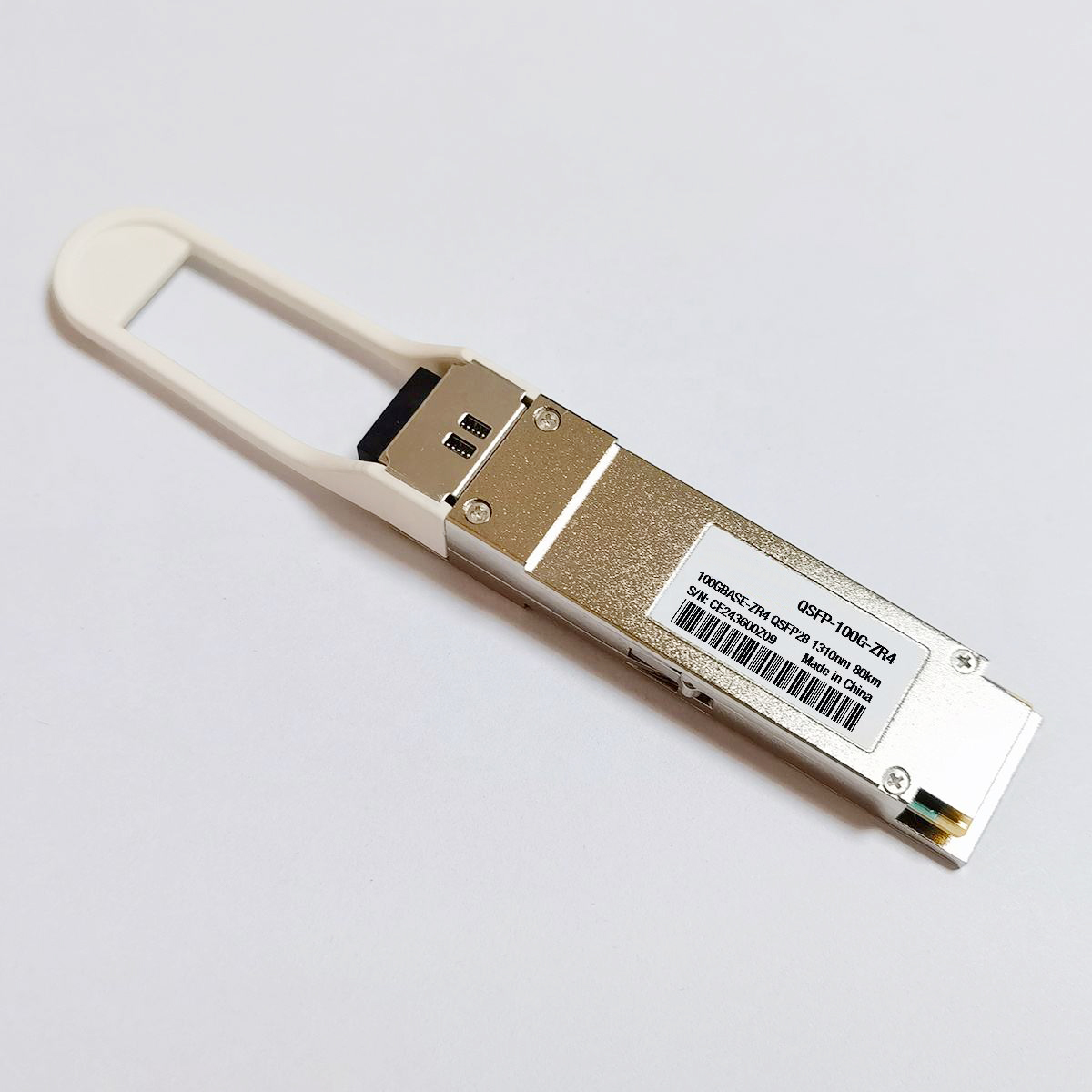

High-Quality KCO QSFP28 100G ZR4 SMF 1310nm 80km WDM LC Fiber Optic Transceiver Factories, Pricelist

KCO QSFP28 100G ZR4 is designed for 80km optical communication applications.

This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter- face.

The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.

Send Inquiry

Product Description

ℹ

The ModSelL is an input pin. When held low by the host, the module responds to 2-wire serial communication commands. It allows the use of multiple modules on a single 2-wire interface bus. When "High", the module shall not respond to or acknowledge any 2-wire interface communication from the host.

ModSelL signal input node shall be biased to the "High" state in the module. In order to avoid conflicts, the host system shall not attempt 2-wire interface communications within the ModSelL de-assert time after any modules are deselected. Similarly, the host shall wait at least for the period of the ModSelL assert time before communicating with the newly selected module.

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit	Notes
Storage Temperature	Ts	-40	85	°C
Power Supply Voltage	Vcc	-0.3	4.0	V
Relative Humidity (non-condensation)	RH	15	85	%
Damage Threshold	THd	6.5		dBm

Key Features & Applications

Compliant with 100GBASE-ZR4
Support line rates from 103.125 Gb/s to 111.81 Gb/s OTU4
LAN WDM EML laser and PIN receiver with SOA
Up to 80km reach for G.652 SMF
Hot pluggable 38 pin electrical interface
QSFP28 MSA compliant
Duplex LC optical receptacle
RoHS-10 compliant and lead-free
Single +3.3V power supply
Maximum power consumption 6.5W
100GBASE-ZR4 Ethernet Links
Infiniband QDR and DDR interconnects
Telecom networking

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Operating Case Temperature (Commercial)	Top	0		70	°C	commercial
Operating Case Temperature (Extended)	Top	-10		80	°C	extended
Operating Case Temperature (Industrial)	Top	-40		85	°C	Industrial
Power Supply Voltage	Vcc	3.135	3.3	3.465	V
Data Rate, each Lane			25.78125		Gb/s
Control Input Voltage High		2		Vcc	V
Control Input Voltage Low		0		0.8	V
Link Distance (SMF)	D			80	km	1

Note 1: Depending on actual fiber loss/km (link distance specified is for fiber insertion loss of 0.35dB/km)

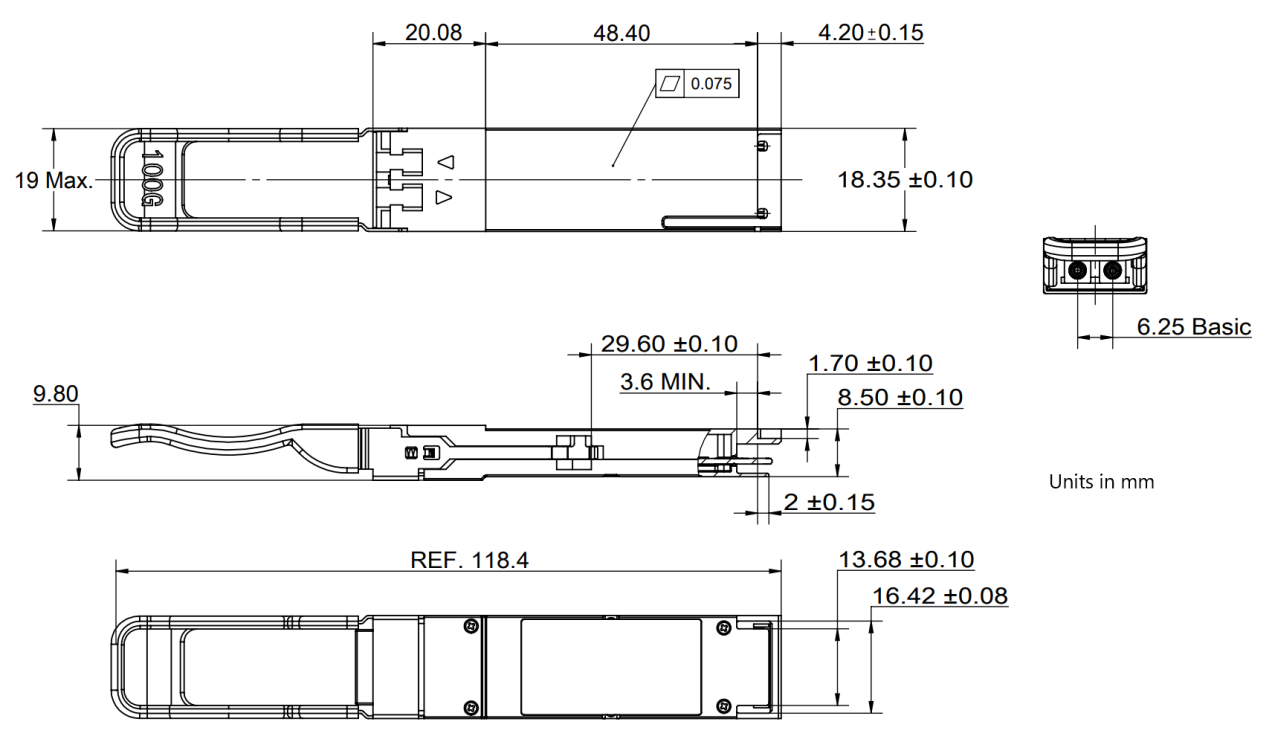

Technical Specifications

Form Factor	QSFP28	Max Data Rate	100 Gbps
Wavelength	1294-1310nm	Center Wavelength	1295, 1300, 1304, 1309nm
Max Cable Distance	80KM	Connector type	LC
Fiber cable Type	SMF	Transmitter Type	EML
Receiver Type	SOA+PIN	Transmit Power	2 to +6.5 dBm
Max Receiver sensitivity	– 28 dBm	Overload Power	6.5 dBm
Extinction Ratio	6 dB	DDM	Supported
Operating Temp.	0°C to 70°C (Commercial)

Frequently Asked Questions

What is the maximum transmission distance for this QSFP28 ZR4 module?

The module supports a maximum reach of up to 80km over G.652 Single Mode Fiber (SMF) with an assumed fiber insertion loss of 0.35dB/km.

What are the supported data rates?

It supports line rates ranging from 103.125 Gb/s to 111.81 Gb/s, making it suitable for 100GBASE-ZR4 Ethernet and OTU4 applications.

What type of optical connectors and lasers are used?

The module uses a Duplex LC optical receptacle. The transmitter features LAN WDM EML lasers, and the receiver uses a PIN receiver combined with an SOA (Semiconductor Optical Amplifier).

Does this module support Digital Diagnostic Monitoring (DDM)?

Yes, DDM (Digital Diagnostic Monitoring) is supported, allowing for real-time monitoring of operating parameters.

What are the operating temperature options available?

The module is available in three temperature grades: Commercial (0 to +70°C), Extended (-10 to +80°C), and Industrial (-40 to +85°C).

What is the power consumption of the 100GBASE-ZR4 module?

The module operates on a single +3.3V power supply and has a maximum power consumption of 6.5W.
