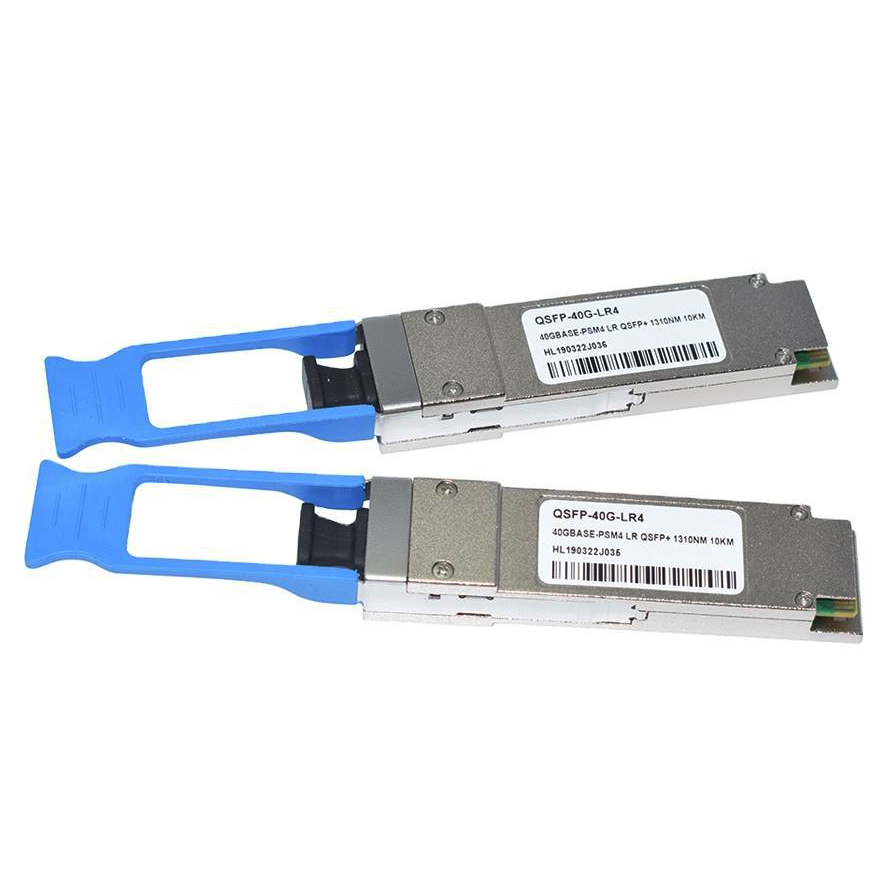

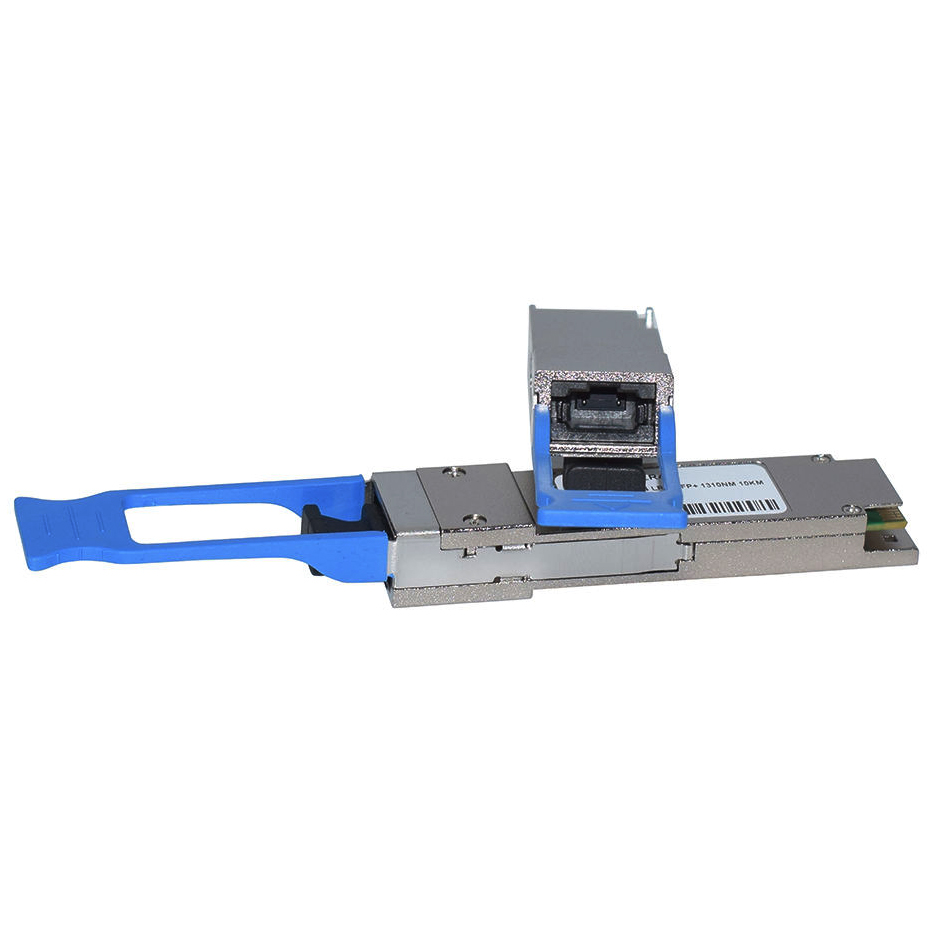

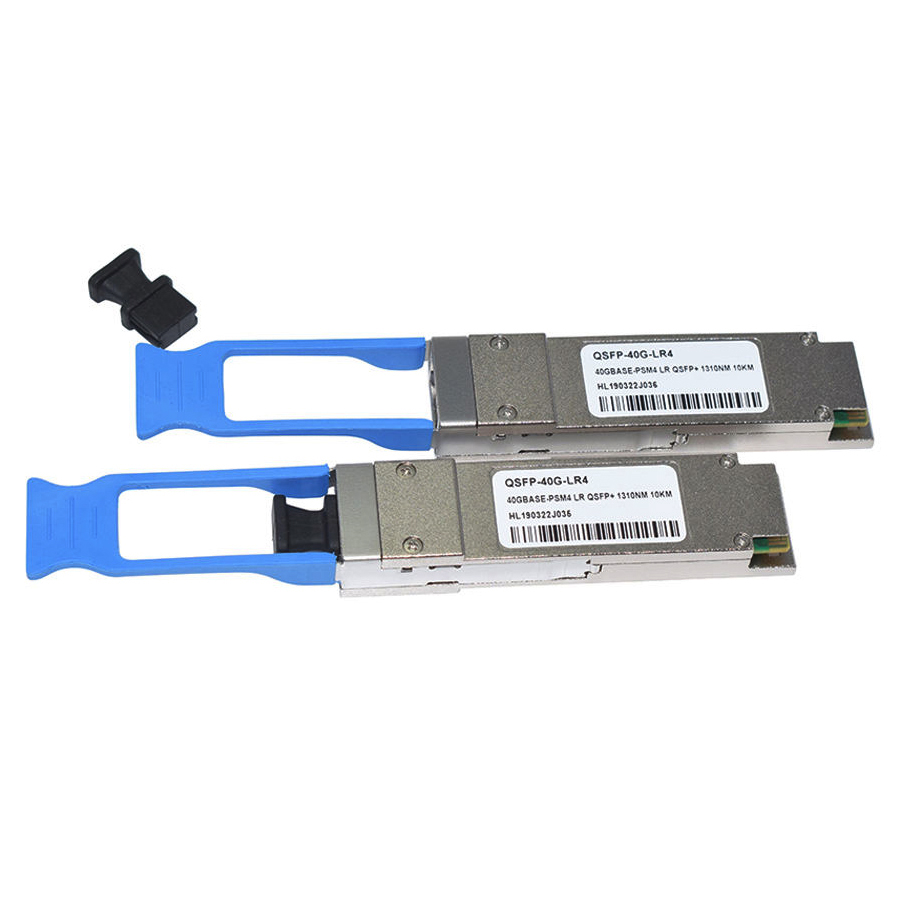

The QSFP+ 40G PLR4 fiber optic module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO connector. It provides high-density and low-power 40GBASE Ethernet solution for data centers, high-performance computing networks, enterprise core and distribution layer applications. It is fully compliant with the QSFP+ MSA.
(Note: If this transceiver needs to be used to break out one 40G signal into 4x 10G signals, the interface of the device is required to support the breakout feature.) QSFP+ 40G PLR4 Compatible QSFP+ Fiber Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO connector.
It is fully compliant with the QSFP+ MSA and IEEE 802.3ae 10GBASE-LR/LW and OTN data rates OTU2, OTU1e, and OTU2e per the ITU standard.
Frequently Asked Questions
What is the maximum transmission distance of the QSFP+ 40G PLR4?
The module supports 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF).
What type of connector does this module use?
This QSFP+ module uses an MTP/MPO connector for parallel fiber connectivity.

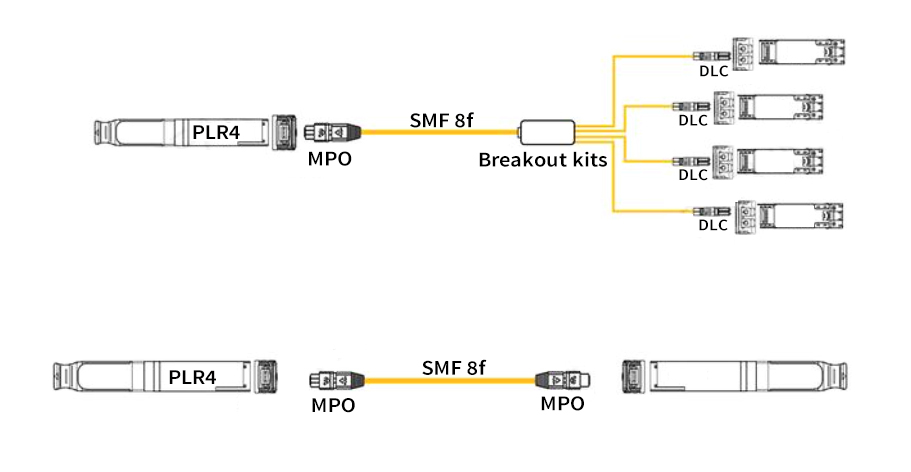

Does this module support 4x10G breakout mode?
Yes, it can break out one 40G signal into 4x 10G signals, provided that the device interface supports the breakout feature.
What is the operating wavelength of the PLR4 module?
The module operates at a wavelength of 1310nm using 4 parallel channels (4x1310nm).
Is the module compliant with industry standards?
Yes, it is fully compliant with the QSFP+ MSA, IEEE 802.3ae 10GBASE-LR/LW, and various OTN data rates per ITU standards.
What are the power requirements for this transceiver?
The module is designed for low power consumption, with a power dissipation of ≤ 2.5W.
