Fiber Optic MTP MPO (Multi-fiber Push On) Connector is a type of optical connector that has been the primary multiple fiber connector for high-speed telecom and data communications networks. It has been standardized within the IEC 61754-7 and TIA 604-5.
This fiber optic MTP MPO connector and cabling system first supported telecommunications systems especially in the Central and Branch offices. Later it became the primary connectivity used in HPC or high-performance computing labs and enterprise data centers.
Fiber optic MTP MPO connectors increase your data capacity with a highly efficient use of space. But users have faced challenges such as extra complexities and time required for testing and troubleshooting multi-fiber networks. While fiber optic MTP MPO connectors have many benefits and advantages over typical single fiber connectors, there are also differences that introduce new challenges for technicians.

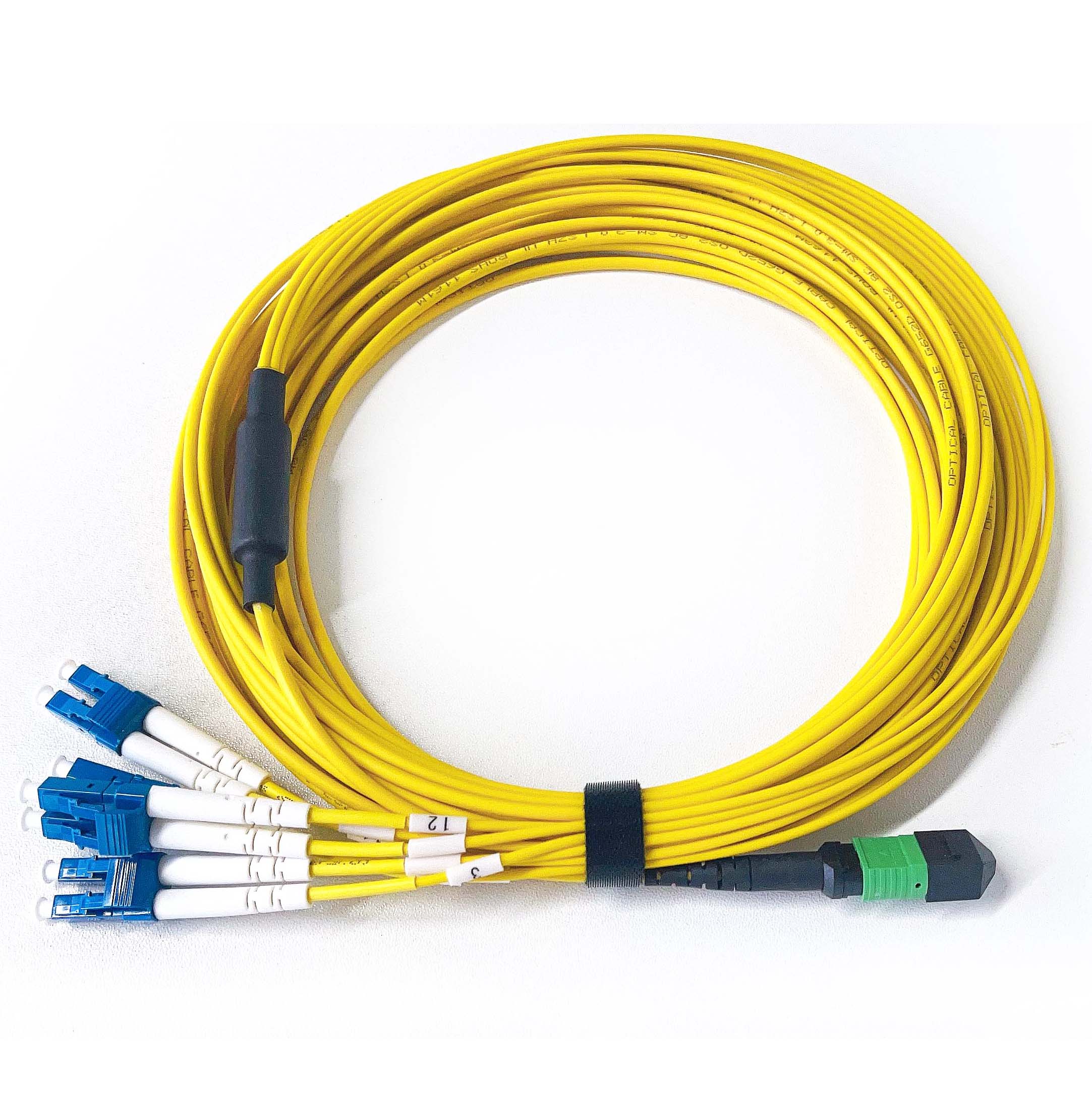

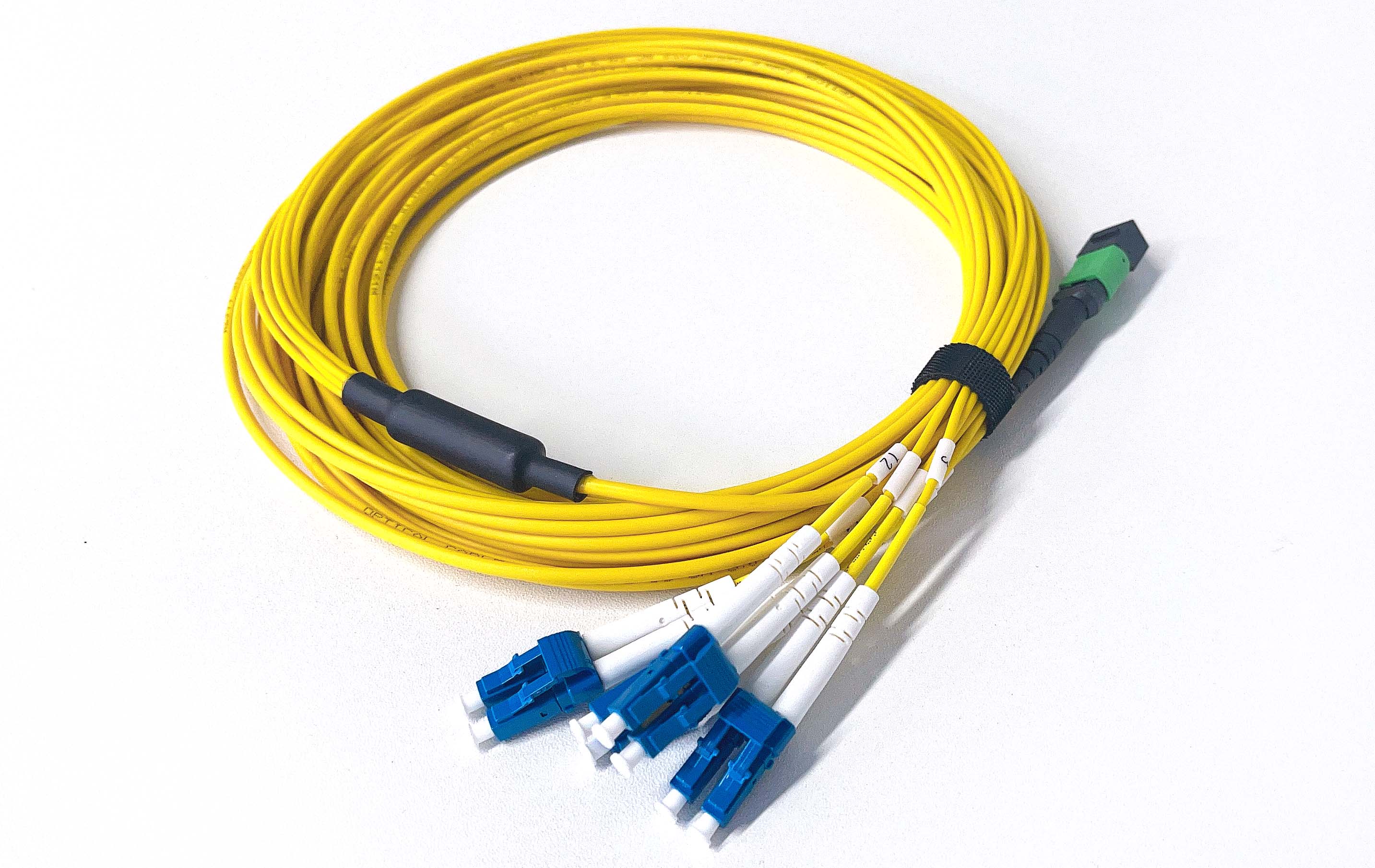

✂️ Breakout design
Splits a single MTP MPO connection into multiple LC connections, allowing a single trunk line to serve several devices.
🏙️ High density
Enables high-density connections for devices like 40G and 100G network equipment.
🚀 Application
Connects high-speed devices and backbone infrastructure without needing additional equipment.
⚙️ Efficiency
Reduces cost and setup time in complex, high-density environments by eliminating the need for additional patch panels or hardware.
Fiber Characteristics
A typical single-mode optical fiber has a core diameter 9/125 μm. There are a number of special types of single-mode optical fiber which have been chemically or physically altered to give special properties, such as dispersion-shifted fiber and nonzero dispersion-shifted fiber.
Single Mode fiber optic cable has a small diametral core that allows only one mode of light to propagate. Because of this, the number of light reflections created as the light passes through the core decreases, lowering attenuation and creating the ability for the signal to travel further. Single mode fiber include: G652D, G655, G657A, G657B.
Frequently Asked Questions
Q: What is the main advantage of MTP/MPO connectors?
A: The primary advantage is high density. A single connector can house 8, 12, 24, or even up to 48 fibers, significantly saving space in data center racks and reducing cabling complexity.
Q: Are MTP/MPO connectors available in both Male and Female versions?
A: Yes, they are available in Male (with pins) and Female (without pins) versions. Correct alignment between the two is essential for maintaining low insertion loss.
Q: What is the difference between Elite and Standard insertion loss?
A: Elite or Low Loss connectors provide a lower insertion loss (typically ≤0.35 dB) compared to Standard connectors (typically ≤0.75 dB), allowing for longer link distances and more connection points.
Q: Can MTP/MPO connectors support both Single Mode and Multi Mode fiber?
A: Yes, they support both. Single Mode is used for long distances with APC or UPC polishing, while Multi Mode is commonly used for short-range high-speed data center links.

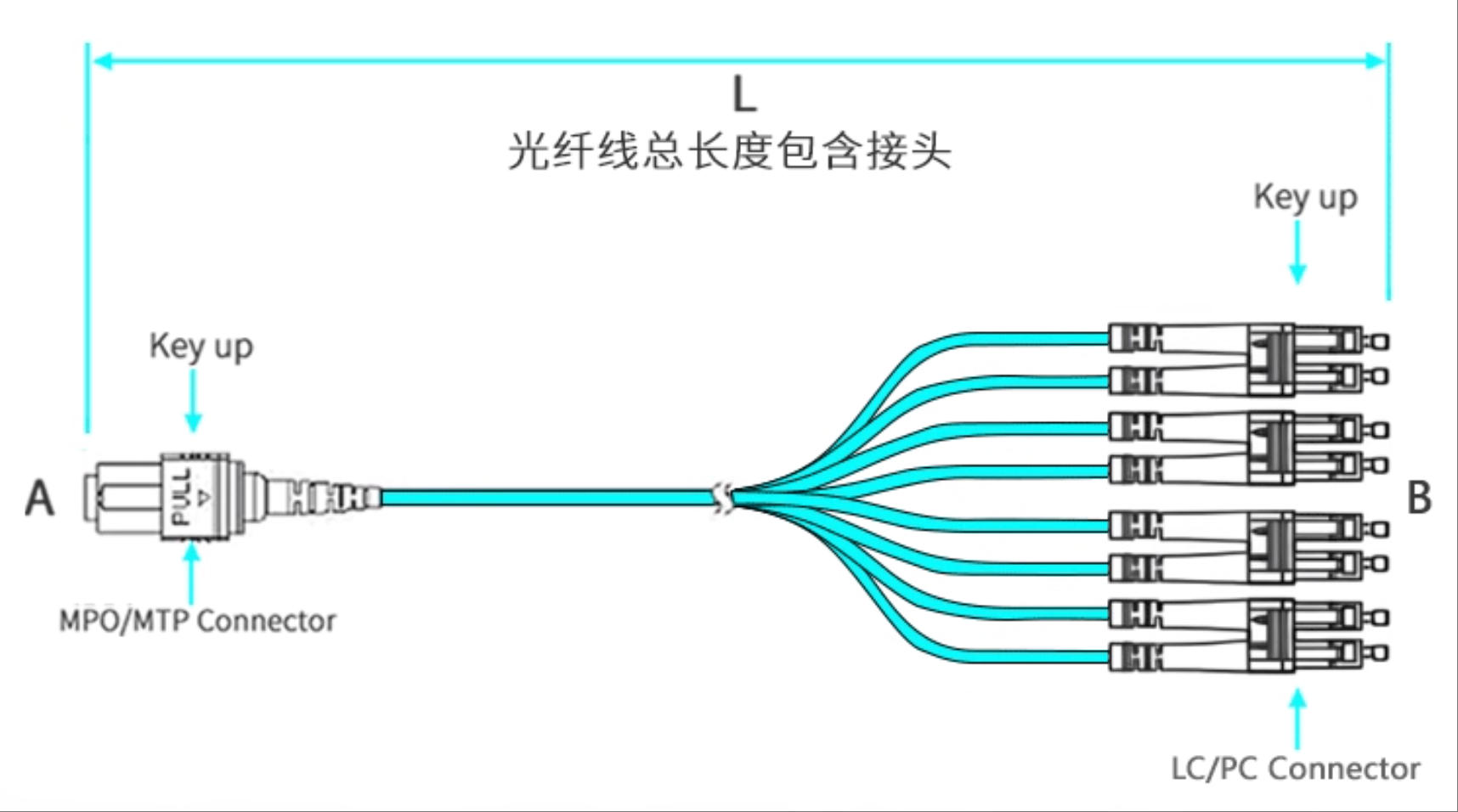

Q: What is a "Breakout design" in MTP/MPO cabling?
A: It is a configuration that splits one high-fiber count MTP/MPO connector into several individual connectors (like LC), allowing high-speed backbone cables to connect to multiple standard device ports.
Q: What fiber counts are commonly supported by MTP/MPO?
A: While 12-fiber was the original standard, modern systems frequently use 8, 16, 24, 36, and 48 fiber configurations to meet different networking requirements.
