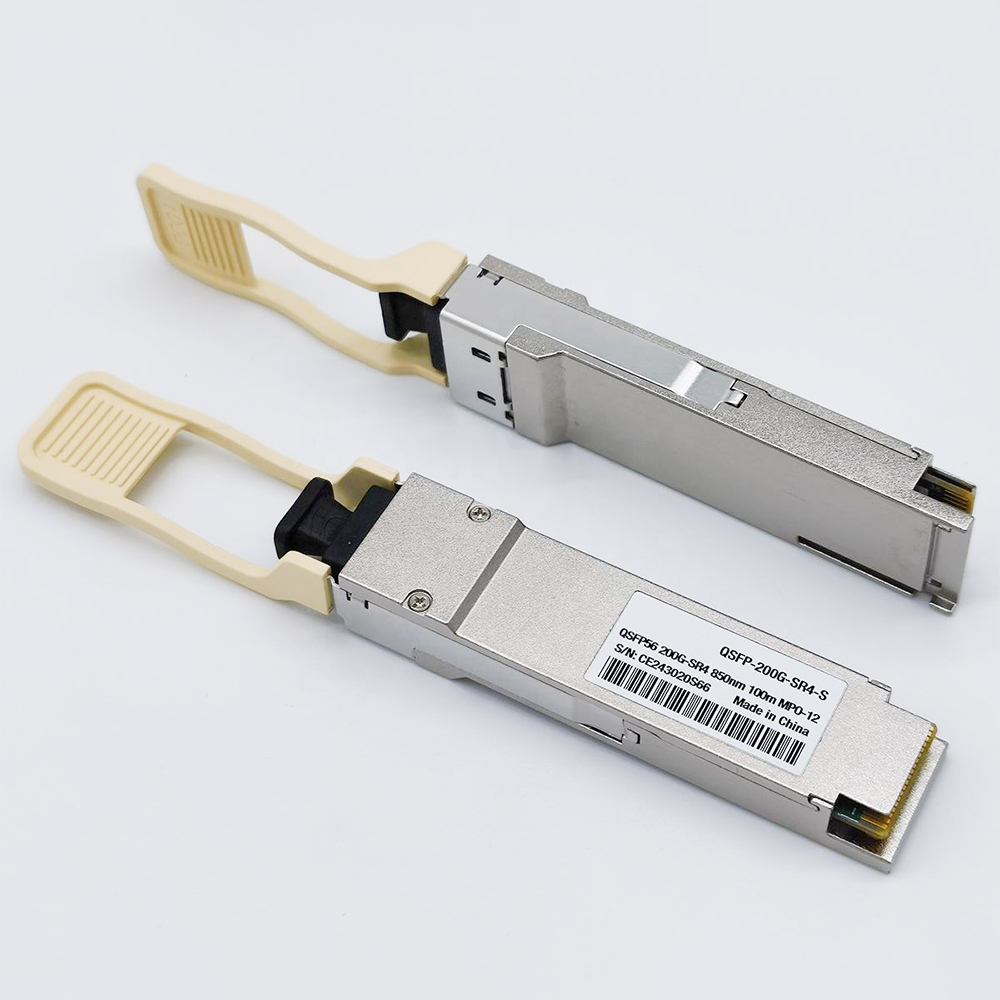

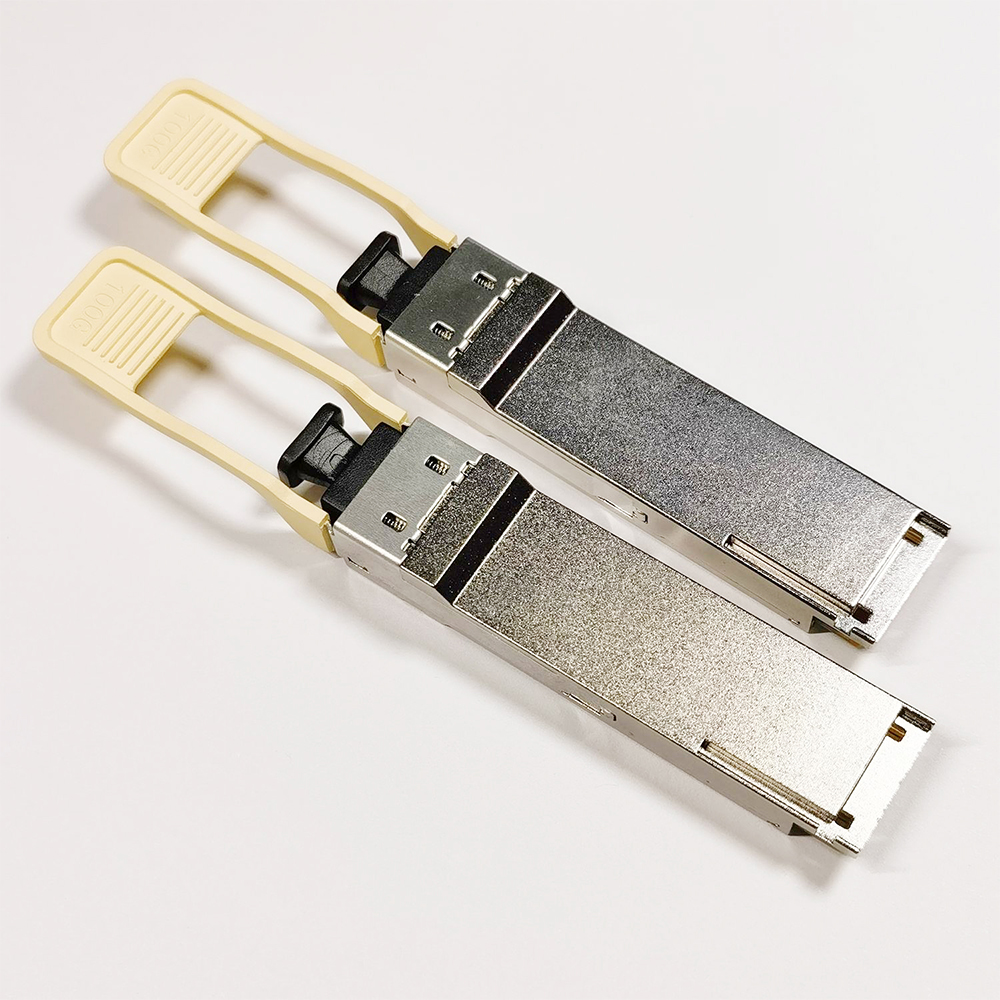

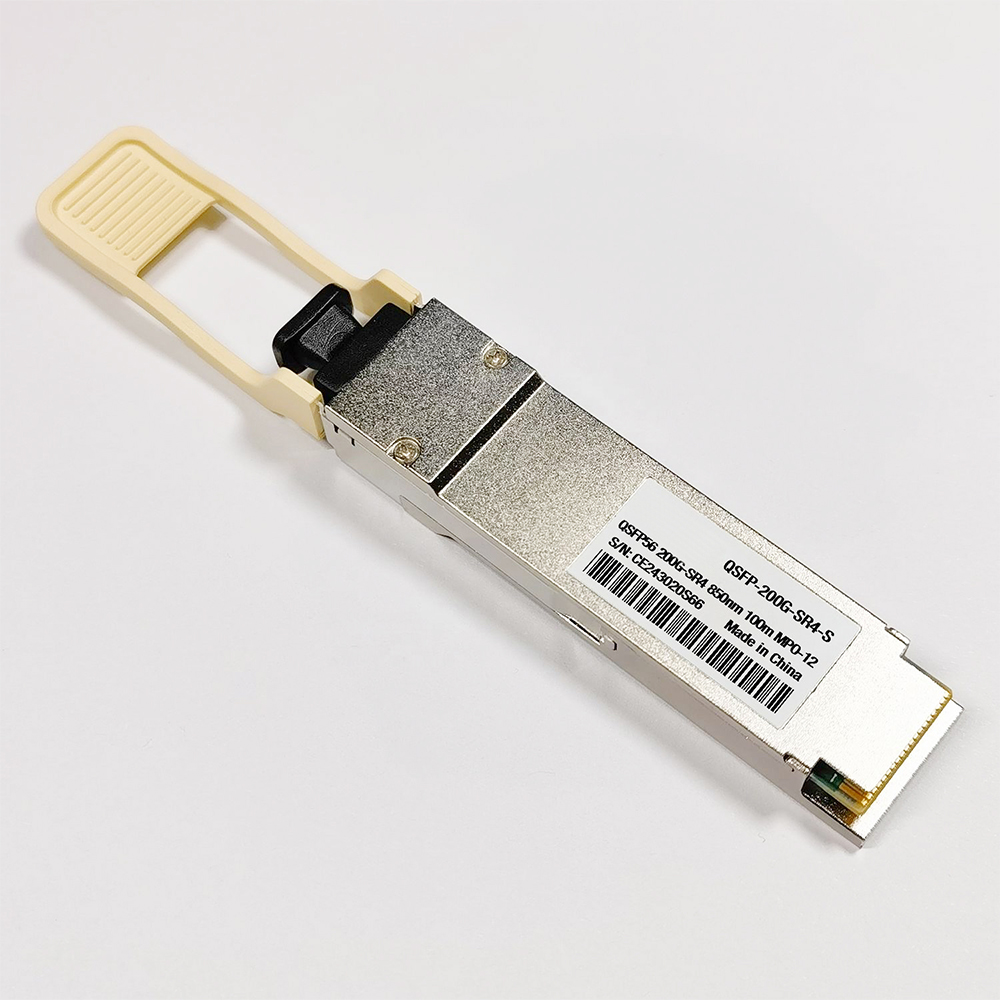

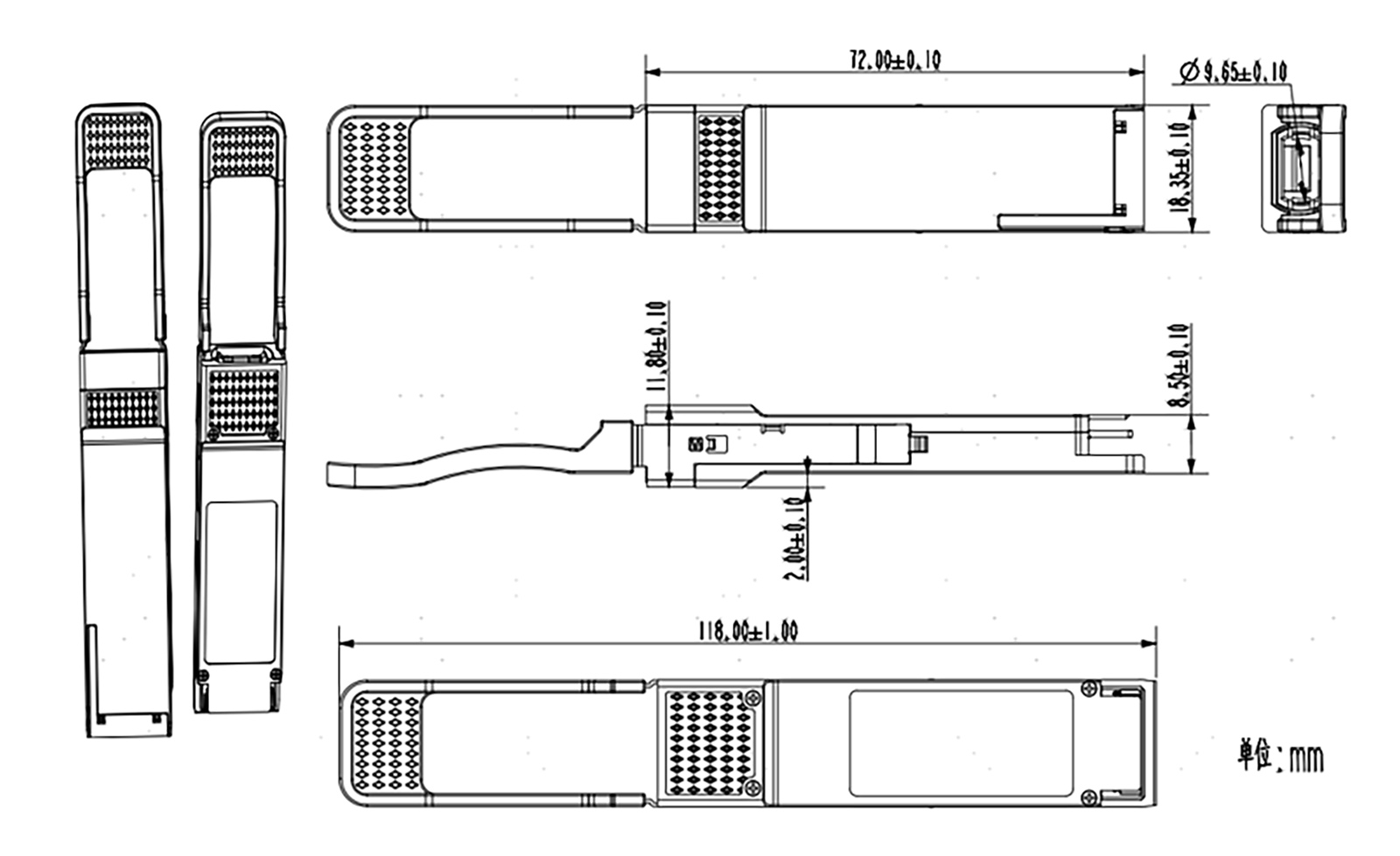

The QSFP56 200G SR4 Fiber Optic Module supports 200GE links and up to two 100GBASE-SR2 breakout links or four 50GBASE-SR lengths of up to 100m over OM4 MMF. The module features four pairs of Multi-Mode Fiber with an MPO-12 UPC connector. It is fully compliant with the IEEE 802.3bm protocol and 200GAUI-4/CEI-56G-VSR-PAM4 standards.
The 200 Gigabit Ethernet signal is transmitted over four parallel pairs of fibers at a nominal wavelength of 850nm at 50Gbps per fiber. This versatile module can also be utilized as a 2x100GE breakout to 100GBASE-SR2 modules. Forward Error Correction (FEC) is managed on the host platform. These high-performance, cost-effective I/O solutions are ideal for LAN, HPC, and SAN environments, meeting and exceeding InfiniBand HDR and temperature requirements for maximum reliability.
| Parameter | Symbol | Min | Typ | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Bit Rate | BR | - | 26.5625 ± 100 ppm | - | GBd | PAM4 |
| Center Wavelength Range | λc | 840 | 850 | 860 | nm | - |
| Damage threshold | DT | 5 | - | - | dBm | - |
| Average receive power, each lane | PIN | -8.4 | - | 4 | dBm | - |
| Receive power, each lane (OMAouter) | PINOMA | - | - | 3 | dBm | - |

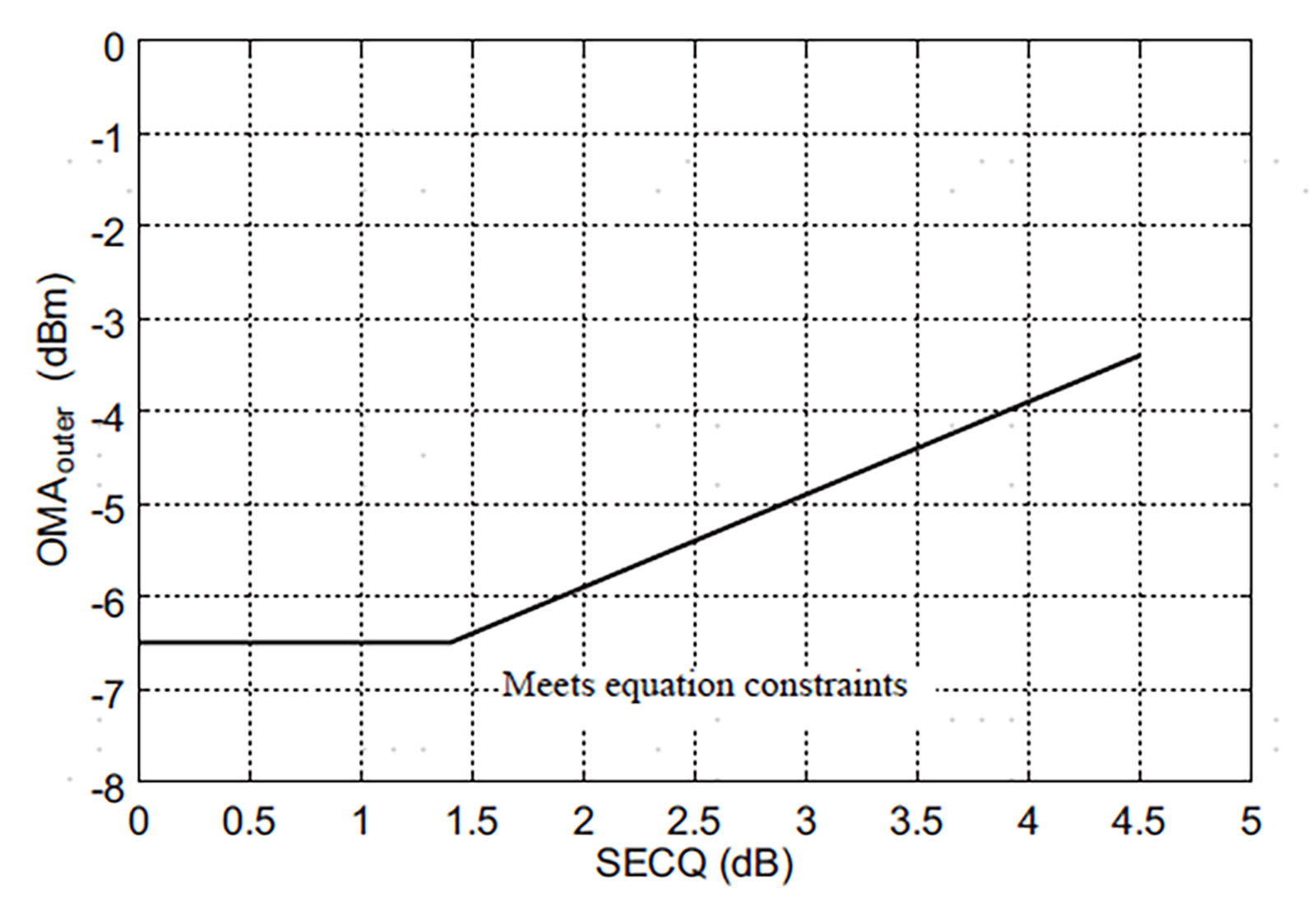

| Receive Sensitivity (OMAouter) | Sen | max（-6.5, SECQ-7.9） | dBm | 1, 2 | ||
| Stressed receiver sensitivity (OMAouter) | SenSTR | - | - | -3.4 | dBm | 1 |
| Receiver reflectance | RF | - | - | -12 | dB | - |
Notes: 1. BER=2.4E-4, [email protected] PAM4; 2. Receiver sensitivity is informative and defined for a transmitter with a value of SECQ.
| Parameter | Symbol | Min | Typ | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Module Supply Current | Icc | - | - | 1364 | mA | - |
| Power Dissipation | PD | - | - | 4.5 | W | - |
| Transmitter | ||||||
| Signaling data (each lane) | - | - | 26.5625 ± 100 ppm | - | GBd | PAM4 |
| Input Differential Impedance | Zin | 90 | 100 | 110 | Ω | - |
| Differential Data Input Swing | VIN,P-P | 300 | - | 900 | mVpp | - |
| Receiver | ||||||
| Signaling rate (each lane) | - | - | 26.5625 ± 100 ppm | - | GBd | PAM4 |
| Output Differential Impedance | Zout | 90 | 100 | 110 | Ω | - |
| Differential Data Output Swing | VOUT,P-P | 300 | - | 900 | mVpp | - |
| Error Bit Rate | BER | - | - | 2.4E-4 | - | 1 |
