Product Overview
The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically de-multiplexed by the integrated optical de-multiplexer. Each data stream is recovered by a APD and trans-impedance amplifier, retimed.

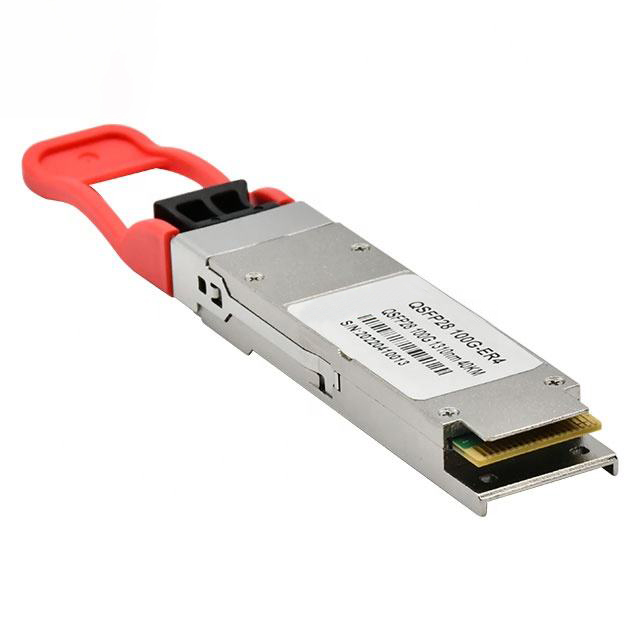

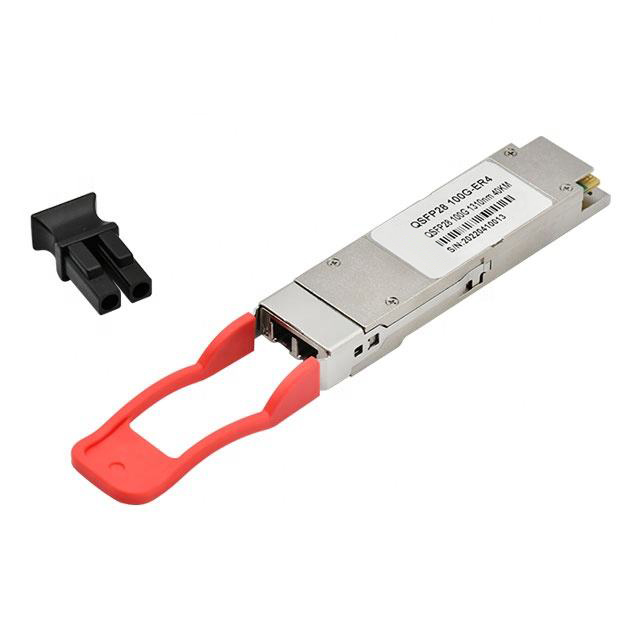

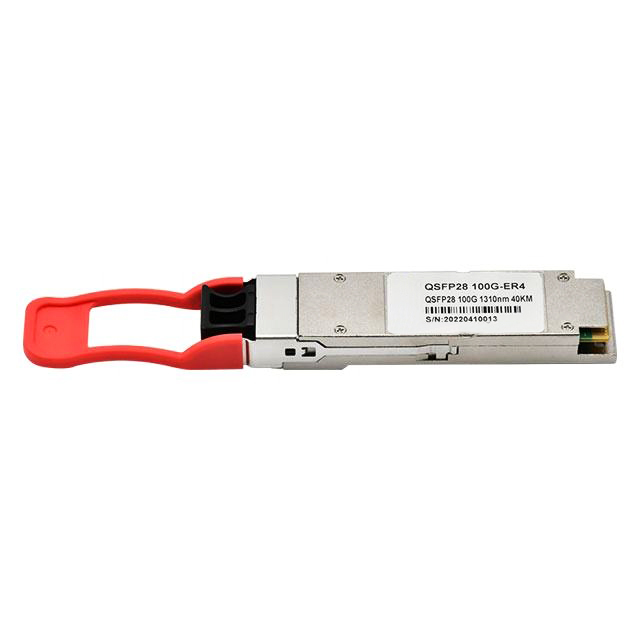

This QSFP28 100G ER4 module features a hot-pluggable electrical interface, low power consumption and MDIO management interface. It is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA) and compliant to IEEE 802.3bm.
Key Features
🚀
High Speed: Support line rates from 103.125 Gbps to 111.81 Gbps.
📏
Long Reach: Up to 40 km reach over SMF with FEC.
⚡
Low Power: Power dissipation < 4.0 W.
🌡️
Wide Temp: Operating temperature range: 0°C to 70°C.
- 100G Ethernet & 100GBASE-ER4 / ITU-T OTU4
- Integrated LAN WDM TOSA / APD ROSA
- Digital Diagnostics Monitoring (DDM) Interface
- Duplex LC optical receptacle
- No external reference clock required
- Electrically hot-pluggable
- Compliant with QSFP28 MSA, IEEE 802.3ba, IEEE 802.3bm and SFF-8636
Recommended Operating Conditions
| Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
| Case Operating Temperature |
Tcase |
0 |
- |
70 |
ºC |
Without air flow |
| Power Supply Voltage |
VCC |
3.13 |
3.3 |
3.47 |
V |
- |
| Power Supply Current |
ICC |
- |
- |
1200 |
mA |
- |
| Data Rate |
BR |
- |
25.78125 |
- |
Gbps |
Each channel |
| Transmission Distance |
TD |
- |
- |
40 |
km |
- |
| Coupled fiber |
Single mode fiber |
- |
9/125um SMF |
Note: 100G Ethernet and ITU-T OTU4 has different register setting, not auto-negotiation.
Frequently Asked Questions
Q1: What is the maximum transmission distance for the QSFP28 100G ER4?
A: The module supports up to 40 km transmission distance over Single Mode Fiber (SMF) when FEC (Forward Error Correction) is enabled.
Q2: Which connector type does this module use?
A: It uses an industry-standard Duplex LC optical receptacle for connection.
Q3: Is the module hot-pluggable?
A: Yes, it features an electrically hot-pluggable interface, allowing for installation or replacement without shutting down the system.
Q4: Does this module support Digital Diagnostics Monitoring (DDM)?
A: Yes, it includes a Digital Diagnostics Monitoring interface (DDM/DOM) compliant with SFF-8636.
Q5: What are the supported data rates?
A: It supports aggregate line rates from 103.125 Gbps to 111.81 Gbps, covering 100G Ethernet and OTU4 applications.
Q6: What is the power consumption of the module?
A: The module is designed for low power consumption, typically dissipating less than 4.0W.
