Cheap 24fo 12fibers MTP/APC MPO/APC SM G657A1 Trunk Cable Factory, Pricelist

- Pull Tab Optional - Termination connector: MTP-12, MPO-12 - End-face type: APC - IL: Elite 0.35dB, Standard type: 0.65dB - RL: 65dB - Factory pre-assembly. - 100% tested before shipment. - Cable jacket: LSZH, Yellow - Fiber type: Single mode YOFC G657A1 - Trunk cable length: customized - Cable print and labelling service: accept. - Packing: Standard Packing Carton Box with marks.

Send Inquiry

Product Description

ℹ

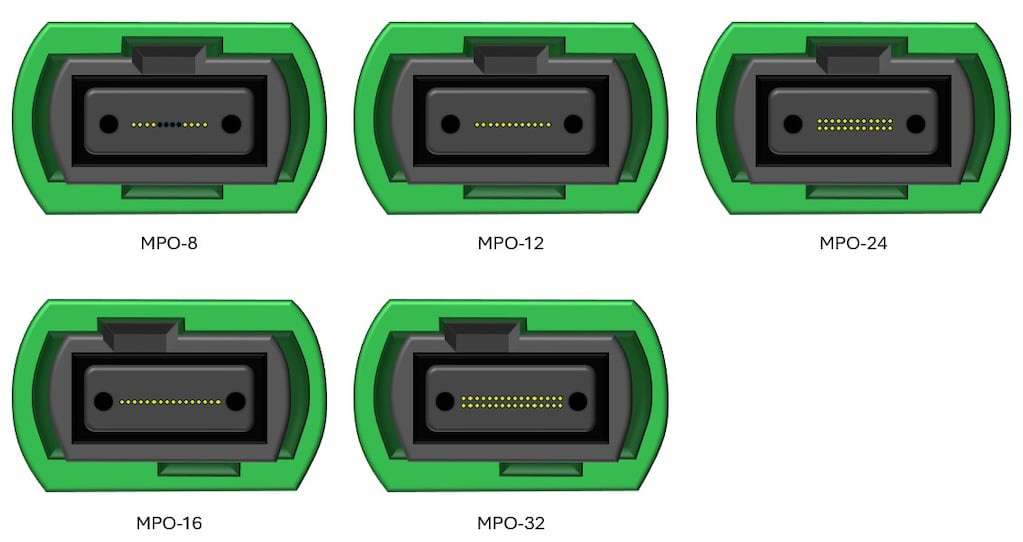

MPO APC (Angled Physical Contact) connectors are high-density, multi-fiber connectors featuring single-mode and some high-performance multimode networks. Typically housing 8, 12, 16, 24, 36 or 48 fibers in one connector, they are essential for data centers requiring low insertion loss and high return loss.

⚙

The 8 degree angle ensures reflected light leaks into the cladding, providing superior return loss compared to UPC (Ultra Physical Contact) connectors. APC connectors are traditionally green-colored. For high-performance applications, angled physical contact connectors are increasingly used in single-mode systems to prevent poor performance.

💎

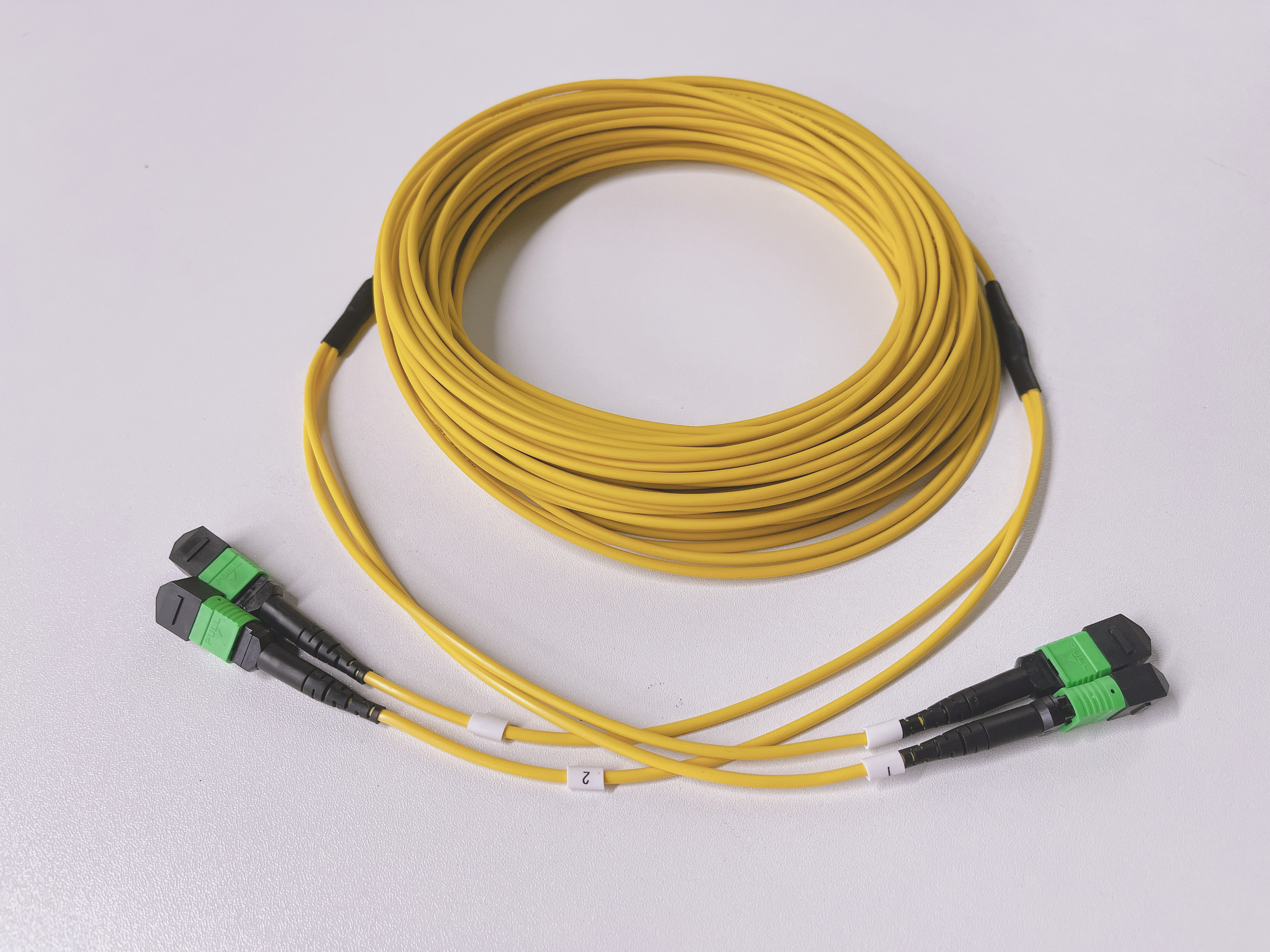

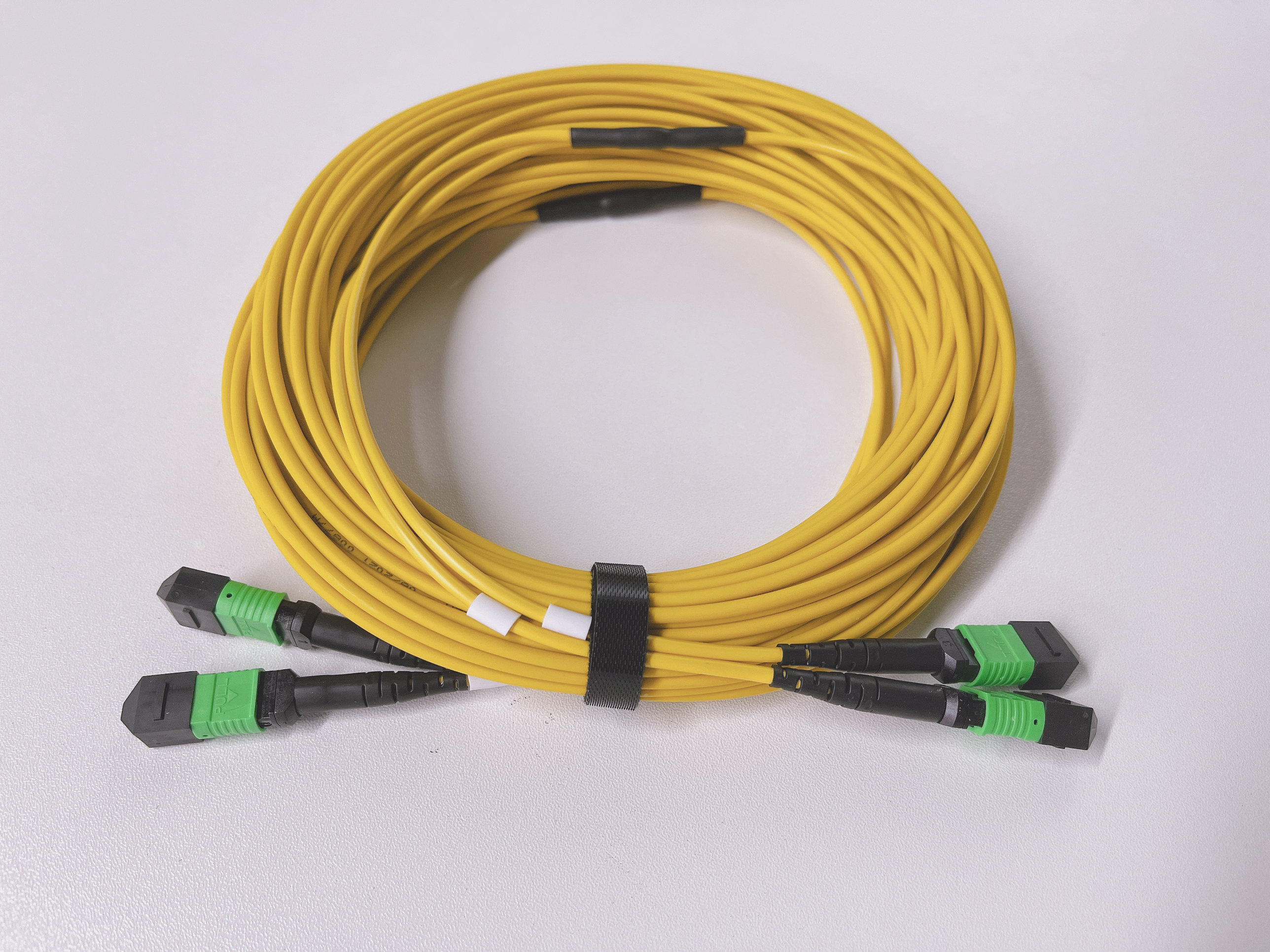

MPO APC Single Mode Trunk Cable use Single Mode G657A1 Fiber. Cable jacket color: typical use yellow color, accept customized as customer request. MPO APC Connector with green color and ferrule end-face with 8 degree.

Type	Single Mode (APC Polish)		Single Mode (UPC Polish)		Multi Mode (PC Polish)
Fiber Count	8, 12, 24 etc.		8, 12, 24 etc.		8, 12, 24 etc.
Fiber Type	G652D, G657A1 etc.		G652D, G657A1 etc.		OM1, OM2, OM3, OM4, OM5, etc.
Max. Insertion Loss	Elite (Low Loss)	Standard	Elite (Low Loss)	Standard	Elite (Low Loss)	Standard
IL Value	≤0.35 dB	≤0.75 dB	≤0.35 dB	≤0.75 dB	≤0.35 dB	≤0.60 dB
Return Loss	≥60 dB		≥60 dB		NA
Durability	≥500 times		≥500 times		≥500 times
Operating Temp	-40℃ ~ +80℃
Test Wavelength	1310nm		1310nm		1310nm
Insert-pull test	1000 times ＜ 0.5 dB
Interchange	＜ 0.5 dB
Anti-tensile force	15kgf

📡

Single Mode fiber optic cable has a small diametral core that allows only one mode of light to propagate. Because of this, the number of light reflections created as the light passes through the core decreases, lowering attenuation and creating the ability for the signal to travel further. This application is typically used in long distance, higher bandwidth runs by Telcos, CATV companies, and Colleges and Universities.

Applications

Data Center Interconnect
Head-end termination to a fiber "backbone"
Termination of fiber rack systems
Metro Networks
High-Density Cross Connect
Telecommunication Networks
Broadband / CATV / LAN / WAN
Test Labs

Frequently Asked Questions

What is the main advantage of the MPO APC 8-degree angle?

The 8-degree angle ensures that reflected light leaks into the fiber cladding rather than traveling back to the source, resulting in superior return loss performance compared to UPC connectors.

What fiber types are typically used in MPO APC Single Mode Trunk Cables?

These cables typically utilize Single Mode G657A1 or G652D fibers, which are optimized for low attenuation and high-performance data transmission.

How many fibers can be housed in a single MPO connector?

A single MPO connector is designed for high density and can typically house 8, 12, 16, 24, 36, or 48 fibers depending on the application requirements.

Why is Single Mode fiber preferred for long-distance communication?

Single Mode fiber has a small core that allows only one mode of light to propagate, which reduces light reflections and attenuation, allowing signals to travel much further than multimode fiber.

What is the difference between Elite and Standard Insertion Loss?

Elite (Low Loss) connectors provide a maximum insertion loss of ≤0.35 dB, while Standard connectors have a maximum insertion loss of ≤0.75 dB, making Elite versions ideal for power-sensitive data center environments.
