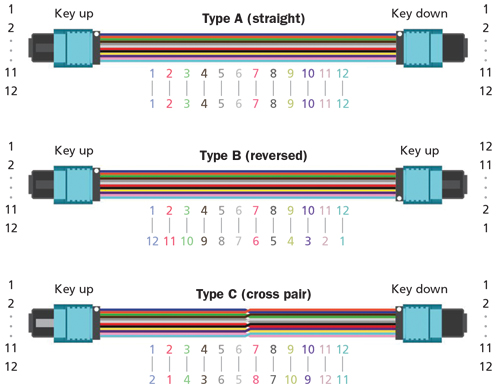

The MTP MPO (Multi-fiber Push On) fiber optic connector is a specialized optical connector that serves as the primary multiple fiber interface for high-speed telecom and data communications networks. Standardized under IEC 61754-7 and TIA 604-5, this system is the backbone of modern high-performance connectivity.
Initially supporting telecommunications systems in Central and Branch offices, the MTP MPO connector has evolved into the primary connectivity solution for HPC (High-Performance Computing) labs and enterprise datacenters. While it significantly increases data capacity through efficient space utilization, it also introduces unique requirements for testing and troubleshooting compared to single-fiber connectors.

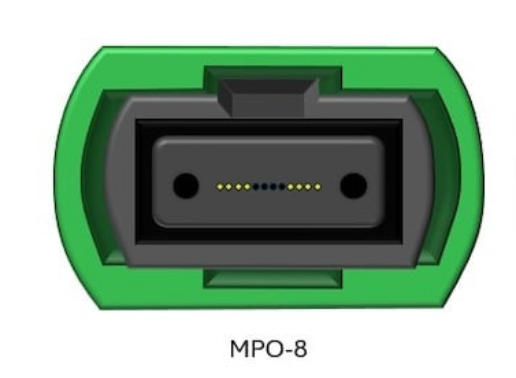

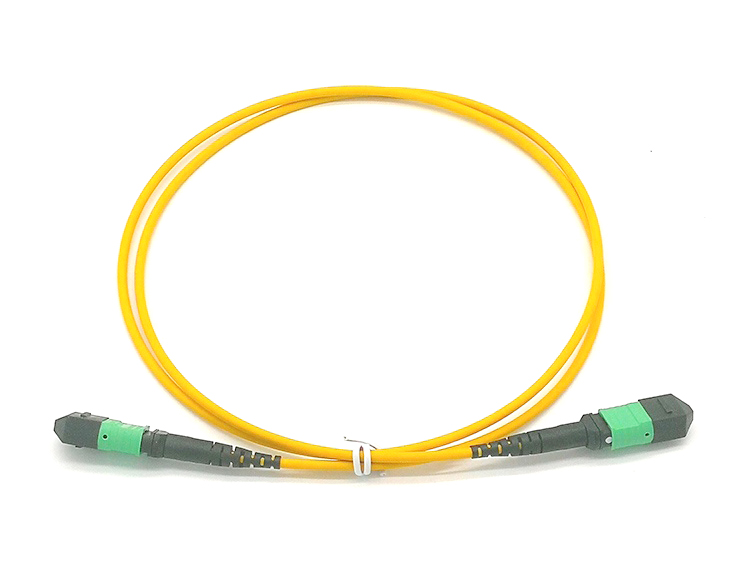

An MTP8 / MPO-8 connector contains eight individual fiber cores arranged in a single row. It is the foundation of "Base-8" cabling architecture, specifically engineered to match the requirements of 40G, 100G, and 400G transceivers.
| Type | Single Mode (APC) | Single Mode (UPC) | Multi Mode (PC) | |||
|---|---|---|---|---|---|---|
| Fiber Count | 8, 12, 16, 24, 32, 48 etc. | 8, 12, 16, 24, 32, 48 etc. | 8, 12, 16, 24, 32, 48 etc. | |||
| Fiber Type | G652D, G657A1 etc. | G652D, G657A1 etc. | OM1, OM2, OM3, OM4, OM5 | |||
| Performance | Elite | Standard | Elite | Standard | Elite | Standard |
| Max Insertion Loss | ≤0.35 dB | ≤0.75 dB | ≤0.35 dB | ≤0.75 dB | ≤0.35 dB | ≤0.60 dB |
| Return Loss | ≥60 dB | ≥60 dB | N/A | |||
| Durability | ≥500 times | ≥500 times | ≥500 times | |||
| Operating Temp | -40°C ~ +80°C | |||||
| Tensile Force | 15 kgf | |||||
Single Mode fiber optic cables utilize a small diametral core that allows only one mode of light to propagate. This reduces light reflections and attenuation, allowing signals to travel significantly further at higher bandwidths.

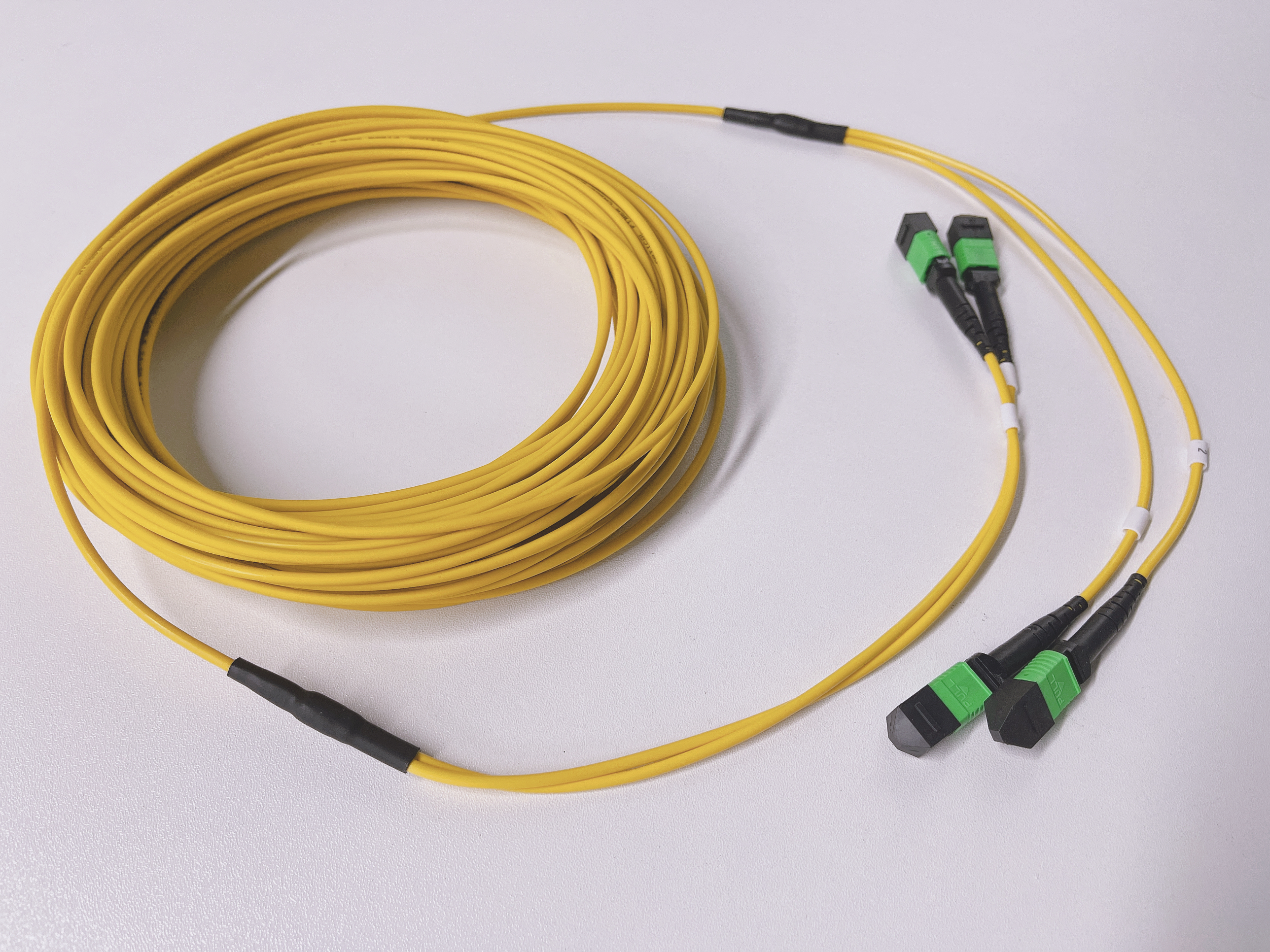

Typical MTP MPO trunk cables utilize a 3.0mm diameter cable. To ensure superior transfer quality, G657A1 fiber is commonly used. These trunk cables are available in various configurations, including 8, 12, 16, 24, 32, and 48 fibers per connector. In high-density AI centers, multiple connectors can be combined into a single cable (e.g., a 24-core cable using 3x MTP8 connectors) to save space and labor costs.
A: They offer high-density connectivity, allowing multiple fibers to be terminated in a single connector, which saves significant space in data centers and simplifies cable management.
A: Elite (Low Loss) connectors have a lower maximum insertion loss (typically ≤0.35 dB) compared to standard connectors (≤0.75 dB), ensuring better signal integrity for high-speed networks.
A: Most 40G to 400G transceivers use 8 fibers (4 for transmit and 4 for receive). Base-8 cabling provides a 1:1 match, eliminating wasted fibers that occur with traditional 12-fiber systems.
A: Yes, Single Mode fiber (G652D or G657A1) is specifically designed for long-distance and high-bandwidth applications by reducing signal attenuation.
A: A breakout cable has an MPO connector on one end and multiple individual connectors (like LC duplex) on the other, allowing one high-speed port to connect to multiple lower-speed devices.
A: Yes, quality MTP/MPO connectors are rated for at least 500 mating cycles, making them suitable for dynamic data center environments.
