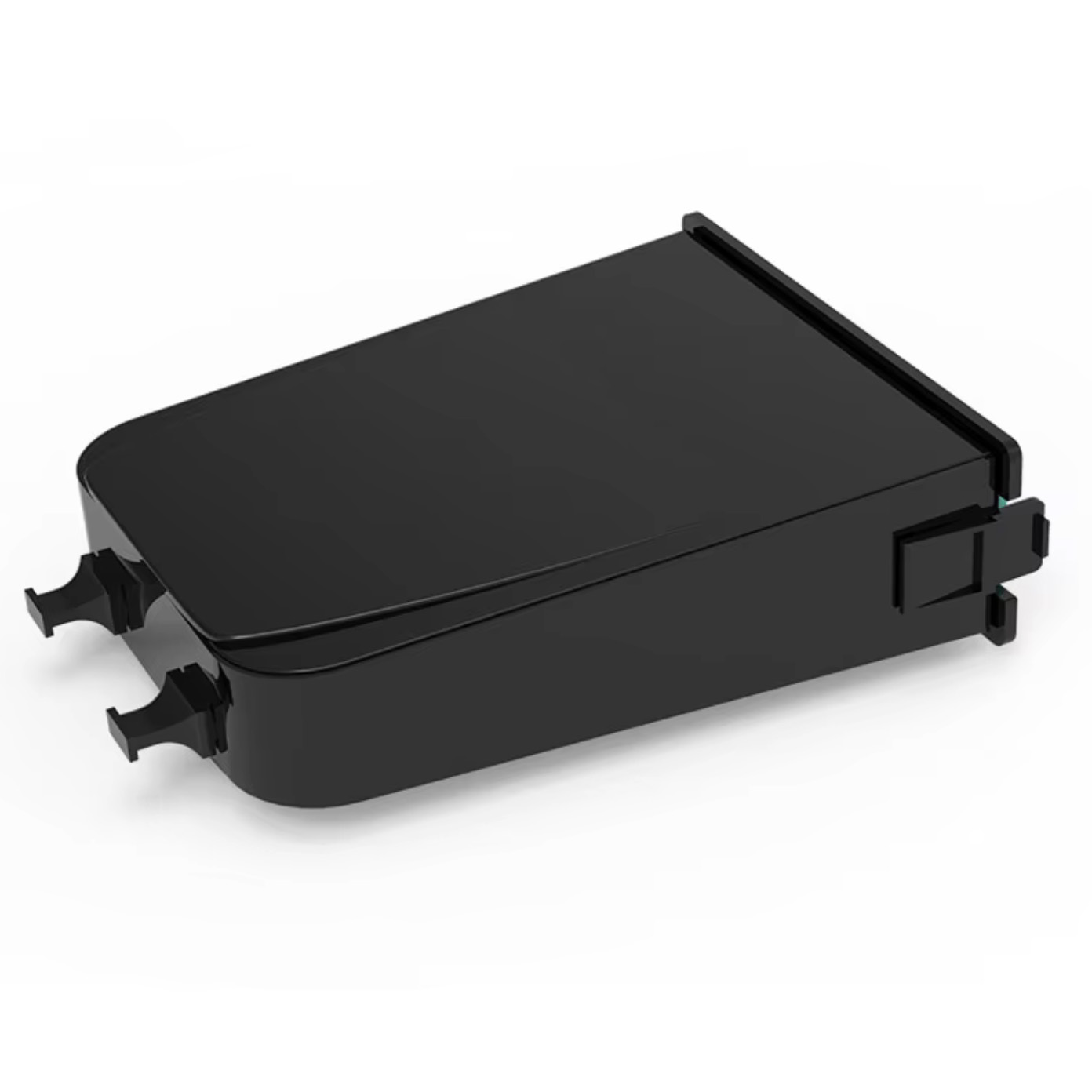

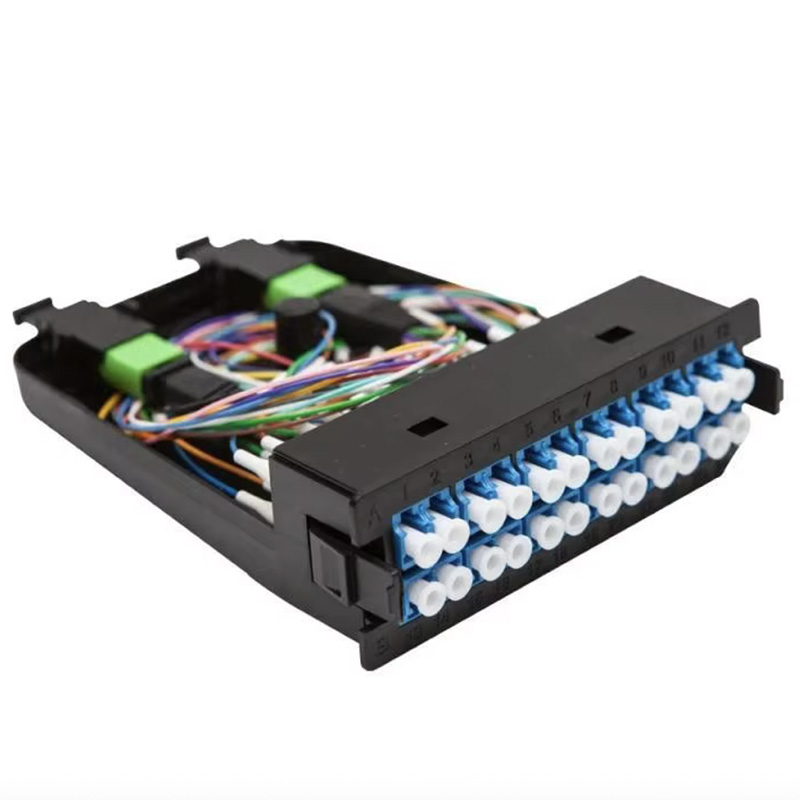

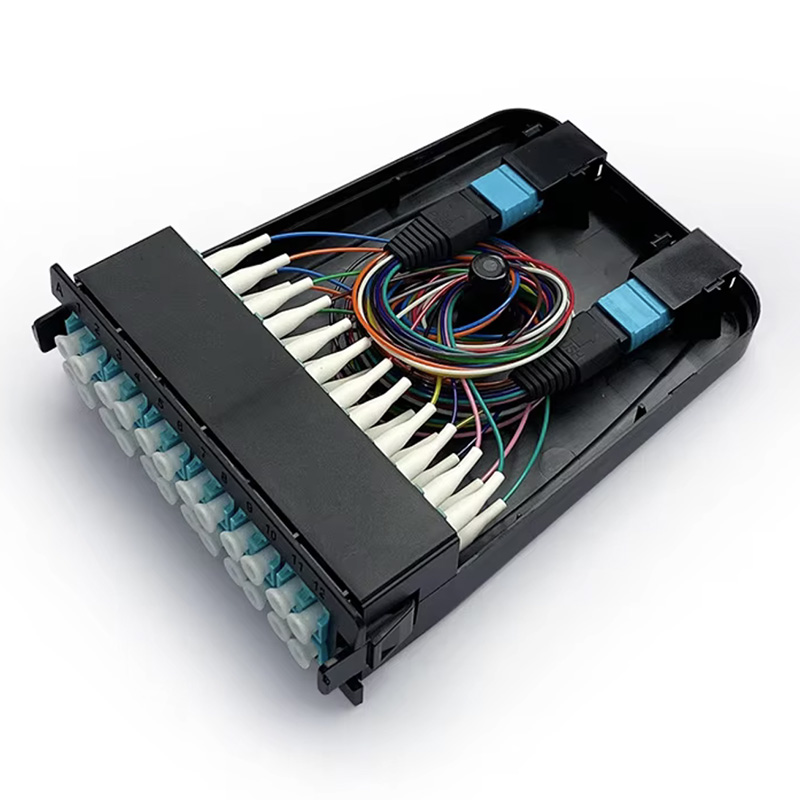

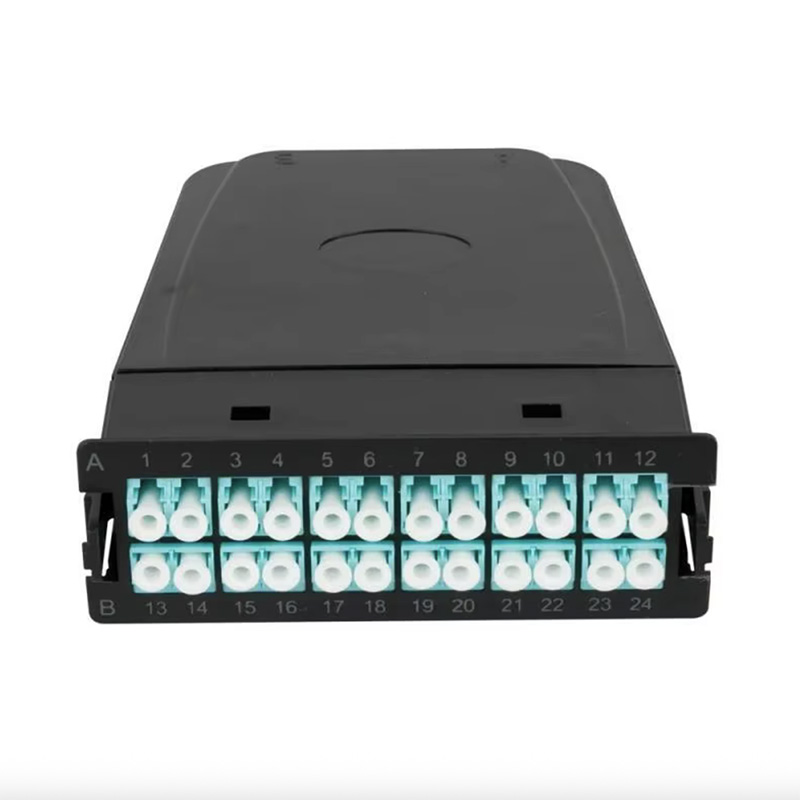

MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching. Modular system allows for rapid deployment of high-density data center infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19” multi-slot chassis. MPO Cassettes contain factory controlled and tested MPO-LC fan-outs to deliver optical performance and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.
Send Inquiry

Product Description

Versatile panel with extendable double slide rails for smooth sliding.
1RU suitable 2-4pcs KNC standard adapter plates at different size.
Silkscreen printing on the front aperture for fiber identification.
Comprehensive accessory kit for cable entry and fiber management.
Able to hold MTP (MPO) loaded cassettes.
Customize design available.
Type Single Mode (APC Polish) Single Mode (UPC Polish) Multi Mode (PC Polish)
Fiber Count 8, 12, 24 etc. 8, 12, 24 etc. 8, 12, 24 etc.
Fiber Type G652D, G657A1, etc. G652D, G657A1, etc. OM1, OM2, OM3, OM4, OM5, etc.
Max Insertion Loss Elite / Low Loss Standard Elite / Low Loss Standard Elite / Low Loss Standard
≤0.35 dB ≤0.75 dB ≤0.35 dB ≤0.75 dB ≤0.35 dB ≤0.60 dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temp -40℃ ~ +80℃ -40℃ ~ +80℃ -40℃ ~ +80℃
Test Wavelength 1310nm 1310nm 1310nm
+ MTP MPO fiber optic patch panel
Frequently Asked Questions
Q1: What are the main features of this patch panel? A: It features extendable double slide rails for smooth operation, 1RU height supporting 2-4pcs adapter plates, and compatibility with MTP/MPO loaded cassettes.
Q2: Does it support different fiber modes? A: Yes, it supports Single Mode (APC and UPC polish) and Multi Mode (PC polish) covering G652D, G657A1, and OM1 through OM5 fiber types.
Q3: What is the maximum fiber count available? A: The panel can accommodate fiber counts of 8, 12, 24, and other customized configurations depending on your requirements.
Q4: What is the insertion loss performance? A: For Single Mode Elite/Low Loss versions, the insertion loss is ≤0.35 dB. Standard versions vary from ≤0.60 dB to ≤0.75 dB depending on the mode.
Q5: Is customization available for this product? A: Yes, customized designs are available to meet specific network architecture and fiber management needs.
Q6: What accessories are included? A: The panel comes with a comprehensive accessory kit designed for efficient cable entry and organized fiber management.
