Cheap 100G QSFP28 PSM4 SMF 1310nm 2KM MTP MPO Fiber Optic Transceiver Supplier, Factory
Cheap 100G QSFP28 PSM4 SMF 1310nm 2KM MTP MPO Fiber Optic Transceiver Supplier, Factory
Cheap 100G QSFP28 PSM4 SMF 1310nm 2KM MTP MPO Fiber Optic Transceiver Supplier, Factory
1 / 3
Cheap 100G QSFP28 PSM4 SMF 1310nm 2KM MTP MPO Fiber Optic Transceiver Supplier, Factory
Cheap 100G QSFP28 PSM4 SMF 1310nm 2KM MTP MPO Fiber Optic Transceiver Supplier, Factory
Cheap 100G QSFP28 PSM4 SMF 1310nm 2KM MTP MPO Fiber Optic Transceiver Supplier, Factory

Cheap 100G QSFP28 PSM4 SMF 1310nm 2KM MTP MPO Fiber Optic Transceiver Supplier, Factory

- P/N: KCO-QSFP28-100G-PSM4 - Up to 26Gbps per channel bandwidth; - Compliant with QSFP28 MSA - 4 channels 1310nm DFP - 4 channels PIN photo detector array - Up to 2km reach over standard single mode fiber - MTP MPO connector compatible - Hot pluggable electrical interface - Single +3.3V power supply operating - Commercial Temperature range 0°C to 70°C - Compliant to IEEE 802.3ba for 100GBASE-PSM4 links - RoHS Compliant Part
Send Inquiry

Product Description

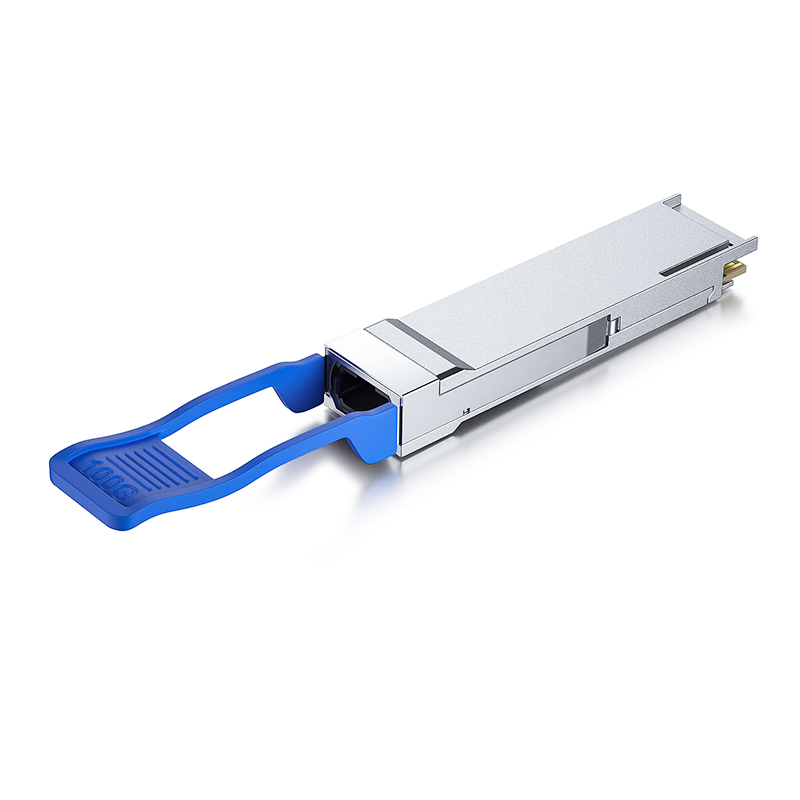

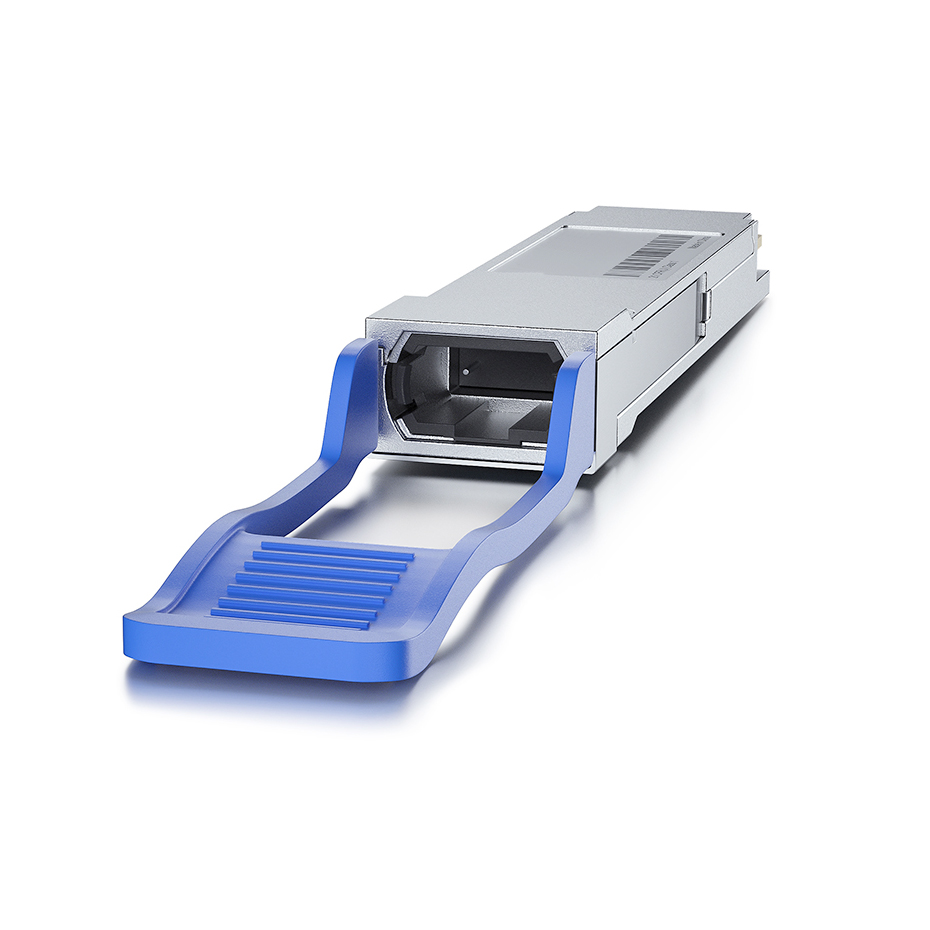

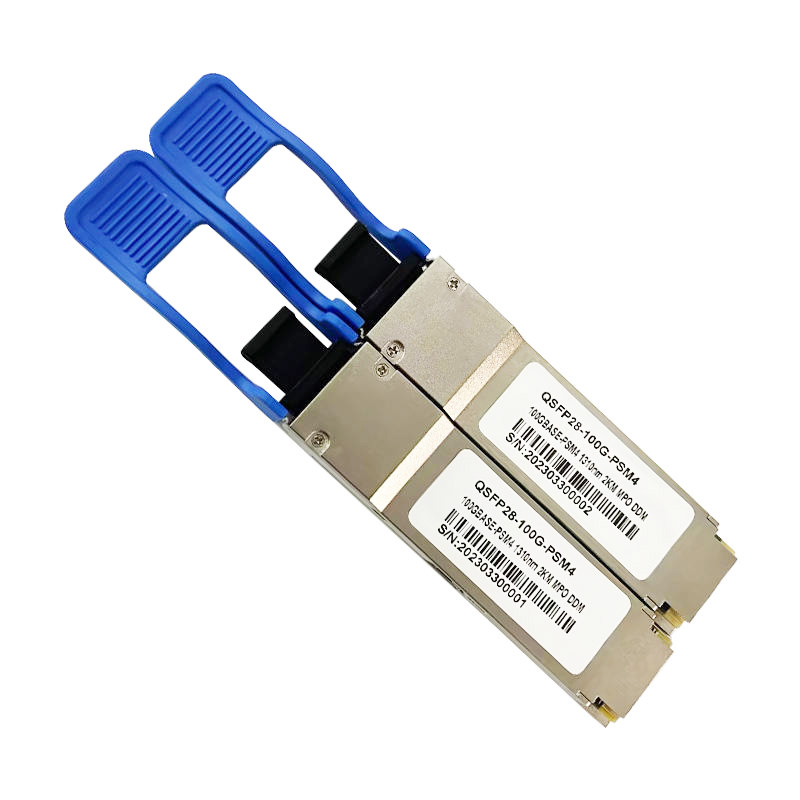

The QSFP28-100G-PSM4 is a 4x25G hot-pluggable optical transceiver module.
Designed for 2km optical communication over single mode fiber (1310nm) via MPO connectors.
Fully compliant with QSFP28 MSA and IEEE 802.3bm 100GBASE-PSM4 standards.
Engineered for harsh environments, resistant to temperature, humidity, and EMI interference.
Form Factor QSFP28 Max Data Rate 100 Gbps
Wavelength 1310nm Center Wavelength 1295, 1325nm
Max Cable Distance 2KM Connector Type MTP / MPO
Fiber Cable Type SMF Transmitter Type FP
DDM Supported Operating Temp. 0°C to 70°C
Receiver Type PIN Standard IEEE 802.3bm
Key Applications:
40G/100G Ethernet Links Infiniband DDR/EDR Data Centers Enterprise Networking Core & Distribution Layers
100G PSM4 Transceiver
What is the maximum reach of the 100G PSM4 module?
This transceiver is designed to support transmission distances of up to 2km over Single Mode Fiber (SMF).
What type of connector does this module use?
It utilizes an MPO/MTP connector interface for 4-lane parallel optical communication.
Does the module support real-time monitoring?
Yes, the module supports Digital Diagnostic Monitoring (DDM) according to the QSFP28 Multi-Source Agreement (MSA).
Is this transceiver hot-swappable?
Yes, it is a hot-pluggable optical transceiver, allowing for easy installation and maintenance without powering down the system.
What standards does this module comply with?
It complies with QSFP28 MSA and IEEE 802.3bm 100GBASE-PSM4 standards.
What is the operating temperature range?
The module is designed to operate reliably within a commercial temperature range of 0°C to 70°C.
