OEM 200G QSFP-DD Active Optical Cable OM3 Suppliers, Products

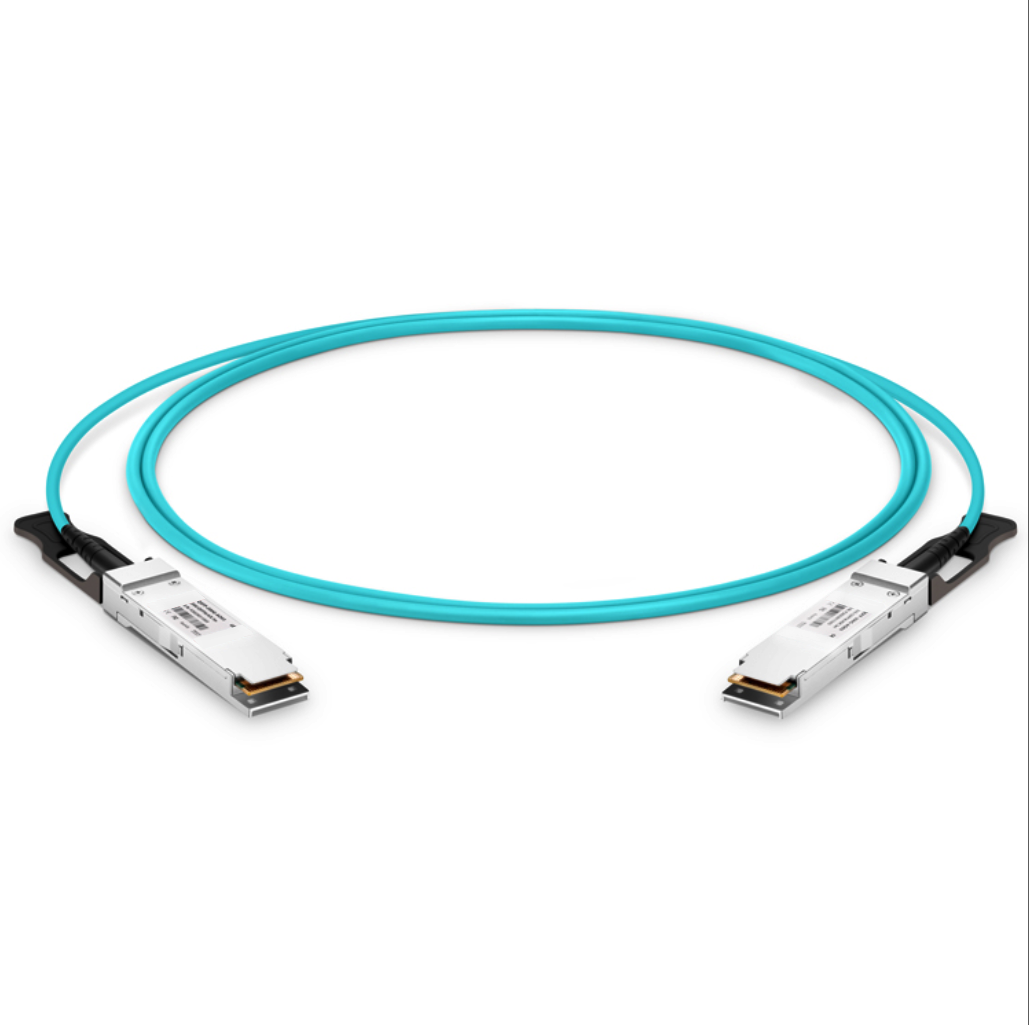

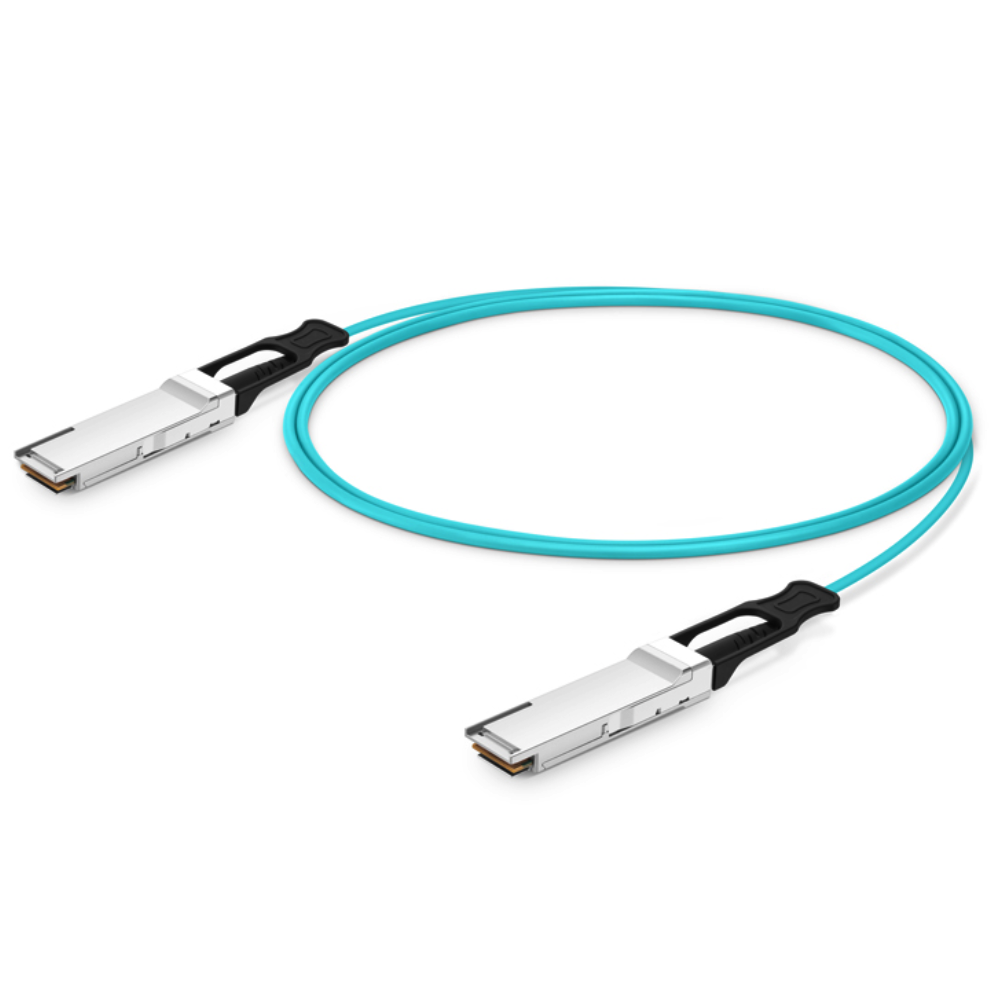

The KCO-200G-QSFP-DD-xM active optical cable is designed for use in 200 Gigabit Ethernet links over OM3 multimode fiber. This KCO-200G-QSFP-DD-xM active optical cable is compliant with QSFP-DD MSA V5.0 and CMIS V4.0. It provides a connection of a 200G QSFP-DD port to another QSFP-DD ports and is suitable for quick and simple connections within racks and across adjacent racks.

Product Description

Technical Specifications
Part Number 200G-QSFP-DD-xM
Form Factor QSFP-DD
Max Data Rate 200Gbps
Cable Length Customized
Cable Type OM3
Wavelength 850nm
Minimum Bend Radius 30mm
Transmitter Type VCSEL
Receiver Type PIN
Power Consumption <4W per end
Jacket Material LSZH
FEC Supported
Modulation Format NRZ
Protocols QSFP-DD MSA V5.0, CMIS V4.0
Commercial Temperature 0 to 70°C
Product Highlights
200G Data Center Foundation

Specifically designed for high-speed connectivity within and across racks, providing a massive interaction capacity for information-intensive environments.

Ultra-Low Power Consumption

Engineered for energy efficiency with less than 4W power consumption per end, significantly reducing operational costs and thermal load.

Superior Flexibility

Features a 30mm minimum bend radius and lightweight design, ensuring easy cabling and management in high-density environments.

Stable & Economical

A cost-effective solution that does not compromise on quality, utilizing VCSEL transmitters and PIN receivers for reliable 200Gbps performance.

Frequently Asked Questions
Q1: What is the maximum data rate supported by this QSFP-DD AOC?
The cable supports a massive data rate of up to 200Gbps using NRZ modulation format.
Q2: How much power does this cable consume during operation?
This AOC is designed for high efficiency, consuming less than 4W per end, which helps in reducing overall data center energy costs.
Q3: Is the cable flexible enough for tight spaces in server racks?
Yes, it features a minimum bend radius of 30mm and a lightweight design, making it ideal for complex and high-density cabling layouts.
Q4: What type of fiber and wavelength are used?
The assembly uses OM3 multi-mode fiber operating at an 850nm wavelength with VCSEL and PIN components.
Q5: Which industrial protocols does this AOC comply with?
It is fully compliant with the QSFP-DD MSA V5.0 and CMIS V4.0 standards, ensuring broad compatibility.
Q6: What is the operating temperature range?
The cable is designed for a commercial temperature range of 0 to 70°C (32 to 158°F).
