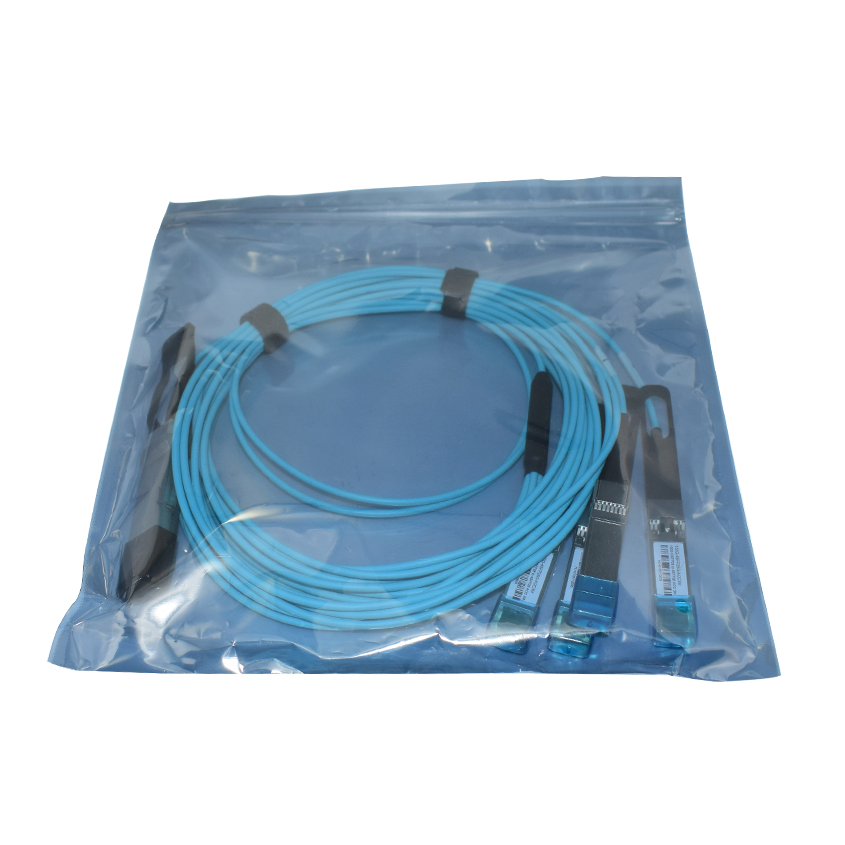

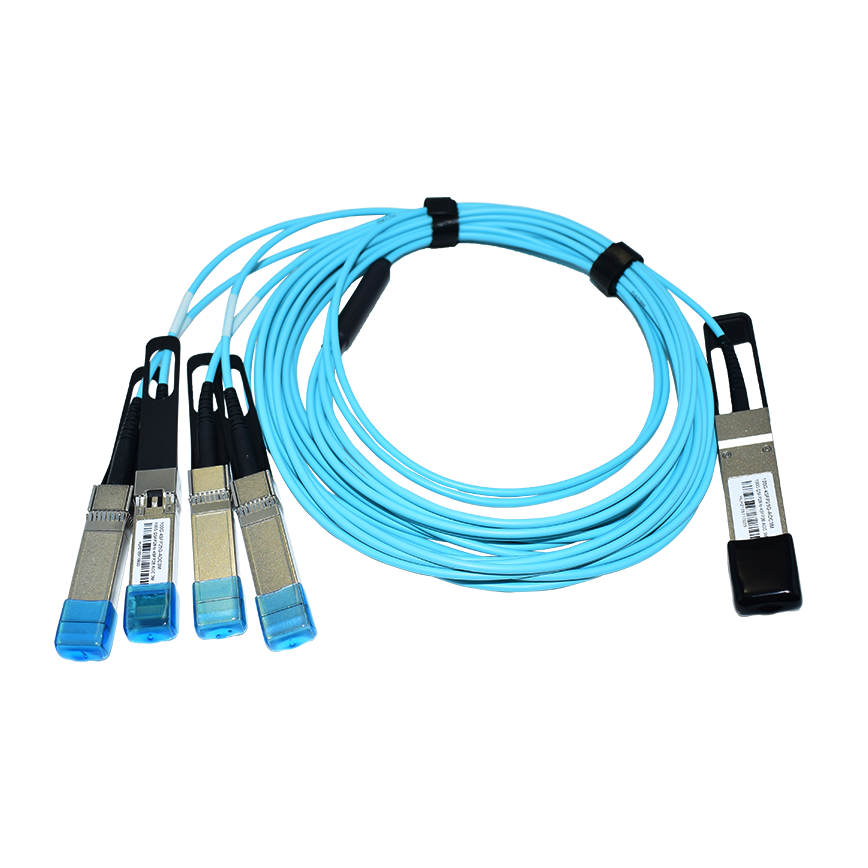

- The KCO-40QSFP-4SFP10-AOC-xM Cisco QSFP-4X10G-AOC1M Compatible 40G QSFP+ to 4 SFP+ Breakout Active Optical Cable operates over Multi-Mode Fiber (MMF). - This breakout cable is compliant with SFF-8436, SFF-8431 and SFP+ & QSFP MSA standards. - It provides a connection of a 40G QSFP+ port on one end and to four 10G SFP+ ports on the other end and is suitable for quick and simple connections within racks and across adjacent racks.
Send Inquiry

Product Description

● Key Standards & Specifications
✓
Compliant to the 40GBASE-SR4 and XLPPI Specification per IEEE 802.3ba-2010.
✓
Supporting 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications.
✓
Compliant to the industry standard SFF-8436.
● Technical Specifications
P/N KCO-40QSFP-4SFP10-AOC-xM
Connector Type QSFP+ to 4 SFP+
Max Data Rate 40Gbps
Minimum Bend Radius 30mm
Cable Length Customized
Jacket Material PVC (OFNP), LSZH
Temperature Range 0 to 70°C (32 to 158°F)
● Performance & Features
★
Power Efficiency: Power Level 1: Max Power < 1.5 W; Maximum power dissipation 0.35W per end.
★
High-Speed Transmission: Operates at 10.3125 Gbps per channel with 64b/66b encoding for 40GbE.
★
Advanced Technology: Proven High Reliability 850 nm technology with VCSEL transmitter and PIN receiver.
★
Ease of Use: Hot pluggable for easy servicing and Two Wire Serial interface for management.
★
Mechanical Design: Compliant to SFF-8431 electrical and SFF-8432 "IPF" mechanical specifications.
● Primary Applications
▶
40GbE and 10GbE break-out applications for Datacom switch and router connections.
▶
40G to 4×10G density applications for Datacom and Proprietary protocol.
▶
Data center high-speed transmission and lightweight cable management using optical fiber.
● Frequently Asked Questions
What is a QSFP+ to 4 SFP+ Breakout AOC?
It is an Active Optical Cable that connects a single 40Gbps QSFP+ port to four individual 10Gbps SFP+ ports, enabling high-density bandwidth distribution.
Is this cable compatible with standard networking equipment?
Yes, it is compliant with industry standards SFF-8436, SFF-8431, and SFF-8432, ensuring broad compatibility with major switch and router brands.
Can I customize the cable length?
Yes, the cable length is fully customized to meet the specific distance requirements of your data center or server room layout.
What are the advantages of using AOC over copper cables?
AOCs are lighter, thinner, and offer a tighter bend radius (30mm), which significantly improves airflow and cable management in high-density racks.
Does this cable support hot-plugging?
Yes, it is designed for hot-pluggable installation, allowing you to service or replace cables without powering down your network equipment.
What is the operating temperature range?
The cable operates efficiently within a standard commercial temperature range of 0 to 70°C (32 to 158°F).
